ØA
L
TABLE II: MODIFICATION CODES
CONTACT OPTIONS
Sym Description
B0
B1
Connector less contacts
Connector with gold plated contacts
ØB
ITS
Reverse Bayonet
Assemblies

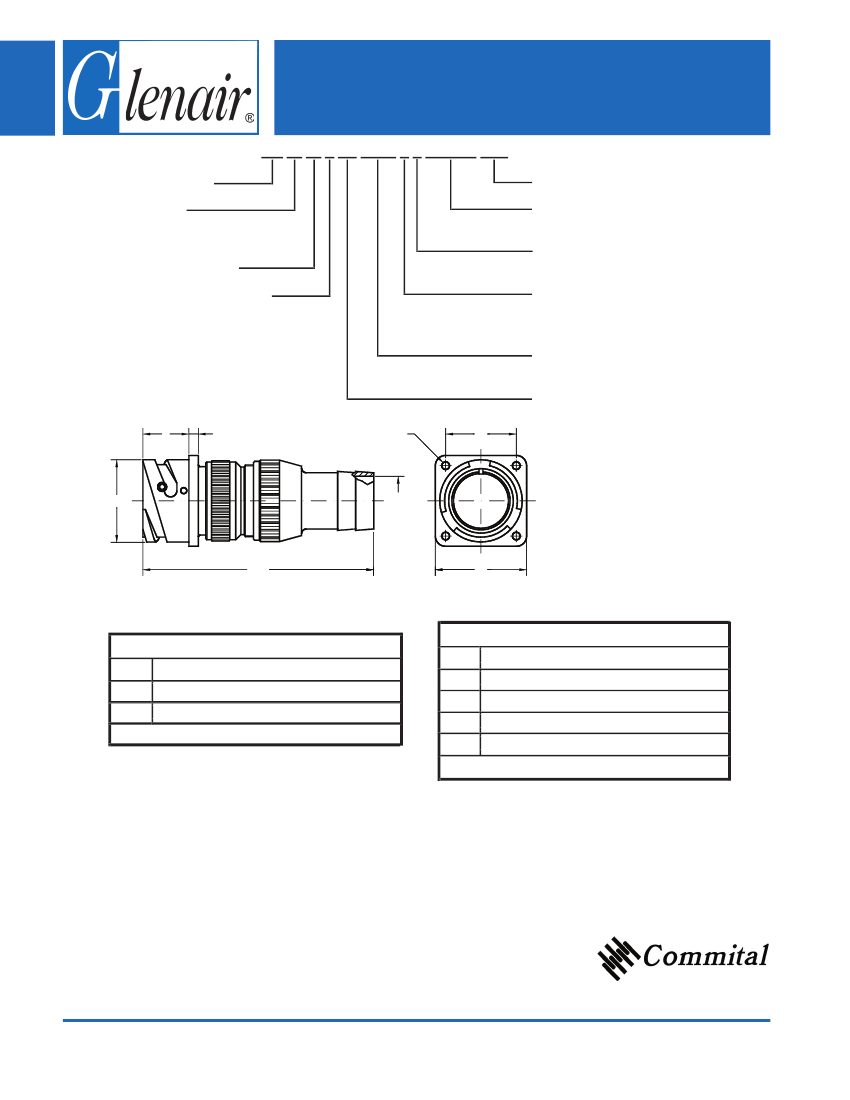

Front Panel Mount Square Flange Receptacle Assembly
with Backshell for Termination of UNI4883 Rubber Conduits
ITS 31 00 A FK 20-27 P Y BR2722 XXX
Bayonet Coupling
Contact Type
31 - Solder
41 - Crimp
00 - Front Wall Mount
Connector/Backshell Class
A - Non-Environmental;
Supplied with Backshell Only
Mod Code Option (See Table II)
UNI4883 Backshell Adapter Shell Size
Designator (See Note 1)
Alternate Insert Rotation (W, X, Y, Z)
Omit for Normal (See Intro 20-21)
Contact Gender
P - Pin
S - Socket
Shell Size and Insert Arrangement
(See Intro 6-25)
Material Option (Omit for Aluminum)
FK - Stainless Steel Passivate
MB - Marine Bronze
ITS 3100 A (BR) and ITS 4100 A (BR)
M
K
T
qR
qS
TABLE II (CONT.): MODIFICATION CODES
FINISH OPTIONS
Sym Description
F2
F6
F7
F8
Bright Nickel Plating
Black Electrodeposited Paint
Black Zn-Co Plating
Olive Drab Zn-Co Plating
Omit for Standard Version (Cad/Olive Drab)
Omit for standard version (Silver Plated)
Application Notes:
1. Front panel mount square flange receptacle with rear-end backshell for termination of UNI4883 type rubber
conduit.
Use last 6 digits in Backshell Part Number; Column 1, Table III to Designate UNI4883 Rubber Hose
Inner Diameter.
Through mounting holes.
2. Connector/Backshell Class “A” (non-environmental)—Wire sealing grommet not supplied.
3. Standard materials configuration consists of aluminum alloy with cadmium olive drab finish.
4. Standard contact material consists of copper alloy with silver plating
(Gold plating available, see mod codes).
5. Standard insert material is synthetic rubber.
Add “FR” prefix to front of part number to specify fire resistant inserts.
© 2006 Glenair, Inc.
U.S. CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
E-Mail: sales@glenair.com
A-6
Front Panel Mount Square Flange Receptacle Assembly
with Backshell for Termination of UNI4883 Rubber Conduits
ØA
+0
-0.1
18.2
24.5
27.2
27.2
30.7
34.0
37.3
40.9
46.7
53.4
59.6
65.5
ØB
±0.1
ITS 3100 A (BR) and ITS 4100 A (BR)
S he ll Size
10 S L
14 S
16 S
16
18
20
22
24
28
32
36
40
TABLE I: DIMENSIONS
K
L
M
+0.2
±0.2
Ma x.
-0
2.8
90.0
14.3
3.3
91.5
14.5
3.3
91.5
14.5
3.3
103.0
19.1
4.0
103.0
19.1
4.0
103.0
19.1
4.0
103.0
19.6
4.0
104.5
20.6
4.0
111.0
20.7
4.0
116.5
22.3
4.0
122.0
22.3
4.0
122.0
22.3
R
±0.1
18.25
23.00
24.60
24.60
27.00
29.40
31.75
34.90
39.70
44.45
49.20
55.55
S
+0.2
25.4
30.4
32.5
32.5
35.0
38.0
41.0
44.5
50.9
57.0
63.5
69.9
ØT
+0.1
-0
3.2
3.2
3.2
3.2
3.2
3.2
3.2
3.7
3.7
4.3
4.3
4.3
See Table III Below
TABLE III: BACKSHELL DIMENSIONS
Ba ckshe ll
Pa rt N umbe r
37267-10BR 1712
37267-18BR 2722
37267-20BR 1712
37267-20BR 2722
37267-20BR 2833
37267-28BR 2520
37267-28BR 2722
37267-28BR 3126
37267-28BR 3328
37267-28BR 3530
37267-28BR 3833
37267-28BR 5045
37267-32BR 3126
37267-32BR 3328
37267-32BR 3833
37267-32BR 4035
37267-32BR 5045
37267-36BR 3530
37267-36BR 3833
37267-36BR 4035
37267-36BR 5045
37267-40BR 4136
37267-40BR 4540
37267-40BR 5045
37267-40BR 5550
She ll S ize
10SL
18
20 - 22
20 - 22
20 - 22
24 - 28
24 - 28
24 - 28
24 - 28
24 - 28
24 - 28
24 - 28
32
32
32
32
32
36
36
36
36
40
40
40
40
A T hre a d
0.6250 - 24UNEF
1.0000 - 20UNEF
1.1875 - 18UNEF
1.1875 - 18UNEF
1.1875 - 18UNEF
1.4375 - 18UNEF
1.4375 - 18UNEF
1.4375 - 18UNEF
1.4375 - 18UNEF
1.4375 - 18UNEF
1.4375 - 18UNEF
1.4375 - 18UNEF
1.7500 - 18UNS
1.7500 - 18UNS
1.7500 - 18UNS
1.7500 - 18UNS
1.7500 - 18UNS
2.0000 - 18UNS
2.0000 - 18UNS
2.0000 - 18UNS
2.0000 - 18UNS
2.2500 - 16UN
2.2500 - 16UN
2.2500 - 16UN
2.2500 - 16UN
ØB
±0.1
10.5
20.5
10.5
20.5
31.5
16.5
20.5
22.5
26.5
26.5
31.5
36.2
24.5
26.5
31.5
31.5
40.0
26.5
31.5
31.5
43.5
31.5
38.5
43.5
48.5
ØQ
±0.2
20.0
30.0
34.0
34.0
42.0
45.0
45.0
45.0
45.0
45.0
45.0
45.0
53.0
53.0
53.0
53.0
53.0
57.4
57.4
57.4
57.4
63.0
63.0
63.0
63.0
IT
IT
IT
IT
IT
IT
IT
IT
IT
IT
IT
IT
IT
IT
IT
IT
IT
IT
IT
IT
IT
IT
IT
IT
IT
