3.5
L1
ITS
Reverse Bayonet
Assemblies
and Rotating Clamp Nut Backshell for Heat Shrink Tubing
ITS G 31 08 GR FK 20-27 P Y XXX
Bayonet Coupling
Grounding Fingers
(Omit for Standard)
Contact Type
31 - Solder
41 - Crimp
08 - 90° Plug Assembly
Connector/Backshell Class
GR - Environmental; Supplied with
Grommet and Backshell for
Heat Shrink Tubing
Mod Code Option (See Table II)
Alternate Insert Rotation (W, X, Y, Z)
Omit for Normal (See Intro 20-21)
Contact Gender
P - Pin
S - Socket
Shell Size and Insert Arrangement
(See Intro 6-25)
Material Option (Omit for Aluminum)
FK - Stainless Steel Passivate
MB - Marine Bronze

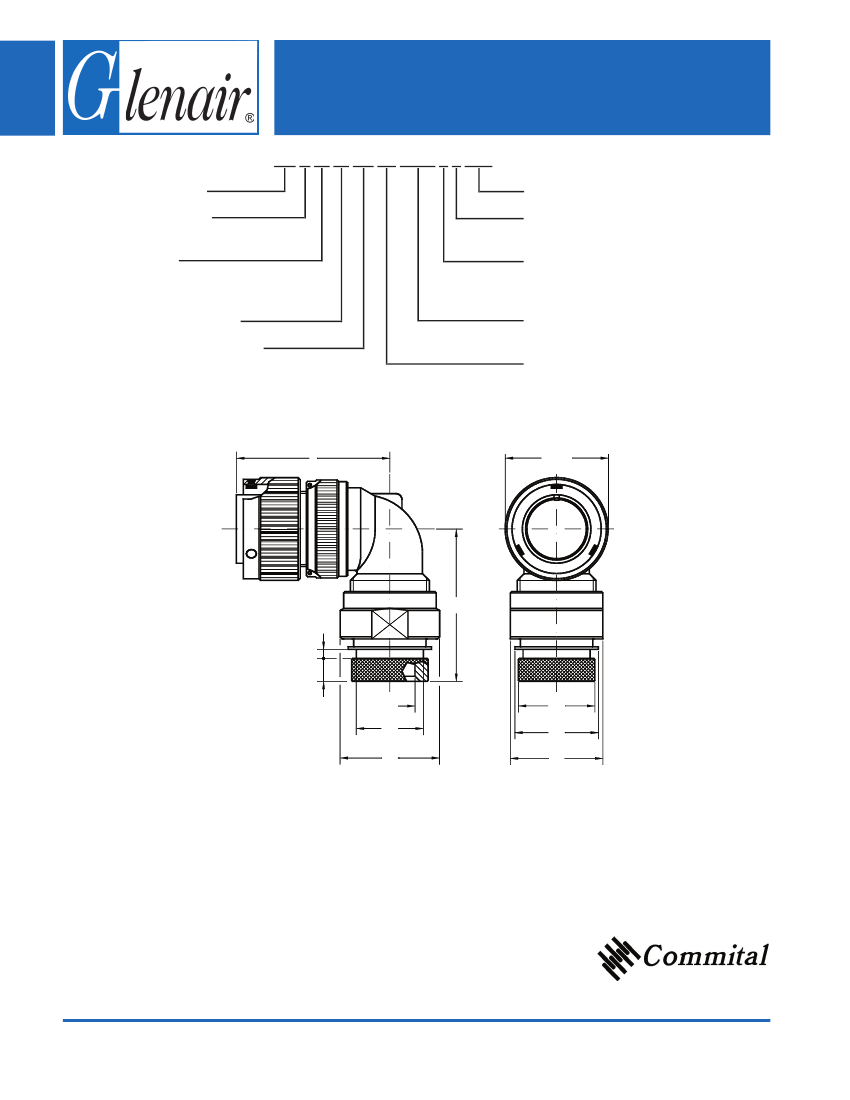

ITS 3108 (GR) and ITS 4108 (GR)
Cylindrical Plug Assembly with 90° Backshell
L
ØQ
U
ØB
ØC
ØD
ØE
ØF
K
Application Notes:
1. 90° plug with backshell for heat-shrink tubing. Rotating coupling nut supplied
2. Connector/Backshell Class “GR” (environmental)—Wire sealing grommet supplied.
3. Standard materials configuration consists of aluminum alloy with cadmium olive drab finish.
4. Standard contact material consists of copper alloy with silver plating
(Gold plating available, see mod codes).
5. A broad range of additional connector accessories are available.
See our website and/or contact the factory for complete information.
6. Standard insert material is synthetic rubber.
Add “FR” prefix to front of part number to specify fire resistant inserts.
© 2006 Glenair, Inc.
U.S. CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
E-Mail: sales@glenair.com
A-136
and Rotating Clamp Nut Backshell for Heat Shrink Tubing
TABLE I: DIMENSIONS
ØE
ØF
±0.2
15.5
19.1
23.9
23.9
23.9
29.6
29.6
37.8
37.8
47.8
47.8
57.8
±0.2
17.0
20.1
23.5
23.5
26.5
30.5
33.6
36.1
41.4
48.6
54.8
60.9
K Ke y
20
23
26
26
29
34
36
39
46
52
59
66
ITS 3108 (GR) and ITS 4108 (GR)
Cylindrical Plug Assembly with 90° Backshell
ØB
She ll S ize
10 SL
14 S
16 S
16
18
20
22
24
28
32
36
40
min.
8.5
12.0
14.5
14.5
17.5
19.5
22.0
25.0
29.0
34.0
38.5
48.0
ØC
±0.1
13.0
16.5
21.5
21.5
21.7
26.0
26.0
34.5
34.5
43.6
43.6
52.6
ØD
+0
-0.1
22.0
25.0
28.0
28.0
31.0
36.0
38.0
41.0
48.0
54.0
61.0
68.0
L
Ma x.
40
42
46
55
57
62
62
67
67
72
75
78
L1
Ma x.
8.2
8.2
8.2
8.0
8.0
8.9
8.9
9.2
9.2
11.7
11.7
11.7
ØQ
±0.2
22.6
29.0
31.6
31.6
36.2
39.8
43.0
46.4
53.0
60.0
66.2
72.3
U
Ma x.
51.0
52.5
53.0
50.0
56.0
57.5
57.5
62.5
64.5
72.0
76.0
81.0
TABLE II: MODIFICATION CODES
CONTACT OPTIONS
Sym Description
B0
B1
Connector Less Contacts
Connector with Gold Plated Contacts
FINISH OPTIONS
Sym Description
F2
F6
F7
F8
Bright Nickel Plating
Black Electrodeposited Paint
Black Zn-Co Plating
Olive Drab Zn-Co Plating
Omit for Standard Version
(Cad/Olive Drab Finish)
Omit for Standard Version (Silver Plated)
