MIL-C-24308
D-Subminiature
557-071

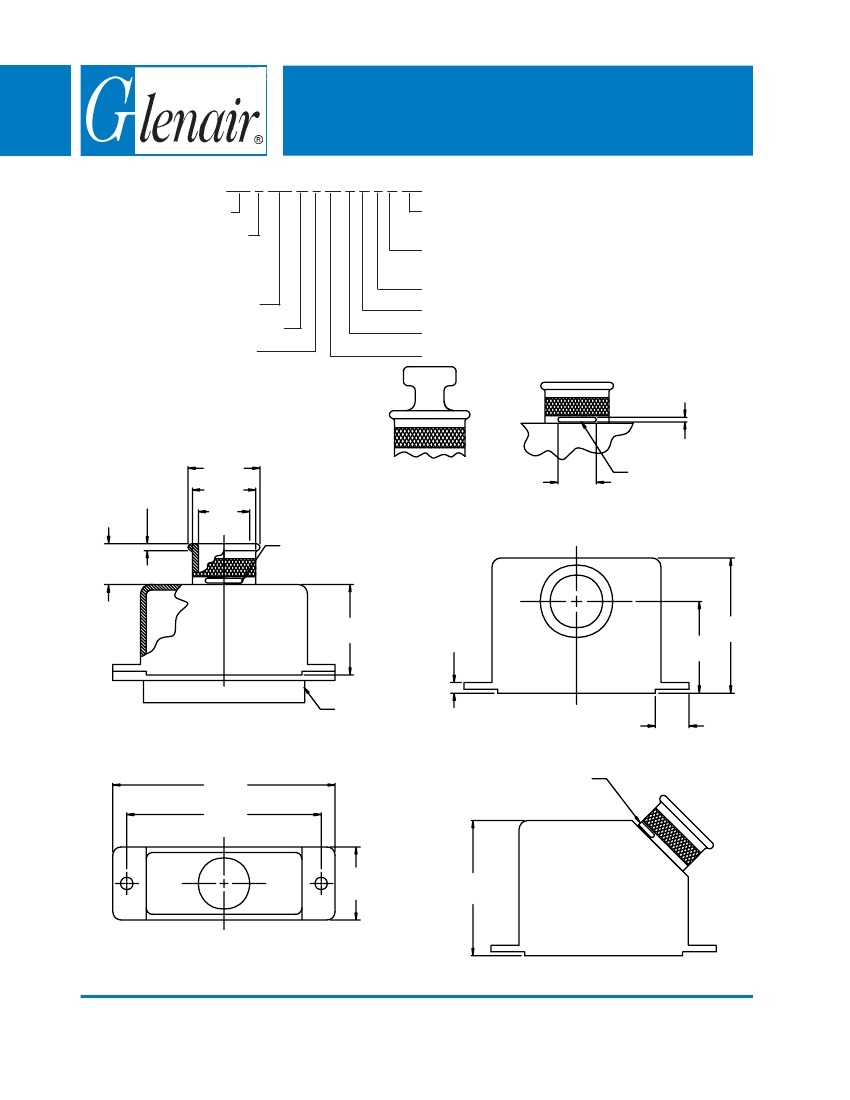

D-Subminiature Solid Banding Backshell
with Qwik-Ty
®
and Slot Options
557 T 071 M 2 31 S C T B -32
Basic Part No.
Cable Entry Style
T = Top
S = Side
B = 45°
Basic Part Number
Finish Symbol (Page 3)
Shell Size (Table I)
-32 = Band Platform Length of .32 and M Dia
(Omit for Standard .50 Length)
B = Band Supplied (600-052), Omit for None.
(Note: Band 600-057 Supplied If -32 Option)
Qwik-Ty Option (Omit for None)
Optional Retainer (Omit for Standard)
Slot (Omit for None)
Dash No. (Table II)
K Typ.
H/M*
.062 (1.6)
Typ.
G*
F*
.50 (12.7)
Max Typ.
Slot (Optional)
* Typ.
Qwik-Ty®
Option
L Typ
Slot Option
Slot
T
TOP
ENTRY
C
.25 (6.4)
Typ.
S
SIDE
ENTRY
.225
(5.7)
Typ.
Slot Option
J
E
Connector
Shown For
Reference
Only
A
D
B
C
B
45°
ENTRY
© 2004 Glenair, Inc.
CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
E-Mail: sales@glenair.com
A-54
557-071
D-Subminiature Solid Banding Backshell
with Qwik-Ty
®
and Slot Options
TABLE I: SHELL SIZE & BACKSHELL DIMENSIONS
Shell
Size
1
2
3
4
5
D
A
1.25
1.58
2.13
2.77
2.68
Max
(31.8)
(40.1)
(54.1)
(70.4)
(68.1)
.53
.53
.53
.53
.66
B
(13.5)
(13.5)
(13.5)
(13.5)
(16.8)
1.50
1.50
1.50
1.50
1.50
C
(38.1)
(38.1)
(38.1)
(38.1)
(38.1)
±.005
.984
1.312
1.852
2.500
2.406
(.1)
(25.0)
(33.3)
(47.0)
(63.5)
(61.1)
1.25
1.25
1.25
1.25
1.38
E
(31.8)
(31.8)
(31.8)
(31.8)
(35.1)
1.68
1.68
1.68
1.68
1.81
J
(42.7)
(42.7)
(42.7)
(42.7)
(46.0)
TABLE II: CABLE ENTRY
Dash
F Dia
G Dia
No.
.175 (4.4)
.300 (7.6)
16
.250 (6.4)
.375 (9.5)
23
.312 (7.9)
.437 (11.1)
30
.375 (9.5)
.500 (12.7)
31
.430 (10.9)
.555 (14.1)
32
.550 (14.0)
.675 (17.1)
33*
* Available in Shell Size 5 only.
H Dia
.412 (10.5)
.487 (12.4)
.550 (14.0)
.612 (15.5)
.667 (16.9)
.787 (20.0)
K Dim
L Dim
M Dia **
.08 (2.0)
.19 (4.8)
.362 (9.2)
.08 (2.0)
.22 (5.6)
.437 (11.1)
.08 (2.0)
.25 (6.4)
.500 (12.7)
.08 (2.0)
.28 (7.1)
.562 (14.3)
.08 (2.0)
.31 (7.9)
.617 (15.7)
.08 (2.0)
.38 (9.7)
.737 (18.7)
** Dia with -32 optional band platform length.
1. Metric dimensions (mm) are indicated in parentheses.
2.
DO NOT USE CONNECTORS WITH FLOAT.
.57 (14.5)
Ref.
.425
(10.8)
.425
(10.8)
4-40 UNC-2A
STANDARD HARDWARE SUPPLIED
2 Socket Head Jackscrews with
“E” rings (Ref. MS16633-4011)
supplied unassembled.
Glenair part number 687-172
4-40 UNC-2A
“C” OPTION
HARDWARE
Glenair part number
687-236
