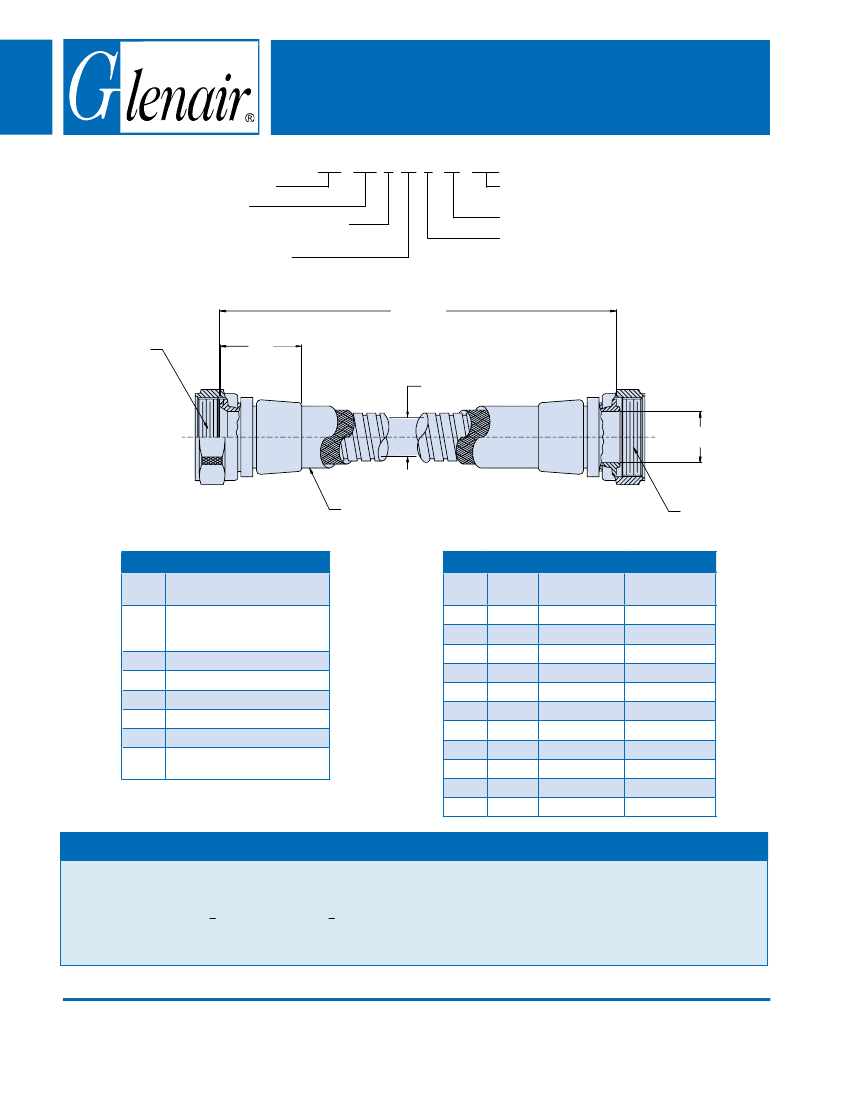

Factory Terminated Conduit Assembly

759 - 862 A 16 T 20 - 50.5

Product Series

Basic No.

‘A’ End Connector Designator

A,C,D,F,G,H & W (Table I & II)

‘A’ End Shell Size

(Table I)

Length

see P/N development

A thread

1.50

Max

I.D Table II

Length (in inches)

i.e. 50.5 = 50 1/2 inches

Conduit Dash No. (Table III)

‘B’ End

T = Transition Adapters (Table III)

759-862

Connector to Adapter

MIL-PRF

24758A

TABLE II

CONN.

CODE

SPECIFICATION

MIL-DTL-5015 (MS34**),

MIL-C-26482 SER. II, MIL-DTL-

83723 SER. I, III.

MIL-C-22992 SER. R

MIL-C-26482 SER. I

MIL-DTL-38999, SER. I

MIL-C-28840

MIL-DTL-38999 SER. III, IV

GLENAIR SER. 22 (GEO

MARINE)

Ref

(M24758-(PRF Size)

with Glenair

“BlueJacket”

C thread

TABLE III

DASH MIL PRF

SIZE

MIN.

0.245 (6.22)

0.370 (9.40)

0.495 (12.57)

0.620 (15.75)

0.745 (18.92)

0.995 (25.27)

1.245 (31.62)

1.495 (37.97)

1.995 (50.67)

2.495 (63.37)

2.995 (76.07)

C THREAD

CLASS 2B

.438-28 UNEF

.563-24 UNEF

.688-24 UNEF

.813-20 UNEF

.938-20 UNEF

1.250-18 UNEF

1.563-18 UNEF

1.875-16 UN

2.375-16 UN

2.875-16 UN

3.375-16 UN

APPLICATION NOTES

1. Assembly identiﬁed with manufacurer’s code identiﬁcation

number (Glenair, part number and classiﬁcation code 490).

2. Length tolerance is 0-24” = +1/4”, for longer lengths is +1% of length.

3. Glenair 600 series backshell assembly tools are recommended

for assembly installation.

4. Material / Finish:

Adapter, ferrule & coupling nut, AISI 316 stainless steel / electroless

nickel, matte ﬁnish.

5. Metric dimensions (mm) are indicated in parentheses.

CAGE Codes 06324

Printed in U.S.A.

GLENAIR, INC.

•

1211 AIR WAY

•

GLENDALE, CA 91201-2497

•

818-247-6000

•

FAX 818-500-9912

E-Mail: sales@glenair.com

www.glenair.com
