8925E-100-179

Description
Board Connector, 100 Contact(s), 2 Row(s), Female, 0.05 inch Pitch, IDC Terminal, Latch & Eject, Plug
CategoryThe connector    The connector
File Size393KB,3 Pages
ManufacturerKEL Corporation
Download Datasheet Parametric Compare View All

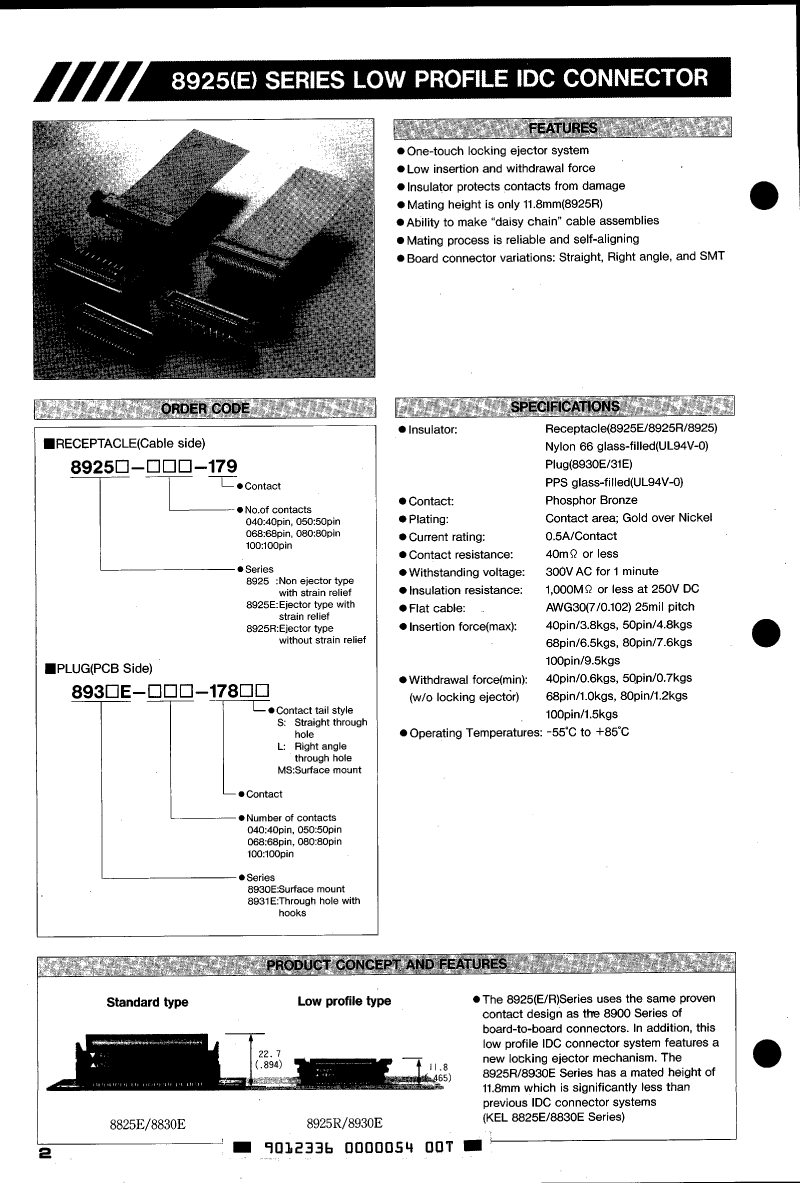

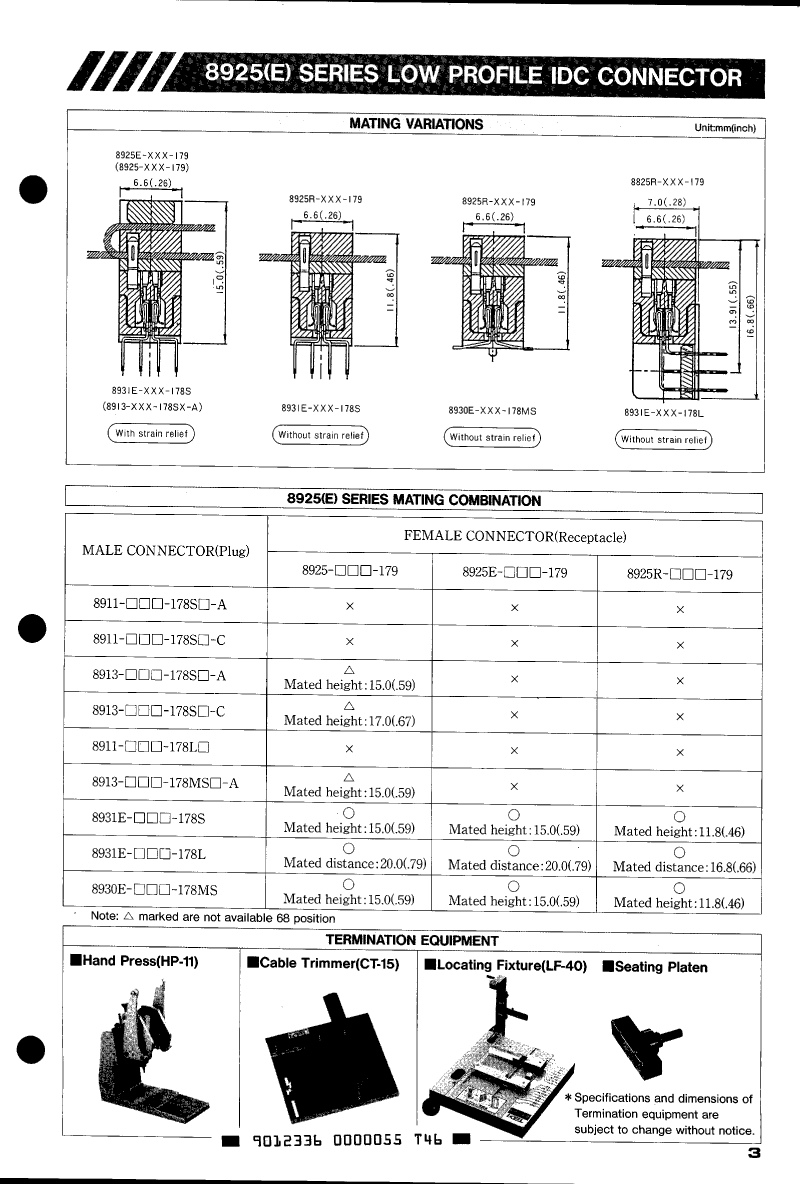

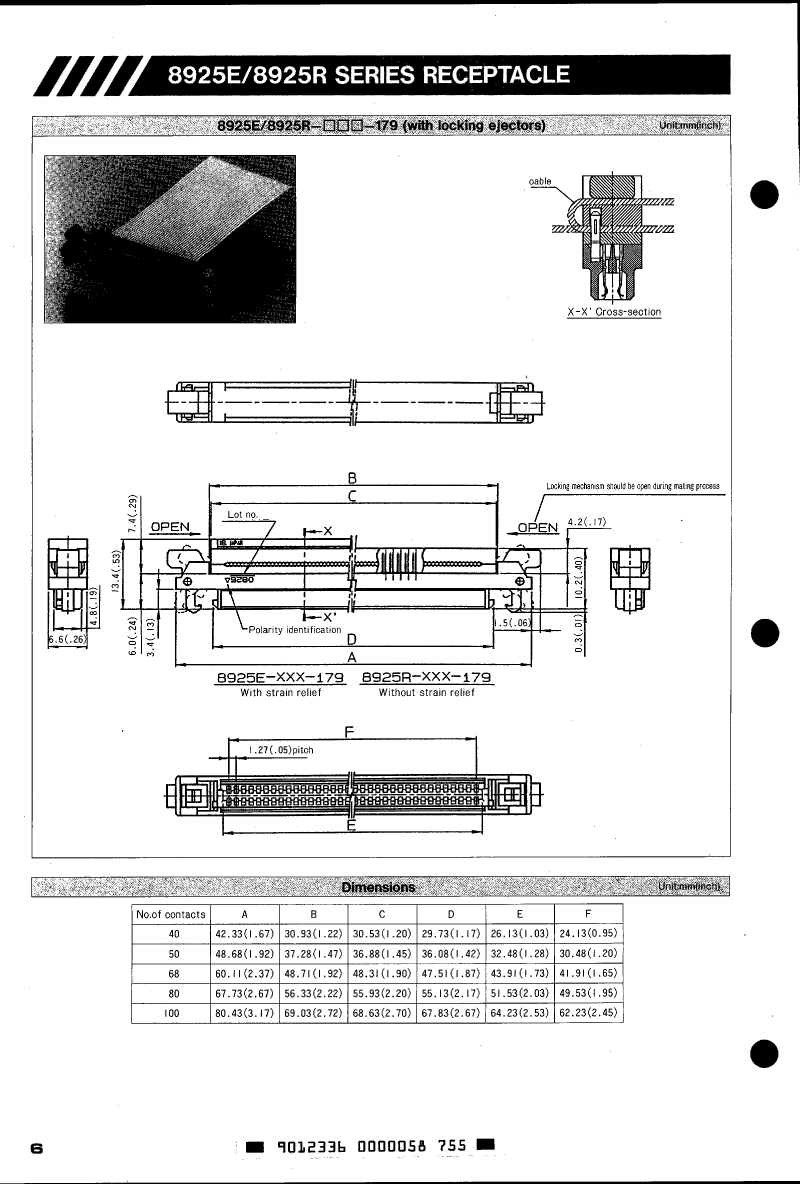

8925E-100-179 Overview

Board Connector, 100 Contact(s), 2 Row(s), Female, 0.05 inch Pitch, IDC Terminal, Latch & Eject, Plug

8925E-100-179 Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
MakerKEL Corporation
Reach Compliance Codeunknown
ECCN codeEAR99
Other featuresNONE
body width0.26 inch
subject depth0.528 inch
body length3.167 inch
Body/casing typePLUG
Connector typeBOARD CONNECTOR
Contact to complete cooperationAU
Contact point genderFEMALE
Contact materialPHOSPHOR BRONZE
contact modeRECTANGULAR
Contact resistance40 mΩ
Contact styleBELLOWED TYPE
Dielectric withstand voltage300VAC V
maximum insertion force.9452 N
Insulation resistance1000000000 Ω
insulator materialGLASS FILLED NYLON
Manufacturer's serial number8925E
Plug contact pitch0.05 inch
Installation option 1LATCH & EJECT
Installation option 2W/STRAIN RELIEF
Installation typeCABLE
Number of rows loaded2
Maximum operating temperature85 °C
Minimum operating temperature-55 °C
Rated current (signal)0.5 A
GuidelineUL
reliabilityCOMMERCIAL
Termination typeIDC
Total number of contacts100
Maximum wire diameter30 AWG
Minimum wire diameter30 AWG
Evacuation force-minimum value.139 N

8925E-100-179 Related Products

8925E-100-179 8925R-100-179
Description Board Connector, 100 Contact(s), 2 Row(s), Female, 0.05 inch Pitch, IDC Terminal, Latch & Eject, Plug Board Connector, 100 Contact(s), 2 Row(s), Female, 0.05 inch Pitch, IDC Terminal, Latch & Eject, Plug
Is it Rohs certified? incompatible incompatible
Maker KEL Corporation KEL Corporation
Reach Compliance Code unknown unknown
ECCN code EAR99 EAR99
Other features NONE NONE
body width 0.26 inch 0.26 inch
subject depth 0.528 inch 0.413 inch
body length 3.167 inch 3.167 inch
Body/casing type PLUG PLUG
Connector type BOARD CONNECTOR BOARD CONNECTOR
Contact to complete cooperation AU AU
Contact point gender FEMALE FEMALE
Contact material PHOSPHOR BRONZE PHOSPHOR BRONZE
contact mode RECTANGULAR RECTANGULAR
Contact resistance 40 mΩ 40 mΩ
Contact style BELLOWED TYPE BELLOWED TYPE
Dielectric withstand voltage 300VAC V 300VAC V
maximum insertion force .9452 N .9452 N
Insulation resistance 1000000000 Ω 1000000000 Ω
insulator material GLASS FILLED NYLON GLASS FILLED NYLON
Manufacturer's serial number 8925E 8925R
Plug contact pitch 0.05 inch 0.05 inch
Installation option 1 LATCH & EJECT LATCH & EJECT
Installation type CABLE CABLE
Number of rows loaded 2 2
Maximum operating temperature 85 °C 85 °C
Minimum operating temperature -55 °C -55 °C
Rated current (signal) 0.5 A 0.5 A
Guideline UL UL
reliability COMMERCIAL COMMERCIAL
Termination type IDC IDC
Total number of contacts 100 100
Maximum wire diameter 30 AWG 30 AWG
Minimum wire diameter 30 AWG 30 AWG
Evacuation force-minimum value .139 N .139 N
