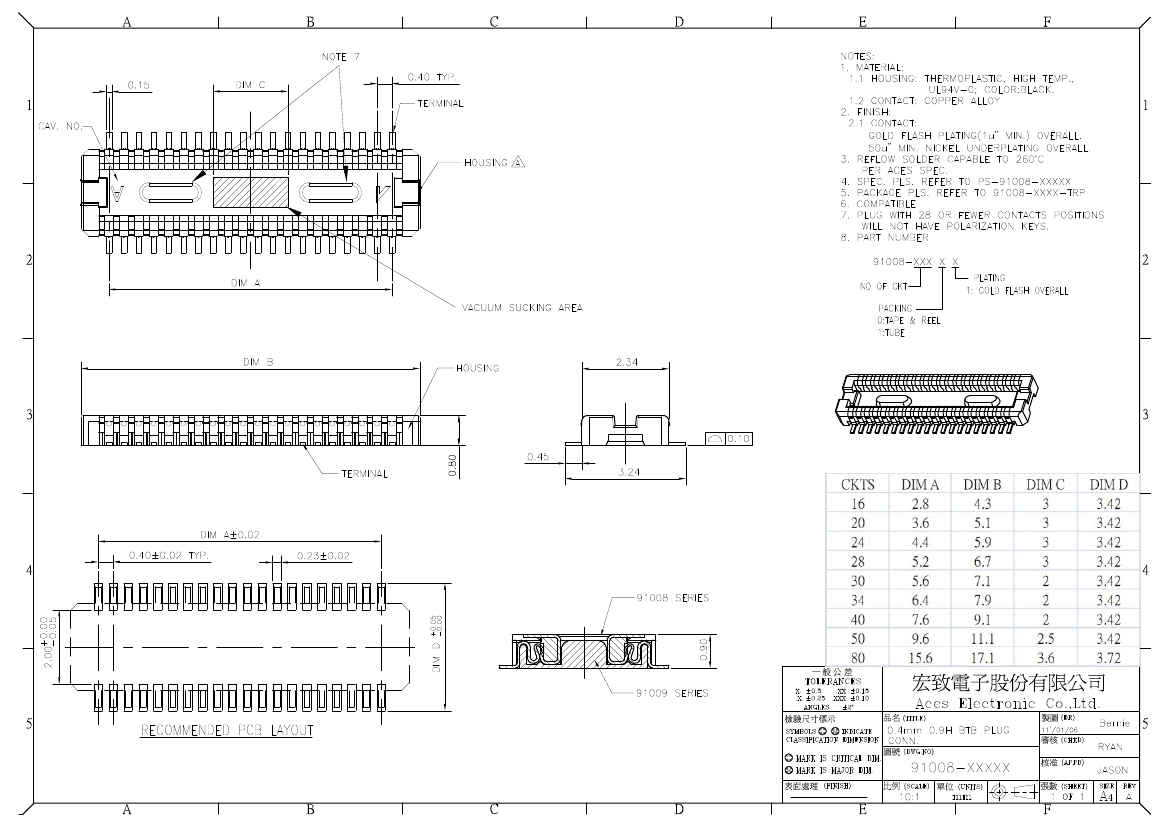

Board Connector, 80 Contact(s), 2 Row(s), Female, Straight, 0.016 inch Pitch, Surface Mount Terminal, Locking, Black Insulator, Plug
| Parameter Name | Attribute value |
| Is it Rohs certified? | conform to |
| Maker | Aces Electronics Co., Ltd. |
| Reach Compliance Code | unknown |
| Other features | TUBE PACKAGING |
| body width | 0.127 inch |
| subject depth | 0.035 inch |
| body length | 0.673 inch |
| Body/casing type | PLUG |
| Connector type | BOARD CONNECTOR |
| Contact to complete cooperation | AU ON NI |
| Contact completed and terminated | Gold (Au) - with Nickel (Ni) barrier |
| Contact point gender | FEMALE |
| Contact material | COPPER ALLOY |
| contact mode | RECTANGULAR |
| Contact resistance | 90 mΩ |
| Contact style | BELLOWED TYPE |
| Dielectric withstand voltage | 150VAC V |
| Durability | 30 Cycles |
| Insulation resistance | 1000000000 Ω |
| Insulator color | BLACK |
| insulator material | THERMOPLASTIC |
| JESD-609 code | e4 |
| Manufacturer's serial number | 91008 |
| Plug contact pitch | 0.016 inch |
| Installation option 1 | LOCKING |
| Installation method | STRAIGHT |
| Installation type | BOARD |
| Number of connectors | ONE |
| PCB row number | 2 |
| Number of rows loaded | 2 |
| Maximum operating temperature | 85 °C |
| Minimum operating temperature | -55 °C |
| PCB contact pattern | RECTANGULAR |
| PCB contact row spacing | 2.6924 mm |
| Plating thickness | FLASH inch |
| polarization key | POLARIZED HOUSING |
| Rated current (signal) | 0.3 A |
| Guideline | UL |
| reliability | COMMERCIAL |
| Terminal pitch | 0.4064 mm |
| Termination type | SURFACE MOUNT |
| Total number of contacts | 80 |
| 91008-08011 | 91008-05001 | |
|---|---|---|
| Description | Board Connector, 80 Contact(s), 2 Row(s), Female, Straight, 0.016 inch Pitch, Surface Mount Terminal, Locking, Black Insulator, Plug | Board Connector, 50 Contact(s), 2 Row(s), Female, Straight, 0.016 inch Pitch, Surface Mount Terminal, Locking, Black Insulator, Plug |
| Is it Rohs certified? | conform to | conform to |
| Maker | Aces Electronics Co., Ltd. | Aces Electronics Co., Ltd. |
| Reach Compliance Code | unknown | unknown |
| Other features | TUBE PACKAGING | TAPE AND REEL PACKAGING |
| body width | 0.127 inch | 0.127 inch |
| subject depth | 0.035 inch | 0.035 inch |
| body length | 0.673 inch | 0.437 inch |
| Body/casing type | PLUG | PLUG |
| Connector type | BOARD CONNECTOR | BOARD CONNECTOR |
| Contact to complete cooperation | AU ON NI | AU ON NI |
| Contact completed and terminated | Gold (Au) - with Nickel (Ni) barrier | Gold (Au) - with Nickel (Ni) barrier |
| Contact point gender | FEMALE | FEMALE |
| Contact material | COPPER ALLOY | COPPER ALLOY |
| contact mode | RECTANGULAR | RECTANGULAR |
| Contact resistance | 90 mΩ | 90 mΩ |
| Contact style | BELLOWED TYPE | BELLOWED TYPE |
| Dielectric withstand voltage | 150VAC V | 150VAC V |
| Durability | 30 Cycles | 30 Cycles |
| Insulation resistance | 1000000000 Ω | 1000000000 Ω |
| Insulator color | BLACK | BLACK |
| insulator material | THERMOPLASTIC | THERMOPLASTIC |
| JESD-609 code | e4 | e4 |
| Manufacturer's serial number | 91008 | 91008 |
| Plug contact pitch | 0.016 inch | 0.016 inch |
| Installation option 1 | LOCKING | LOCKING |
| Installation method | STRAIGHT | STRAIGHT |
| Installation type | BOARD | BOARD |
| Number of connectors | ONE | ONE |
| PCB row number | 2 | 2 |
| Number of rows loaded | 2 | 2 |
| Maximum operating temperature | 85 °C | 85 °C |
| Minimum operating temperature | -55 °C | -55 °C |
| PCB contact pattern | RECTANGULAR | RECTANGULAR |
| PCB contact row spacing | 2.6924 mm | 2.6924 mm |
| Plating thickness | FLASH inch | FLASH inch |
| polarization key | POLARIZED HOUSING | POLARIZED HOUSING |
| Rated current (signal) | 0.3 A | 0.3 A |
| Guideline | UL | UL |
| reliability | COMMERCIAL | COMMERCIAL |
| Terminal pitch | 0.4064 mm | 0.4064 mm |
| Termination type | SURFACE MOUNT | SURFACE MOUNT |
| Total number of contacts | 80 | 50 |
