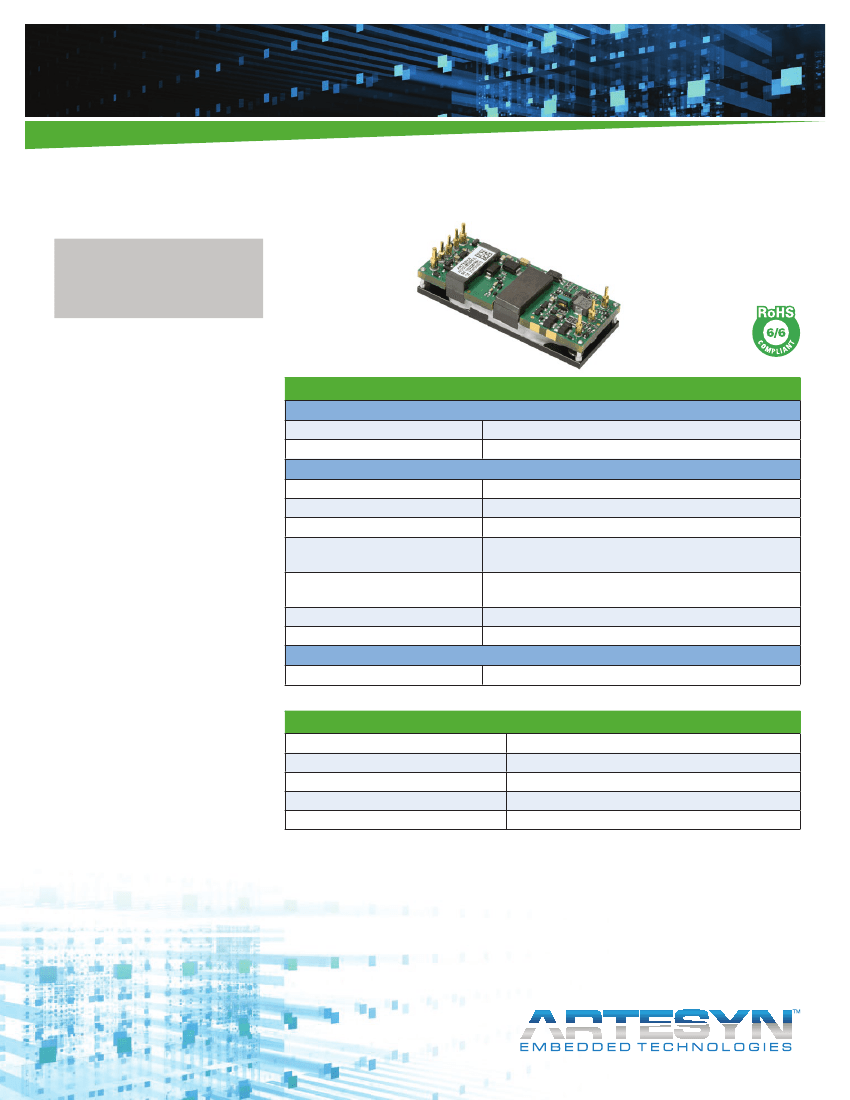

POWER
Data Sheet
Total Power:
100 Watts
Input Voltage:
36 - 75 V
# of Outputs:
Single
SPECIAL FEATURES
2:1 wide input range
Optimised for high density, small
space applications
Low ripple and noise
Fixed switching frequency
High efficiency
High capacitive load capability
Basic insulation system
Pre-bias start-up capability
Open-frame structure
Output overcurrent protection
AVO100 Series
100 Watts
Electrical Specifications
Input
Input range
Efficiency
2
Output
Voltage tolerance
Line regulation
Load regulation
Noise/ripple
Overvoltage protection
Overtemperature protection
Switching frequency
Temperature co-efficient
Isolation
I/O isolation
5 V: 2250 VDC; Others: 1500V DC
+/-1.5%
3.3 V: 0.3%; Others: 0.1%
3.3 V: 0.6%; 5 V: 0.2%; Others: 0.1%
3.3 Vo: 3.3V: 60 mV; 5V: 90 mV;
5.0 Vo: Others: 75 mV
Auto-restart
3.3 V, 5 V: 310 KHz; Others: 210 KHz
±0.02/°C
36 - 75 VDC
92.8% @ 5 V
SAFETY
UL, cUL: UL60950
TUV/CE: IEC/EN60950
Environmental Specifications
Operating ambient temperature range
Storage temperature
Humidity
MTBF
RoHS Compliant
-40 °C to +85 °C
-55 °C to +125 °C
5% to 95% (non-condensing)
2.5 Million hours
AVO100 Series Data Sheet
Ordering Information
Model number
AVO100-48S1V2-6L
AVO100-48S1V2B-6L
AVO100B-48S1V5-6L
AVO100B-48S1V5B-6L
AVO100B-48S1V5P-6L
AVO100B-48S1V5PB-6L
AVO100-48S1V8-6L
AVO100-48S1V8B-6L
AVO100-48S1V8P-6L
AVO100-48S1V8PB-6L
AVO100-48S2V5-6L
AVO100-48S2V5B-6L
AVO100-48S2V5P-6L
AVO100-48S2V5PB-6L
AVO100B-48S3V3-6L
AVO100B-48S3V3SL
AVO100C-48S3V3B-4L
AVO100C-48S3V3PB-4L
AVO100-48S05-6L
AVO100-48S05B-6L
AVO100-48S05P-6L
AVO100-48S05PB-6L
AVO100-48S05SL
Input voltage
36 - 75 Vin
36 - 75 Vin
36 - 75 Vin
36 - 75 Vin
36 - 75 Vin
36 - 75 Vin
36 - 75 Vin
36 - 75 Vin
36 - 75 Vin
36 - 75 Vin
36 - 75 Vin
36 - 75 Vin
36 - 75 Vin
36 - 75 Vin
36 - 75 Vin
36 - 75 Vin
36 - 75 Vin
36 - 75 Vin
36 - 75 Vin
36 - 75 Vin
36 - 75 Vin
36 - 75 Vin
36 - 75 Vin
Output voltage
1.2 V @ 50 A
1.2 V @ 50 A
1.5 V @ 40 A
1.5 V @ 40 A
1.5 V @ 40 A
1.5 V @ 40 A
1.8 V @ 40 A
1.8 V @ 40 A
1.8 V @ 40 A
1.8 V @ 40 A
2.5 V @ 35 A
2.5 V @ 35 A
2.5 V @ 35 A
2.5 V @ 35 A
3.3 V @ 30 A
3.3 V @ 30 A
3.3 V @ 30 A
3.3 V @ 30 A
5 V @ 20 A
5 V @ 20 A
5 V @ 20 A
5 V @ 20 A
5 V @ 20 A
Power
60 W
60 W
60 W
60 W
60 W
60 W
72 W
72 W
72 W
72 W
87.5 W
87.5 W
87.5 W
87.5 W
99 W
99 W
99 W
99 W
100 W
100 W
100 W
100 W
100 W
-
-
-
-
-
-
-
Standard version is negative enable
“-6” = 3.8 mm pin length
“-4” = 4.8 mm pin length
“-P” = Positive enable
“-S” = Surface mount, tray package
“-L” = RoHS 6 compliance
“-B” = Baseplate
AVO100 Series Data Sheet

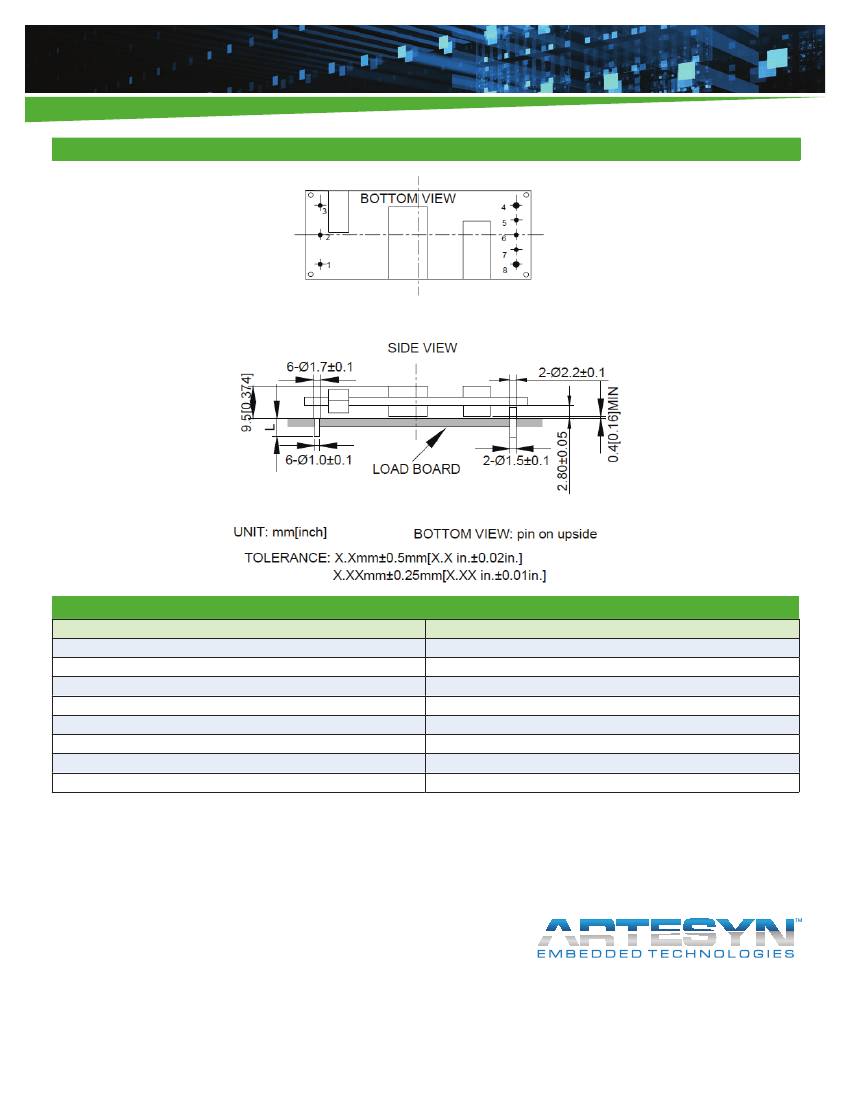

Mechanical Drawings
Pin Assignments
Pin #
1
2
3
4
5
6
7
8
Notes:
1. All specifications are subject to change without notice. Mechanical drawings are for reference only.
2. Warranty: 2 years
3. Label and logo appearance may vary from what is shown on mechanical drawings.
Function
+V in
Enable
-V in
-V out
-Sense
Trim
+Sense
+V out
WORLDWIDE OFFICES
Americas
2900 S.Diablo Way
Tempe, AZ 85282
USA
+1 888 412 7832
Europe (UK)
Waterfront Business Park
Merry Hill, Dudley
West Midlands, DY5 1LX
United Kingdom
+44 (0) 1384 842 211
Asia (HK)
14/F, Lu Plaza
2 Wing Yip Street
Kwun Tong, Kowloon
Hong Kong
+852 2176 3333
www.artesyn.com
For more information:
www.artesyn.com/power
For support:
productsupport.ep@artesyn.com
AVO100 DS 07Jul2015
