1N6270 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> 1N6270

1N6270: DescriptionTransient Voltage Suppressor, Uni-directional; Max Peak Repetitive Reverse Voltage: 1500; Max TMS Bridge Input Voltage: 7.37; Max DC Reverse Voltage: 50; Sn/Pb - Pb-free; CategoryDiscrete semiconductor diode; File Size879KB，5 Pages; ManufacturerDigitron; Websitehttp://www.digitroncorp.com

Download Datasheet Parametric View All

1N6270 Overview

Transient Voltage Suppressor, Uni-directional; Max Peak Repetitive Reverse Voltage: 1500; Max TMS Bridge Input Voltage: 7.37; Max DC Reverse Voltage: 50; Sn/Pb - Pb-free

1N6270 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Digitron
Reach Compliance Code	unknown

Preview

Download Datasheet

View All

1N6267-1N6303A

High-reliability discrete products

and engineering services since 1977

FEATURES:

•

Available as “HR” (high reliability) screened per MIL-PRF-19500, JANTX level. Add “HR” suffix to base part number

Available Non-RoHS (standard) or RoHS compliant (add PBF suffix)

Available in both Unidirectional and Bidirectional (add C or CA suffix for bidirectional)

Voltages from 6.8 to 180 V Breakdown (V

)

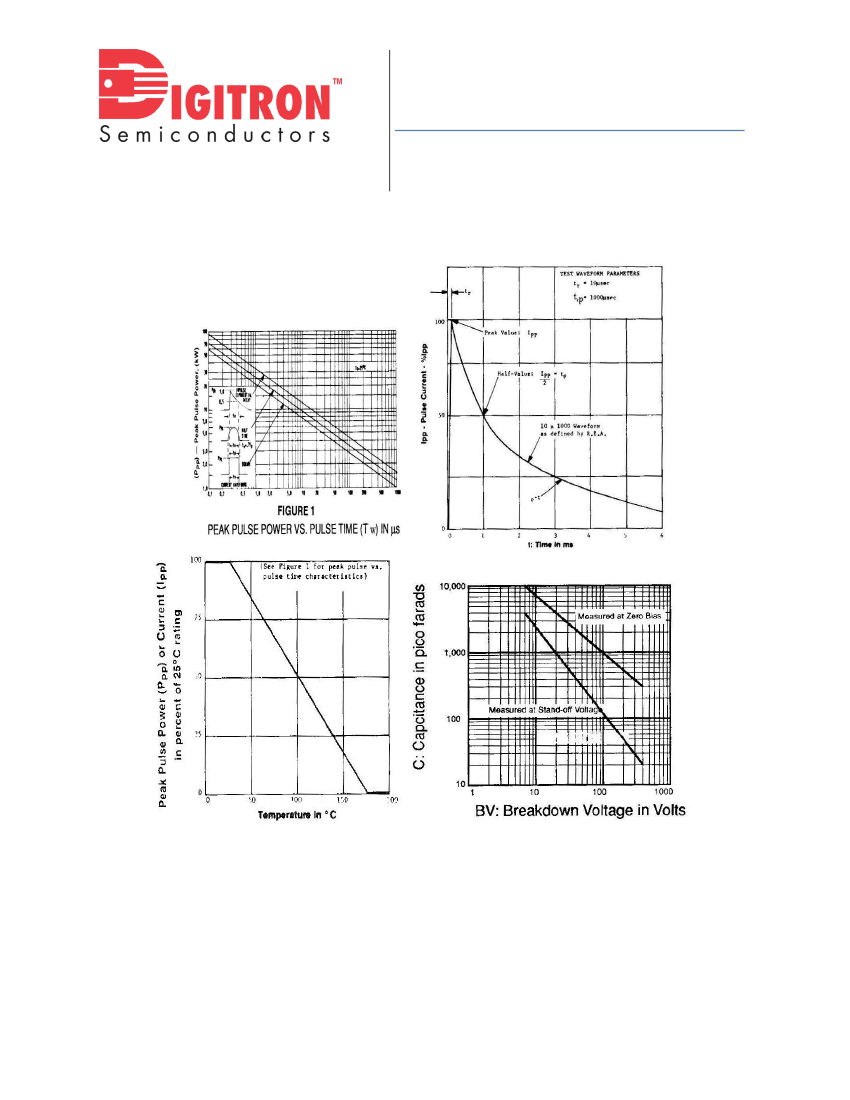

Suppresses transients up to 1500 watts @ 10/1000

μs (see Figure 1)

Power rating = 1500 watts

1500W TRANSIENT VOLTAGE SUPPRESSOR

MAXIMUM RATINGS

Peak Pulse Power Dissipation at 25°C:

Impulse Repetition Rate (duty factor):

clamping

(0 volts to V(

) min:

Operating and Storage Temperature:

Thermal Resistance:

1500 watts @ 10/1000μs (see Figures 1, 2, & 3)

0.01%

<100 ps theoretical for unidirectional and <5 ns for bidirectional

-65°C to +150°C

22°C/W junction to lead at 3/8”(10mm) from body, or 82°C/W junction to

ambient when mounted on FR4 PC board with 4mm

copper pads (1oz)

and track width 1mm, length 25mm

5 watts at T

=40°C or 1.52 watts @ T

=25°C when mounted on FR4 PC

board described for thermal resistance

200 Amps peak impulse of 8.3ms half-sine wave at 25°C (unidirectional

only)

260°C for 10 s (maximum)

Steady-State Power Dissipation:

Forward Surge:

Solder Temperature:

ELECTRICAL CHARACTERISTICS

Rated Standoff

Voltage

Type

Number

Volts

Min

1N6267

1N6267A

1N6268

1N6268A

1N6269

1N6269A

1N6270

1N6270A

1N6271

1N6271A

1N6272

5.50

5.80

6.05

6.40

6.63

7.02

7.37

7.78

8.10

8.55

8.92

6.12

6.45

6.75

7.13

7.38

7.79

8.19

8.65

9.00

9.50

9.90

Max

7.48

7.14

8.25

7.88

9.02

8.61

10.00

9.55

11.00

10.50

12.10

10.8

10.5

11.7

11.3

12.5

12.1

13.8

13.4

15.0

14.5

16.2

1000

500

200

139.0

143.0

128.0

132.0

120.0

124.0

109.0

112.0

100.0

103.0

93.0

.057

.061

.065

.068

.073

.075

Volts

μA

%/°C

(Note 1)

Breakdown Voltage

(BR)

@ l

(BR)

Maximum

Clamping Voltage

@ l

Maximum

Standby

Current

@ V

Maximum

Pulse Current

(Fig. 2)

Maximum

Temperature

Coefficient of

(BR)

V(BR)

Rev. 20171114
