406-2-035-T-KR1 datasheet, PDF

Datasheet> All Categories > The connector> The connector> 406-2-035-T-KR1

406-2-035-T-KR1: DescriptionCard Edge Connector, 35 Contact(s), 1 Row(s), Straight, 0.02 inch Pitch, Surface Mount Terminal, Locking; CategoryThe connector The connector; File Size980KB，1 Pages; ManufacturerMPE-Garry GmbH

Download Datasheet Parametric View All

406-2-035-T-KR1 Overview

Card Edge Connector, 35 Contact(s), 1 Row(s), Straight, 0.02 inch Pitch, Surface Mount Terminal, Locking

406-2-035-T-KR1 Parametric

Parameter Name	Attribute value
Maker	MPE-Garry GmbH
Reach Compliance Code	compliant
body width	0.079 inch
subject depth	0.193 inch
body length	0.909 inch
Connector type	FFC/FPC CONNECTOR
Contact to complete cooperation	SN
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact style	BELLOWED TYPE
Dielectric withstand voltage	200VAC V
insulator material	THERMOPLASTIC
Plug contact pitch	0.02 inch
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
PCB row number	2
Number of rows loaded	1
Maximum operating temperature	85 °C
Minimum operating temperature	-20 °C
PCB contact pattern	STAGGERED
PCB contact row spacing	2.2606 mm
Rated current (signal)	0.5 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	0.9906 mm
Termination type	SURFACE MOUNT
Total number of contacts	35

Preview

Download Datasheet

View All

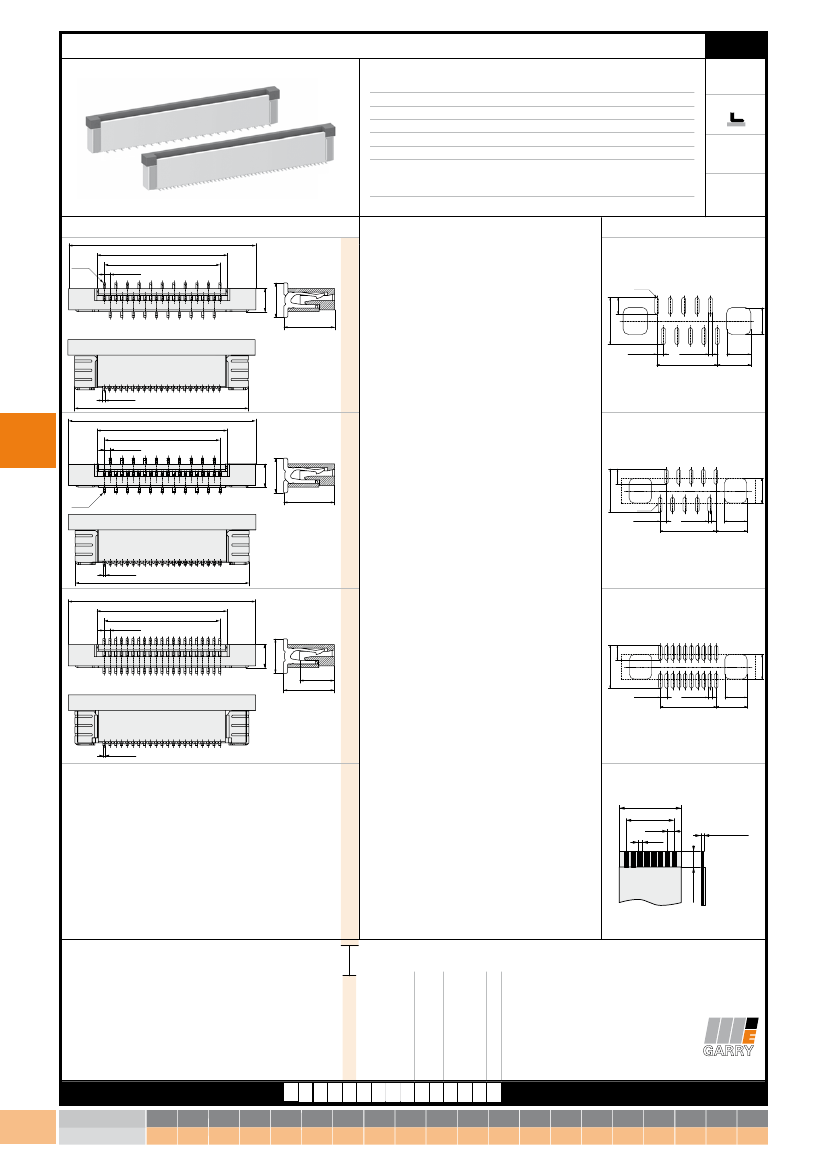

FFC/FPC Connector 0,50 mm

Rated current

0,5 A

Rated voltage

50 V

RMS

/ V

Withstand voltage

150 V

RMS

for 1 minute

Material contact

Phosphor bronze

Material insulator

High temp. thermoplast UL94V-0

Operating temperature -20°C to +85°C

Max. processing temper. 260°C for 10 seconds

All dimensions in mm.

Series

406

pitch

termination

0,50

Parts should go through one reflow soldering

process only

max.

pincount

040

Variation

PIN 1

0,5 x (n-1) + 6,10 ±0,20

0,5 x (n-1) + 1,10 ±0,15

0,5 x (n-1) ±0,10

0,5 ±0,05

PCB Layout

PIN 1

(Pincount 004 - 034)

(Pincount 035 - 040)

4,90 ±0,20

3,50

0,5 ±0,05

0,4 ±0,05

0,5 x (n-1) ±0,10

1,80

2,50

0,2 ±0,05

0,5 x (n-1) + 5 ±0,20

Product

group

2,00

3,00

1,25

0,5 x (n-1) + 6,10 ±0,20

0,5 x (n-1) + 1,10 ±0,15

0,5 x (n-1) ±0,10

0,5 ±0,05

PIN 1

(Pincount 004 - 034)

(Pincount 035 - 040)

4,40 ±0,20

4,90 ±0,20

3,50

PIN 1

0,5 ±0,05

0,4 ±0,05

0,5 x (n-1) ±0,10

1,80

2,50

0,2 ±0,05

0,5 x (n-1) + 5 ±0,20

0,50 x (n-1) + 6,20 ±0,20

0,5 x (n-1) + 1,10 ±0,15

0,5 x (n-1) ±0,10

0,5 ±0,05

1,25

2,00

3,00

4,40

3,50

0,5 ±0,05

0,5 x (n-1) ±0,10

0,3 ±0,05

2,50

1,80

0,2 ±0,05

Cable specification

0,5x(n+1)±0,10

0,5x(n-1)±0,10

0,50

0,30

0,30 ± 0,03

Plating:

T = Sn

Packaging:

R = Reel

Variation (1,2,3)

No. of contacts

(004,... - 040)

Plating contact

CS250613_V3

Packaging

Cap (0,1,2)

Cap:

0 = Without cap

1 = With cap

(only for variation 3)

2 = With kapton tape

www.mpe-connector.de

Order code:

406-?-???-T-KR?

409

8-2

7-4

Mating series

see page

min 3,00

2,00

4,40 ±0,20
