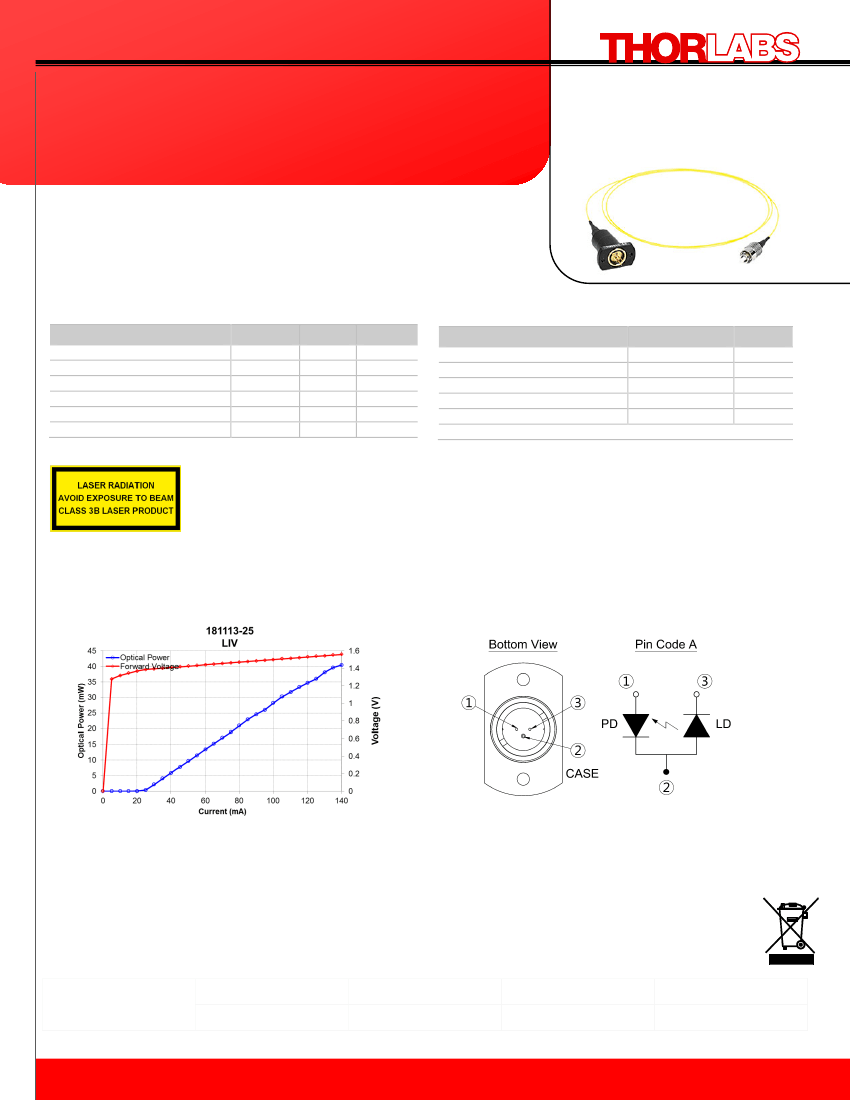

Product Data Sheet
Single Mode Fiber-Pigtailed Laser
S/N: 181113-25
Center Wavelength: 938.9 nm
Fiber Type: SM800-5.6-125
Test Date: 11/15/2018
LP940-SF30
ËLP940-SF30#Î
Ë181113-25vÎ
Diode Package: TO 9 mm
Connector: FC/PC
Tested By: Leila
QA: Pass
Summary of Test Data ( CW, T
case
=25°C)
Absolute Maximum Ratings
Parameter
Fiber Output Power
Operating Current@P
op
Operating Voltage@P
op
Monitor Current @P
op
Threshold Current
Slope Efficiency
Symbol
P
op
I
op
V
op
I
mon
I
th
ΔP/ΔI
Value
30.0
104.4
1.51
0.128
24.8
0.36
Unit
mW
mA
V
mA
mA
W/A
Parameter
Laser Diode Current*
Optical Output Power*
LD Reverse Voltage*
Storage Temperature
Case Temperature
* CW, T
case
=25°C
Ratings
140
40
2
-40~+80
-20~+40
Unit
mA
mW
V
°C
°C
CAUTION- use of controls or adjustments or performance of procedures other than those specified
herein may result in hazardous radiation exposure. There are no user serviceable parts in this product.
When proper power is applied to this product, Laser radiation will be emitted from the optical fiber.
Thorlabs Inc
56 Sparta Avenue
Newton, New Jersey 07860
USA
US, Canada & South America
1-973-300-3000
Brazil
+55-16-3413 7062
France
+33 (0)970 440 844
Scandinavia
+46-31-733-30-00
Europe
+49 (0) 8131-5956-0
Japan & Asia
+81-3-6915-7701
UK & Ireland
+44 (0)1353-654440
China
+86 (0)21-60561122
Specifications subject to change without notice.

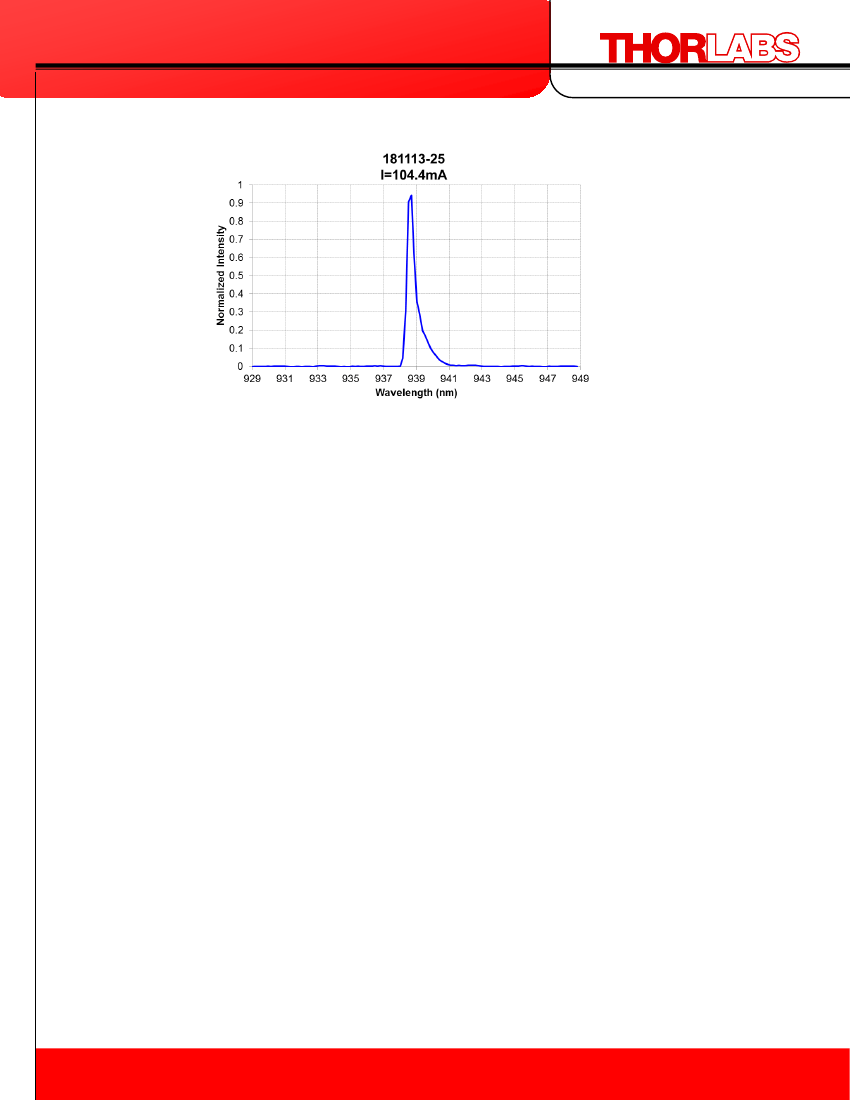

Product Data Sheet
T
case
=25°C, I
op
= 104.4mA
Spectrum measured by CCS175.
Important Notes:
1. The maximum ratings mean the limitation over which the laser should not be operated even instant
time.
2. Do not clean the fiber connector when the diode is in operation. The laser should be off when
plugging or un-plugging the connector.
3. To protect the laser diode from damage due to static electricity (ESD), please follow proper ESD
handling precautions.
4. Do not pull or fold the fiber. The fiber is very fragile and easily broken. Avoid handling the fiber by
the rubber “boots” of the black housing and connector ends of the pigtail.
5. To ensure safe operation use only with a suitable power source that complies with the pertinent
requirements for laser systems as specified in IEC-60825-1 “Safety of Laser Products.”
6. Due to the nature of Fabry-Perot laser diodes, the spectrum output will be affected by several factors
such as current, temperature, and feedback to the laser. Thus, although the center wavelength will be
within the specified tolerance, please note that the peak will vary.
www.thorlabs.com
Specifications subject to change without notice.
