Document No
TMVE-XXOS001C
2012/02/13
1/9
Multilayer Chip Varistor for Surge and
ESD Protection – E Type Series
Issued date
Page
1. Features
1.1
No polarity due to symmetrical current-voltage characteristics
1.2
Excellent electro static absorption capability
1.3 Variable capacitance
1.4 Working Voltage from 2.5 to 300 V
RMS;
3.3 to 385 Vdc
1.5 Suitable for ESD Protection
2. Applications
2.1 USB 3.0 Power and Data lines I/O Port protection
2.2 Notebook and PC Computers
2.3 Monitors and Flat Panel Displays
2.4 IEEE 1394 Firewire Ports
2.5 Video Graphics Cards
2.6 SIM ports Mobile phone
2.7 Digital Camera
2.9 MP3/MP4 player
2.10 LCD Module
2.11 HUB/ Telecom/ Wireless LAN
2.12 Keyboard
3. Type Designation
MV
06
E
050
T
050
-
Multilayer
Varistor

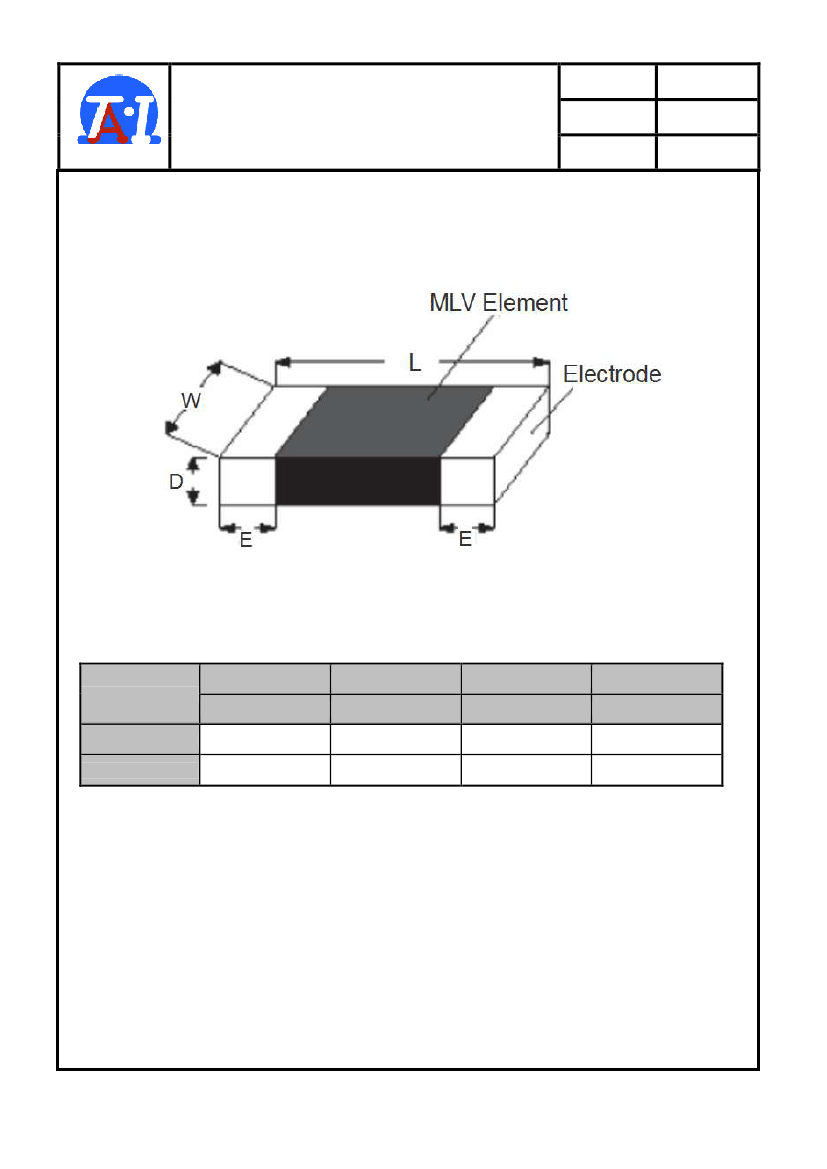

Size
04：0402
06：0603
Type Series
MAX
Working
Voltage
050：5V
050：5V
120：12V
120：12V
240：24V
240：24V

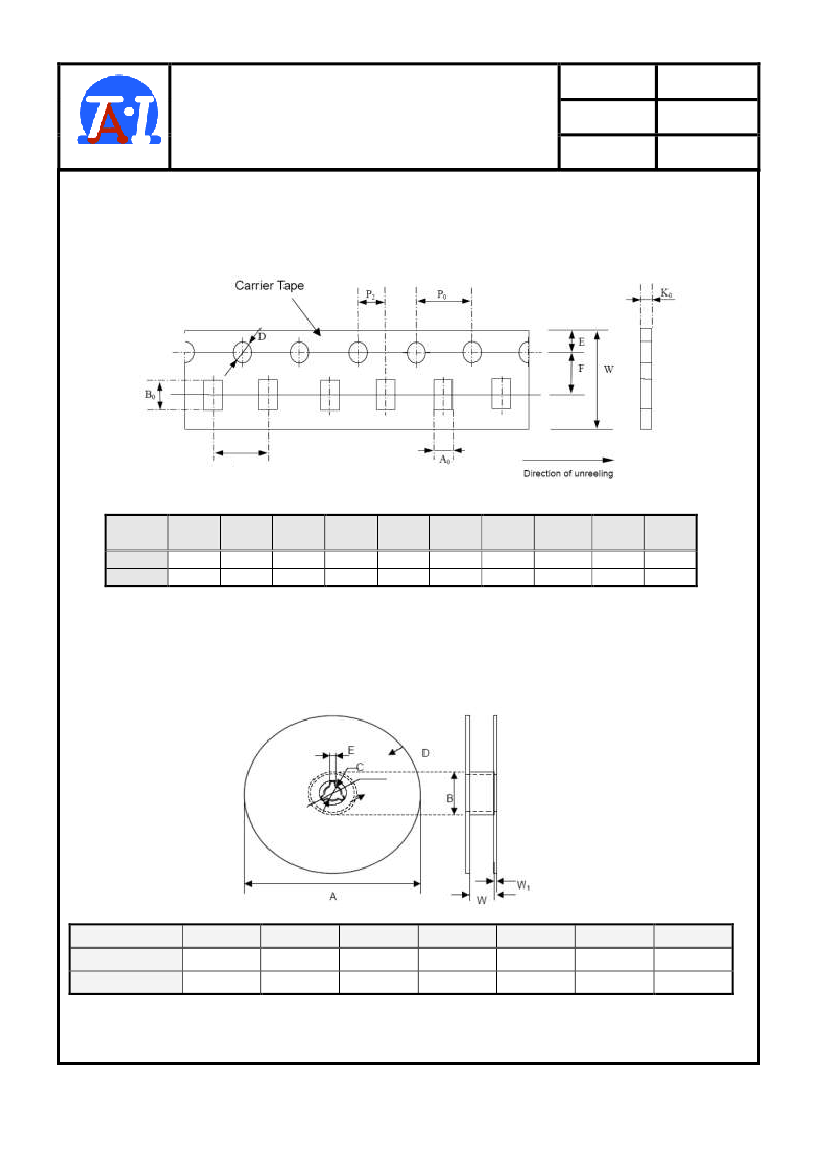

Packaging
T：Paper tape
0402：10K
0603：4K
Capacitance
050：5(pF)
100：10(pF)
2R5：2.5(Pf)
Internal
Code
TA-I TECHNOLOGY CO., LTD
Document No
TMVE-XXOS001C
2012/02/13
4/9
Multilayer Chip Varistor for Surge and
ESD Protection – E Type Series
Issued date
Page
6. Reliability Test
Environmental
Specification
Test Method and Description
High Temperature
Storage/ Dry Heat
The specimen shall be subjected to 150 ± 2℃ for 1000 ± 12 hours in a
thermostatic bath without load and then stored at room temperature and
humidity for 1 to 2 hours. Therefore, the change of varistor voltage shall be
measured.
Step
The temperature cycle of specified
temperature shall be repeated five
times and then stored at room
temperature and humidity for one or
two hours. The change of varistor
voltage and mechanical damage shall
be examined.
1
2
3
4
Temperature
-40±3
Room
Temperature
125±3
Room
Temperature
Period
30Min±3
1 hour
30Min±3
1 hours
Temperature Cycle
High Temperature Load After being continuously applied the maximum allowable voltage at 85 ± 2℃
for 1000± 2 hours, the specimen shall be stored at room temperature and
humidity for one or two hours, Therefore the change of varistor voltage should
Dry Heat Load
be measured.
Damp Heat Load/
Humidity Load
Low Temperature
Storage/ Cold
The specimen should be subjected to 40± 2℃, 90 to 95﹪ RH and the
maximum allowable voltage for 500 hours and then stored at room temperature
and humidity for one or two hours. Therefore the change of varistor voltage
should be measured.
The specimen should be subjected to -50 ± 2℃, without load for 500 hours and
then stored at room temperature for one or two hours. Therefore the change of
varistor voltage should be measured.
1.Discharge: contact electrostatic discharge; 2.Voltage：8KV（Level4）
Direct contact
electrostatic discharge
3.Polarity：+,- ; 4.Number: 10 times ; 5.Interval time：1sec
1.Discharge: air electrostatic discharge; 2.Voltage：15KV（Level4）
Direct air electrostatic
discharge
3.Polarity：+,-; 4.Number: 10 times; 5.Interval time：1~ 3sec
TA-I TECHNOLOGY CO., LTD
