DW1P020 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> DW1P020

DW1P020: DescriptionBoard Connector, 20 Contact(s), 2 Row(s), Female, 0.138 inch Pitch, Locking, Brown Insulator, Plug; CategoryThe connector The connector; File Size177KB，1 Pages; ManufacturerJapan Aviation Electronics Industry Limited; Environmental Compliance

Download Datasheet Parametric View All

DW1P020 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	DW1P020	-	-	View	Buy Now

DW1P020 Overview

Board Connector, 20 Contact(s), 2 Row(s), Female, 0.138 inch Pitch, Locking, Brown Insulator, Plug

DW1P020 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Japan Aviation Electronics Industry Limited
Reach Compliance Code	unknown
body width	1.232 inch
subject depth	1.913 inch
body length	1.874 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact point gender	FEMALE
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Durability	20 Cycles
Insulator color	BROWN
insulator material	POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	DW1
Plug contact pitch	0.138 inch
Installation option 1	LOCKING
Number of rows loaded	2
Maximum operating temperature	95 °C
Minimum operating temperature	-40 °C
polarization key	POLARIZED HOUSING
Rated current (signal)	2 A
Guideline	UL
reliability	COMMERCIAL
Total number of contacts	20

Preview

Download Datasheet

View All

版数

REV.

年月日

D A T E

16/JAN/2012

CN NO.

000847

　　　　　　　　変更内容

　　　　　　　　DESCRIPTION

CORRECT AN ERROR

½　図

DR.

―

担　½

CHK.

K.KIMURA

査　閲

APPD.

Y.ITOU

承　認

APPD.

G.HAGA

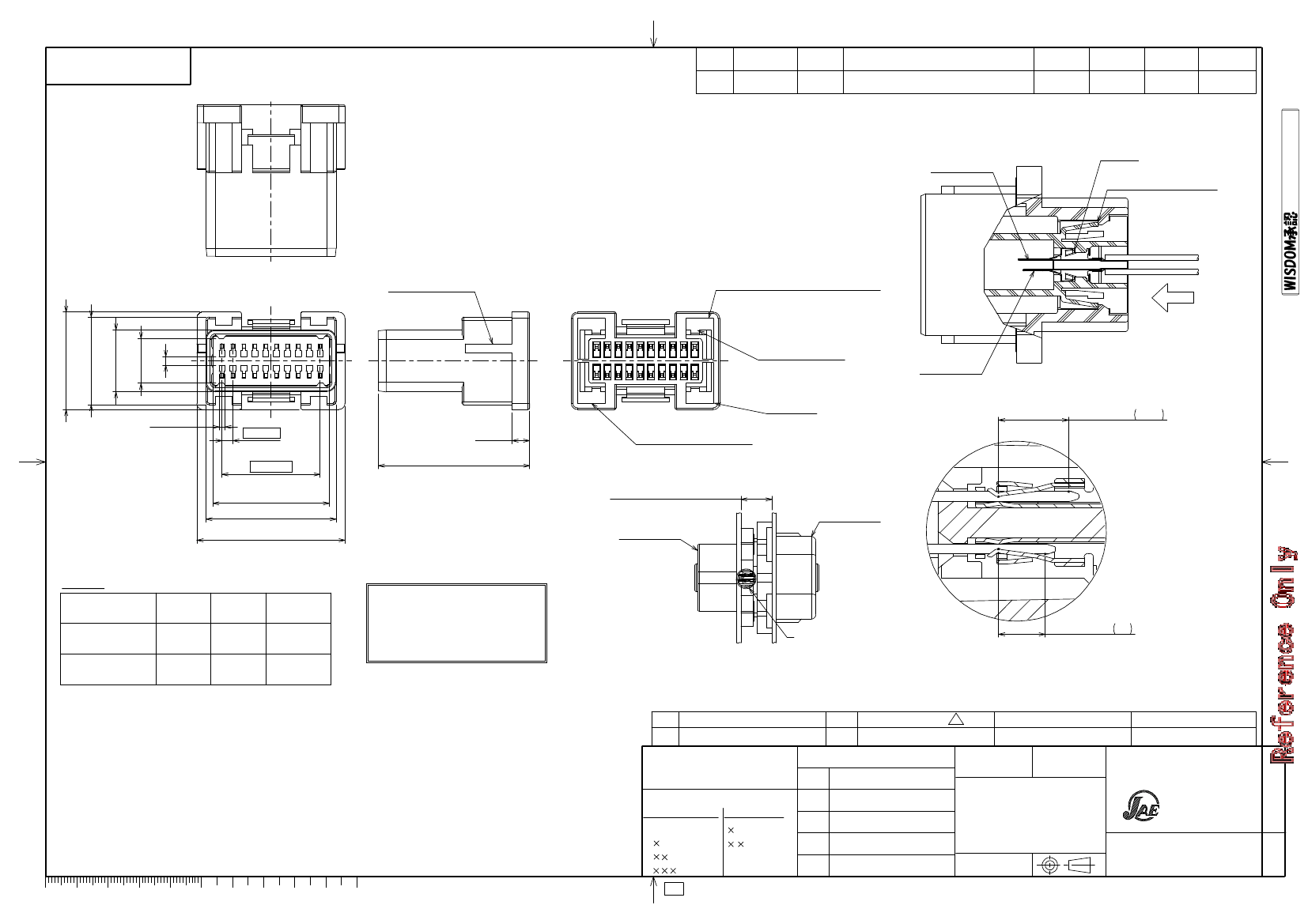

DW1P04K4F1

(SJ111311)

LANCE

ランス

HAUSING LOCK

ハウジングロック部

POLARIZING KEY

極性キー

10Z

YEAR AND MONTH MANUFACTURED

½造年月

(NOTE2)

CONTACT NUMBER

端子番号

(NOTE3)

JAE

DW1

CONTACT INSERTION

DIRECTION

コンタクト挿入方向

31.3

28.2

19.9

14.4

2.76

DW1P04K4F2

(SJ111312)

CONNECTOR MOUNTING(REF)

コネクタ取付状態図（参考）

4.5

DW1P04K4F1(SJ111311)

EFFECTIVE CONTACT LENGTH

FOR SIGNAL CONTACTS

信号用コンタクト有効接触長

1.98

3.5

5.7

48.6

(PITCH)

31.5

RAISED COMPANY LOGO

社標

(NOTE3)

PART NO.

品名

(NOTE3)

(3.5×9)

37.4

41.8

47.6

±1

DIMENSION BETWEEN PANELS

パネル間寸法

DW1R002ZH1

DW1P002ZH1

TABLE-1

CONTACT PART

NUMBER

DW1P04K4F1

SIZE

AWG#22

OUTER

DIAMETER

φ1.5

REMARKS

SIGNAL

CONTACT

特別管理品目

SPECIAL CONTROL ITEM

(SJ111311)

DW1P04K4F2

(SJ111312)

DETECTED

CONTACT

Li電池

MATED CONDITION(REF)

嵌合状態図（参考）

（1:2）

DW1P04K4F2(SJ111312)

A部詳細図

EFFECTIVE CONTACT LENGTH

（尺度 5:1） FOR DETECTED CONTACTS

検出用コンタクト有効接触長

K.KIMURA

T.EBISAWA

―

Y.MIZUSAWA

名称(TITLE)

DCF-C-212G(11.08)

注１．本½品は½ﾝﾀ½ﾄ別売品であり、適用½ﾝﾀ½ﾄは表-1のとおりである。

注２．図示の½½に½造年月を表示する。

　　　(左側：西暦3桁、4桁目、右側：月123456789XYZ)

　例：'10Z'→½造年月2010年12月

注３．図示の½½に社標及び品名、端子番号を表示する½

一般公差(GENERAL TOLERANCE)

寸法(DIMENSION)

．

0.8

0.4

0.1

角度(ANGLES)

DW1P020

JAPAN AVIATION

ELECTRONICS

INDUSTRY,LTD.

図面番号(DRAWING NO.)

’

版数

(REV.)

質量(MASS)

SJ111309

JAE Connector DIV. Proprietary.

100

S/W

SIZE A3

NOTE１. CONTACTS ARE SOLD SEPARATELY. THE APPLICABLE CONTACTS ARE LISTED IN THE TABLE-1.

NOTE２. YEAR AND MONTH OF MANUFACTURED SHALL BE SHOWN AT THE LOCATION.

(LEFT:TWO LAST DIGIT OF YEAR, RIGHT:MONTH 123456789XYZ)

EX. '10Z'→MANUFACTURED IN DEC. 2010

NOTE３. THE COMPANY NAME, THE PART NUMBER AND TERMINAL NUMBER SHALL BE

MARKED AS SHOWN IN THE DRAWING.

符号

NO.

PLUG HOUSING

名　　　称

DESCRIPTION

GLASS FILLED PBT

COLOR:BROWN

仕　上

FINISH

UL94-V-0

備　　考

REMARKS

仕様書 (SPECIFICATION)

個　数

材　　料

MATERIAL

QTY.

第1版(ORIGINAL DATE)

尺度(SCALE)

シリーズ(SERIES)

JACS-30177

JAHL-30177

05/JAN/2011

½図

DR.

担½

CHK.

査閲

APPD.

承認

APPD.

1：1

DW1

日本航空電子工業株式会社

2012/08/30

図面番号(DRAWING NO.)

SJ111309
