UJ2-MBH-1-SMT-TR datasheet, PDF

Datasheet> All Categories > The connector> The connector> UJ2-MBH-1-SMT-TR

UJ2-MBH-1-SMT-TR: DescriptionTelecom and Datacom Connector,; CategoryThe connector The connector; File Size355KB，4 Pages; ManufacturerCUI Devices; Environmental Compliance

Download Datasheet Parametric Compare View All

UJ2-MBH-1-SMT-TR Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	UJ2-MBH-1-SMT-TR	-	-	View	Buy Now

UJ2-MBH-1-SMT-TR Overview

Telecom and Datacom Connector,

UJ2-MBH-1-SMT-TR Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	CUI Devices
Reach Compliance Code	compliant
Board mount options	SOLDER HOLDING POSTS
body width	0.156 inch
subject depth	0.386 inch
body length	0.304 inch
Body/casing type	RECEPTACLE
Connector type	USB CONNECTOR
Contact completed and terminated	Tin (Sn) - with Nickel (Ni) barrier
Contact point gender	FEMALE
contact mode	RECTANGULAR
Contact resistance	50 mΩ
Contact style	MINI USB AB
Dielectric withstand voltage	100VAC V
Durability	5000 Cycles
empty shell	NO
Filter function	NO
Insulation resistance	100000000 Ω
Insulator color	BLACK
insulator material	FR52
JESD-609 code	e3
Mixed contacts	NO
Installation option 2	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of ports	1
Number of rows loaded	1
Maximum operating temperature	85 °C
Minimum operating temperature	-20 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
Plating thickness	3u inch
Rated current (signal)	1 A
Guideline	UL
Shell surface	TIN
Shell material	STEEL
Terminal pitch	0.8 mm
Termination type	SURFACE MOUNT
Total number of contacts	5
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

Additional Resources:

Product Page

3D Model

PCB Footprint

date

page

02/05/2020

1 of 4

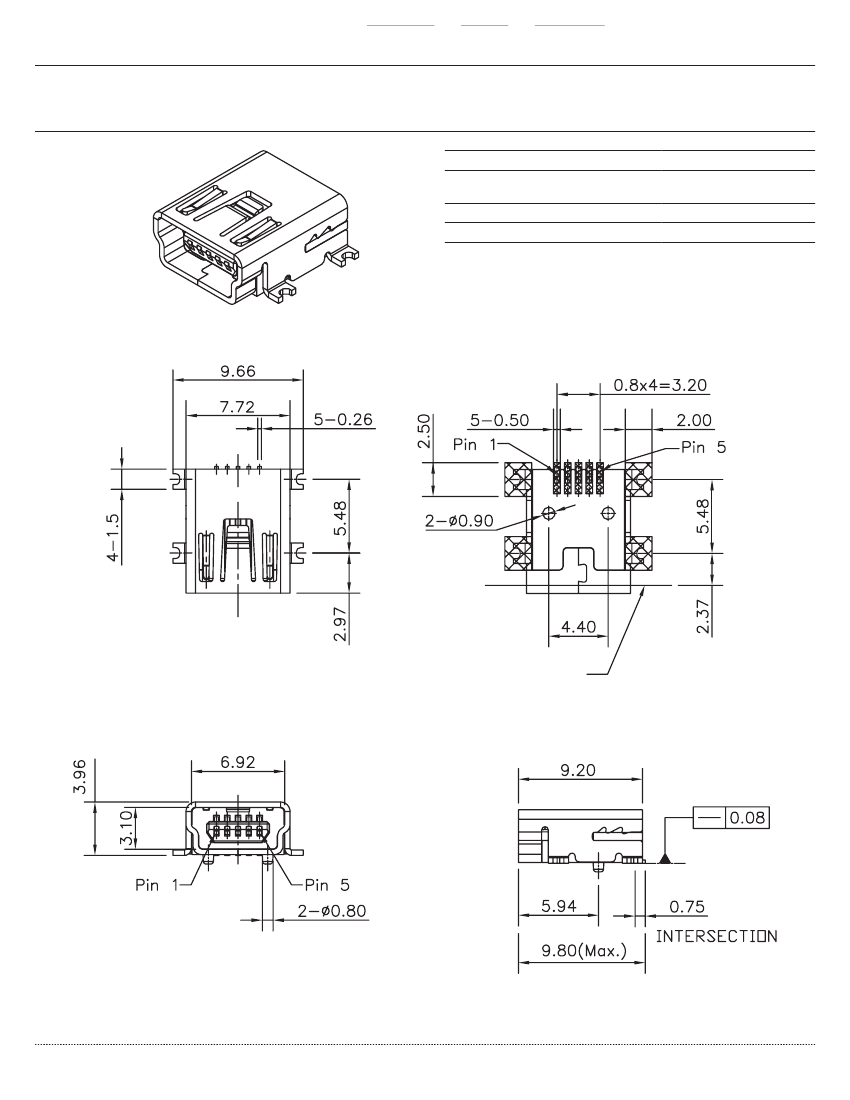

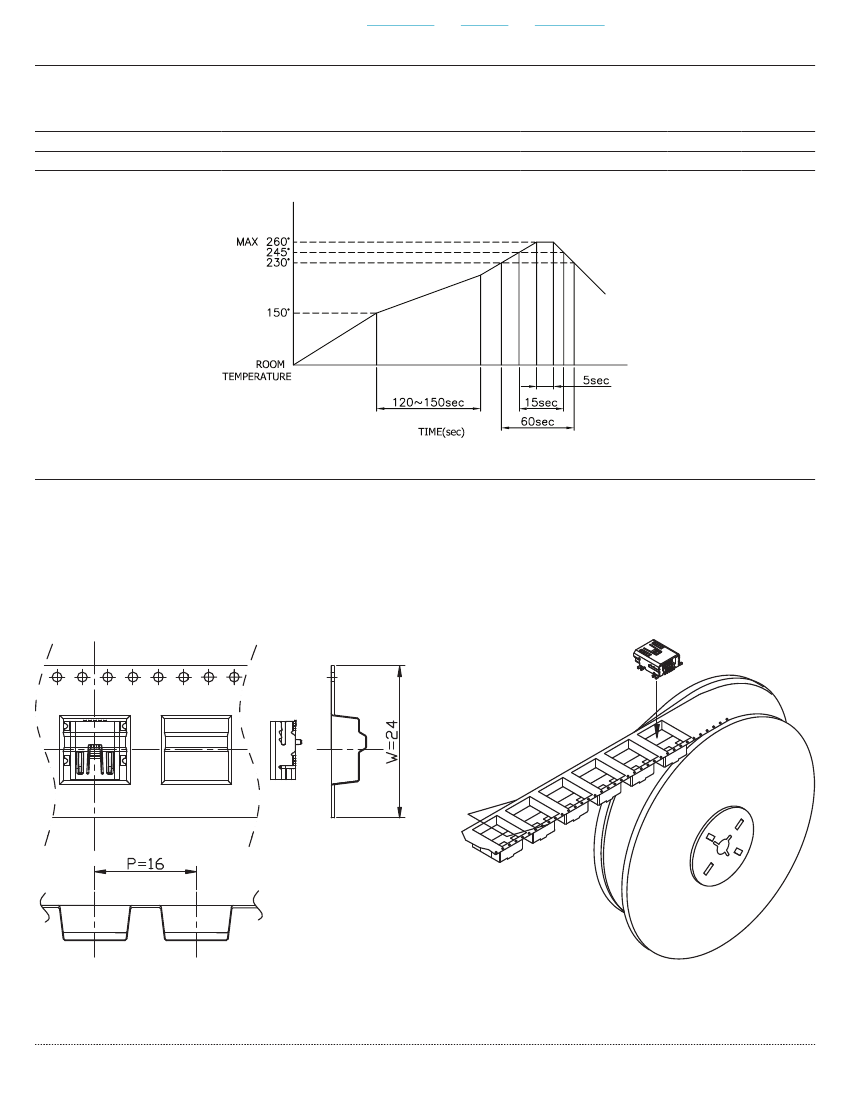

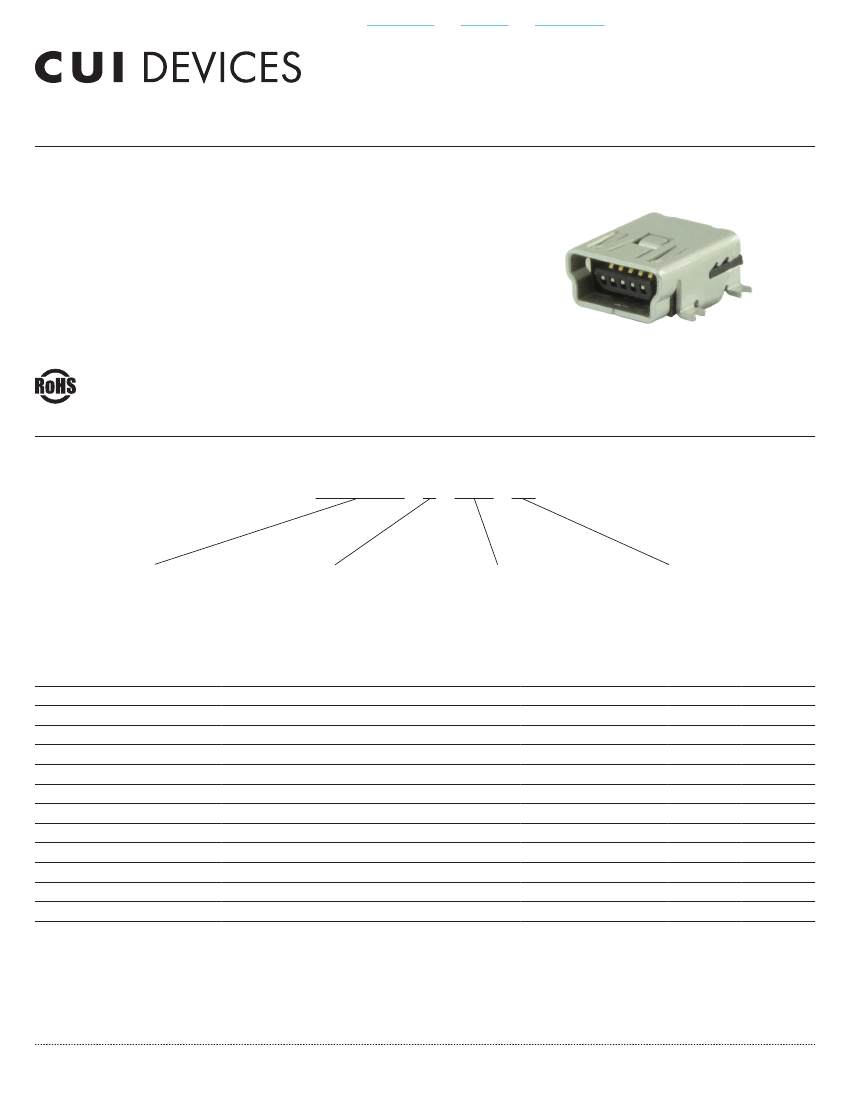

SERIES:

UJ2-MBH-SMT

│

DESCRIPTION:

USB RECEPTACLE

FEATURES

• USB mini B type jack

• horizontal orientation

• surface mount

PART NUMBER KEY

UJ2-MBH

- X -

SMT - TR

Base Number

Contact Plating

Thickness (gold):

1 = 3 µ”

2 = 6 µ”

3 = 15 µ”

4 = 30 µ”

Packaging Style:

SMT = surface mount

Packaging Options:

TR = Tape & Reel

SPECIFICATIONS

parameter

rated input voltage

rated input current

contact resistance

insulation resistance

voltage withstand

insertion force

withdrawal force

operating temperature

life

flammability rating

RoHS

Note:

conditions/description

min

typ

max

1.0

units

Vac

mΩ

MΩ

Vac

°C

cycles

between terminals and mating plug

100

for 1 minute

-20

5,000

UL94V-0

yes

100

1. When measured at 20 mV / 100 mA.

2. All specifications measured at 15~35°C, humidity at 25~85%, under atmospheric pressure of 86~106 kPa, unless otherwise noted.

cuidevices.com

UJ2-MBH-1-SMT-TR Related Products

	UJ2-MBH-1-SMT-TR	UJ2-MBH-2-SMT-TR
Description	Telecom and Datacom Connector,	Telecom and Datacom Connector,
Is it Rohs certified?	conform to	conform to
Maker	CUI Devices	CUI Devices
Reach Compliance Code	compliant	compliant
Board mount options	SOLDER HOLDING POSTS	SOLDER HOLDING POSTS
body width	0.156 inch	0.156 inch
subject depth	0.386 inch	0.386 inch
body length	0.304 inch	0.304 inch
Body/casing type	RECEPTACLE	RECEPTACLE
Connector type	USB CONNECTOR	USB CONNECTOR
Contact completed and terminated	Tin (Sn) - with Nickel (Ni) barrier	Tin (Sn) - with Nickel (Ni) barrier
Contact point gender	FEMALE	FEMALE
contact mode	RECTANGULAR	RECTANGULAR
Contact resistance	50 mΩ	50 mΩ
Contact style	MINI USB AB	MINI USB AB
Dielectric withstand voltage	100VAC V	100VAC V
Durability	5000 Cycles	5000 Cycles
empty shell	NO	NO
Filter function	NO	NO
Insulation resistance	100000000 Ω	100000000 Ω
Insulator color	BLACK	BLACK
insulator material	FR52	FR52
JESD-609 code	e3	e3
Mixed contacts	NO	NO
Installation option 2	LOCKING	LOCKING
Installation method	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD
Number of connectors	ONE	ONE
PCB row number	1	1
Number of ports	1	1
Number of rows loaded	1	1
Maximum operating temperature	85 °C	85 °C
Minimum operating temperature	-20 °C	-20 °C
Options	GENERAL PURPOSE	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR	RECTANGULAR
Plating thickness	3u inch	6u inch
Rated current (signal)	1 A	1 A
Guideline	UL	UL
Shell surface	TIN	TIN
Shell material	STEEL	STEEL
Terminal pitch	0.8 mm	0.8 mm
Termination type	SURFACE MOUNT	SURFACE MOUNT
Total number of contacts	5	5
UL Flammability Code	94V-0	94V-0
