Barrier Strip Terminal Block,
CategoryThe connector
File Size514KB,1 Pages
ManufacturerPTR Messtechnik GmbH & Co. KG
Download Datasheet Parametric View All

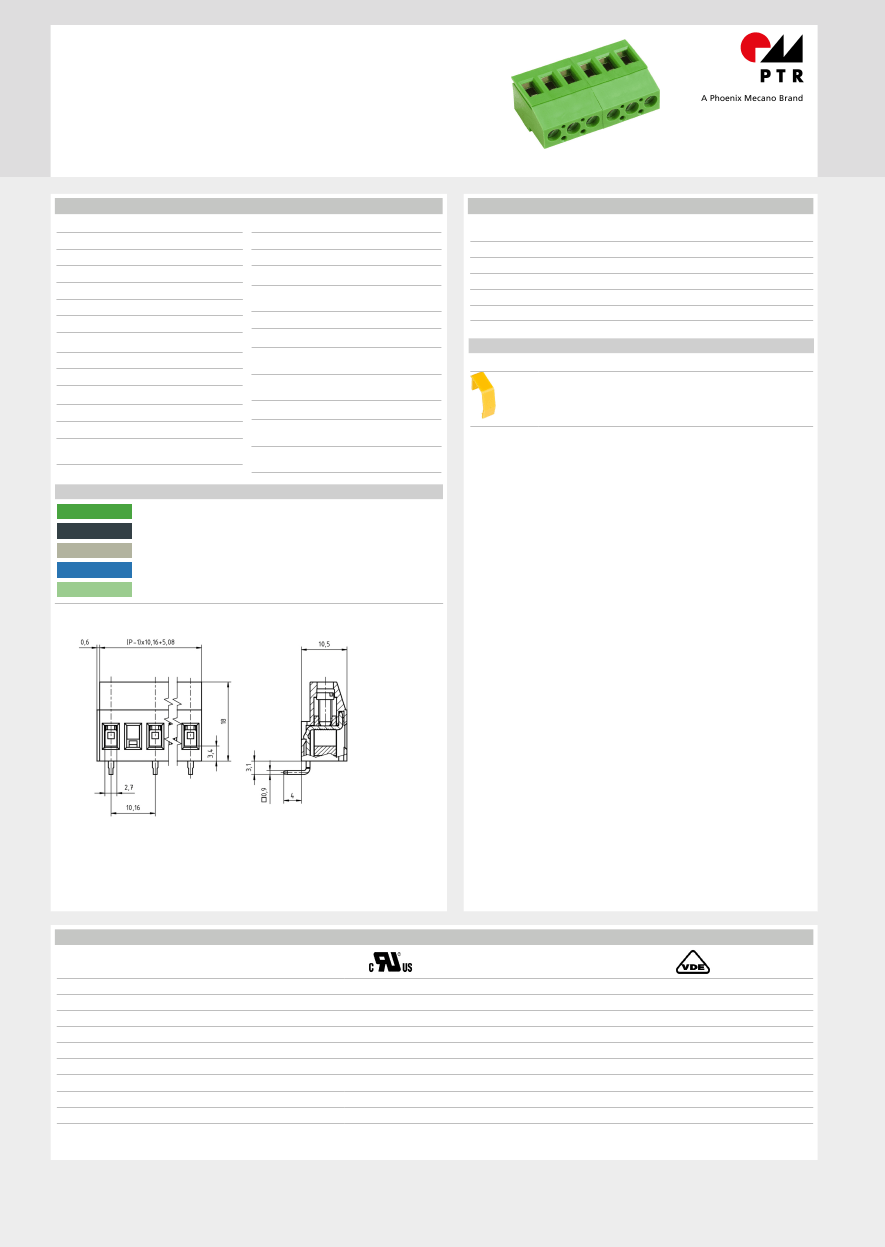

50700030276F Overview

Barrier Strip Terminal Block,

50700030276F Parametric

Parameter NameAttribute value
MakerPTR Messtechnik GmbH & Co. KG
Reach Compliance Codecompliant
Terminal and terminal strip typesBARRIER STRIP TERMINAL BLOCK
Lift |
Spacing 10.16 mm
AKZ700/..-10.16-H-GREEN
Technical Data
Wire sizes
Solid min
Solid max
Stranded (flexible) min
Stranded (flexible) max
Stranded with Ferrule min
Stranded with Ferrule max
0.2 mm²
4.0 mm²
0.2mm²
2.5 mm²
0.25 mm²
2.5 mm²
Order Data (Spacing 10.16 mm)
Insulating Material
Material
Flammability Class
PA 6.6
2
15.84
26.00
36.16
46.32
56.48
AKZ700/2-10.16-H-GREEN
AKZ700/3-10.16-H-GREEN
AKZ700/4-10.16-H-GREEN
AKZ700/5-10.16-H-GREEN
AKZ700/6-10.16-H-GREEN
Poles
Width (mm)
Article Designation
Article
Number
50700020276 F
50700030276 F
50700040276 E
50700050276 E
50700060276 D
PU
200
200
100
100
50
UL 94 V-0
3
4
Temperatures
Operating Temperature
(without mech. load)
Store Temperature
-40 °C - 105 °C
-40 °C - 105 °C
5
6
Dimensions
Stripped Length
PCB Hole Diameter
8.0 mm
1.3 mm
Wave Soldering Process
Soldering Temperature,
recommended
Peak Soldering Time,
recommended
260 °C
3-4 s
Accessoires
Figure
Designation
Article Number
Screw Cover SC-AK700-YELLOW Order Data: 50700000004
Materials
Clamp
Screw
Solder Tab
Brass
Steel
Copper
Alloy
Reflow Process
Soldering Temperature,
recommended
Peak Soldering Time,
recommended
-
-
Colours
GREEN, RAL 6018
GREY, RAL 7016
PEBBLE GREY, RAL 7032
BLUE, RAL 5015
LIGHT GREEN, similar RAL 6018
Colours according to RAL, there may be variations on colour due to production conditions. Special
colours on request.
Ratings
UseGroup
Rated Voltage
Rated Current
Rated Wire Size
- solid
- stranded
Torque
Screw Size
Test Voltage
B
300 V
15 A
C
150 V
15 A
D
300 V
-
min
1.000 V
24 A
max
4.0 mm²
2.5 mm²
0.50 Nm
M3
3.5 kV
AWG 30-12
AWG 30-12
0.45 Nm
M3
1.60 kV
AWG 30-12
AWG 30-12
0.45 Nm
M3
1.30 kV
AWG 30-12
AWG 30-12
0.45 Nm
M3
1.60 kV
0.5 mm²
0.5 mm²
PTR HARTMANN GmbH
• Gewerbehof 38 • 59368 Werne / Germany
Telefon: +49 (0)2389/7988-0 •
E-Mail: info@ptr-hartmann.com
www.ptr.eu
