52200090051D

Description
Barrier Strip Terminal Block,
CategoryThe connector
File Size552KB,1 Pages
ManufacturerPTR Messtechnik GmbH & Co. KG
Download Datasheet Parametric Compare View All

52200090051D Overview

Barrier Strip Terminal Block,

52200090051D Parametric

Parameter NameAttribute value
MakerPTR Messtechnik GmbH & Co. KG
Reach Compliance Codecompliant
Terminal and terminal strip typesBARRIER STRIP TERMINAL BLOCK

52200090051D Preview

Excenter |
Spacing 5.0 mm
AK2200/..-5.0-H-GREEN
- 1- to n-poles

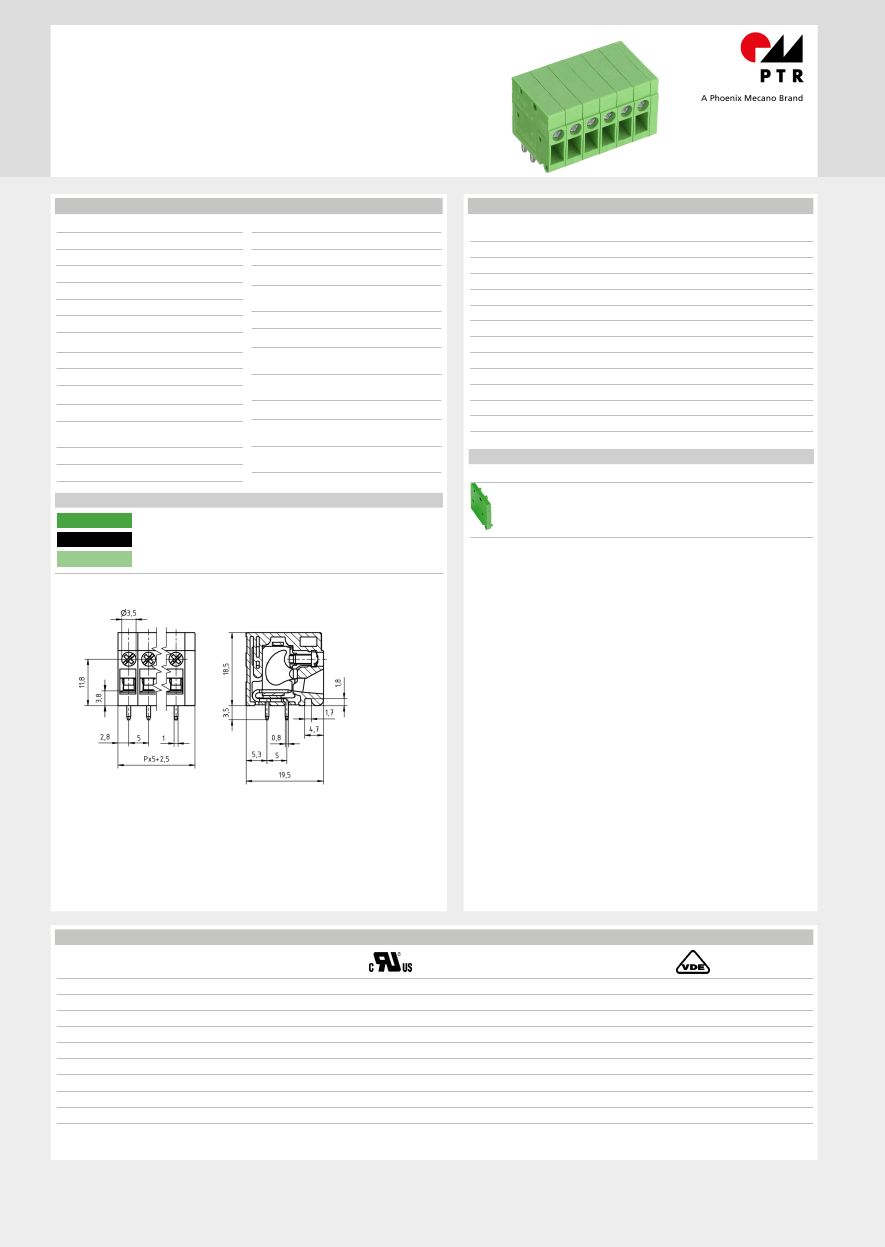

Technical Data
Wire sizes
Solid min
Solid max
Stranded (flexible) min
Stranded (flexible) max
Stranded with Ferrule min
Stranded with Ferrule max
0.2 mm²
4.0 mm²
0.2mm²
2.5 mm²
0.25 mm²
2.5 mm²
Order Data (Spacing 5.0 mm)
Insulating Material
Material
Flammability Class
PA 6.6
1
7.50
12.50
17.50
22.50
27.50
32.50
37.50
42.50
47.50
52.50
57.50
62.50
AK2200/1-5.0-H-GREEN
AK2200/2-5.0-H-GREEN
AK2200/3-5.0-H-GREEN
AK2200/4-5.0-H-GREEN
AK2200/5-5.0-H-GREEN
AK2200/6-5.0-H-GREEN
AK2200/7-5.0-H-GREEN
AK2200/8-5.0-H-GREEN
AK2200/9-5.0-H-GREEN
AK2200/10-5.0-H-GREEN
AK2200/11-5.0-H-GREEN
AK2200/12-5.0-H-GREEN
Poles
Width (mm)
Article Designation
Article
Number
52200010051 E
52200020051 D
52200030051 D
52200040051 D
52200050051 D
52200060051 D
52200070051 D
52200080051 D
52200090051 D
52200100051 D
52200110051 D
52200120051 D
PU
100
50
50
50
50
50
50
50
50
50
50
50
UL 94 V-0
2
3
Temperatures
Operating Temperature
(without mech. load)
Store Temperature
-40 °C - 105 °C
-40 °C - 105 °C
4
5
6
Dimensions
Stripped Length
PCB Hole Diameter
9.0 mm
1.3 mm
Wave Soldering Process
Soldering Temperature,
recommended
Peak Soldering Time,
recommended
260 °C
3-4 s
7
8
9
10
11
Materials
Screw
Solder Tab
Clamp Cage
Excenter
Steel
Copper
Alloy
Steel
Steel
Reflow Process
Soldering Temperature,
recommended
Peak Soldering Time,
recommended
-
-
12
Accessoires
Figure
Designation
Spacer SPC-AK2200-GREEN
Article Number
Order Data: 52200000002
Colours
GREEN, RAL 6018
BLACK, RAL 9011
LIGHT GREEN, similar RAL 6018
Colours according to RAL, there may be variations on colour due to production conditions. Special
colours on request.
Ratings
UseGroup
Rated Voltage
Rated Current
Rated Wire Size
- solid
- stranded
Torque
Screw Size
Test Voltage
B
300 V
20 A
C
150 V
20 A
D
300 V
10 A
min
250 V
24 A
max
2.5 mm²
2.5 mm²
0.50 Nm
M2.5
2.0 kV
AWG 30-12
AWG 30-12
0.50 - 0.60 Nm
M2.5
1.60 kV
AWG 30-12
AWG 30-12
0.50 - 0.60 Nm
M2.5
1.30 kV
AWG 30-12
AWG 30-12
0.50 - 0.60 Nm
M2.5
1.60 kV
0.5 mm²
0.5 mm²
PTR HARTMANN GmbH
• Gewerbehof 38 • 59368 Werne / Germany
Telefon: +49 (0)2389/7988-0 •
E-Mail: info@ptr-hartmann.com
www.ptr.eu

52200090051D Related Products

52200090051D 52200120051D 52200100051D 52200110051D 52200040051D
Description Barrier Strip Terminal Block, Barrier Strip Terminal Block, Barrier Strip Terminal Block, Barrier Strip Terminal Block, Barrier Strip Terminal Block,
Reach Compliance Code compliant compliant compli compli compliant
Terminal and terminal strip types BARRIER STRIP TERMINAL BLOCK BARRIER STRIP TERMINAL BLOCK BARRIER STRIP TERMINAL BLOCK BARRIER STRIP TERMINAL BLOCK BARRIER STRIP TERMINAL BLOCK
Maker PTR Messtechnik GmbH & Co. KG PTR Messtechnik GmbH & Co. KG PTR Messtechnik GmbH & Co. KG PTR Messtechnik GmbH & Co. KG -
