54101090001D

Description
Barrier Strip Terminal Block,
CategoryThe connector

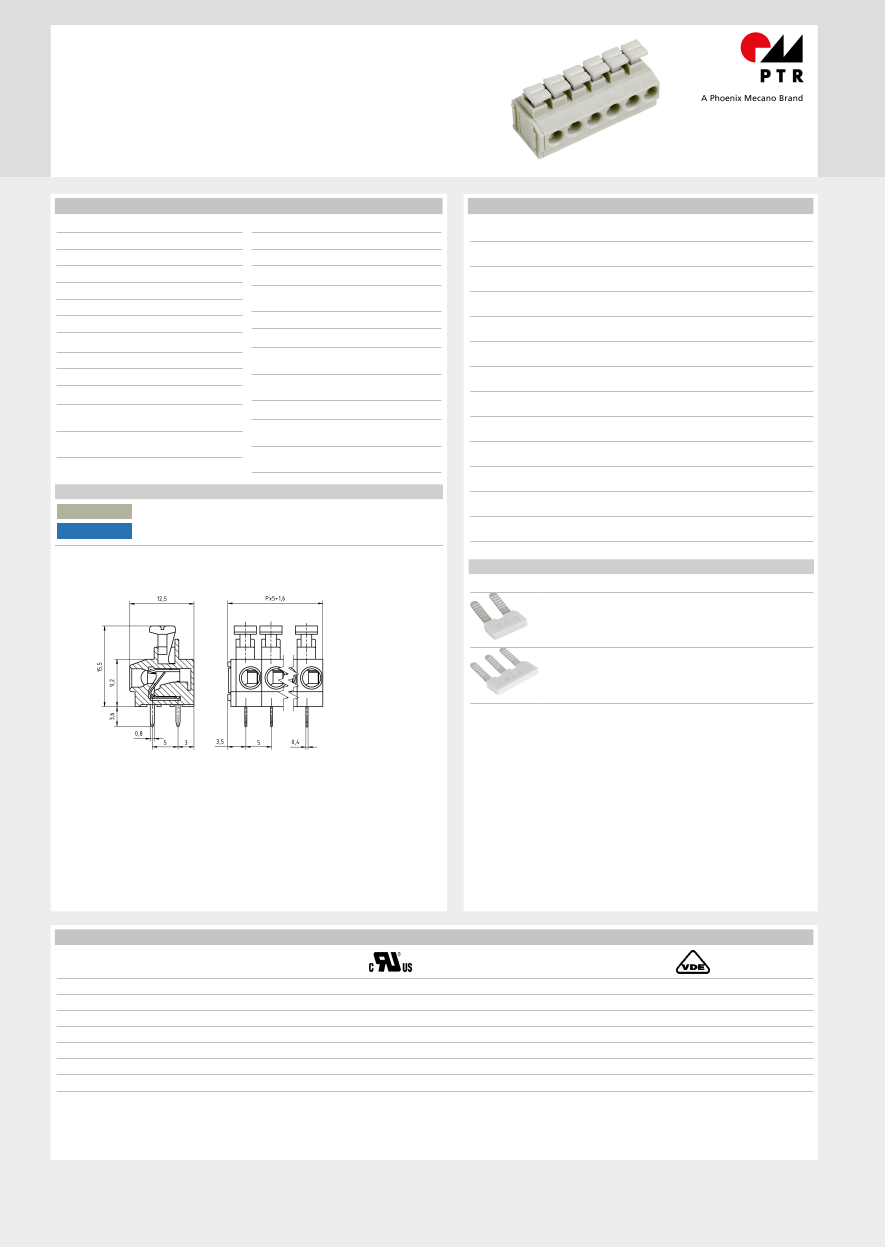

File Size893KB,1 Pages
ManufacturerPTR Messtechnik GmbH & Co. KG
Download Datasheet Parametric View All

54101090001D Overview

Barrier Strip Terminal Block,

54101090001D Parametric

Parameter NameAttribute value
MakerPTR Messtechnik GmbH & Co. KG
Reach Compliance Codecompliant
Terminal and terminal strip typesBARRIER STRIP TERMINAL BLOCK
Push-In |
Spacing 5.0 mm
AK4101/..KD-5.0-PEBBLE GREY
- 1- to n-poles
Technical Data
Wire sizes
Solid min
Solid max
Stranded (flexible) min
Stranded (flexible) max
Stranded with Ferrule min
Stranded with Ferrule max
0.08 mm²
2.5 mm²
0.5mm²
1.5 mm²
0.14 mm²
1.0 mm²
Order Data (Spacing 5.0 mm)
Insulating Material
Material
Flammability Class
PA 6.6
1
6.60
11.60
16.60
21.60
26.60
31.60
36.60
41.60
46.60
51.60
56.60
61.60
Poles
Width (mm)
Article Designation
AK4101/1KD-5.0-PEBBLE
GREY
AK4101/2KD-5.0-PEBBLE
GREY
AK4101/3KD-5.0-PEBBLE
GREY
AK4101/4KD-5.0-PEBBLE
GREY
AK4101/5KD-5.0-PEBBLE
GREY
AK4101/6KD-5.0-PEBBLE
GREY
AK4101/7KD-5.0-PEBBLE
GREY
AK4101/8KD-5.0-PEBBLE
GREY
AK4101/9KD-5.0-PEBBLE
GREY
AK4101/10KD-5.0-PEBBLE
GREY
AK4101/11KD-5.0-PEBBLE
GREY
AK4101/12KD-5.0-PEBBLE
GREY
Article
Number
54101010001 G
54101020001 F
54101030001 F
54101040001 E
54101050001 E
54101060001 D
54101070001 D
54101080001 D
54101090001 D
54101100001 D
54101110001 D
54101120001 D
PU
250
200
200
100
100
50
50
50
50
50
50
50
UL 94 V-0
2
Temperatures
Operating Temperature
(without mech. load)
Store Temperature
-40 °C - 105 °C
-40 °C - 105 °C
3
4
5
6
7
8
9
10
Dimensions
Stripped Length
PCB Hole Diameter
9.0 mm
1.0 mm
Wave Soldering Process
Soldering Temperature,
recommended
Peak Soldering Time,
recommended
260 °C
3-4 s
Materials
Solder Tab
Clamp Spring
Copper
Alloy
Stainless
Steel
Reflow Process
Soldering Temperature,
recommended
Peak Soldering Time,
recommended
-
-
Colours
PEBBLE GREY, RAL 7032
BLUE, RAL 5015
Colours according to RAL, there may be variations on colour due to production conditions. Special
colours on request.
11
12
Accessoires
Figure
Designation
Bridge, 2-pole, insulated,
BRI/2-5.0/5.08-LIGHT GREY
Article Number
Order Data: 50000000006
Bridge, 3-pole, insulated,
BRI/3-5.0/5.08-LIGHT GREY
Order Data: 50000000007
Ratings
UseGroup
Rated Voltage
Rated Current
Rated Wire Size
- solid
- stranded
Test Voltage
B
300 V
10 A
C
-
-
D
300 V
10 A
min
250 V
17.5 A
max
2.5 mm²
-
2.0 kV
AWG 20-14
-
1.60 kV
-
-
-
AWG 20-14
-
1.60 kV
0.5 mm²
-
PTR HARTMANN GmbH
• Gewerbehof 38 • 59368 Werne / Germany
Telefon: +49 (0)2389/7988-0 •
E-Mail: info@ptr-hartmann.com
www.ptr.eu
