463-001
EMI/RFI Environmental G-Spring Backshell
with Strain Relief
Rotatable Coupling - Low Profile
463 F S 001 M 16 05 F 6
463
CONNECTOR
DESIGNATORS
Product Series
Connector
Designator
Angle and Profile
A = 90
B = 45
S = Straight
Basic Part No.
A-F-H-L-S
ROTATABLE
COUPLING
Length: S only
(1/2 inch increments:
e.g. 6 = 3 inches)
Strain Relief Style (F, G)
Cable Entry (Table IV)
Shell Size (Table I)
Finish (Table II)
Length ± .060 (1.52)
Minimum Order Length 2.0 Inch
(See Note 5)
A Thread
(Table I)
Length *
1.22
(31.0)
Max
C Typ.
(Table I)
Cable
Range
M
(Table IV)

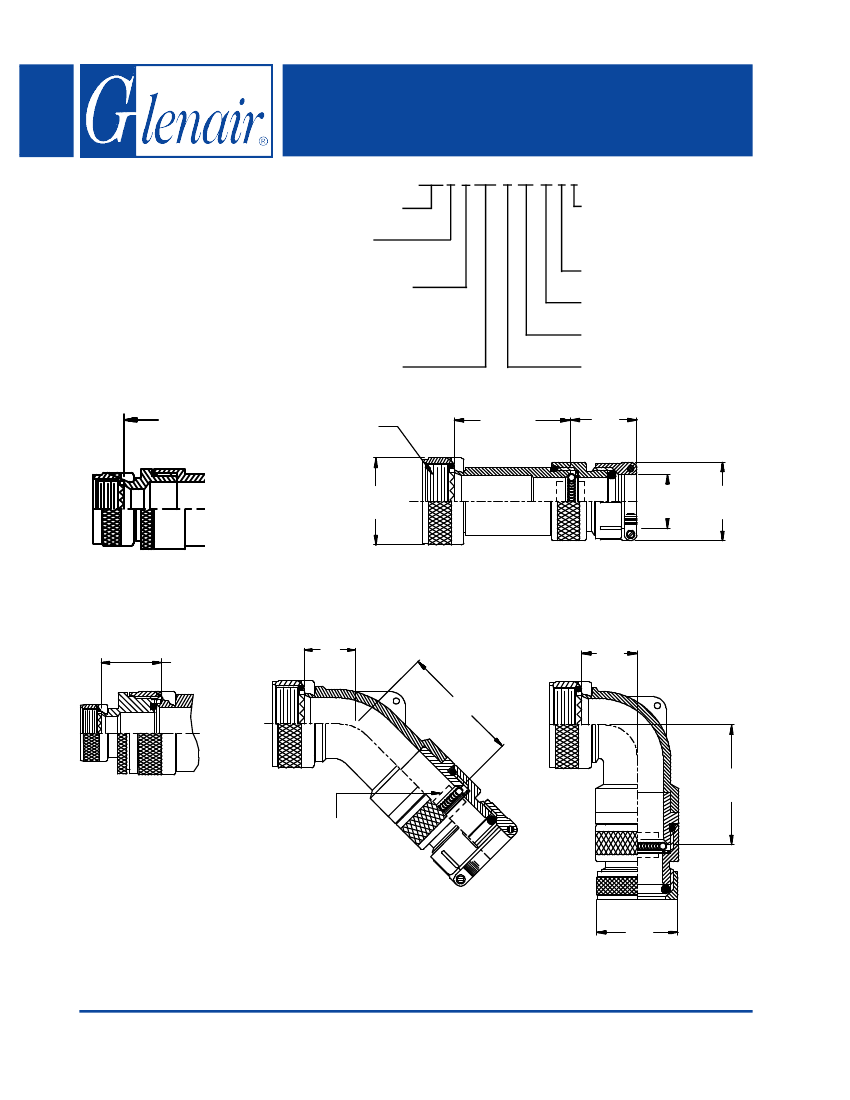

STYLE 2
(STRAIGHT
See Note 1)
* Length ± .060 (1.52)
Minimum Order Length 1.5 Inch
(See Note 5)
Shown with Style F
Strain Relief
.88 (22.4) Max
E
(Table III)
F (Table III)
G
(Table III)
STYLE 2
(45° & 90°
See Note 1)
H
(Table III)
469-001-XX Shield Support Ring
(order separately) is recommended
for use in all G-Spring backshells
(see page 463-8)
Shown with Style F
Strain Relief
Shown with
Style G
Strain Relief
N
(Table IV)
© 2005 Glenair, Inc.
CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
E-Mail: sales@glenair.com
Series 463 - Page 2
with Strain Relief
Rotatable Coupling - Low Profile
See inside back cover fold-out or pages 13 and 14 for Tables I and II.
TABLE III: ELBOW DIMENSIONS
Shell Size
Conn. Desig.
H
A-F-L-S
09
08
11
10
13
12
15
14
17
16
19
18
21
20
23
22
25
24
28
32
36
E
Max
.413 (10.5)
.520 (13.2)
.582 (14.8)
.645 (16.4)
.738 (18.7)
.926 (23.5)
.926 (23.5)
1.020 (25.9)
1.020 (25.9)
1.145 (29.1)
1.207 (30.7)
1.238 (31.4)
F
Max
1.720 (43.7)
1.720 (43.7)
1.780 (45.2)
1.870 (47.5)
1.980 (50.3)
2.170 (55.1)
2.170 (55.1)
2.320 (58.9)
2.320 (58.9)
2.370 (60.2)
2.470 (62.7)
2.560 (65.0)
G
Max
.500 (12.7)
.595 (15.1)
.610 (15.5)
.700 (17.8)
.885 (22.5)
.975 (24.8)
.975 (24.8)
1.125 (28.6)
1.125 (28.6)
1.225 (31.1)
1.575 (40.0)
1.775 (45.1)
H
Max
1.670 (42.4)
1.790 (45.5)
1.810 (46.0)
1.880 (47.8)
1.970 (50.0)
2.140 (54.4)
2.140 (54.4)
2.250 (57.2)
2.250 (57.2)
2.420 (61.5)
2.670 (67.8)
2.670 (67.8)
TABLE IV: CABLE ENTRY
Cable
N
M
Dash
Min
Max
Max
No.
.625 (15.9) .125 (3.2)
.843 (21.4)
01
.750 (19.1) .156 (4.0)
.968 (24.6)
02
.875 (22.2) .250 (6.4)
03 1.046 (26.6)
04 1.156 (29.4) 1.000 (25.4) .280 (7.1)
05 1.218 (30.9) 1.125 (28.6) .375 (9.5)
06 1.343 (34.1) 1.250 (31.8) .500 (12.7)
07 1.468 (37.3) 1.375 (34.9) .625 (15.9)
08 1.593 (40.5) 1.500 (38.1) .750 (19.1)
09 1.718 (43.6) 1.625 (41.3) .875 (22.2)
10 1.843 (46.8) 1.750 (44.5) 1.000 (25.4)
11* 2.187 (55.5) 1.875 (47.6) 1.125 (28.6)
12* 2.312 (58.7) 2.000 (50.8) 1.250 (31.8)
13* 2.437 (61.9) 2.125 (54.0) 1.375 (34.9)
14* 2.546 (64.7) 2.250 (57.2) 1.500 (38.1)
* Consult factory for availability
Range
Max
.250 (6.4)
.375 (9.5)
.438 (11.1)
.500 (12.7)
.625 (15.9)
.750 (19.1)
.875 (22.2)
1.000 (25.4)
1.125 (28.6)
1.250 (31.8)
1.375 (34.9)
1.500 (38.1)
1.625 (41.3)
1.750 (44.5)
1. Shield Support Ring (469-001-XX) is recommended for use in all G-Spring
backshells (see page 463-8).
2. When maximum cable entry (page 21) is exceeded, Style 2 will be supplied.
Dimensions E, F, G and H will not apply. Please consult factory.
3. Metric dimensions (mm) are indicated in parentheses.
4. Cable range is defined as the accommodations range for the wire bundle or
cable. Dimensions shown are not intended for inspection criteria.
5. Consult factory for shorter lengths on straight backshells.
6. O-Ring not supplied with Connector Designator A.
