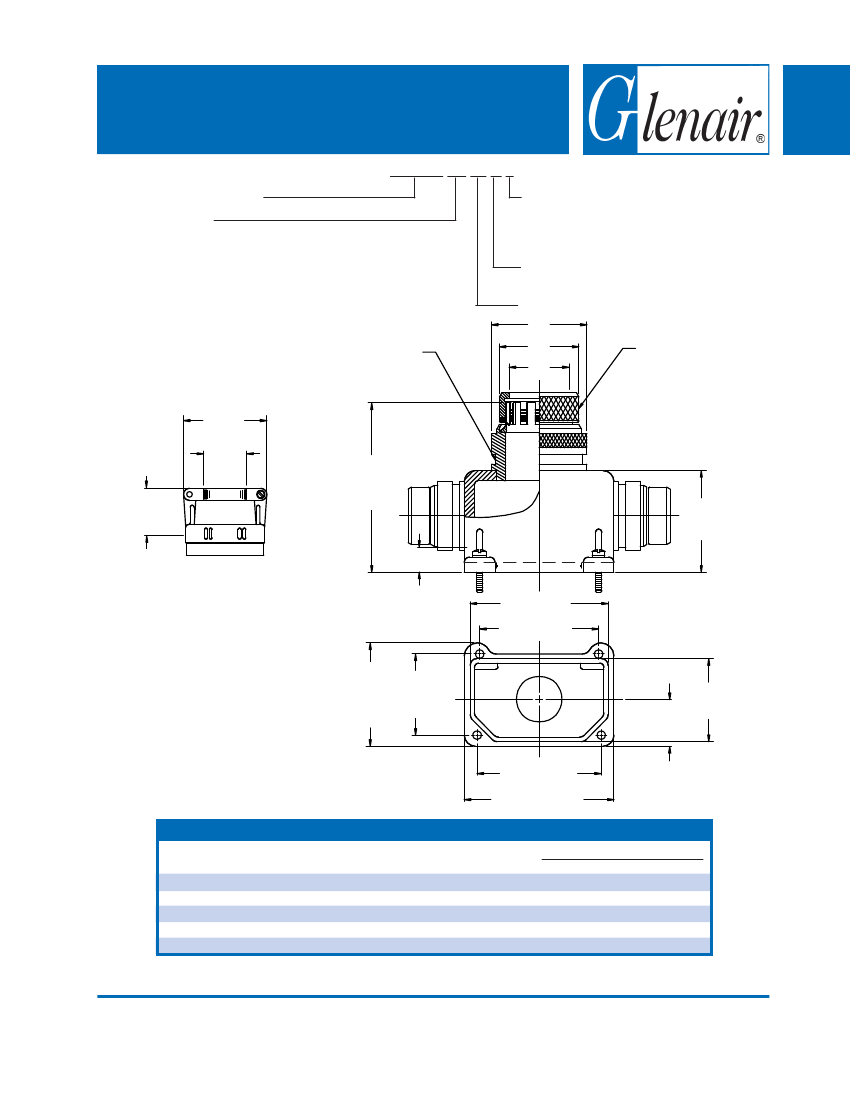

EMI/RFI TAG RingÂ® Backshell

Preview

Download Datasheet

View All

507-059

EMI/RFI TAG Ring

Backshell

for MIL-C-81659 Connectors

507-059 NF 06 G L

Basic Part No.

Finish

B = Cadmium Plate/Olive Drab

M = Electroless Nickel

N = Cadmium Plate/Olive Drab over Nickel Plate

NF = Cadmium Olive Drab over Electroless

Nickel (1000 Hour Salt Spray)

Entry Location

L = Left Side Entry

R = Right Side Entry

Omit for Top Entry

L = Strain Relief

G = Gland Nut

Dash No. (Table I)

Shrink Boot

Accomodation

See Note 3

J Max

Cable

Range

.850 (21.6)

Max

2.50 (63.5)

Max Typ.

Note 3

L Left

Entry

T Top

Entry

Style G Nut

Knurl

Style Mfr.

Option (Typ)

1.50

(38.1)

Style L Strain

Relief

.390 (9.1) Ref

1.500 (38.1)

1.377 (35.0)

R Right

Entry

1. Metric dimensions (mm) are indicated in

parentheses.

2. Material/Finish:

Backshell, Adapter, Clamp, Tag Ring

Body = Al Alloy/Finish Per Option 1.195 .938

(30.4)

Tag Ring Nut = Al Alloy/Gold Iridite

(23.8)

Max

Tag Ring Spring = Beryllium Copper/

Typ.

Gold Plate

Friction Washer = Teflon/N.A.

Clamp Hardware = Cres/Passivate

3. Style “L” strain relief option will be supplied

less shrink boot accomodation and 2.50

max height will be 2.36 max.

.407

(10.3)

1.437 (36.5)

1.715 (43.6) Max

.875

(22.2)

TABLE I: CABLE ENTRY

Dash

Entry

.25 (6.4)

.37 (9.4)

.50 (12.7)

.62 (15.7)

.75 (19.1)

F Dia

Max

.55 (14.0)

.67 (17.0)

.80 (20.3)

.92 (23.4)

1.05 (26.7)

G Dia

Max

.69 (17.5)

.79 (20.1)

.92 (23.4)

1.04 (26.4)

1.17 (29.7)

Max

.97 (24.6)

1.05 (26.7)

1.16 (29.5)

1.22 (31.0)

1.34 (34.0)

Cable Range

Min

Max

.125 (3.2) .250 (6.4)

.250 (6.4) .375 (9.5)

.250 (6.4) .500 (12.7)

.375 (9.5) .625 (15.9)

.500 (12.7) .750 (19.1)

Printed in U.S.A.

CAGE Code 06324

GLENAIR, INC.

•

1211 AIR WAY

•

GLENDALE, CA 91201-2497

•

818-247-6000

•

FAX 818-500-9912

www.glenair.com

E-Mail: sales@glenair.com

B-9

MIL-C-81659
