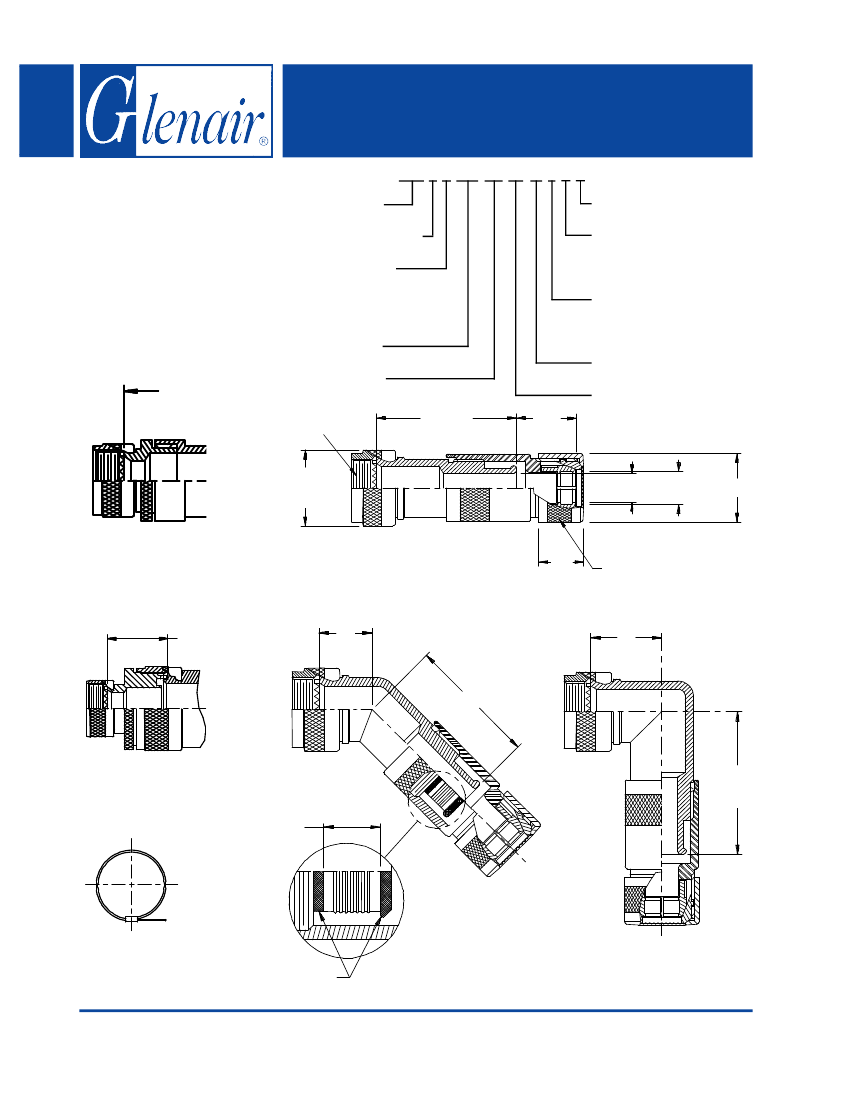

EMI/RFI Non-Environmental Band-in-a-Can Backshell
with QwikClamp Strain-Relief
Rotatable Coupling - Standard Profile
447 F S 420 NF 16 12-8 K P
Product Series
Polysulfide (Omit for none)
B = Band
K = Precoiled Band
(Omit for none)
Length: S only
(1/2 inch increments,
e.g. 8 = 4.000 inches)
Cable Entry (Table IV)
Finish (Table II)
Length ± .060 (1.52)
Min. Order
Length 2.5 inch
Shell Size (Table I)
A Thread
(Table I)
Length *
L
(Table IV)
447
CONNECTOR
DESIGNATORS
Connector Designator
Angle and Profile
H = 45
J = 90
S = Straight
Basic Part No.
A-F-H-L-S
ROTATABLE
COUPLING
C Typ.
(Table I)
* Length ± .060 (1.52)
Min. Order Length 2.0 inch
(See Note 3)
K **
Cable
Entry
N **
STYLE 2
(STRAIGHT
See Note 1)
** (Table IV)
M**
U.S. Patent 5211576
Internal Mechanical Strain
Relief Anti-Rotation
G
(Table III)
.88 (22.4)
Max
E
(Table III)
F (Table III)
STYLE 2
(45° & 90°
See Note 1)
Termination Area
Free of Cadmium
Knurl or Ridges
Mfr's Option
H
(Table III)
Band Option
(K Option Shown -
See Note 4)
© 2005 Glenair, Inc.
Polysulfide Stripes
P Option
CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
E-Mail: sales@glenair.com
Series 447 - Page 2
with QwikClamp Strain-Relief
Rotatable Coupling - Standard Profile
See inside back cover fold-
out or pages 13 and 14 for
Tables I and II.
TABLE III: ELBOW DIMENSIONS
Shell Size
Conn. Desig.
A-F-L-S
H
09
08
10
11
13
12
15
14
16
17
19
18
20
21
23
22
25
24
E
Max
.639 (16.2)
.664 (16.9)
.688 (17.5)
.705 (17.9)
.732 (18.6)
.748 (19.0)
.773 (19.6)
.800 (20.3)
.823 (20.9)
F
Max
1.380 (35.1)
1.410 (35.8)
1.430 (36.3)
1.460 (37.1)
1.480 (37.6)
1.490 (37.8)
1.510 (38.4)
1.550 (39.4)
1.580 (40.1)
G
Max
.750 (19.1)
.810 (20.6)
.870 (22.1)
.920 (23.4)
.980 (24.9)
1.020 (25.9)
1.080 (27.4)
1.140 (29.0)
1.200 (30.5)
H
Max
1.500 (38.1)
1.550 (39.4)
1.610 (40.9)
1.680 (42.7)
1.740 (44.2)
1.760 (44.7)
1.820 (46.2)
1.900 (48.3)
1.970 (50.0)
K
Dash
Clamp
Dia
No. Size (Ref)
.125 (3.2)
02
08
.188 (4.8)
03
08
.250 (6.4)
04
08
.312 (7.9)
05
12
.375 (9.5)
06
12
.438 (11.1)
07
16
.500 (12.7)
08
16
.562 (14.3)
09
20
.625 (15.9)
10
20
.688 (17.5)
11
24
.750 (19.1)
12
24
.812 (20.6)
13
28
.875 (22.2)
14
28
.938 (23.8)
15
32
1.000 (25.4)
16
32
1.062 (27.0)
17
36
1.125 (28.6)
18
36
1.250 (31.8)
20
40
1.375 (34.9)
22
44
1.500 (38.1)
24
48
TABLE IV: CABLE ENTRY
L
M
N
Max
Max
Max
.970 (24.6) .530 (13.5)
.720 (18.3)
.970 (24.6) .530 (13.5)
.720 (18.3)
.970 (24.6) .530 (13.5)
.720 (18.3)
1.110 (28.2) .710 (18.0)
.910 (23.1)
1.110 (28.2) .710 (18.0)
.910 (23.1)
1.210 (30.7) .720 (18.3) 1.090 (27.7)
1.210 (30.7) .720 (18.3) 1.090 (27.7)
1.210 (30.7) .720 (18.3) 1.220 (31.0)
1.210 (30.7) .720 (18.3) 1.220 (31.0)
1.210 (30.7) .660 (16.8) 1.340 (34.0)
1.360 (34.5) .660 (16.8) 1.340 (34.0)
1.360 (34.5) .790 (20.1) 1.530 (38.9)
1.510 (38.4) .790 (20.1) 1.530 (38.9)
1.510 (38.4) .870 (22.1) 1.720 (43.7)
1.510 (38.4) .870 (22.1) 1.720 (43.7)
1.510 (38.4) .830 (21.1) 1.850 (47.0)
1.510 (38.4) .830 (21.1) 1.850 (47.0)
1.510 (38.4) .820 (20.8) 1.970 (50.0)
1.510 (38.4) .910 (23.1) 2.090 (53.1)
1.510 (38.4) .900 (22.9) 2.280 (57.9)
Cable
Min
.100 (2.5)
.098 (2.5)
.098 (2.5)
.203 (5.2)
.203 (5.2)
.328 (8.3)
.328 (8.3)
.452 (11.5)
.452 (11.5)
.515 (13.1)
.515 (13.1)
.640 (16.3)
.640 (16.3)
.765 (19.4)
.765 (19.4)
.859 (21.8)
.859 (21.8)
.984 (25.0)
1.125 (28.6)
1.250 (31.8)
Range
Max
.250 (6.4)
.200 (5.1)
.250 (6.4)
.375 (9.5)
.375 (9.5)
.500 (12.7)
.500 (12.7)
.625 (15.9)
.625 (15.9)
.750 (19.1)
.750 (19.1)
.875 (22.2)
.875 (22.2)
1.000 (25.4)
1.000 (25.4)
1.125 (28.6)
1.125 (28.6)
1.250 (31.8)
1.375 (34.9)
1.500 (38.1)
1. When maximum cable entry (page 21) is exceeded, Style 2 will
be supplied.
Dimensions E, F, G, and H will not apply. Please consult factory.
2. Metric dimensions (mm) are indicated in parentheses.
3. Consult factory for shorter lengths on straight backshells.
4. Backshells supplied with 600-052-* band, see Glenair Series 600
Tool Catalog for installation.
