Type Q, 64 Positions
Type Q, Q/2, Q/3 Male Connectors
DIN 41612
95.00 [3.740] max.
90.00 [3.543]
85.20 [3.354]
78.74 [3.100]
8.60 [.339]
1a
1b
0.30 [.012]
2.54 [.100] Typical
Ø 2.80 [.110]
6.20 [.244 ]
11.6 [.457]
5.00 [.197]
4.80 [.189]
2.90 [.114]
TAIL LENGTH
2.54 [.100]
.64 [.025] Typical
90.00 [3.543]
78.74 [3.100]
2.54 [.100] Typical
1a
1b
Ø 1.02 [.040]
Ø 2.80 [.110]
0.30 [.012]

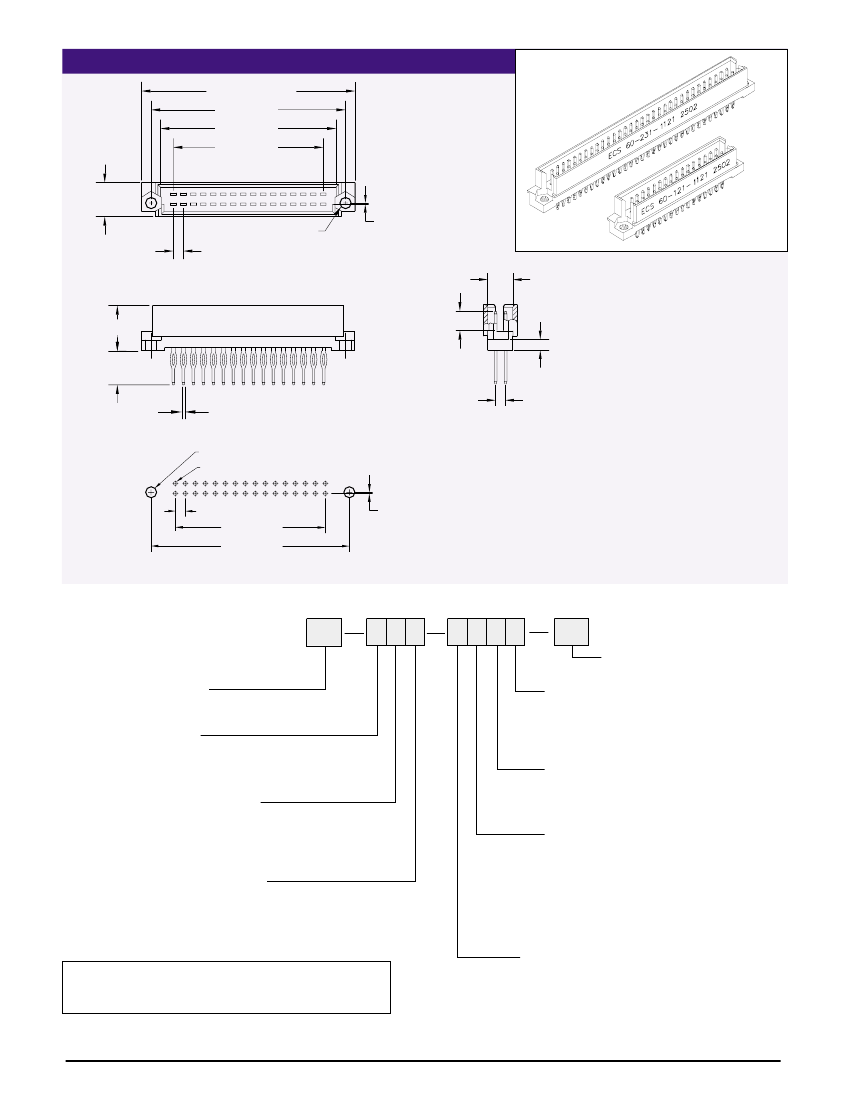

Recommended P. C. Board Layout
Dimensions are in mm [inches]
TAIL LENGTH OPTIONS
Press Fit
Solder and Wire Wrap
1
2
3
4
5
6
7
4.67 [.184]
13.00
[.512]
17.0
[.669]
20.90
[.823]
2.90 [.114]
4.50 [.177]
13.00
[.512]
WWW.ECSCONN.COM
Type Q/2, 32 Positions
55.00 [2.165] max.
50.00 [1.969]
44.60 [1.756]
38.10 [1.500]
8.60 [.339]
Ø 2.80 [.110]
2.54 [.100] Typical
1a
1b
0.30 [.012]
6.20
[.244]
11.60 [.457]
4.80 [.189]
2.90 [.114]
TAIL LENGTH
2.54 [.100]
.64 [.025] Typical
Ø 2.80 [.110]
Ø 1.02 [.040]
1a
1b
2.54 [.100] Typical
0.30 [.012]
38.10 [1.500]
50.00 [1.968]
Recommended P. C. Board Layout
Dimensions are in mm [inches]
PART NUMBERING
60
XXX
XX XX
SERIES CODE
BODY STYLE
XX
MC
= Mounting Clip
Blank
= No Mounting Clip
DIN 41612 Type Q, Q/2, Q/3 Male
0
= Q/3 (20 positions) not shown
1
= Q/2 (32 positions)
2
= Q (64 positions)
0
= 20
1
= 16
2
= 32
3
= 64
MATING AREA PLATING
1
= Class 1
2
= Class 2
3
= Class 3
1
= Tin Lead
2
= Gold flash (.200" from pin tip)
3
= Gold plate 30µ” (.200" from pin tip)
4
= Gold plate 15µ” (.200" from pin tip)
TAIL PLATING
NUMBER OF CONTACTS
TAIL LENGTH
1
= 4.67 [.184]
2
= 13.00 [.512]
3
= 17.00 [.669]
4
= 20.90 [.823]
5
= 2.90 [.114]
6
= 4.50 [.177]
7
= 13.00 [.512]
CONTACT LOADING
1
= Row A and B fully populated
2
= Row A fully populated, Row B not populated
3
= Row B fully populated, Row A not populated
Consult Factory for other Loading Options
Press-Fit
Press-Fit
Press-Fit
Press-Fit
Dip Solder
Dip Solder
Dip Solder Wire Wrap
Note: Press Fit Connectors required a press in tool.
See page C-48 for Press In Tool information.
CONTACT TYPE
(Consult Factory)
1
= For all Press Fit Connectors
1
= Solder Version Requiring EM/LB Contacts
2
= Solder Versions Standard Contacts
(Consult Factory if EM/LB Contact Required)
CONSULT FACTORY FOR CONNECTORS BUILT TO YOUR DESIGN
WWW.ECSCONN.COM
