627-M15-222-LT2 datasheet, PDF

Datasheet> All Categories > The connector> The connector> 627-M15-222-LT2

627-M15-222-LT2: DescriptionD Subminiature Connector,; CategoryThe connector The connector; File Size75KB，1 Pages; ManufacturerEDAC

Download Datasheet Parametric View All

627-M15-222-LT2 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	627-M15-222-LT2	-	-	View	Buy Now

627-M15-222-LT2 Overview

D Subminiature Connector,

627-M15-222-LT2 Parametric

Parameter Name	Attribute value
Maker	EDAC
Reach Compliance Code	compliant
Connector type	D SUBMINIATURE CONNECTOR

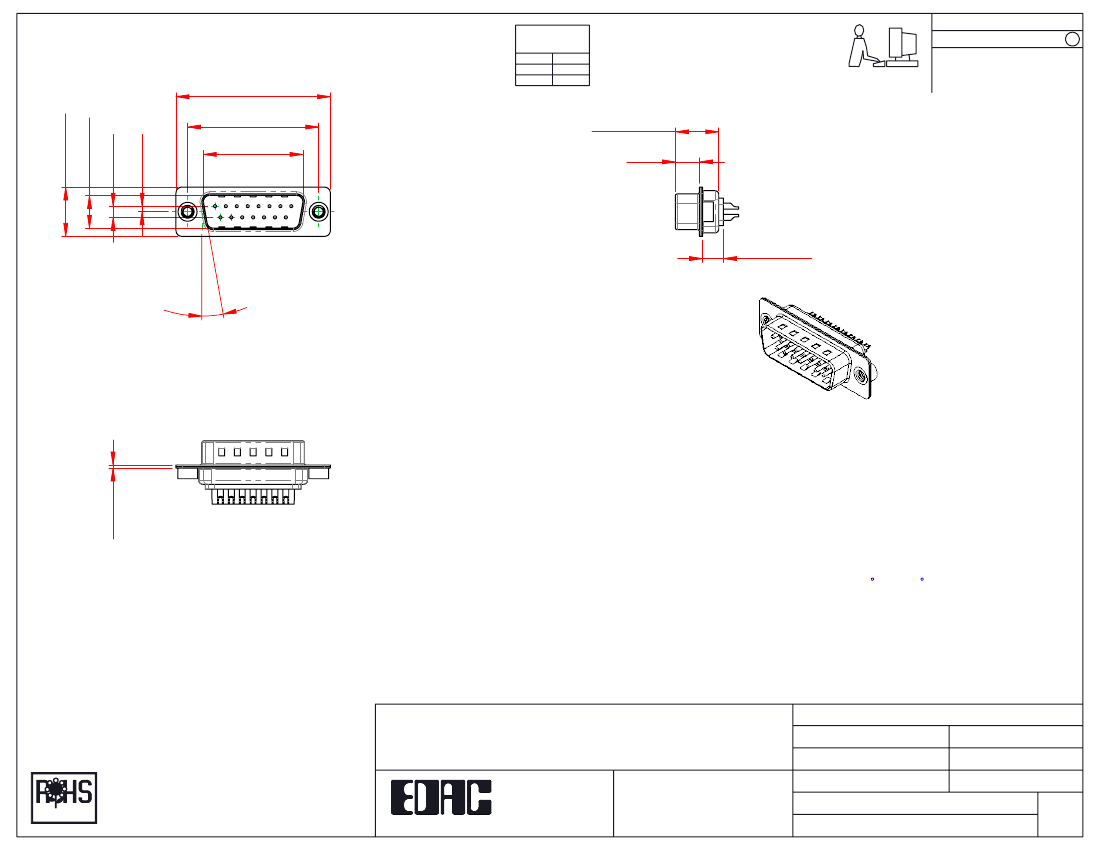

Preview

Download Datasheet

View All

UNLESS OTHERWISE

SPECIFIED

TOLERANCE

THIS IS A C.A.D. GENERATED DRAWING

DO NOT MAKE MANUAL REVISIONS TO MASTER.

ISSUE NUMBER

ORIGINAL

39.20

12.50

8.30

33.30

2.84

1.42

25.25

.XX

.XXX

±0.25

±0.13

±0.10

11.0

±0.30

6.1

5.30

±0.30

10°

NOTES:

MATERIAL:

HOUSING: THERMOPLASTIC POLYESTER, UL94V-0

SHELL: STEEL, Sn or Ni PLATED

CONTACT: COPPER ALLOY SEE ORDERING GUIDE FOR PLATING

OPERATING TEMPERATURE: -55 C ~ 125 C

CURRENT RATING: 5A PER CONTACT

CONTACT RESISTANCE: 25mΩ MAX.

INSULATOR RESISTANCE: 5000MΩ min.

DIELECTRIC

WITHSTANDING VOLTAGE: 1000V AC rms

SW REFERENCE NO.:

627 ASSEMBLY

DATE:

SHEET

AUG. 01/2018

0.80

627 SERIES D-SUB CONNECTOR

THIS SERIES FULLY CONFORMS TO

THE EUROPEAN UNION DIRECTIVES

COMPLIANT

2011/65/EU FOR RoHS COMPLIANCY.

EDAC INC

TORONTO, ONTARIO

CANADA

YOUR CONNECTION TO QUALITY & SERVICE

THESE DRAWINGS AND SPECIFICATIONS

ARE THE PROPERTY OF EDAC INC.,AND

SHALL NOT BE REPRODUCED,OR COPIED

OR USED AS THE BASIS FOR THE

MANUFACTURE OR SALE OF APPARATUS

WITHOUT WRITTEN PERMISSION.

DRAWN:

CHECKED:

SCALE:

C.B

1:1

ISSUE

DRAWING NUMBER:

PART NUMBER:

627-M15-222-LT2
