1N3294A datasheet, PDF - EEWORLD Datasheet

1N3294A: DescriptionRectifier Diode, 1 Element, 100A, 800V V(RRM); CategoryDiscrete semiconductor diode; File Size30KB，1 Pages; ManufacturerEDAL; Websitehttp://www.edal.com/

Download Datasheet Parametric Compare View All

1N3294A Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	1N3294A	-	-	View	Buy Now

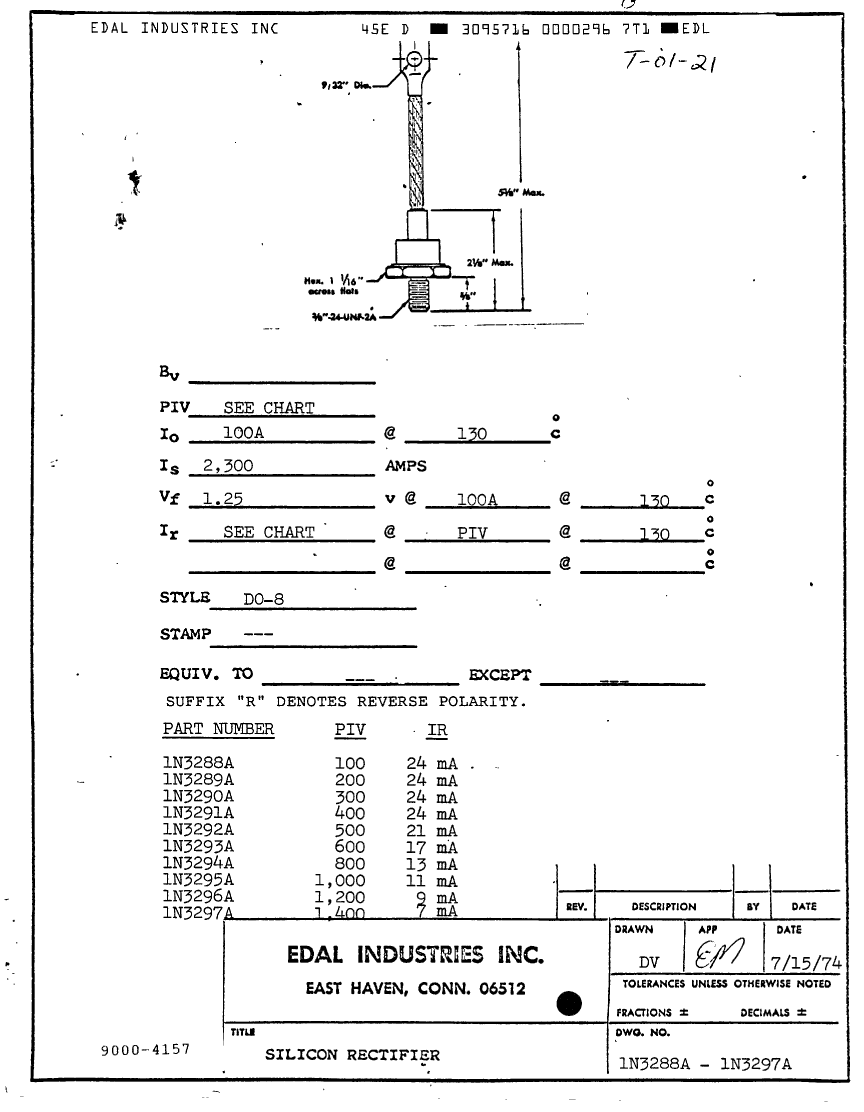

Rectifier Diode, 1 Element, 100A, 800V V(RRM)

Parameter Name	Attribute value
Maker	EDAL
Reach Compliance Code	unknown
Configuration	SINGLE
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	1.25 V
Maximum non-repetitive peak forward current	2300 A
Number of components	1
Maximum operating temperature	200 °C
Maximum output current	100 A
Maximum repetitive peak reverse voltage	800 V
surface mount	NO

	1N3294A	1N3288A	1N3292A	1N3296A	1N3288RA	1N3289A	1N3291A	1N3293A	1N3295A
Description	Rectifier Diode, 1 Element, 100A, 800V V(RRM)	Rectifier Diode, 1 Element, 100A, 100V V(RRM)	Rectifier Diode, 1 Element, 100A, 500V V(RRM)	Rectifier Diode, 1 Element, 100A, 1200V V(RRM)	Rectifier Diode, 1 Element, 100A, 100V V(RRM)	Rectifier Diode, 1 Element, 100A, 200V V(RRM)	Rectifier Diode, 1 Element, 100A, 400V V(RRM)	Rectifier Diode, 1 Element, 100A, 600V V(RRM)	Rectifier Diode, 1 Element, 100A, 1000V V(RRM)
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
Maximum forward voltage (VF)	1.25 V	1.25 V	1.5 V	1.25 V	1.25 V	1.25 V	1.25 V	1.25 V	1.25 V
Maximum non-repetitive peak forward current	2300 A	2300 A	2300 A	2300 A	2300 A	2300 A	2300 A	2300 A	2300 A
Number of components	1	1	1	1	1	1	1	1	1
Maximum operating temperature	200 °C	200 °C	200 °C	200 °C	200 °C	200 °C	200 °C	200 °C	200 °C
Maximum output current	100 A	100 A	100 A	100 A	100 A	100 A	100 A	100 A	100 A
Maximum repetitive peak reverse voltage	800 V	100 V	500 V	1200 V	100 V	200 V	400 V	600 V	1000 V
surface mount	NO	NO	NO	NO	NO	NO	NO	NO	NO
Maker	EDAL	EDAL	EDAL	EDAL	EDAL	-	-	-	EDAL
Base Number Matches	-	1	1	1	1	1	1	1	-
