EDI8F1664C85P6I: DescriptionSRAM Module, 128KX8, 85ns, CMOS,; Categorystorage storage; File Size132KB，5 Pages; ManufacturerEDI [Electronic devices inc.]

Download Datasheet Parametric Compare View All

EDI8F1664C85P6I Overview

SRAM Module, 128KX8, 85ns, CMOS,

EDI8F1664C85P6I Parametric

Parameter Name	Attribute value
Maker	EDI [Electronic devices inc.]
Reach Compliance Code	unknown
Maximum access time	85 ns
Spare memory width	16
JESD-30 code	R-XDMA-T40
memory density	1048576 bit
Memory IC Type	SRAM MODULE
memory width	8
Number of functions	1
Number of ports	1
Number of terminals	40
word count	131072 words
character code	128000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
organize	128KX8
Output characteristics	3-STATE
Exportable	YES
Package body material	UNSPECIFIED
Package shape	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY
Parallel/Serial	PARALLEL
Certification status	Not Qualified
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	INDUSTRIAL
Terminal form	THROUGH-HOLE
Terminal location	DUAL

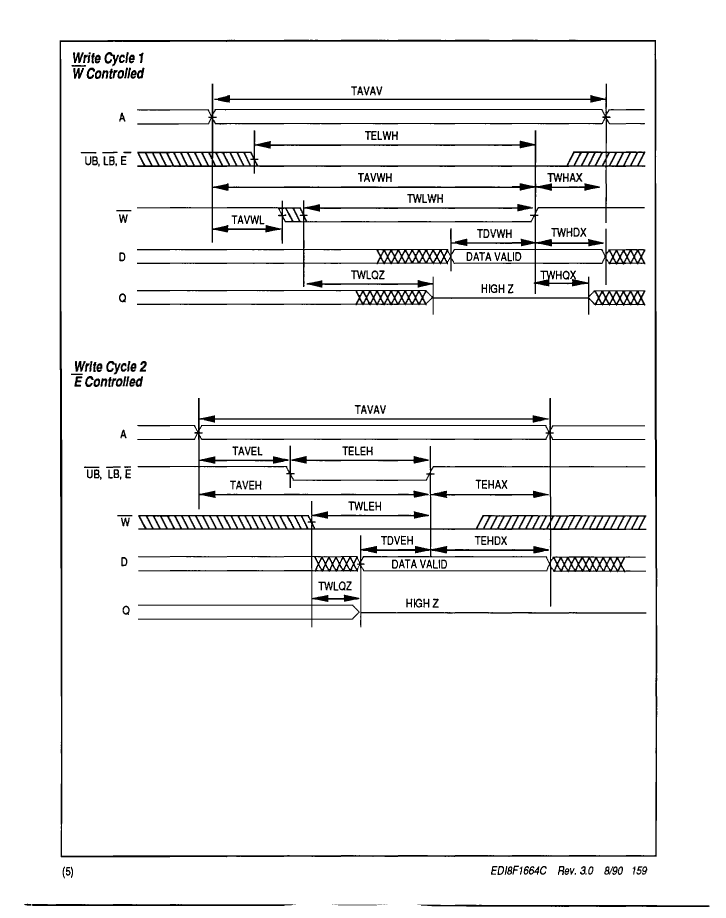

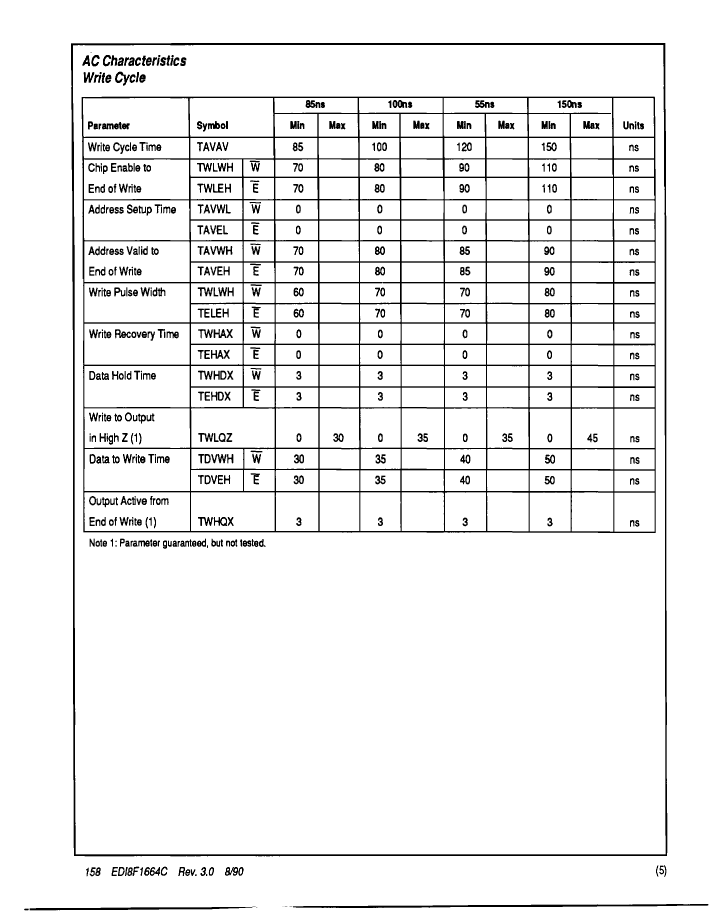

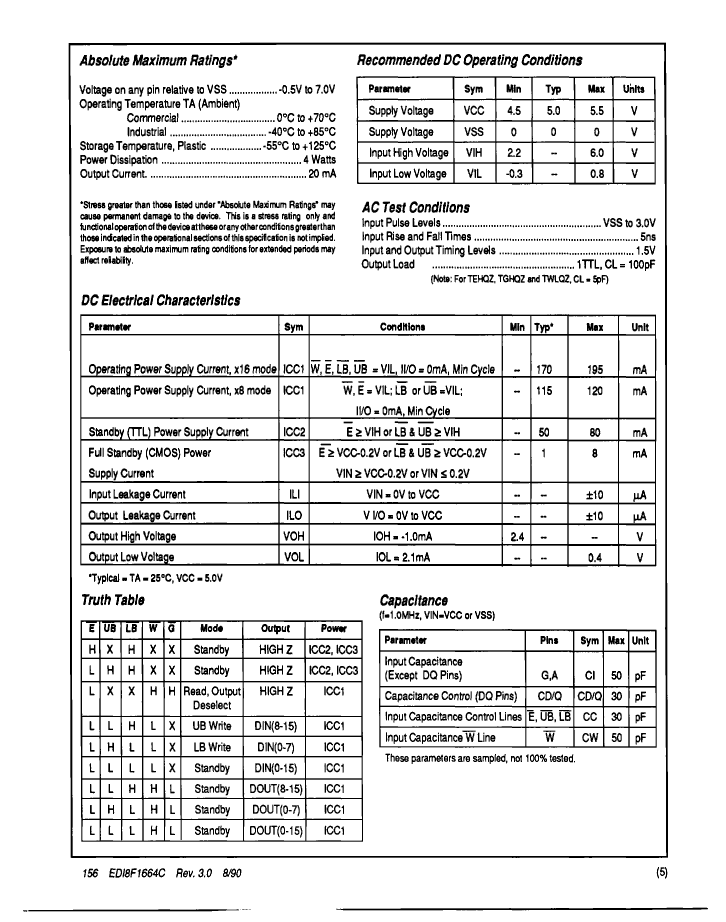

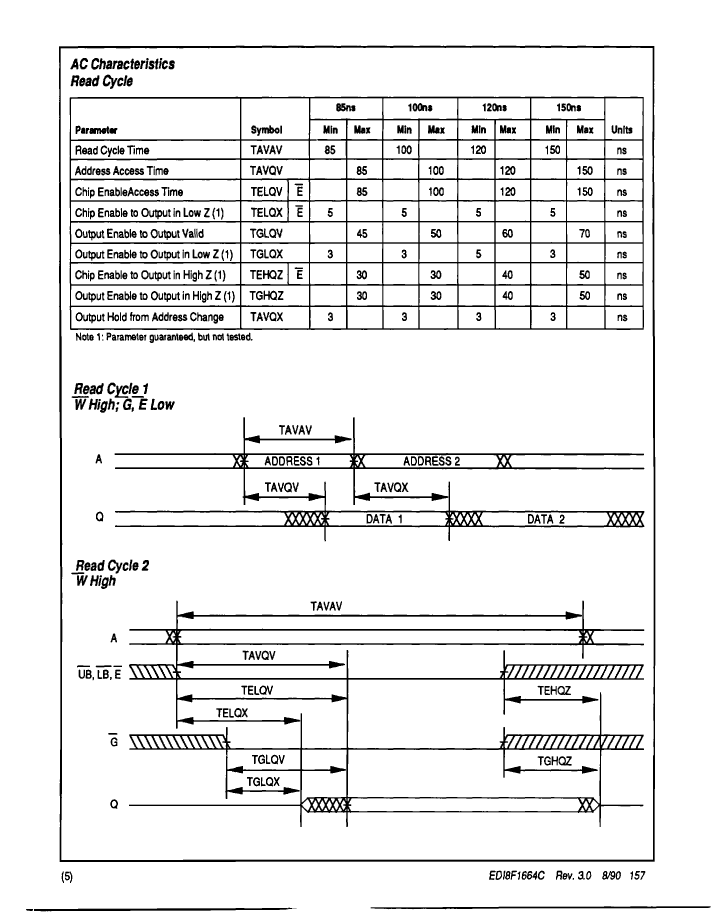

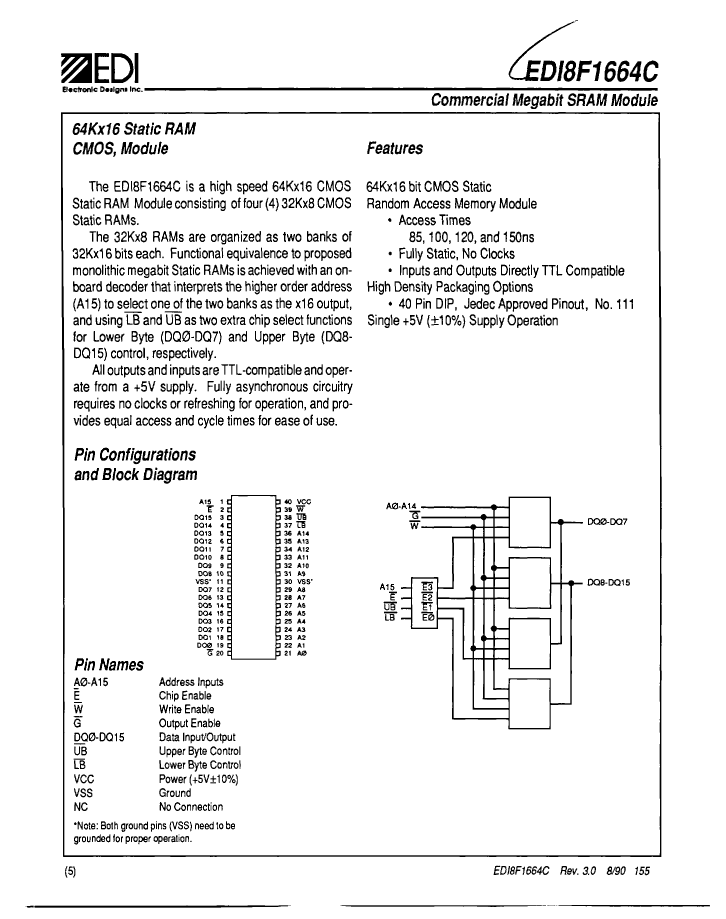

Preview

Download Datasheet

View All

EDI8F1664C85P6I Related Products

	EDI8F1664C85P6I	EDI8F1664C150P6C	EDI8F1664C100P6C	EDI8F1664C100P6I	4-21028-4	EDI8F1664C150P6I	EDI8F1664C85P6C	EDI8F1664C120P6C
Description	SRAM Module, 128KX8, 85ns, CMOS,	SRAM Module, 128KX8, 150ns, CMOS,	SRAM Module, 128KX8, 100ns, CMOS,	SRAM Module, 128KX8, 100ns, CMOS,	Adapt Various Crimping Dies For Use with 626 Pneumatic Tooling Assemblies	SRAM Module, 128KX8, 150ns, CMOS,	SRAM Module, 128KX8, 85ns, CMOS,	SRAM Module, 128KX8, 120ns, CMOS,
Maker	EDI [Electronic devices inc.]	-	EDI [Electronic devices inc.]	EDI [Electronic devices inc.]	-	EDI [Electronic devices inc.]	EDI [Electronic devices inc.]	EDI [Electronic devices inc.]
Reach Compliance Code	unknown	unknown	unknown	unknown	-	unknown	unknown	unknow
Maximum access time	85 ns	150 ns	100 ns	100 ns	-	150 ns	85 ns	120 ns
Spare memory width	16	16	16	16	-	16	16	16
JESD-30 code	R-XDMA-T40	R-XDMA-T40	R-XDMA-T40	R-XDMA-T40	-	R-XDMA-T40	R-XDMA-T40	R-XDMA-T40
memory density	1048576 bit	1048576 bit	1048576 bit	1048576 bit	-	1048576 bit	1048576 bit	1048576 bi
Memory IC Type	SRAM MODULE	SRAM MODULE	SRAM MODULE	SRAM MODULE	-	SRAM MODULE	SRAM MODULE	SRAM MODULE
memory width	8	8	8	8	-	8	8	8
Number of functions	1	1	1	1	-	1	1	1
Number of ports	1	1	1	1	-	1	1	1
Number of terminals	40	40	40	40	-	40	40	40
word count	131072 words	131072 words	131072 words	131072 words	-	131072 words	131072 words	131072 words
character code	128000	128000	128000	128000	-	128000	128000	128000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	-	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	85 °C	70 °C	70 °C	85 °C	-	85 °C	70 °C	70 °C
organize	128KX8	128KX8	128KX8	128KX8	-	128KX8	128KX8	128KX8
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE	-	3-STATE	3-STATE	3-STATE
Exportable	YES	YES	YES	YES	-	YES	YES	YES
Package body material	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	-	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	-	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	-	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY
Parallel/Serial	PARALLEL	PARALLEL	PARALLEL	PARALLEL	-	PARALLEL	PARALLEL	PARALLEL
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	-	Not Qualified	Not Qualified	Not Qualified
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V	-	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	4.5 V	-	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	-	5 V	5 V	5 V
surface mount	NO	NO	NO	NO	-	NO	NO	NO
technology	CMOS	CMOS	CMOS	CMOS	-	CMOS	CMOS	CMOS
Temperature level	INDUSTRIAL	COMMERCIAL	COMMERCIAL	INDUSTRIAL	-	INDUSTRIAL	COMMERCIAL	COMMERCIAL
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	-	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal location	DUAL	DUAL	DUAL	DUAL	-	DUAL	DUAL	DUAL
