447-426

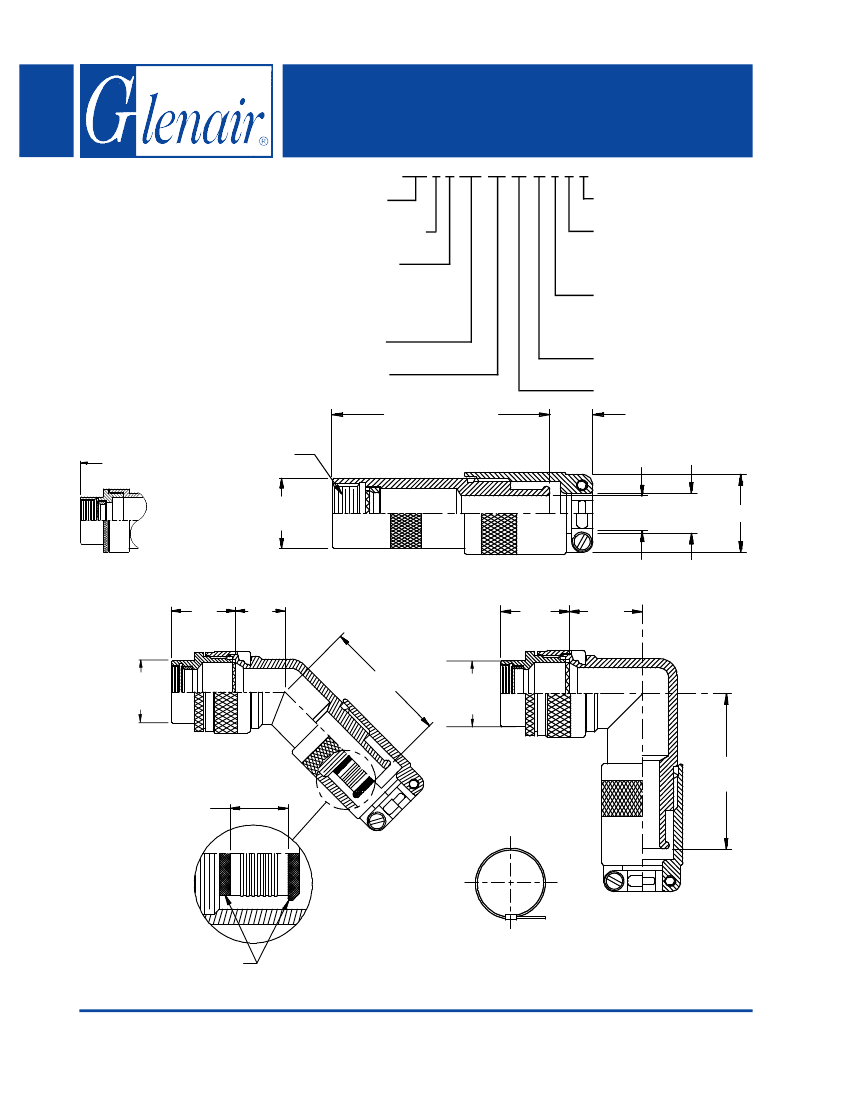

EMI/RFI Non-Environmental Band-in-a-Can Backshell
with Cable Clamp Strain-Relief
Direct Coupling - Standard Profile
447 F S 426 NF 16 12-8 K P
447
A-B -C-D-E-F
G-H-J-K-L-S
* Conn. Desig. B See Note 4
CONNECTOR
DESIGNATORS
*
Product Series
Connector Designator
Angle and Profile
H = 45
J = 90
S = Straight
Basic Part No.
Polysulfide (Omit for none)
B = Band
K = Precoiled Band
(Omit for none)
Length: S only
(1/2 inch increments,
e.g. 8 = 4.000 inches)
Cable Entry (Table V)
DIRECT COUPLING
Finish (Table II)
Shell Size (Table I)
Length ± .060 (1.52)
Min. Order Length 2.5 inch
(Note 3)
Length ± .060 (1.52)
Min. Order Length 3.0 Inch
(See Note 3)
A Thread
(Table I)
.500 (12.7)
Max
B
(Table I)
K **
Cable
Range
L **
STYLE 2
(STRAIGHT
See Note 1)
J
(Table III)
E
(Table
IV)
F (Table IV)
B
(Table I)
J
(Table III)
G
(Table IV)
** (Table V)
B
(Table I)
H
(Table IV)
Termination Area
Free of Cadmium
Knurl or Ridges
Mfr's Option
Polysulfide Stripes
P Option
© 2005 Glenair, Inc.
Band Option
(K Option Shown -
See Note 5)
CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
E-Mail: sales@glenair.com
Series 447 - Page 12
with Cable Clamp Strain-Relief
Direct Coupling - Standard Profile
See inside back cover fold-out or
pages 13 and 14 for Tables I and II.
Shell
Size
08/09
10/11
12/13
14/15
16/17
18/19
20/21
22/23
24/25
28/29
32/33
36
40
TABLE III: FRONT ADAPTER
J Max - Conn. Designator
A-E-F
D-B-G-K
J-H-L-S
C
1.180 (30.0) 1.250 (31.8)
1.180 (30.0) 1.250 (31.8)
1.180 (30.0) 1.250 (31.8) 1.735 (44.1)
1.180 (30.0) 1.250 (31.8) 1.915 (48.6)
1.380 (35.0) 1.560 (39.6) 1.915 (48.6)
1.380 (35.0) 1.560 (39.6) 1.915 (48.6)
1.380 (35.0) 1.560 (39.6) 1.915 (48.6)
1.380 (35.0) 1.560 (39.6) 1.915 (48.6)
1.380 (35.0) 1.560 (39.6) 1.915 (48.6)
1.610 (40.9) 1.560 (39.6) 1.915 (48.6)
1.610 (40.9) 1.750 (44.5) 1.915 (48.6)
1.610 (40.9) 1.750 (44.5) 1.915 (48.6)
1.610 (40.9) 2.190 (55.6) 1.915 (48.6)
TABLE IV: ELBOW DIMENSIONS
Elbow
E
F
G
Size
Max
Max
Max
10/12 .664 (16.9) 1.410 (35.8) .810 (20.6)
14
.688 (17.5) 1.430 (36.3) .870 (22.1)
16/18 .732 (18.6) 1.480 (37.6) .980 (24.9)
20
.748 (19.0) 1.490 (37.8) 1.020 (25.9)
22
.773 (19.6) 1.510 (38.4) 1.080 (27.4)
24
.800 (20.3) 1.550 (39.4) 1.140 (29.0)
28
.823 (20.9) 1.580 (40.1) 1.200 (30.5)
32 1.041 (26.4) 1.750 (44.5) 1.480 (37.6)
H
Max
1.550 (39.4)
1.610 (40.9)
1.740 (44.2)
1.760 (44.7)
1.820 (46.2)
1.900 (48.3)
1.970 (50.0)
2.210 (56.1)
TABLE V: CABLE RANGE
Cable Range
L
K
Dash
Max
Min
No. ±.030 ±(.8)
Max
.130 (3.3) .250 (6.4)
.220 (5.6) 1.000 (25.4)
10
.250 (6.4) .380 (9.7)
.310 (7.9) 1.250 (31.8)
12
.310 (7.9) .440 (11.2)
.440 (11.2) 1.340 (34.0)
14
.375 (9.5) .630 (16.0)
.560 (14.2) 1.470 (37.3)
16
.560 (14.2) .690 (17.5)
.630 (16.0) 1.560 (39.6)
18
.630 (16.0) .750 (19.1)
.750 (19.1) 1.620 (41.1)
20
.750 (19.1) .880 (22.4)
.880 (22.4) 1.750 (44.5)
22
.880 (22.4) 1.000 (25.4)
1.000 (25.4) 1.870 (47.5)
24
1.060 (26.9) 1.970 (50.0) 1.000 (25.4) 1.130 (28.7)
28
1.190 (30.2) 2.090 (53.1) 1.130 (28.7) 1.250 (31.8)
32
1. When maximum cable entry (page 22) is exceeded, Style 2 will be supplied.
(Function S only).
2. Metric dimensions (mm) are indicated in parentheses.
3. Consult factory for shorter lengths on straight backshells.
4. When using Connector Designator B refer to pages 18 and 19 for part
number development.
5. Backshells supplied with 600-052-* band, see Glenair Series 600 Tool
Catalog for installation.
© 2005 Glenair, Inc.
CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
E-Mail: sales@glenair.com
Series 447 - Page 13
447
447-426
