013174 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 013174

013174: DescriptionBoard Euro Connector, 128 Contact(s), 4 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Receptacle; CategoryThe connector The connector; File Size268KB，3 Pages; ManufacturerERNI; Websitehttp://www.erni.com

Download Datasheet Parametric Compare View All

013174 Overview

Board Euro Connector, 128 Contact(s), 4 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Receptacle

013174 Parametric

Parameter Name	Attribute value
Maker	ERNI
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	STANDARDS: DIN 41612; IEC 60603-2
body width	0.54 inch
subject depth	0.453 inch
body length	3.74 inch
Body/casing type	RECEPTACLE
Connector type	BOARD EURO CONNECTOR
Contact to complete cooperation	TIN
Contact completed and terminated	GOLD
Contact point gender	MALE
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
DIN compliance	YES
Dielectric withstand voltage	1000VAC V
Durability	500 Cycles
Filter function	NO
IEC compliance	YES
maximum insertion force	.7784 N
Insulation resistance	1000000000000 Ω
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	013174
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Loaded row name	A,B,C,D
PCB row number	4
Number of rows loaded	4
Maximum operating temperature	125 °C
Minimum operating temperature	-65 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
polarization key	POLARIZED HOUSING
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.512 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	128
UL Flammability Code	94V-0
Evacuation force-minimum value	.7784 N

Preview

Download Datasheet

View All

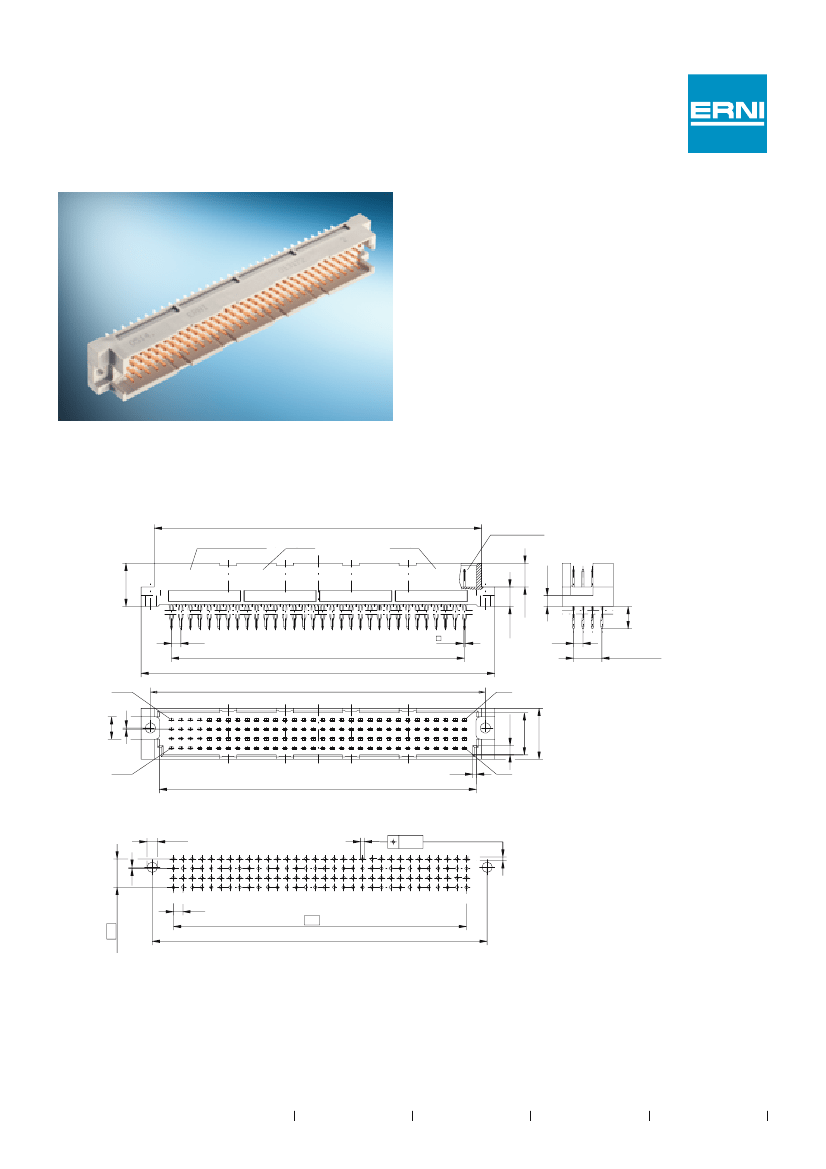

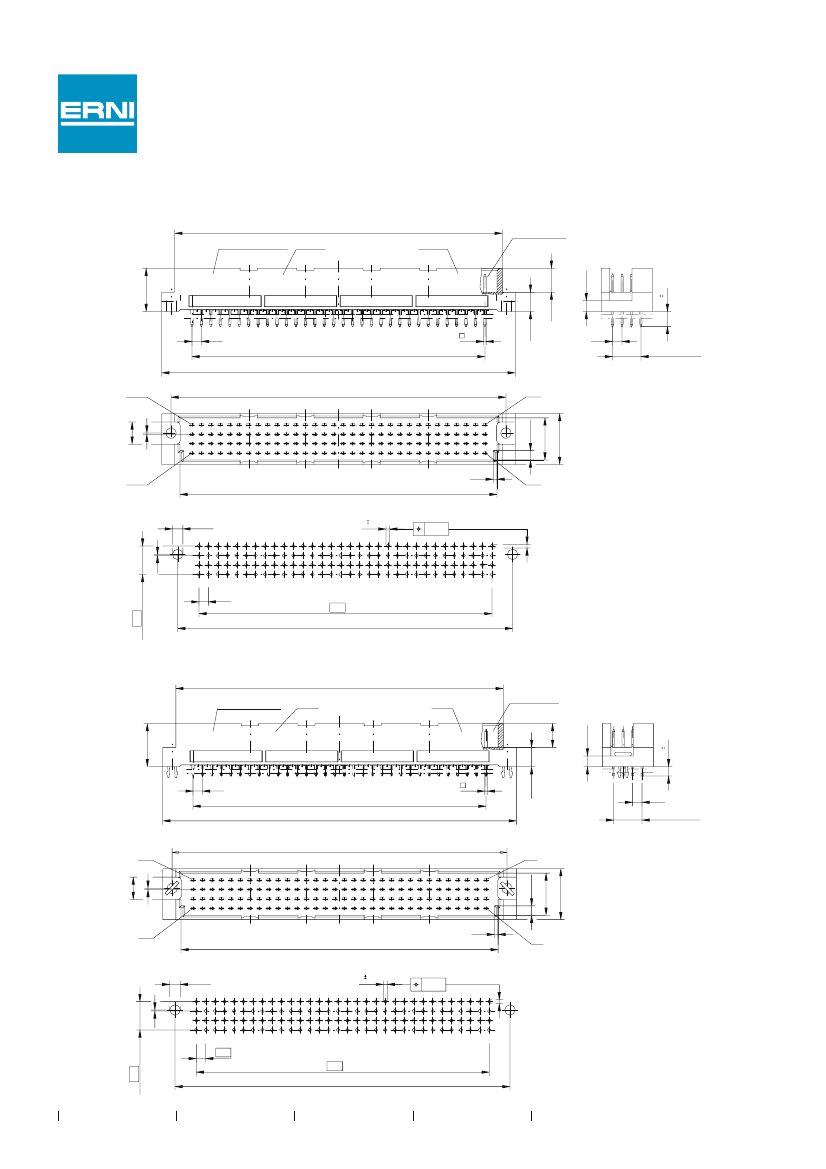

DIN 41612 / IEC 60603-2 Connectors

Type RD Male

Dimensional Drawing Pressfit

-0,2

Stecklänge

Anforderungsstufe

class

Id.-Nr.

Datum

date

-0,3

-0,1

mating length

11,6 max.

2,9

6,4

2,54

31 x 2.54 = 78,74

95 max.

a32

0,6

5,2

-0,1

2,54

3 x 2,54 = 7,62

0,3

-0,2

d32

+0,2

-0,1

85,2

Leiterplatten-Lochbild /

+0,1

PCB drillhole pattern

0,05

all holes

2,8

alle Löcher/

+0.09

-0.06

+0.09

-0.06

13,7 max.

2,5

+0,2

11,3

ø 1.0

ø 1.15

Durchmesser des metallisierten Loches

Diameter of finished plated-through hole

Bohrungsdurchmesser des Loches

Diameter of drilled hole

0,3

±0,025

3 x 2,54 = ( 7,62 )

32 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16 15 14 13 12 11 10 9

2,54

31 x 2,54 =

( 78,74 )

108

Catalog E 074558

03/06

Edition 1

XXXX

ERNI

XXXXXX

www.erni.com

013174 Related Products

	013174	154970	013154	013171	013172	013175	013178
Description	Board Euro Connector, 128 Contact(s), 4 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Receptacle	Board Euro Connector, 128 Contact(s), 4 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Guide Slot, Receptacle	Board Euro Connector, 128 Contact(s), 4 Row(s), Male, Straight, 0.1 inch Pitch, Press Fit Terminal, Receptacle	Board Euro Connector, 128 Contact(s), 4 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Locking, Receptacle	Board Euro Connector, 128 Contact(s), 4 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Receptacle	Board Euro Connector, 128 Contact(s), 4 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Receptacle	Board Euro Connector, 128 Contact(s), 4 Row(s), Male, Straight, 0.1 inch Pitch, Press Fit Terminal, Receptacle
Reach Compliance Code	compliant	unknow	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Other features	STANDARDS: DIN 41612; IEC 60603-2	STANDARDS: DIN 41612; IEC 60603-2	STANDARDS: DIN 41612; IEC 60603-2	STANDARDS: DIN 41612; IEC 60603-2	STANDARDS: DIN 41612; IEC 60603-2	STANDARDS: DIN 41612; IEC 60603-2	STANDARDS: DIN 41612; IEC 60603-2
body width	0.54 inch	0.539 inch	0.539 inch	0.539 inch	0.54 inch	0.54 inch	0.539 inch
subject depth	0.453 inch	0.457 inch	0.453 inch	0.457 inch	0.453 inch	0.453 inch	0.453 inch
body length	3.74 inch	3.74 inch	3.74 inch	3.74 inch	3.74 inch	3.74 inch	3.74 inch
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR
Contact to complete cooperation	TIN	TIN	TIN	TIN	TIN	TIN	TIN
Contact completed and terminated	GOLD	GOLD	GOLD	GOLD	GOLD	GOLD	GOLD
Contact point gender	MALE	MALE	MALE	MALE	MALE	MALE	MALE
Contact style	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT
DIN compliance	YES	YES	YES	YES	YES	YES	YES
Durability	500 Cycles	400 Cycles	400 Cycles	400 Cycles	400 Cycles	400 Cycles	400 Cycles
Filter function	NO	NO	NO	NO	NO	NO	NO
IEC compliance	YES	YES	YES	YES	YES	YES	YES
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYAMIDE	POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE
JESD-609 code	e4	e4	e4	e4	e4	e4	e4
MIL compliance	NO	NO	NO	NO	NO	NO	NO
Manufacturer's serial number	013174	154970	013154	013171	013172	013175	013178
Plug contact pitch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch
Match contact row spacing	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO	NO	NO	NO	NO	NO	NO
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Loaded row name	A,B,C,D	A,B,C,D	A,B,C,D	A,B,C,D	A,B,C,D	A,B,C,D	A,B,C,D
PCB row number	4	4	4	4	4	4	4
Number of rows loaded	4	4	4	4	4	4	4
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-65 °C	-55 °C	-65 °C	-65 °C	-65 °C	-65 °C	-65 °C
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
PCB contact row spacing	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
polarization key	POLARIZED HOUSING	ENDS	ENDS	ENDS	POLARIZED HOUSING	POLARIZED HOUSING	ENDS
Rated current (signal)	3 A	2.5 A	1 A	3 A	3 A	3 A	1 A
Guideline	UL	UL	UL, CSA	UL	UL	UL	UL, CSA
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal length	0.512 inch	0.098 inch	0.787 inch	0.157 inch	0.157 inch	0.512 inch	0.236 inch
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Termination type	SOLDER	SOLDER	PRESS FIT	SOLDER	SOLDER	SOLDER	PRESS FIT
Total number of contacts	128	128	128	128	128	128	128
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0
Maker	ERNI	-	ERNI	ERNI	ERNI	ERNI	ERNI
Contact resistance	20 mΩ	20 mΩ	20 mΩ	-	20 mΩ	20 mΩ	20 mΩ
Dielectric withstand voltage	1000VAC V	1000VAC V	1000VAC V	-	1000VAC V	1000VAC V	1000VAC V
maximum insertion force	.7784 N	.7784 N	.9452 N	-	.7784 N	.7784 N	.9452 N
Insulation resistance	1000000000000 Ω	10000000000 Ω	1000000000000 Ω	-	1000000000000 Ω	1000000000000 Ω	1000000000000 Ω
Evacuation force-minimum value	.7784 N	.7784 N	.9452 N	-	.7784 N	.7784 N	.9452 N
