023391 datasheet, PDF - EEWORLD Datasheet

023391: DescriptionBoard Euro Connector, 32 Contact(s), 2 Row(s), Female, Straight, 0.1 inch Pitch, Press Fit Terminal, Plug,; CategoryThe connector The connector; File Size214KB，3 Pages; ManufacturerERNI; Websitehttp://www.erni.com

Download Datasheet Parametric View All

023391 Overview

Board Euro Connector, 32 Contact(s), 2 Row(s), Female, Straight, 0.1 inch Pitch, Press Fit Terminal, Plug,

Parameter Name	Attribute value
Maker	ERNI
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	STANDARDS: DIN 41612; IEC 60603-2
body width	0.417 inch
subject depth	0.453 inch
body length	2.165 inch
Body/casing type	PLUG
Connector type	BOARD EURO CONNECTOR
Contact to complete cooperation	AU
Contact completed and terminated	GOLD
Contact point gender	FEMALE
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
DIN compliance	YES
Dielectric withstand voltage	1000VAC V
Durability	400 Cycles
Filter function	NO
IEC compliance	YES
Insulation resistance	1000000000000 Ω
insulator material	POLYBUTYLENE TEREPHTHALATE
JESD-609 code	e4
MIL compliance	NO
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Loaded row name	A,C
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-65 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	5.08 mm
Rated current (signal)	1 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.669 inch
Terminal pitch	2.54 mm
Termination type	PRESS FIT
Total number of contacts	32
UL Flammability Code	94V-0

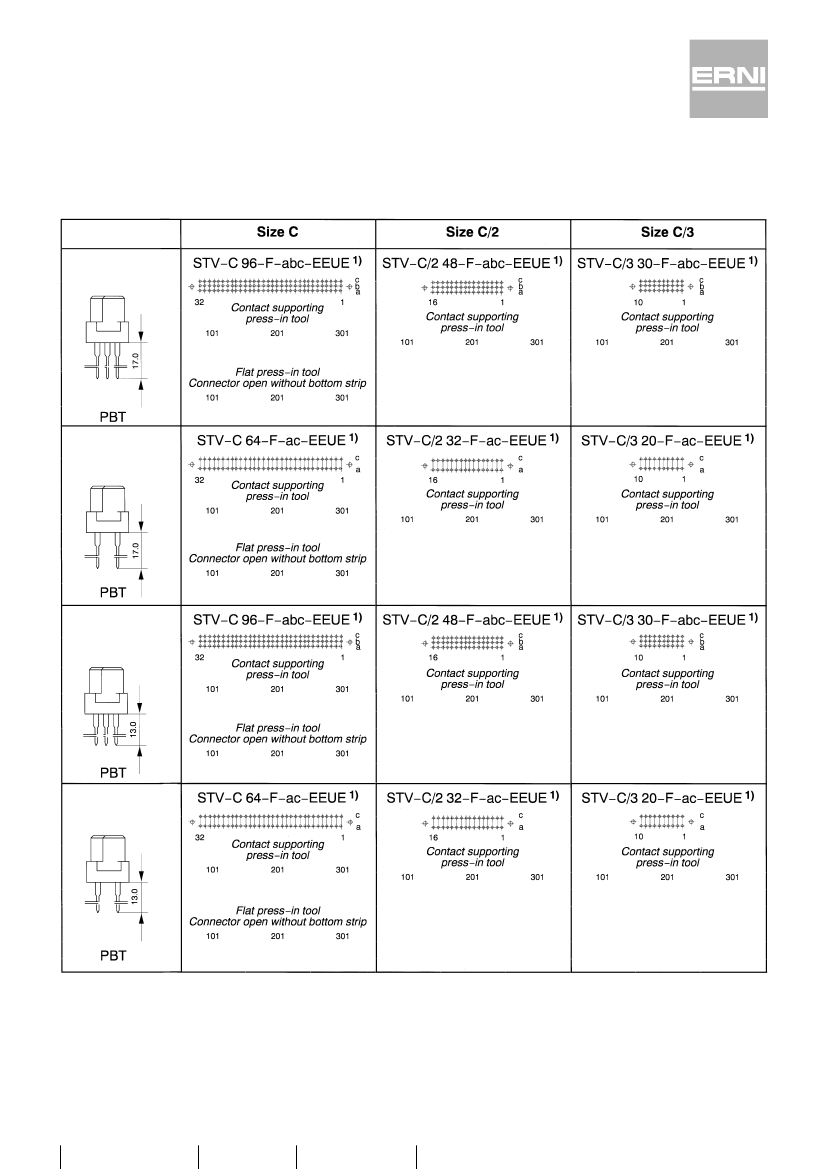

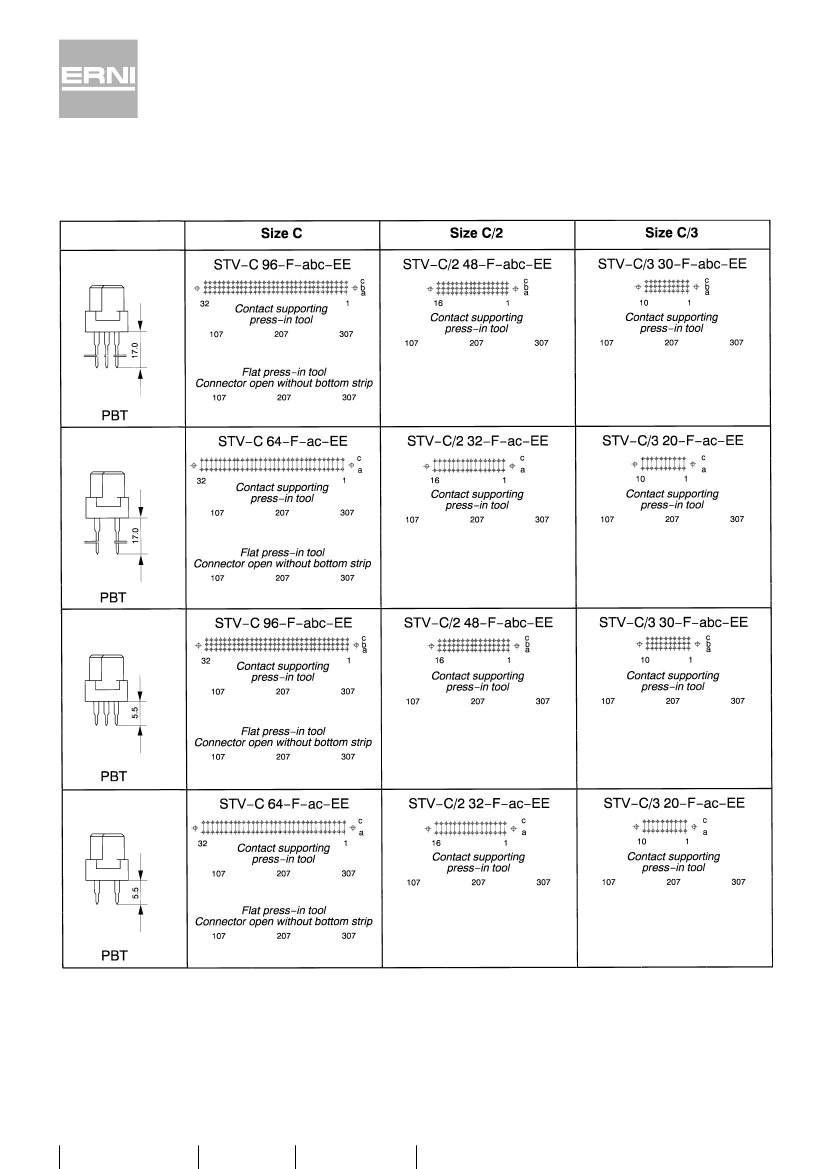

Size C

Size C/2

Size C/3

acc. to DIN 41 612/IEC 60603-2

acc. to VG 95324, short version of size C

third-length of size C

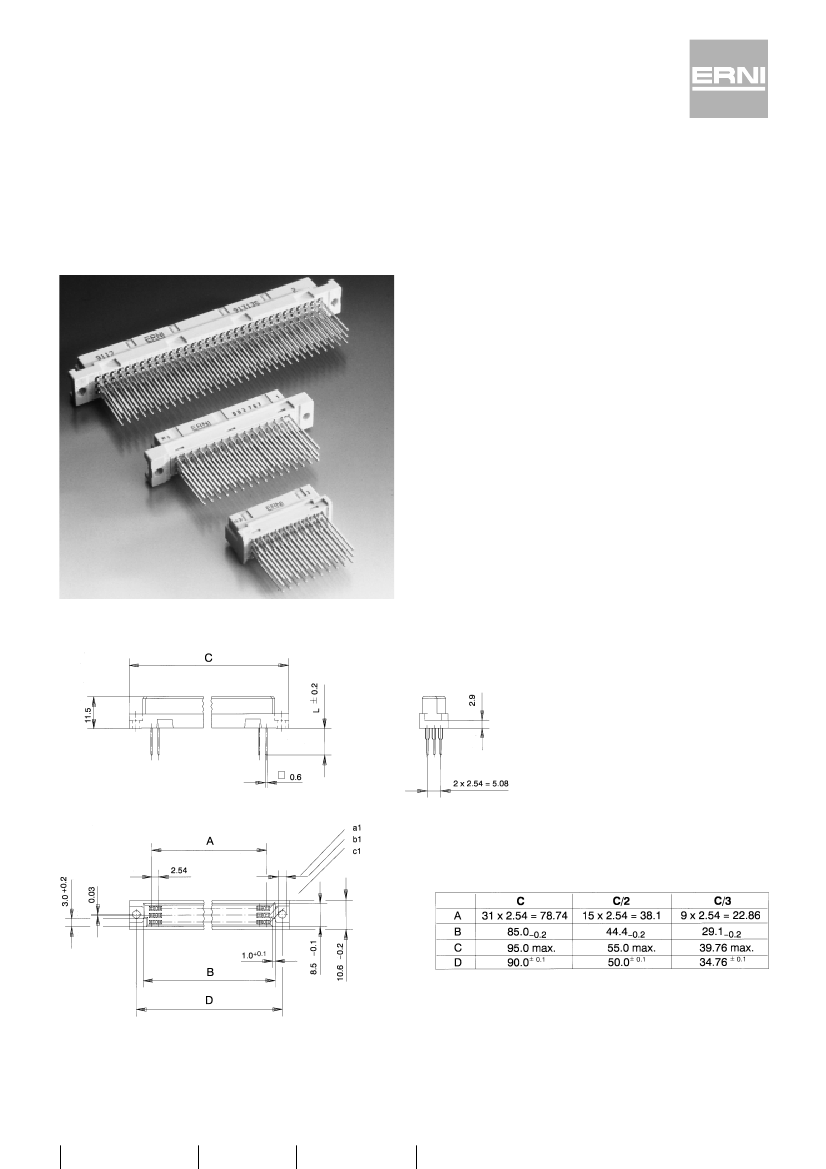

Dimensional drawings

Female connector

www.ERNI.com/contact/

145

catalog E 074484

05/02

Edition 4
