Part Number

Search

5962-01-111-2558

Description
Jbar-Kbar Flip-Flop, 4-Func, Positive Edge Triggered, TTL, PDIP16,
Categorylogic    logic
File Size152KB,3 Pages
ManufacturerFairchild
Websitehttp://www.fairchildsemi.com/
Download Datasheet Parametric View All

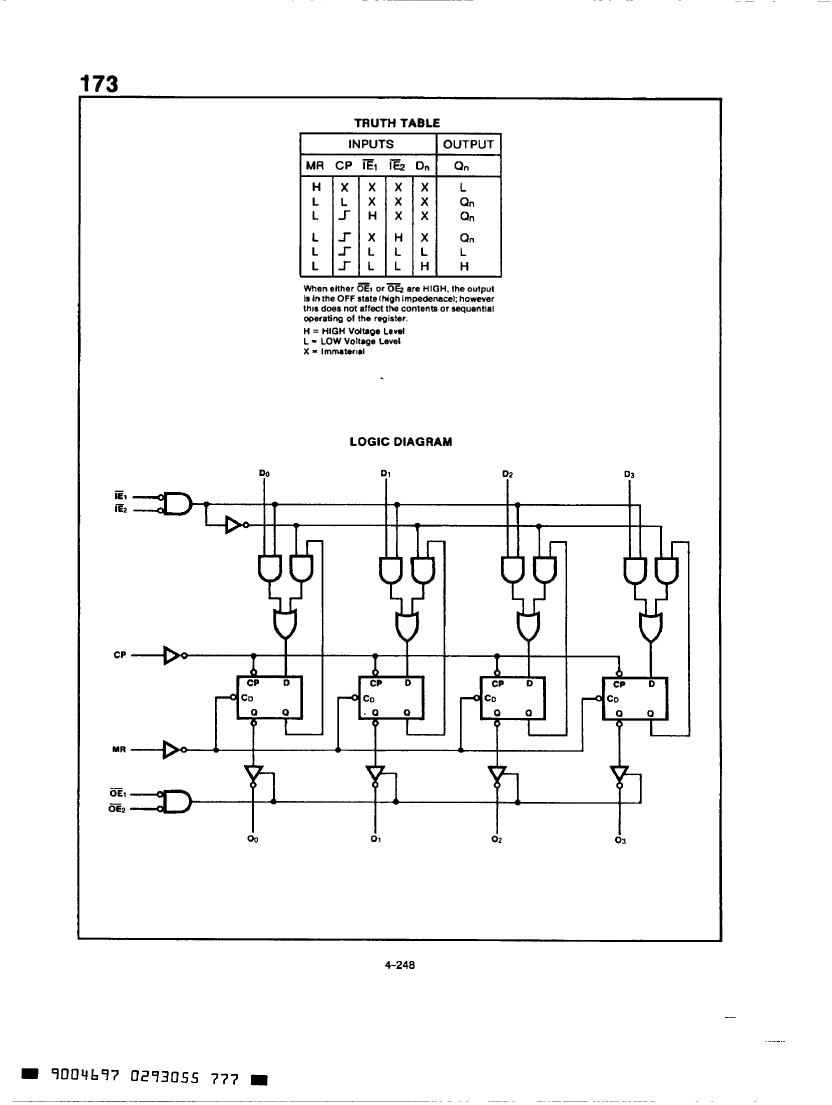

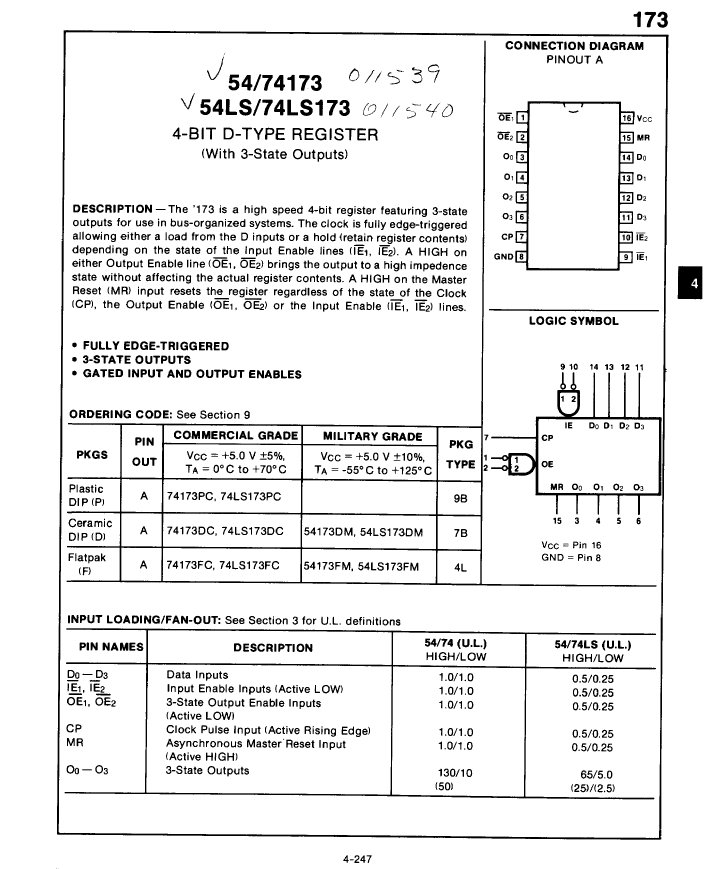

5962-01-111-2558 Overview

Jbar-Kbar Flip-Flop, 4-Func, Positive Edge Triggered, TTL, PDIP16,

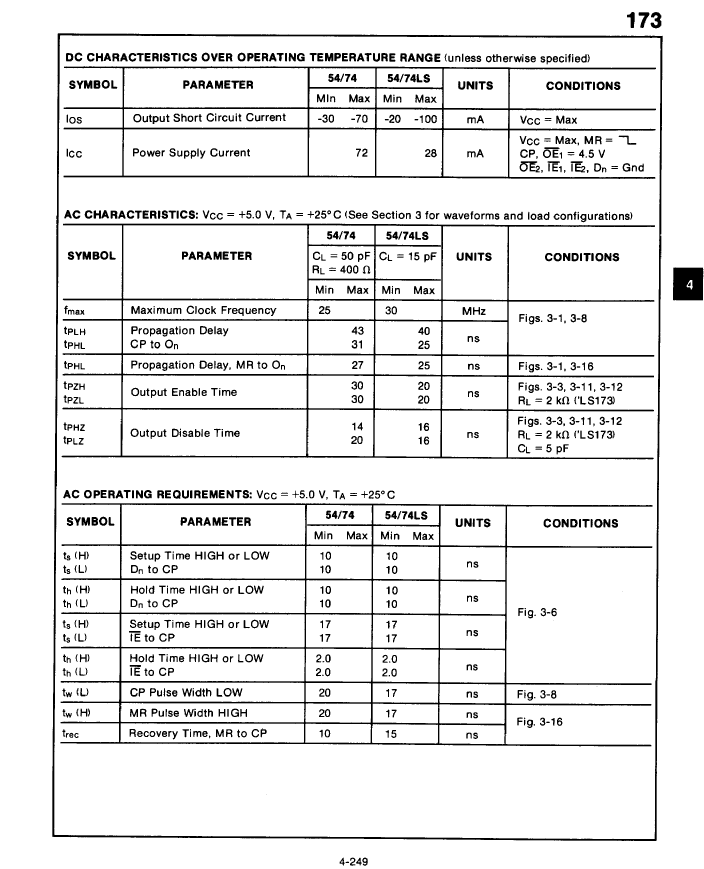

5962-01-111-2558 Parametric

Parameter NameAttribute value
Is it lead-free?Contains lead
Is it Rohs certified?incompatible
MakerFairchild
package instructionDIP, DIP16,.3
Reach Compliance Codecompliant
JESD-30 codeR-PDIP-T16
Logic integrated circuit typeJBAR-KBAR FLIP-FLOP
Humidity sensitivity level2A
Number of functions4
Number of terminals16
Maximum operating temperature70 °C
Minimum operating temperature
Output characteristics3-STATE
Package body materialPLASTIC/EPOXY
encapsulated codeDIP
Encapsulate equivalent codeDIP16,.3
Package shapeRECTANGULAR
Package formIN-LINE
Peak Reflow Temperature (Celsius)250
power supply5 V
Certification statusNot Qualified
Nominal supply voltage (Vsup)5 V
surface mountNO
technologyTTL
Temperature levelCOMMERCIAL
Terminal formTHROUGH-HOLE
Terminal pitch2.54 mm
Terminal locationDUAL
Maximum time at peak reflow temperature30
Trigger typePOSITIVE EDGE
