5962-01-318-3385 datasheet, PDF

Datasheet> All Categories > logic> logic> 5962-01-318-3385

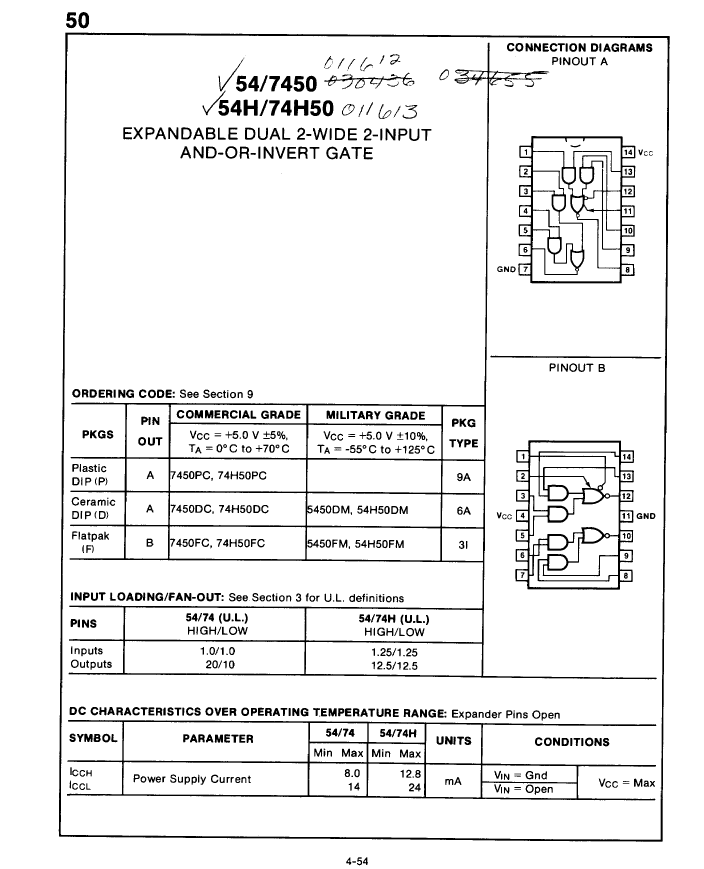

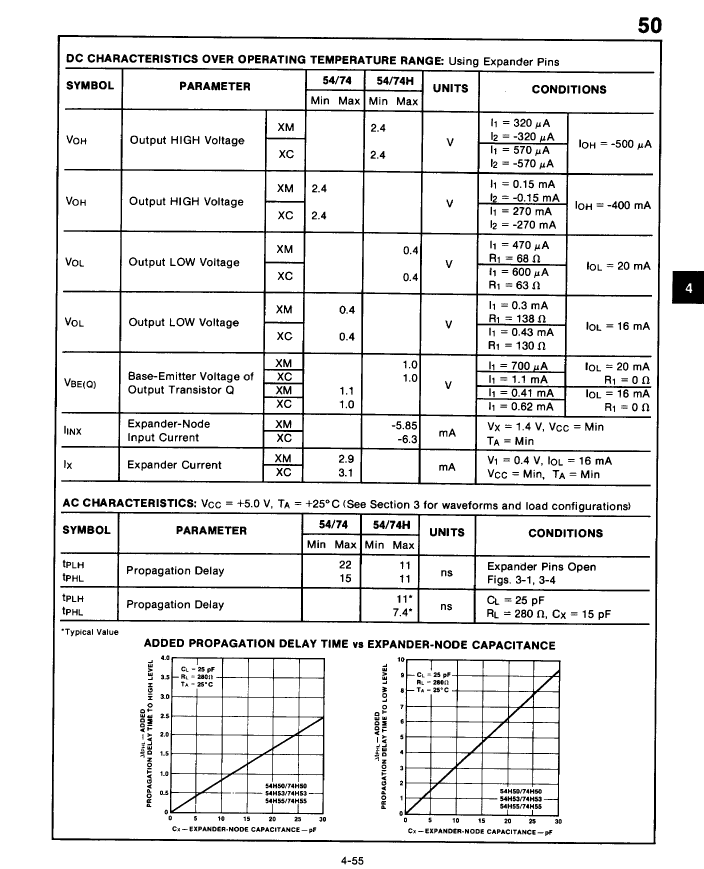

5962-01-318-3385: DescriptionAND-OR-Invert Gate, TTL, CDFP14,; Categorylogic logic; File Size113KB，2 Pages; ManufacturerFairchild; Websitehttp://www.fairchildsemi.com/

Download Datasheet Parametric Compare View All

5962-01-318-3385 Overview

AND-OR-Invert Gate, TTL, CDFP14,

5962-01-318-3385 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Fairchild
package instruction	DFP, FL14,.3
Reach Compliance Code	compliant
JESD-30 code	R-XDFP-F14
Logic integrated circuit type	AND-OR-INVERT GATE
MaximumI(ol)	0.02 A
Humidity sensitivity level	2A
Number of terminals	14
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC
encapsulated code	DFP
Encapsulate equivalent code	FL14,.3
Package shape	RECTANGULAR
Package form	FLATPACK
Peak Reflow Temperature (Celsius)	250
Prop。Delay @ Nom-Sup	11 ns
Certification status	Not Qualified
Schmitt trigger	NO
surface mount	YES
technology	TTL
Temperature level	MILITARY
Terminal form	FLAT
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	30

Preview

Download Datasheet

View All

5962-01-318-3385 Related Products

	5962-01-318-3385	5450DMQB	7450DCQR	7450DCQM	7450FCQM	7450FCQR	74H50FCQM	74H50FCQR	7450PCQM	7450PCQR
Description	AND-OR-Invert Gate, TTL, CDFP14,	AND-OR-Invert Gate, TTL, CDIP14,	AND-OR-Invert Gate, TTL, CDIP14,	AND-OR-Invert Gate, TTL, CDIP14,	AND-OR-Invert Gate, TTL, CDFP14,	AND-OR-Invert Gate, TTL, CDFP14,	AND-OR-Invert Gate, TTL, CDFP14,	AND-OR-Invert Gate, TTL, CDFP14,	AND-OR-Invert Gate, TTL, PDIP14,	AND-OR-Invert Gate, TTL, PDIP14,
Is it lead-free?	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Reach Compliance Code	compliant	unknown	compliant	compliant	compliant	compliant	compliant	compliant	compliant	unknown
Maker	Fairchild	Fairchild	-	-	Fairchild	Fairchild	Fairchild	Fairchild	Fairchild	Fairchild
package instruction	DFP, FL14,.3	-	DIP, DIP14,.3	DIP, DIP14,.3	DFP, FL14,.3	DFP, FL14,.3	DFP, FL14,.3	DFP, FL14,.3	DIP, DIP14,.3	DIP, DIP14,.3
JESD-30 code	R-XDFP-F14	R-XDIP-T14	R-XDIP-T14	R-XDIP-T14	R-XDFP-F14	-	R-XDFP-F14	R-XDFP-F14	R-PDIP-T14	R-PDIP-T14
Logic integrated circuit type	AND-OR-INVERT GATE	AND-OR-INVERT GATE	AND-OR-INVERT GATE	AND-OR-INVERT GATE	AND-OR-INVERT GATE	-	AND-OR-INVERT GATE	AND-OR-INVERT GATE	AND-OR-INVERT GATE	AND-OR-INVERT GATE
MaximumI(ol)	0.02 A	-	0.016 A	0.016 A	0.016 A	-	0.02 A	0.02 A	-	-
Humidity sensitivity level	2A	2A	2A	2A	2A	-	2A	2A	2A	2A
Number of terminals	14	14	14	14	14	-	14	14	14	14
Maximum operating temperature	125 °C	125 °C	70 °C	70 °C	70 °C	-	125 °C	125 °C	70 °C	70 °C
Package body material	CERAMIC	CERAMIC	CERAMIC	CERAMIC	CERAMIC	-	CERAMIC	CERAMIC	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	DFP	DIP	DIP	DIP	DFP	-	DFP	DFP	DIP	DIP
Encapsulate equivalent code	FL14,.3	DIP14,.3	DIP14,.3	DIP14,.3	FL14,.3	-	FL14,.3	FL14,.3	DIP14,.3	DIP14,.3
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	-	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	FLATPACK	IN-LINE	IN-LINE	IN-LINE	FLATPACK	-	FLATPACK	FLATPACK	IN-LINE	IN-LINE
Peak Reflow Temperature (Celsius)	250	250	250	250	250	-	250	250	250	250
Prop。Delay @ Nom-Sup	11 ns	-	22 ns	22 ns	22 ns	-	11 ns	11 ns	-	-
Certification status	Not Qualified	Not Qualified	-	Not Qualified	Not Qualified	-	Not Qualified	-	Not Qualified	-
Schmitt trigger	NO	NO	NO	NO	NO	-	NO	NO	NO	NO
surface mount	YES	NO	NO	NO	YES	-	YES	YES	NO	NO
technology	TTL	TTL	TTL	TTL	TTL	-	TTL	TTL	TTL	TTL
Temperature level	MILITARY	MILITARY	COMMERCIAL	COMMERCIAL	COMMERCIAL	-	MILITARY	MILITARY	COMMERCIAL	COMMERCIAL
Terminal form	FLAT	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	FLAT	-	FLAT	FLAT	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	1.27 mm	2.54 mm	2.54 mm	2.54 mm	1.27 mm	-	1.27 mm	1.27 mm	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	-	DUAL	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	30	30	30	30	30	-	30	30	30	30
JESD-609 code	-	e0	e0	e0	e0	-	e0	e0	e0	e0
power supply	-	5 V	5 V	5 V	5 V	-	-	-	5 V	5 V
Nominal supply voltage (Vsup)	-	5 V	5 V	5 V	5 V	-	-	-	5 V	5 V
Terminal surface	-	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	-	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
