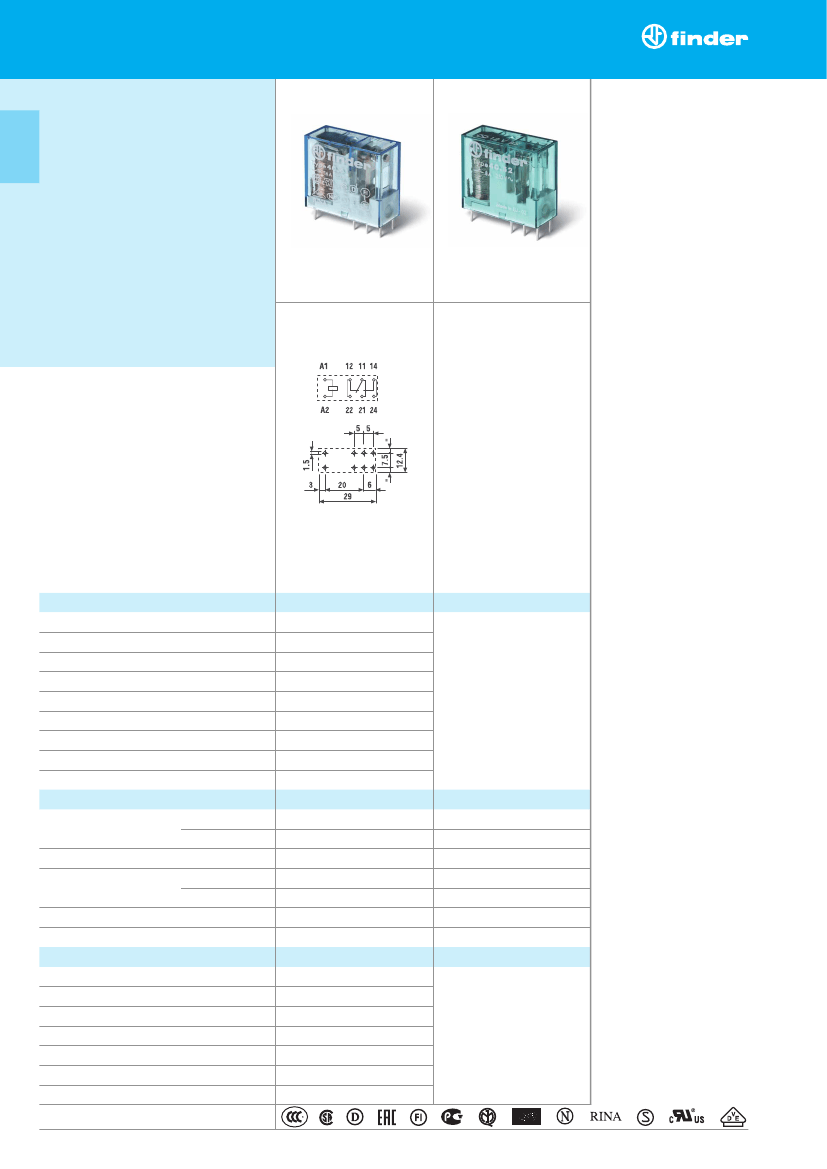

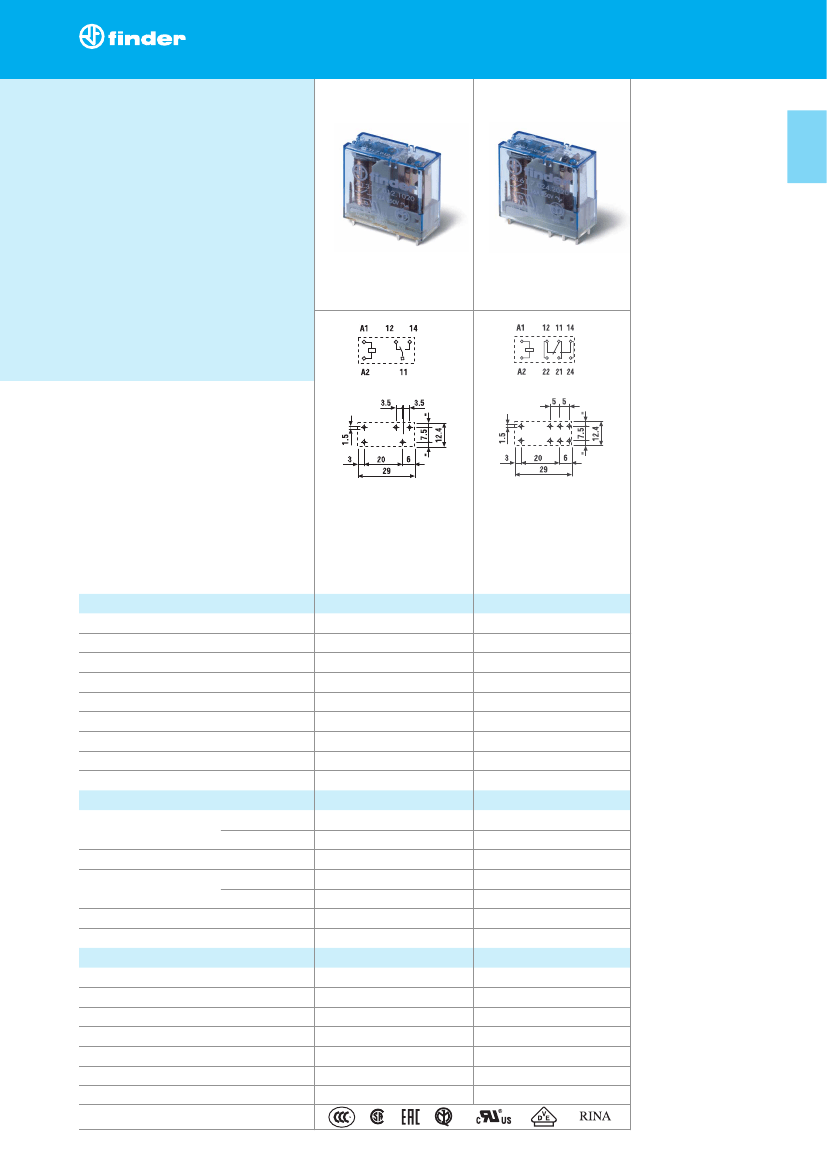

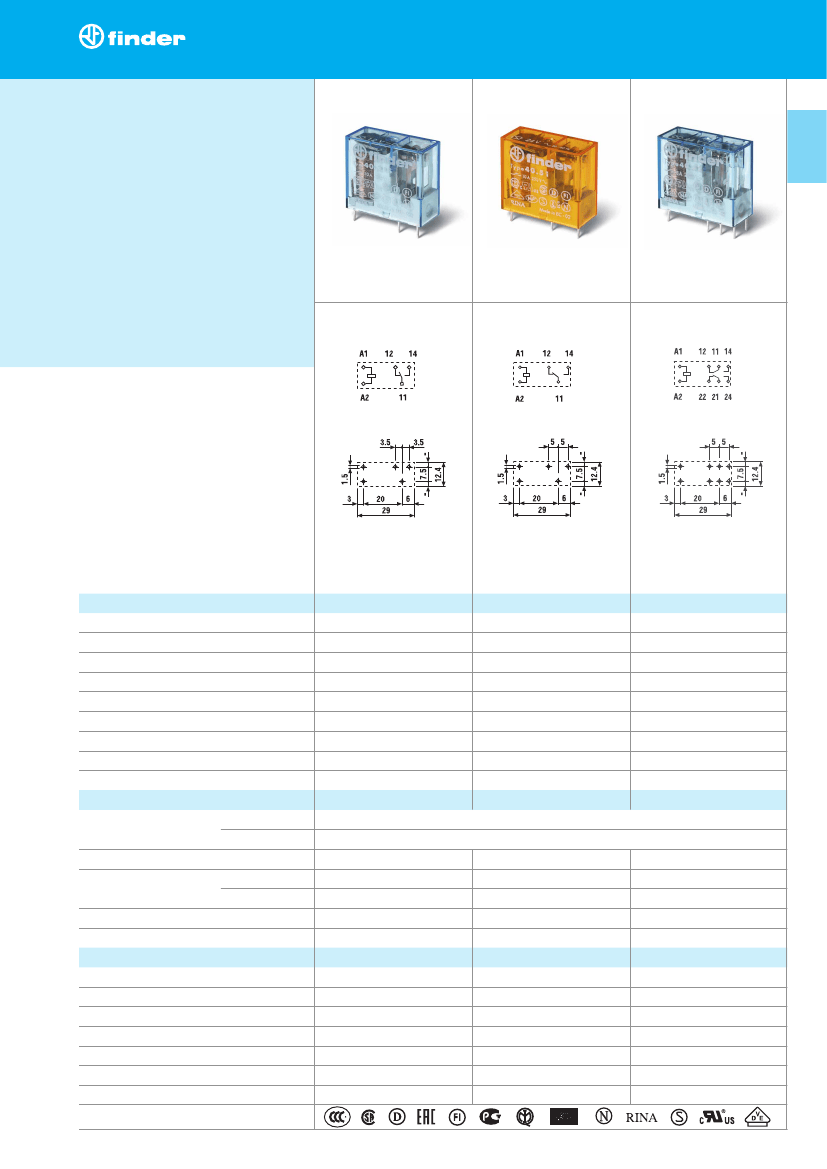

40 Series - Miniature PCB/Plug-in relays 8 - 10 - 12 - 16 A
Features
1 & 2 Pole relay range
40.31 - 1 Pole 10 A (3.5 mm pin pitch)
40.51 - 1 Pole 10 A (5 mm pin pitch)
40.52 - 2 Pole 8 A (5 mm pin pitch)
PCB mount
- direct or via PCB socket
35 mm rail mount
- via screw and screwless sockets
DC coils (standard or sensitive) & AC coils
•
Cadmium Free contact material
•
8 mm, 6 kV (1.2/50 μs) isolation, coil-contacts
•
UL Listing (certain relay/socket combinations)
•
Flux proof: RT II standard, (RT III option)
•
95 series sockets
•
Coil EMC suppression
•
Timer accessories 86 series
•
SERIES
40
40.31
40.51
40.52
A
3.5 mm contact pin pitch
1 Pole 10 A
•
PCB or 95 series sockets
•
•
5 mm contact pin pitch
1 Pole 10 A
•
PCB or 95 series sockets
•
•
5 mm contact pin pitch
2 Pole 8 A
•
PCB or 95 series sockets
•
•
F
OR
UL
RATINGS SEE
:
“General technical information” page
V
For outline drawing see page 10
Contact specification
Contact configuration
Rated current/Maximum peak current
Rated load AC1
Rated load AC15 (230 V AC)
Single phase motor rating (230 V AC)
Breaking capacity DC1: 30/110/220 V
Minimum switching load
Standard contact material
Coil specification
Nominal voltage (U
N
)
V AC (50/60 Hz)
V DC
Rated power AC/DC/sens. DC VA (50 Hz)/W/W
Operating range
Holding voltage
Must drop-out voltage
Technical data
Mechanical life
Electrical life at rated load AC1
Operate/release time
VI-2014, www.findernet.com
Copper side view
Pin length 5.3 mm for
PCB or sockets
Copper side view
Pin length 5.3 mm for
PCB or sockets
Copper side view
Pin length 5.3 mm for
PCB or sockets
1 CO (SPDT)
A
VA
VA
kW
A
10/20
250/400
2,500
500
0.37
10/0.3/0.12
300 (5/5)
AgNi
1 CO (SPDT)
10/20
250/400
2,500
500
0.37
10/0.3/0.12
300 (5/5)
AgNi
6 - 12 - 24 - 48 - 60 - 110 - 120 - 230 - 240
2 CO (DPDT)
8/15
250/400
2,000
400
0.3
8/0.3/0.12
300 (5/5)
AgNi
Rated voltage/Maximum switching voltage V AC
mW (V/mA)
5 - 6 - 7 - 9 - 12 - 14 - 18 - 21 - 24 - 28 - 36 - 48 - 60 - 90 - 110 - 125
1.2/0.65/0.5
(0.8…1.1)U
N
(0.73…1.5)U
N
/(0.73…1.5)U
N
0.8 U
N
/0.4 U
N
0.2 U
N
/0.1 U
N
10 · 10
6
200 · 10
3
7/3 - (12/4 sensitive)
6 (8 mm)
1,000
–40…+85
RT II**
1.2/0.65/0.5
(0.8…1.1)U
N
(0.73…1.5)U
N
/(0.73…1.5)U
N
0.8 U
N
/0.4 U
N
0.2 U
N
/0.1 U
N
10 · 10
6
200 · 10
3
7/3 - (12/4 sensitive)
6 (8 mm)
1,000
–40…+85
RT II**
1.2/0.65/0.5
(0.8…1.1)U
N
(0.73…1.5)U
N
/(0.73…1.5)U
N
0.8 U
N
/0.4 U
N
0.2 U
N
/0.1 U
N
10 · 10
6
100 · 10
3
7/3 - (12/4 sensitive)
6 (8 mm)
1,000
–40…+85
RT II**
AC
DC/sens. DC
AC/DC
AC/DC
cycles
cycles
ms
Insulation between coil and contacts (1.2/50 μs) kV
Dielectric strength between open contacts V AC
Ambient temperature range
Environmental protection
Approvals
(according to type)
°C
** See general technical information “Guidelines for automatic flow solder processes” page
II
.
1
40
SERIES
40 Series - Miniature PCB/Plug-in relays 8 - 10 - 12 - 16 A
40.61
40.xx.6
Features
A
40.61 - 1 Pole 16 A (5 mm pin pitch)
40.xx.6 - Bistable versions of the 40.31,
40.51, 40.52 & 40.61 relays
PCB mount
- direct or via PCB socket
35 mm rail mount
- via screw and screwless sockets
DC coils & AC coils
Cadmium Free option available
•
8 mm, 6 kV (1.2/50 μs) isolation, coil-contacts
•
UL Listing
(certain 40.61 relay/socket combinations)
•
Flux proof: RT II standard, (RT III option)
•
95 series sockets
•
Coil EMC suppression
•
Timer accessories 86 series
•
•
5 mm contact pin pitch
1 Pole 16 A
•
PCB or 95 series sockets
•
•
Bistable (single coil) versions
of 40.31/51/52/61
•
PCB or 95 series sockets
•
Bistable version (1 coil) types:
40.31.6...
40.51.6...
40.52.6...
40.61.6...
For wiring diagrams see
page 9
F
OR
UL
RATINGS SEE
:
“General technical information” page
V
For outline drawing see page 10
Contact specification
Contact configuration
Rated current/Maximum peak current
Rated load AC1
Rated load AC15 (230 V AC)
Single phase motor rating (230 V AC)
Breaking capacity DC1: 30/110/220 V
Minimum switching load
Standard contact material
Coil specification
Nominal voltage (U
N
)
A
VA
VA
kW
A
Rated voltage/Maximum switching voltage V AC
Copper side view
Pin length 5.3 mm for
PCB or sockets
Pin length 5.3 mm for
PCB or sockets
1 CO (SPDT)
16/30*
250/400
4,000
750
0.55
16/0.3/0.12
500 (10/5)
AgCdO
V AC (50/60 Hz) 6 - 12 - 24 - 48 - 60 - 110 - 120 - 230 - 240
V DC
***See table
1.2/0.65/0.5
(0.8…1.1)U
N
(0.73…1.5)U
N
/(0.8…1.5)U
N
0.8 U
N
/0.4 U
N
0.2 U
N
/0.1 U
N
10 · 10
6
100 · 10
3
7/3 - (12/4 sensitive)
6 (8 mm)
1,000
–40…+85
RT II**
5 - 6 - 12 - 24 - 48 - 110
5 - 6 - 12 - 24 - 48 - 110
1.0/1.0/—
(0.8…1.1)U
N
(0.8…1.1)U
N
/—
—
—
See relays
40.31
40.51
40.52
40.61
Min. impulse duration
≥
20 ms
VI-2014, www.findernet.com
See relays
40.31
40.51
40.52
40.61
* With the AgSnO
2
material
the maximum peak current is
120 A - 5 ms on normally
open contact.
mW (V/mA)
Rated power AC/DC/sens. DC VA (50 Hz)/W/W
Operating range
Holding voltage
Must drop-out voltage
Technical data
Mechanical life
Electrical life at rated load AC1
Operate/release time
cycles
cycles
ms
AC
DC/sens. DC
AC/DC
AC/DC
*** Nominal voltage (U
N
):
5 - 6 - 7 - 9 - 12 - 14 - 18 - 21 -
24 - 28 - 36 - 48 - 60 - 90 -
110 - 125 V DC
Insulation between coil and contacts (1.2/50 μs) kV
Dielectric strength between open contacts V AC
Ambient temperature range
Environmental protection
Approvals
(according to type)
2
°C
** See general technical information “Guidelines for automatic flow solder processes” page
II.
40 Series - Miniature PCB/Plug-in relays 8 - 10 - 12 - 16 A
Features
1 Pole relay range
40.31 - 1 Pole 12 A (3.5 mm pin pitch)
40.61 - 1 Pole 16 A (5 mm pin pitch)
Pin length 3.5 mm for pcb mount
•
Pin length 5.3 mm as Plug-in relay
•
DC standard (0.65 W) or sensitive (0.5 W)
coils available
•
Cadmium Free contact material available
•
6 kV (1.2/50 μs) isolation coil-contacts
•
8 mm creepage and clearance distances
between coil and contacts
•
Meets EN 60335-1 glow wire requirements
•
Flux proof: RT II standard or wash tight RT III
•
AC inductive load rating (related to AC15
utilisation category) 4 A 250 V approved
according to EN 61810-1:2008
(Annex B tables B1, B2, B3)
•
SERIES
40
40.31
40.61
A
3.5 mm contact pin pitch
1 Pole 12 A (on PCB; 10 A
with socket)
•
PCB or 95 series sockets
•
•
5 mm contact pin pitch
1 Pole 16 A
•
PCB or 95 series sockets
•
•
Copper side view
Copper side view
* mounted on sockets ≤ 10 A
For outline drawing see page 10
Contact specification
Contact configuration
Rated current/Maximum peak current
Rated load AC1
Rated load AC15 (230 V AC)
Single phase motor rating (230 V AC)
Breaking capacity DC1: 30/110/220 V
Minimum switching load
Standard contact material
Coil specification
Nominal voltage (U
N
)
V AC (50/60 Hz)
V DC
Rated power DC/sensitive DC
Operating range
Holding voltage
Must drop-out voltage
Technical data
Mechanical life
Electrical life at rated load AC1
Operate/release time
VI-2014, www.findernet.com
Pin length 3,5 mm for PCB only Pin length 3,5 mm for PCB only
Pin length 5.3 mm for PCB or Pin length 5.3 mm for PCB or
sockets
sockets
See ordering information
See ordering information
1 CO (SPDT)
A
VA
VA
kW
A
12*/20
250/400
3,000
1,000
0.55
12/0.3/0.12
300 (5/5)
AgNi
—
12 - 24
0.65/0.5
—
0.4 U
N
0.1 U
N
10 · 10
6
200 · 10
3
7/3 (10/3 sensitive)
6 (8 mm)
1,000
–40…+85
RT II**
1 CO (SPDT)
16/30
250/400
4,000
1,000
0.55
16/0.3/0.12
500 (10/5)
AgCdO
—
12 - 24
0.65/0.5
—
0.4 U
N
0.1 U
N
10 · 10
6
100 · 10
3
7/3 (10/3 sensitive)
6 (8 mm)
1,000
–40…+85
RT II**
Rated voltage/Maximum switching voltage V AC
mW (V/mA)
W
AC
DC
DC
cycles
cycles
ms
DC/sensitive DC (0.73…1.5)U
N
/(0.73…1.5)U
N
(0.73...1.5)U
N
/(0.8…1.5)U
N
Insulation between coil and contacts (1.2/50 μs) kV
Dielectric strength between open contacts V AC
Ambient temperature range
Environmental protection
Approvals
(according to type)
°C
** See general technical information “Guidelines for automatic flow solder processes” page
II.
3
40
SERIES

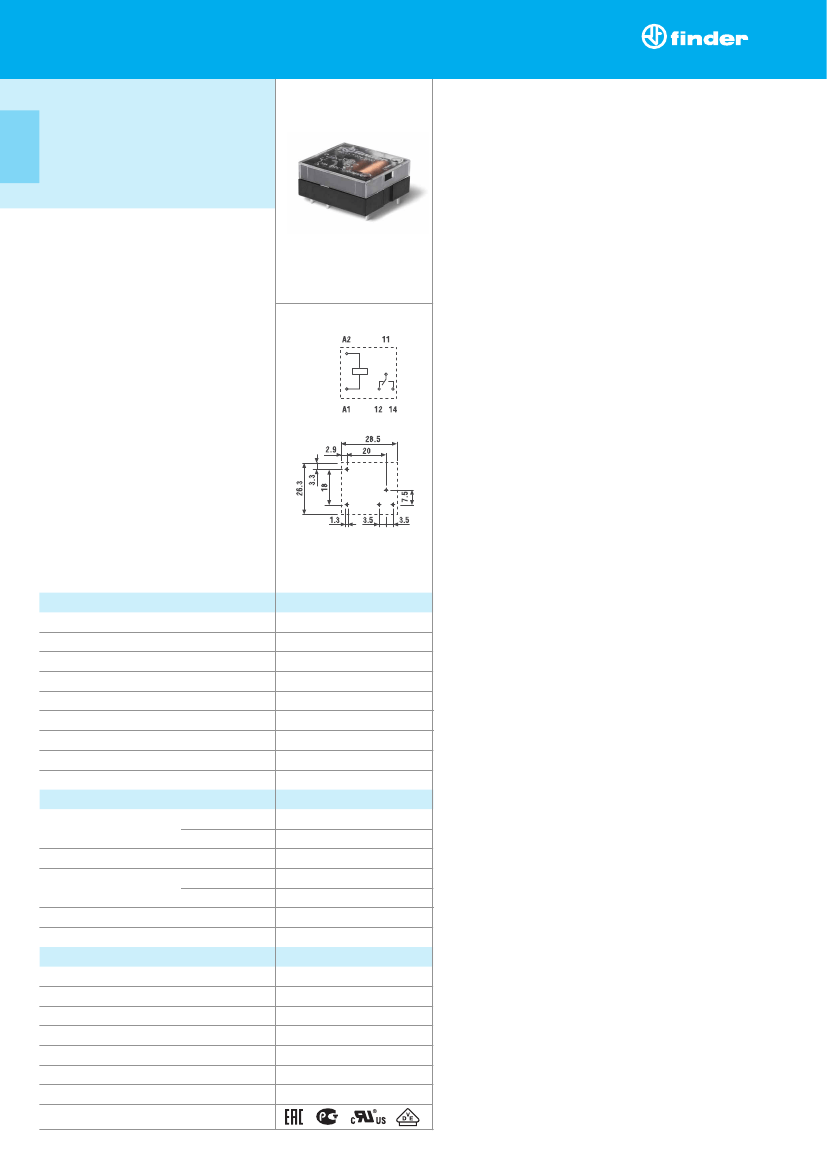

40 Series - Miniature PCB/Plug-in relays 8 - 10 - 12 - 16 A
40.11
Features
A
1 Pole relay range
- 1 Pole 10 A (Flat pack)
DC coils
Cadmium Free option available
•
8 mm, 6 kV (1.2/50 μs) isolation, coil-contacts
•
•
1 Pole 10 A
Flat pack
•
PCB mount
•
•
F
OR
UL
RATINGS SEE
:
“General technical information” page
V
For outline drawing see page 10
Contact specification
Contact configuration
Rated current/Maximum peak current
Rated load AC1
Rated load AC15 (230 V AC)
Single phase motor rating (230 V AC)
Breaking capacity DC1: 30/110/220 V
Minimum switching load
Standard contact material
Coil specification
Nominal voltage (U
N
)
V AC (50/60 Hz)
V DC
Rated power AC/DC/sens. DC VA (50 Hz)/W/W
Operating range
Holding voltage
Must drop-out voltage
Technical data
Mechanical life
Electrical life at rated load AC1
Operate/release time
cycles
cycles
ms
AC
DC/sens. DC
AC/DC
AC/DC
A
VA
VA
kW
A
Rated voltage/Maximum switching voltage V AC
Copper side view
Pin length 3.5 mm for PCB only
1 CO (SPDT)
10/20
250/400
2,500
500
0.37
10/0.3/0.12
300 (5/5)
AgCdO
—
6 - 12 - 24 - 48 - 60
—/—/0.5
—
—/(0.73…1.75)U
N
—/0.4 U
N
—/0.1 U
N
20 · 10
6
200 · 10
3
12/4
6 (8 mm)
1,000
–40…+70
RT I
VI-2014, www.findernet.com
mW (V/mA)
Insulation between coil and contacts (1.2/50 μs) kV
Dielectric strength between open contacts V AC
Ambient temperature range
Environmental protection
Approvals
(according to type)
4
°C

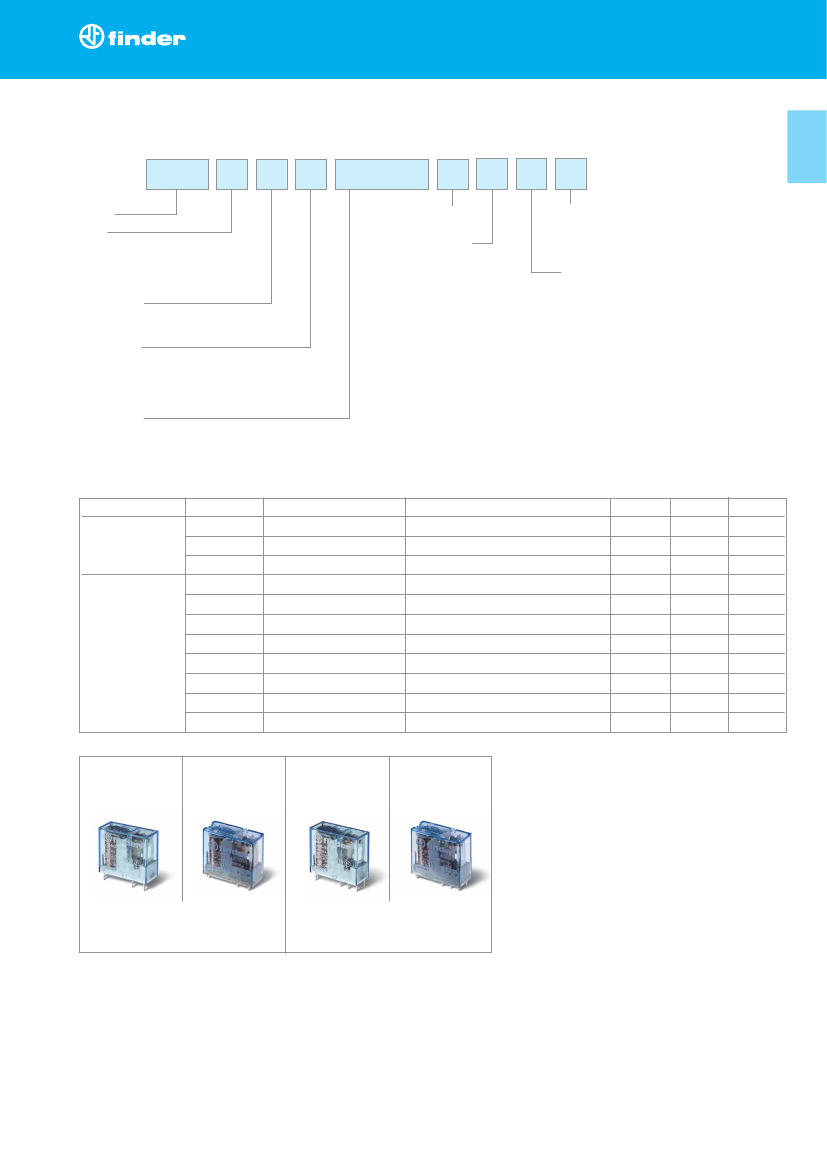

40 Series - Miniature PCB/Plug-in relays 8 - 10 - 12 - 16 A
Ordering information
Example: 40 series PCB relay, 2 CO (DPDT), 230 V AC coil.
A
B
C
D
SERIES
40
A
4 0
.
5
Series
Type
1 = PCB - 3.5 mm pinning, flat
3 = PCB/Plug-in - 3.5 mm pinning
5 = PCB/Plug-in - 5 mm pinning
6 = PCB/Plug-in - 5 mm pinning
No. of poles
1 = 1 pole
2 = 2 pole
Coil version
6 = AC/DC bistable
7 = Sensitive DC, 0.5 W
8 = AC (50/60 Hz)
9 = Standard DC, 0.65 W
Coil voltage
See coil specifications
2
.
8
.
2 3 0
.
0
A:
Contact material
See table below
B:
Contact circuit
0 = CO (nPDT)
3 = NO (nPST)
0
0
0
D:
Special versions
0 = Standard
1 = Wash tight (RT III)
3 = High temperature (+ 125 °C) wash tight
C:
Options
0 = Pins length 5.3 mm (Plug-in relays)
2 = Pins length 3.5 mm (PCB relays)
Selecting features and options: only combinations in the same row are possible.
Preferred selections for best availability are shown in
bold.
Terminal pin
PCB relay,
pin length 3.5 mm
PCB/Plug-in relay,
pin length 5.3 mm
Type
40.11
40.31*
40.61*
40.31*/51
40.31*/51
40.52
40.52
40.61*
40.61*
40.61
Coil version
Sensitive DC
Standard DC/sensitive DC
Standard DC/sensitive DC
AC/sensitive DC
Standard DC
AC/sensitive DC
Standard DC
AC/sensitive DC
Standard DC
Bistable
A
2
(AgCdO) - 4 (AgSnO
2
)
1
(AgNi)
1 (AgNi) -
2
(AgCdO)
0
(AgNi) - 2 (AgCdO) - 5 (AgNi+Au)
0
(AgNi) - 2 (AgCdO) - 5 (AgNi+Au)
0
(AgNi) - 2 (AgCdO) - 5 (AgNi+Au)
0
(AgNi) - 2 (AgCdO) - 5 (AgNi+Au)
0
(AgCdO) - 4 (AgSnO
2
)
0
(AgCdO) - 4 (AgSnO
2
)
0
(AgNi)
0
(AgCdO)
B
0
0
-3
0
-3
0
-3
0
-3
0
-3
0
-3
0
-3
0
-3
0
0
C
0
2
2
0
0
0
0
0
0
0
0
D
0
0
-1
0
-1
0
-1
0
-1-3
0
-1
0
-1-3
0
-1
0
-1-3
0
0
40.31/51/52 Bistable
40.31
1 pole 10 A
40.31
New
1 pole 12 A
40.61
1 pole 16 A
40.61
New
1 pole 16 A
3.5 mm pin pitch
For socket** or pcb mount
pin length 5.3 mm
5 mm pin pitch
For socket or pcb mount
pin length 5.3 mm
* As the result of new production lines and increased production capacity, the design/specification of the DC versions with standard contact
material is being changed to align with PCB relay versions 40.x1...20. For full technical data refer to page 3.
** For 40.31 relays mounted on sockets, the maximum rated current must be limited to 10 A.
VI-2014, www.findernet.com
5
京公网安备 11010802033920号
EEWORLD
