440-075
EMI/RFI Banding Adapter
Self-Locking Rotatable Coupling - Split Shell
440 F D 075 NF 16 12 K P
440
CONNECTOR
DESIGNATORS
Product Series
Connector Designator
Angle and Profile
C = Ultra-Low Split 90
D = Split 90
F = Split 45
Basic Part No.
Polysulfide (Omit for none)
B = Band
K = Precoiled Band
(Omit for none)
Cable Entry (Table IV)
Shell Size (Table I)
Finish (Table II)
A-F-H-L-S
SELF-LOCKING
ROTATABLE
COUPLING
A Thread
(Table I)
F
(Table III)
H
(Table III)
G (Table III)
E Typ.
(Table I)
Anti-Rotation
Device (Typ.)

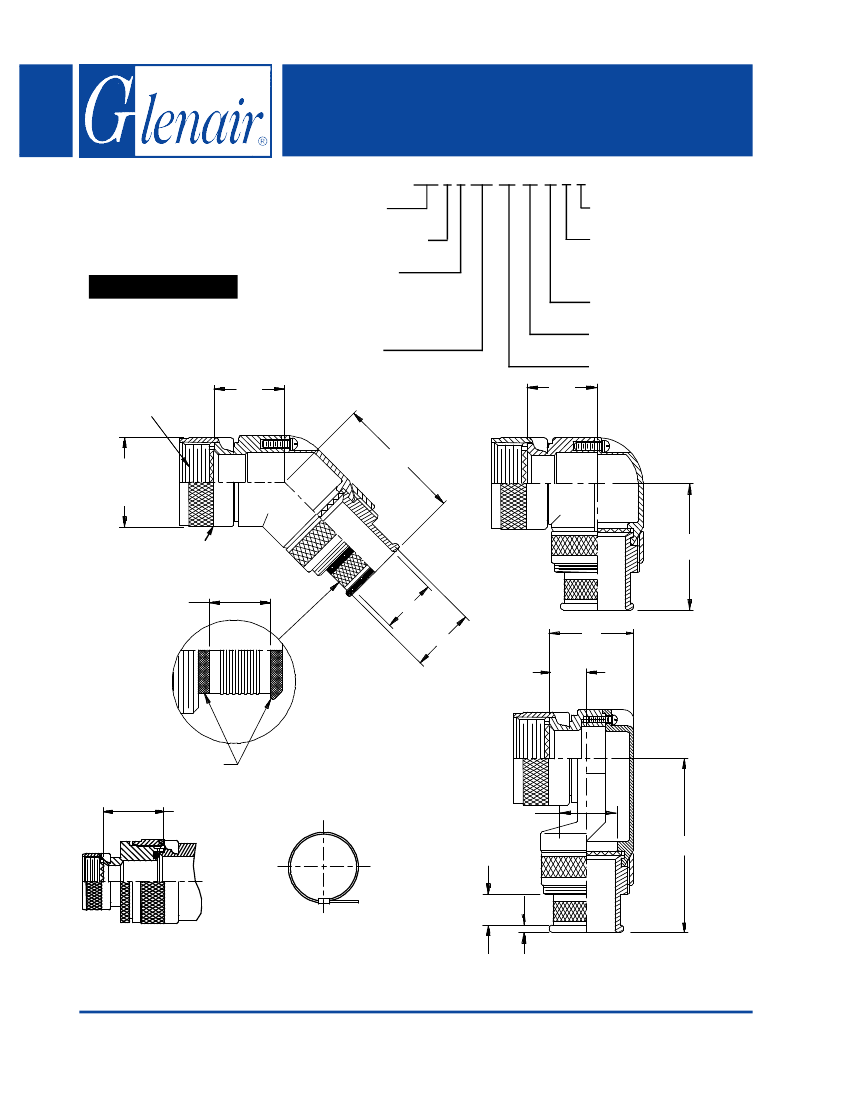

Split 90°
N*
P*
* (Table IV)
K
(Table III)
M
(Table III)
J (Table III)
Split 45°
Termination Area
Free of Cadmium.
Knurl or Ridges
Mfr's Option
Polysulfide Stripes
P Option
1.00 (25.4)
Max
Max Wire Bundle
(Table III, Note 1)
L (Table III)
STYLE 2
(See Note 1)
© 2005 Glenair, Inc.
Band Option
(K Option Shown -
See Note 3)
.380 (9.7)
Typ.
CAGE Code 06324
.060
(1.5)
Typ.
Ultra Low-Profile
Split 90°
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
E-Mail: sales@glenair.com
Series 440 - Page 58
Self-Locking Rotatable Coupling - Split Shell
See inside back cover fold-out or pages 13 and 14 for Tables I and II.
TABLE III: ELBOW DIMENSIONS
Shell
F
Size
Max
08/09 .596 (15.1)
10/11 .656 (16.7)
12/13 .716 (18.2)
14/15 .776 (19.7)
16/17 .836 (21.2)
18/19 .906 (23.0)
20/21 .976 (24.8)
22/23 1.036 (26.3)
24/25 1.096 (27.8)
G
Max
1.590 (40.4)
1.650 (41.9)
1.720 (43.7)
1.750 (44.5)
1.850 (47.0)
1.910 (48.5)
1.970 (50.0)
2.030 (51.6)
2.090 (53.1)
H
Max
.836 (21.2)
.906 (23.0)
.966 (24.5)
1.026 (26.1)
1.086 (27.6)
1.156 (29.4)
1.216 (30.9)
1.276 (32.4)
1.336 (33.9)
J
Max
1.530 (38.9)
1.590 (40.4)
1.660 (42.2)
1.690 (42.9)
1.790 (45.5)
1.850 (47.0)
1.910 (48.5)
1.970 (50.0)
2.030 (51.6)
K
Ref
.496 (12.6)
.426 (10.8)
.426 (10.8)
.436 (11.1)
.576 (14.6)
.796 (20.2)
.796 (20.2)
.696 (17.7)
.696 (17.7)
L
Max
1.870 (47.5)
2.030 (51.6)
2.030 (51.6)
2.100 (53.3)
2.150 (54.6)
2.180 (55.4)
2.180 (55.4)
2.330 (59.2)
2.330 (59.2)
M
Max
.837 (21.3)
.887 (22.5)
.887 (22.5)
.987 (25.1)
1.137 (28.9)
1.337 (34.0)
1.337 (34.0)
1.337 (34.0)
1.337 (34.0)
Max Wire
Bundle
.250 (6.4)
.375 (9.5)
.375 (9.5)
.500 (12.7)
.625 (15.9)
.625 (15.9)
.625 (15.9)
.750 (19.1)
.750 (19.1)
TABLE IV: CABLE ENTRY
N
P
Dash
Dia
Dia
No.
.125 (3.2)
.250 (6.4)
02
.188 (4.8)
.312 (7.9)
03
.250 (6.4)
.375 (9.5)
04
.312 (7.9)
.438 (11.1)
05
.375 (9.5)
.500 (12.7)
06
.438 (11.1)
.562 (14.3)
07
.500 (12.7)
.625 (15.9)
08
.562 (14.3)
.688 (17.5)
09
.625 (15.9)
.750 (19.1)
10
.688 (17.5)
.812 (20.6)
11
.750 (19.1)
.875 (22.2)
12
.812 (20.6)
.938 (23.8)
13
.875 (22.2) 1.000 (25.4)
14
.938 (23.8) 1.062 (27.0)
15
16 1.000 (25.4) 1.125 (28.6)
17 1.062 (27.0) 1.188 (30.2)
18 1.125 (28.6) 1.250 (31.8)
20 1.250 (31.8) 1.375 (34.9)
22 1.375 (34.9) 1.500 (38.1)
24 1.500 (38.1) 1.625 (41.3)
1. When maximum cable entry (page 21) is
exceeded, Style 2 will be supplied (not
available on Function C). Dimensions F,
G, H and J will not apply. Please consult
factory.
2. Metric dimensions (mm) are indicated in
parentheses.
3. Backshells supplied with 600-052-*
band, see Glenair Series 600 Tool Cata-
log for installation.
4. Angular function "C", low-profile split
elbow, not available with "S" connector
designator.
© 2005 Glenair, Inc.
CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
E-Mail: sales@glenair.com
Series 440 - Page 59
