150W ~ 300W AC-DC PFC SWITCHING POWER SUPPLY
PRL0801 SINGLE OUTPUT SERIES
FEATURES:
◆

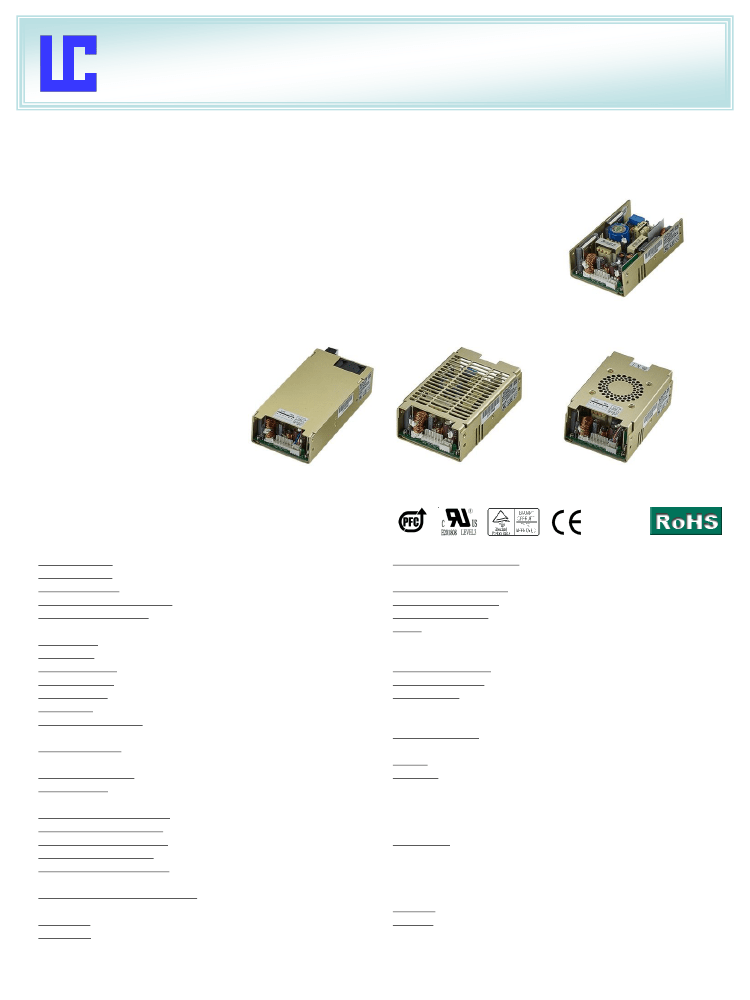

Compact 300W with 1U height Power Density: 12.5 watts/cu in
◆
Active Power Factor Corrected to EN61000-3-2 Class D
◆
Built-in Remote On-Off, Power Good, Fan Fail Alarm
◆
Peak Power 600W within 500uS Duty Duration
◆
Variable Fan Speed & Low Acoustical Noise
◆
High Quality & Reliable Component Usage
◆
Output Voltages from 2 ~ 60Vdc
◆
4 - Mechanical Options
◆
Full Range AC Input
U Type (U-Chassis only):
3.2(W) x 5(L )x 1.5(H) inches.
E Type (Enclosed with end built-in fan):
3.2(W) x 6.5(L) x 1.6(H) inches
U Type (With Top cover):
3.2(W) x 5(L) x 1.66(H) inches.
F Type (U-Chassis with top built-in fan ):
3.2(W) x 5(L) x 2(H) inches.
PRODUCT SPECIFICATIONS:
Input Voltage:
90 ~ 264Vac full range, 47 ~ 63Hz.
Input Current:
5A at 90Vac.
Inrush Current:
Max. 70A@230Vac & 35A@115Vac; cold start.
Power Factor Correction:
PF>0.95 typical.
Transient Response:
Returns to within 1% in less than 2.5mS for a
50% load change and the peak transient does not excess 5%.
Overshoot:
Turn-on & off overshoot < 5% over nominal voltage.
Efficiency:
75% ~ 89% depends on model.
Turn On Delay:
1 second maximum at 230 Vac.
Hold Up Time:
16mS min @ 120Vac. at 80% of full load.
Adjustability:
Output user adjustable +/-5% minimum.
Fan Drive:
12VDC/300mA offering to drive an external fan.
Fan Fail (FF) Alarm:
Designated as
FF
on pin 3 of CN3, two types
of logical signal provided, contact manufacturer.
Remote On-Off:
Designated as
INH
on pin4 of CN3, requires a low
signal to inhibit output.
Power Supply On:
Green LED designated as
LED1
on the PCB.
Power Good: PG
on CN3 goes high 100-500mS after DC regulation
and low at least 1mS before loss of regulation (Open collector).
Input Fusing Protection:
One F5A/350V fuse inserted in primary.
Over-Power Protection:
110~140% of I-Max; Auto-recovery.
Short Circuit Protection:
Trip without damage and auto-recovery.
Switching Frequency:
PFC 40K~66K Hz; PWM 55K~75K Hz.
Over Voltage Protection:
Unit latching down when output exceed
130% and recycle AC input to reset.
Over-Temperature Protection:
Unit protected of excessive
operating ambient 110℃±5
℃,
and automatic recovery.
Warranty:
2 years.
Vibration:
5 ~ 50 Hz, acceleration
±7.35
m/s*s on X,Y and Z Axis.
CB
Operating Temperature:
0℃ to 70℃ ambient, de-rating at 2.5%
per degree from 50℃ to 70℃.
Storage Temperature:
-20 to 85
℃.
Operating Humidity:
5% to 90% RH, Non-condensing.
Storage Humidity:
5% to 95% RH, Non-condensing.
EMC:
EN55022 class B conducted / radiated, EN61000-3-2,
EN61000-3-3; EN55024 (IEC61000-4-2, IEC61000-4-3, IEC61000-
4-4, IEC61000-4-5, IEC61000-4-6, IEC61000-4-11).
Safety Regulation:
UL60950-1, EN60950-1, IEC60950-1.
Leakage Current:
< 1mA @ 264Vac.
HI-POT Test:
1500 VAC input line to chassis (10mA DC cut off
current); Isolating 3000VAC primary to secondary windings;
Primary to core 1500VAC. All for 3 sec.
Grounding Test:
Apply 25 A from ground pin of the three prong
plug to the far most earth. Max allowable resistance 0.1 ohm.
MTBF:
100000 Hrs (according to MIL-HBK-217F) at 30
℃
.
Cooling:
U Type: U-Chassis @300W max. with 25CFM forced airflow; 150W
convection cooling (same output ratings w/ top cover option).
E Type: Enclosed with rear side built-in fan @300W max.
F Type: U-Chassis with top built-in fan @300W max.
Enclosure:
U Type: 5(L) x 3.2(W) x 1.5(H) inches.
U Type with top cover option: 5(L) x 3.2(W) x 1.66(H) inches.
E Type: 6.5(L) x 3.2(W) x 1.6(H) inches.
F Type: 5(L) x 3.2(W) x 2(H)inches.
Burn in:
45 +/- 5 degree C for 1 hour @230Vac with full load.
Weight:
Maximum U-Type weight is 500g.
Copy Right Ultra Level Tech Co., Ltd 2015, All Right Reserved. Specifications subject to change without notice.
ULTRA LEVEL TECH CO., LTD.
www.ultralevel.com.tw
Tel:+886-2-29180118
Fax:+886-2-29181465
We Supply the Power Customers Need
ISO9001
OUTPUT VOLTAGE / CURRENT RATING CHART:
Measured at output power connector.
Max. Output Power or Current
Model
PRL0801x-05
PRL0801x-09
PRL0801x-12
PRL0801x-15
PRL0801x-18
PRL0801x-24
PRL0801x-30
PRL0801x-36
PRL0801x-48
PRL0801x-54
Output
Range
2 ~ 5V
7 ~ 11V
12 ~ 13.8V
14 ~ 16V
17 ~ 22V
23 ~ 28V
29~ 34V
35 ~ 43V
44 ~ 52V
53 ~ 60V
Preset
Voltage
5V
9V
12 V
15 V
18V
24V
30V
36V
48V
54V
Type U & E & F (forced
air)
42A
27.27A
300W
300W
300W
300W
300W
300W
300W
300W
Type U (Convection)
20A
13.64A
150W
150W
150W
150W
150W
150W
150W
150W
Regulation
+/- 1%
+/- 1%
+/- 1%
+/- 1%
+/- 1%
+/- 1%
+/- 1%
+/- 1%
+/- 1%
+/- 1%
Ripple
& Noise
1%
1%
1%
1%
1%
1%
1%
1%
1%
1%
Note:
* PRL0801 series are designated as PRL0801x-y where x can be
E
(Enclosed Type with rear side built-in fan) or
F
(U-Chassis Type with top
side built-in fan) or
U
(U-Chassis), y can be
05, 09, 12, 15, 18, 24, 30, 36, 40, 48, 54.
* U Type:
U-Chassis @300W max. with min. 25CFM forced airflow; 150W under convection cooling (Option: vented top cover).
*
E Type:
Enclosed with rear side built-in fan @300W max.
*
F Type:
U-Chassis with top built-in fan @300W max.
* All output range are covered in agencies certification and the preset voltage will be set as standard models if any request is not preset
output then should contact us in advance.
* Ripple and noise is measured from 10KHZ to 20MHz bandwidth at output with parallel 0.1µF ceramic and 22µF electrolytic capacitors.
* Providing peak power to 600W within 500uS for all models, longer duty duration need contact manufacture.
* 1% minimum load is required to maintain the ripple and regulation.
* Output is fully isolated.

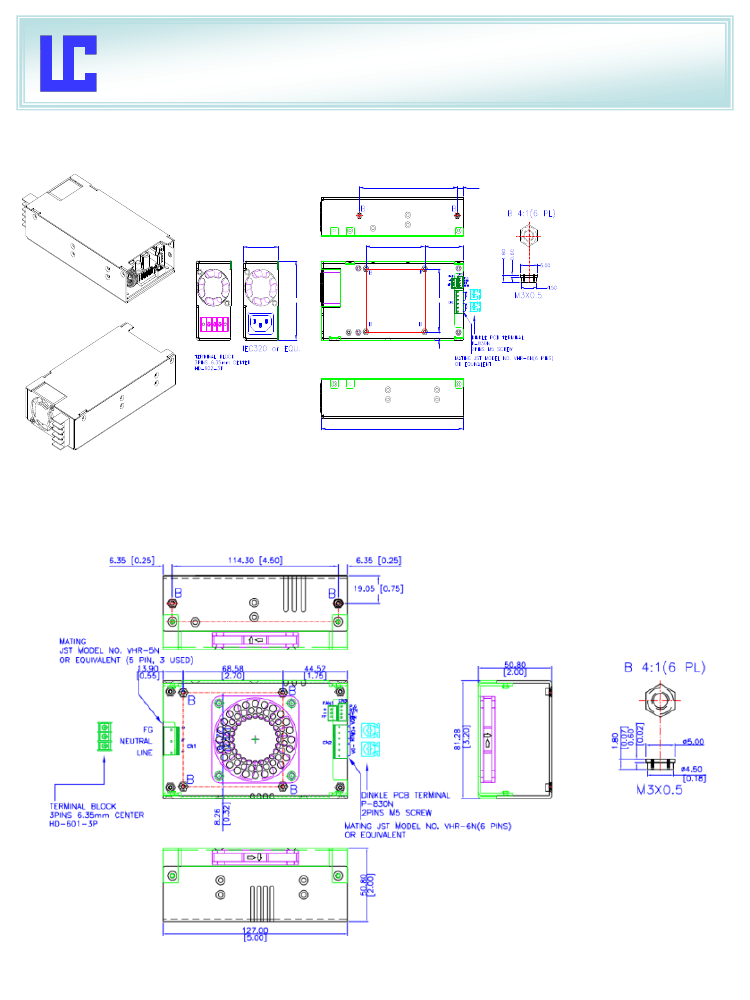

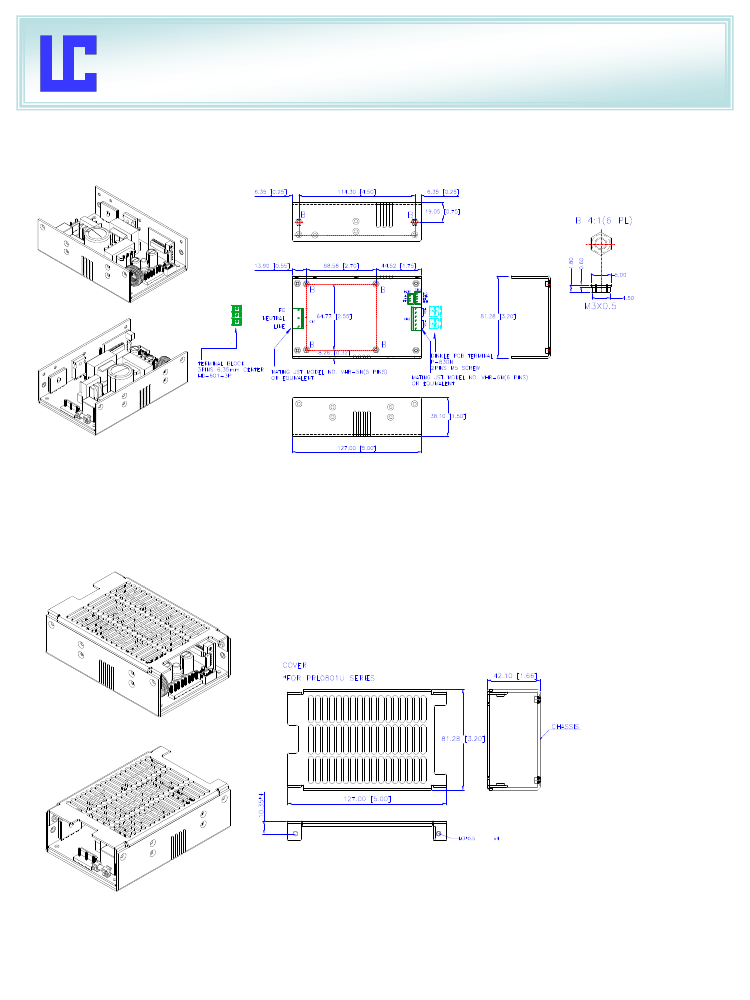

OUTLINE DRAWING:
Input Connector (CN1):
U and F Type: Mating Molex Part No. VHR-5N or equivalent (5pin, 3 used), or Terminal Block: Howder M3 screws 3 pin 6.35mm center Part No.
HD-601-3P; PCB Labeling: L=Line; N=Neutral; G=Chassis Ground .
E Type: IEC320 snap-in mounting type or Terminal Block: Howder HD-602-3P.
Output Connector (CN2):
Dinkle
Molex
Mating Molex Part No. VHR-6N
Terminal block-Dinkle P830N, M5 screws.
V+: Pin 2
V+: Pin 4 ~ 6
Output Pin Assignment:
(See table in right).
V-: Pin 1
V-: Pin 1 ~ 3
Mounting Inserts:
6Paces M3. Maximum Penetration 3.8mm sees outline drawing for location.
Logic signal connector (CN3):
Mating JST XHP-4 or equivalent (CHYAO SHIUNN JS-2001-04);
Mating Pins: JST SXH-002T-P0.6 FOR AWG 30 to 26.
Fan driver connector (FAN1):
Mating connector is JST P/N XHP-3 (3 pins 0.98 pitch) or equivalent (CHYAO SHIUNN JS-2001-03).
Copy Right Ultra Level Tech Co., Ltd 2015, All Right Reserved. Specifications subject to change without notice.
