180-117-W-1-S-N datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> 180-117-W-1-S-N

Preview

180-117-W-1-S-N: DescriptionFiber Optic Connector, Simplex, Receptacle; CategoryThe connector The connector; File Size207KB，2 Pages; ManufacturerGlenair; Websitehttp://www.glenair.com/

Download Datasheet Parametric View All

180-117-W-1-S-N Overview

Fiber Optic Connector, Simplex, Receptacle

180-117-W-1-S-N Parametric

Parameter Name	Attribute value
Maker	Glenair
Reach Compliance Code	compliant
Other features	HERMAPHRODITIC, POLARIZED
Body/casing type	RECEPTACLE
Connection Type	SIMPLEX
Connector type	FIBER OPTIC CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Coupling type	THREADED
DIN compliance	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	180-117
Installation type	PANEL
Options	GENERAL PURPOSE

Preview

Download Datasheet

View All

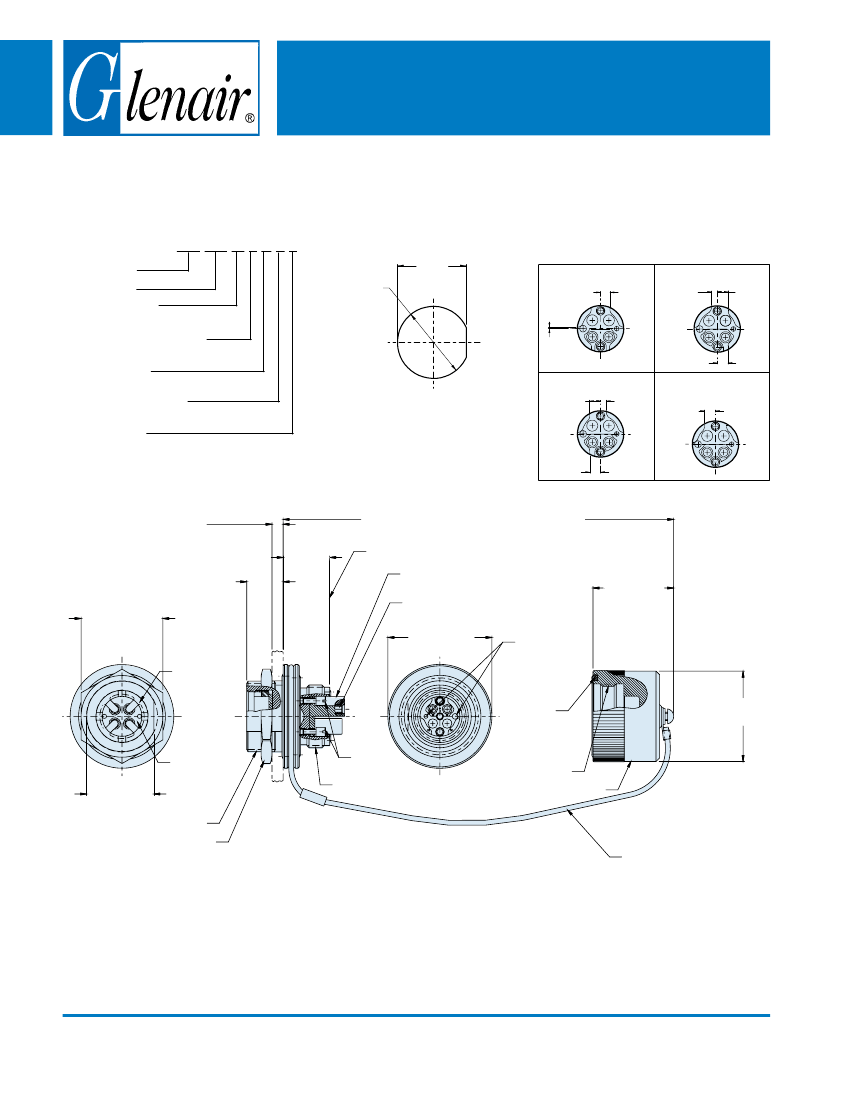

Fiber Optic Jam Nut Mount Receptacle Connector

4 Channel with Optional Dust Cover

180-117

M83526/17 Style GFOCA Hermaphroditic

Plate, Termini

1.134 (28.8)

Max

1.1875-20 UNEF-2A

Jam Nut

Screw

1.0625-.1P-.2L-DS-2A

CAGE Code 06324

GLENAIR, INC.

•

1211 AIR WAY

•

GLENDALE, CA 91201-2497

•

818-247-6000

•

FAX 818-500-9912

E-Mail: sales@glenair.com

www.glenair.com

F-6

REV 29 JUNE 2010

P1

S1

1

S2

P2

GFOCA

Connectors

180-117-W-1-N-F-1

Product Series

Basic Number

Termini Ferrule I.D.

(Table I)

Insert Cap Key Configuration

(Table II)

Alignment Sleeve

(Table III)

Dust Cover Configuration

(Table IV)

Panel Seal Type

(Table V)

.250 (6.4) Max

Panel Thickness

.645 (16.4) max

1.375 (34.4)

Hex

Retainer

1.145 (29.1)

1.140 (29.0)

1.200 (30.5)

1.190 (30.2)

Dia

INSERT CAP

KEY CONFIGURATION

(See Table II)

.139 (3.5)

2x .137 (3.5)

KEY 1

.082 (2.1)

.084 (2.1)

P1

P2

S2

S1

1

KEY 2

.160 (4.1)

.162 (4.1)

P1

P2

S1

S2

2

.043 (1.1)

.002 (0.1)

.157 (4.0)

.159 (4.0)

PANEL CUT-OUT

REFERENCE

KEY 3

.160 (4.1)

.162 (4.1)

P1

P2

S2

S1

3

.082 (2.1)

.084 (2.1)

.160 (4.1)

2x .162 (4.1)

KEY "U"

Universal

P1

P2

S2

S1

U

.157 (4.0)

.159 (4.0)

1.720 (43.7) Max (When Dust Cap Installed)

.798 (20.3)

Max

Mating Plane

Removable Insert Cap

Alignment Sleeve

1.760 (44.7)

Max Dia

Alignment

1.390 (35.3)

Max

Seal

1.555 (39.5)

Max Dia

1.0625-.1P-.2L-DS-2B

Dust Cover

Lanyard

Printed in U.S.A.
