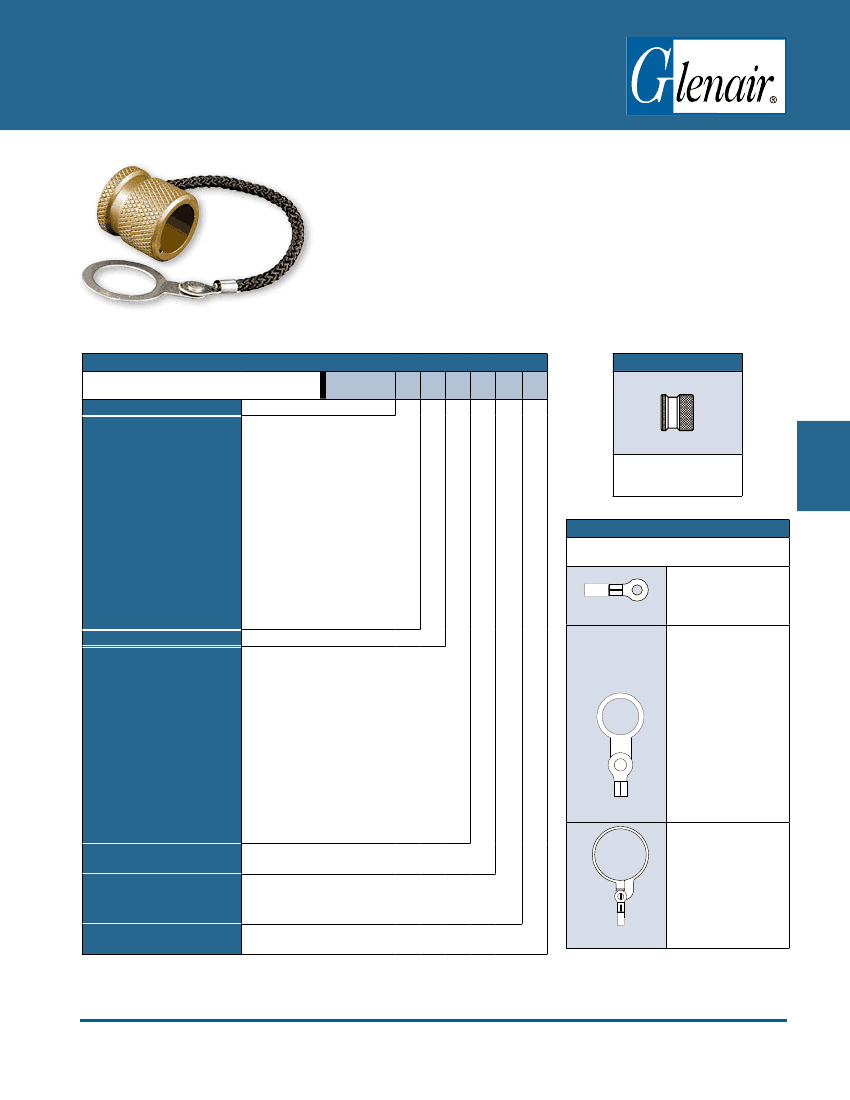

809-198 Ordering Information
Protect Connectors From Damage
Machined aluminum covers prevent
ingress of contamination and water.
Stainless Steel Fittings and Rings
Choose small diameter eye fittings for
panel attachment. Larger rings fit under
the jam nut or over cable jackets. Split
rings can be installed on fully assembled
cables.
Polyurethane-Coated SST Wire
Rope
offers high strength, excellent
abrasion resistance and good
flexibility. Or, choose Teflon
®
jacket for
high temperature exposure.
Braided Nylon Rope
provides
excellent flexibility and good abrasion
resistance, and can be ordered with
slip knot fittings for easy installation
on any size cable.
Table I: Cover Style
M
9
H
6
-14
A
How To Order
Sample Part Number
Series (See Table I)
809-198
Shell Material / Finish
Shell Size
809-198
= Plug Cover
C
= Aluminum / Black Anodize
(Non-Conductive) RoHS Compliant
M
= Aluminum / Electroless Nickel
RoHS Compliant
NF
= Aluminum / Cadmium with
Olive Drab Chromate
ZN
= Aluminum / Zinc-Nickel with
Olive Drab Chromate
ZNU
= Aluminum / Zinc-Nickel with
Black Chromate
MT
= Aluminum / Nickel-PTFE RoHS
Compliant
Z1
= Stainless Steel / Passivated
RoHS Compliant
5, 6, 7, 8, 9, 10, 11, 12, 14, 15
D
= Bead Chain, CRES, Passivate
F
= Wire Rope, Nylon Jacket
G
= Nylon Rope
H
= SST Wire Rope, Fluoropolymer Jacket
N
= No Attachment
R
= Wire Rope, PVC Jacket
S
= SST Sash Chain
SK
= Nylon Rope With Slip Knot
T
= SST Wire Rope, No Jacket
U
= SST Wire Rope, Polyurethane Jacket
“SST” = Stainless Steel
Omit for attachment Type N (No Attachment)
Example: “-6” equals six inch length
Small Ring =
01
thru
06
Large Ring =
14
thru
33
Split Ring =
50
thru
68
Omit for master keyway only, for all other positions indicate
A,
B, C, D, E,
or
F
809-198
Push-Pull Plug Cover
Table II: Attachment Code
Omit for attachment Type
N
(No Attachment)
and
SK
(Slip Knot)
-01
– .126 (3.20) I.D.
-02
– .145 (3.68) I.D.
-04
– .188 (4.78) I.D.
Small Ring
-06
– .197 (5.00) I.D.
-32
– .265 (6.73)
-29
– .315 (8.00)
-14
– .385 (9.78)
-33
– .510 (12.95)
-15
– .445 (11.30)
-16
– .570 (14.48)
-17
– .635 (16.13)
-18
– .695 (17.65)
-27
– .766 (19.46)
-26
– .950 (24.13)
-31
– .820 (20.83)
-28
– 1.015 (25.78)
-20
– 1.070 (27.18)
Solid Ring
-21
– 1.135 (28.83)
-50
– .420 (10.67) I.D.
-52
– .480 (12.19) I.D.
-54
– .635 (16.13) I.D.
-56
– .745 (18.92) I.D.
-58
– .885 (22.48) I.D.
-60
– 1.010 (25.65) I.D.
-64
– 1.125 (28.58) I.D.
-68
– 1.345 (34.16) I.D.
Attachment Type
Attachment Length (inches)
Attachment Code
(See Table II)
Alternate Key Position
Split Ring
Dimensions in Inches (millimeters) are subject to change without notice.
© 2014 Glenair, Inc.
Series 80 Mighty Mouse
U.S. CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
X-63
E-Mail: sales@glenair.com
Accessories
Series 804 Push-Pull Mighty Mouse
Protective Plug Cover
X
Series 804 Push-Pull Mighty Mouse
Protective Plug Cover

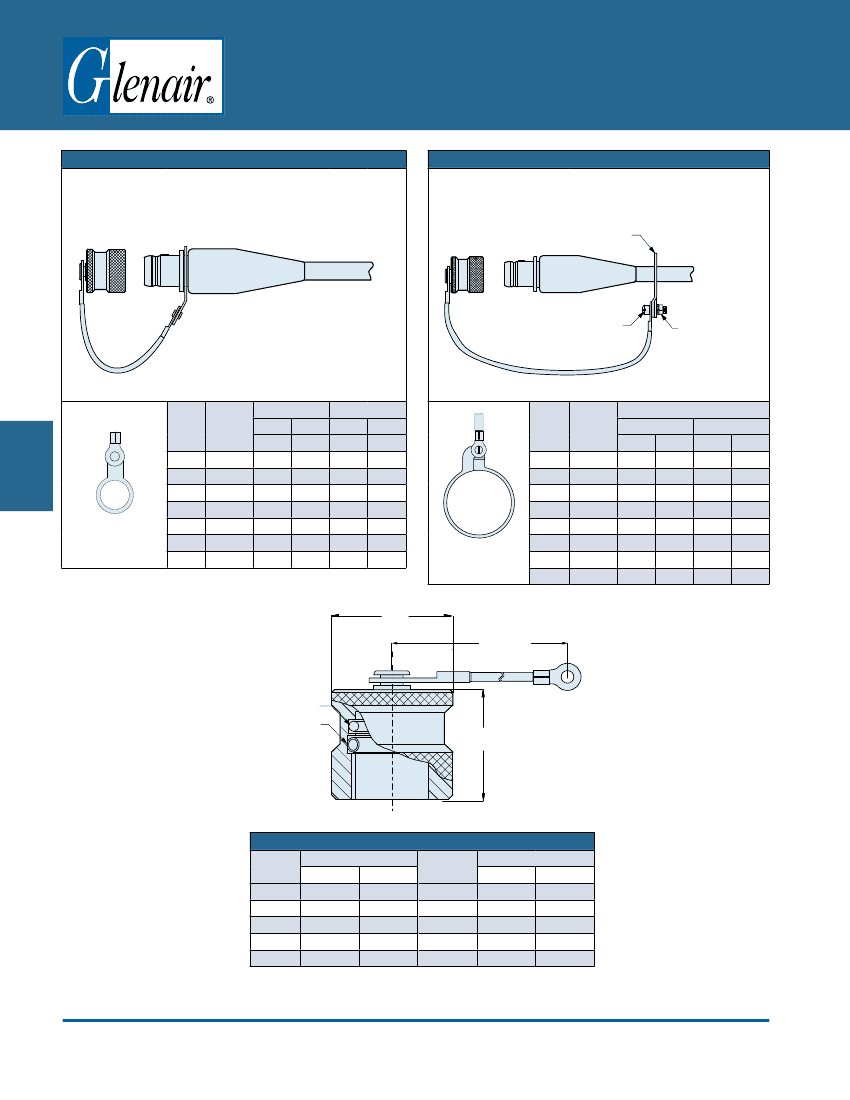

809-198 Dimensions
809-198 Cover Attachment to Cable Assembly
Install cover onto the back of the connector before overmolding
or backshell installation.
809-198 Cover Attachment to Cable
Split rings can be installed onto finished cables.
INSTALL SPLIT
RING OVER
CABLE JACKET
X
Solid Ring
Accessories
Dia.
Code
29
14
33
16
17
27
26
Shell
Size
5
6
7
9
10
11, 12
14, 15
Ring I.D.
In.
mm.
± .010 ±0.25
.315
8.00
.385
9.80
.510
13.00
.570
14.48
.635
16.13
.766
.950
19.50
24.13
O RING
DETENT
SPRING
#4-40 FILL.
HD. SCREW
#4-40
LOCKNUT
AND SPLIT
WASHER
Plug cover shown
Ring O.D.
In.
mm.
± .015 ± 0.38
.44
11.18
.51
13.00
.62
15.70
.69
17.53
.76
19.30
.89
1.14
22.60
28.96
Large Split Ring for
Attaching Covers to
Cables
Dia.
Code
50
52
54
56
58
60
64
68
Max.
Cable
Dia. (in.)
.410
.470
.625
.735
.875
1.000
1.115
1.335
Plug cover shown
Ring Diameter
Min. ID
Max. OD
In.
mm.
In.
mm.
.420
10.67
.580
14.73
.480
12.19
.640
16.26
.635
16.13
.796
20.22
.745
18.92
.905
22.99
.885
1.010
1.125
1.345
22.48
25.65
28.58
34.16
1.046
1.171
1.285
1.505
26.57
29.74
32.64
38.23
øA
MAX
LENGTH
± .25 (6.4)
.750 (19.05)
SMALL
RING
Shell
SCREW
Size
5
6
7
8
9
Dimensions
Ø A Max.
Shell Size
In
mm
.496
CONNECTOR
12.60
10
.540
13.72
11
.645
16.38
12
.665
16.89
14
PROTECTIVE
COVER
15
.720
18.29
667-202
SMALL
RING
Ø A Max.
In
mm
SCREW
.790
20.07
.835
21.21
.915
23.24
1.040
26.42
1.100
27.94
CONNECTOR
