390SS009M36: DescriptionSubmersible EMI/RFI Cable Sealing Backshell with Strain Relief; File Size58KB，2 Pages; ManufacturerGlenair; Websitehttp://www.glenair.com/

Download Datasheet View All

390SS009M36 Overview

Submersible EMI/RFI Cable Sealing Backshell with Strain Relief

Preview

Download Datasheet

View All

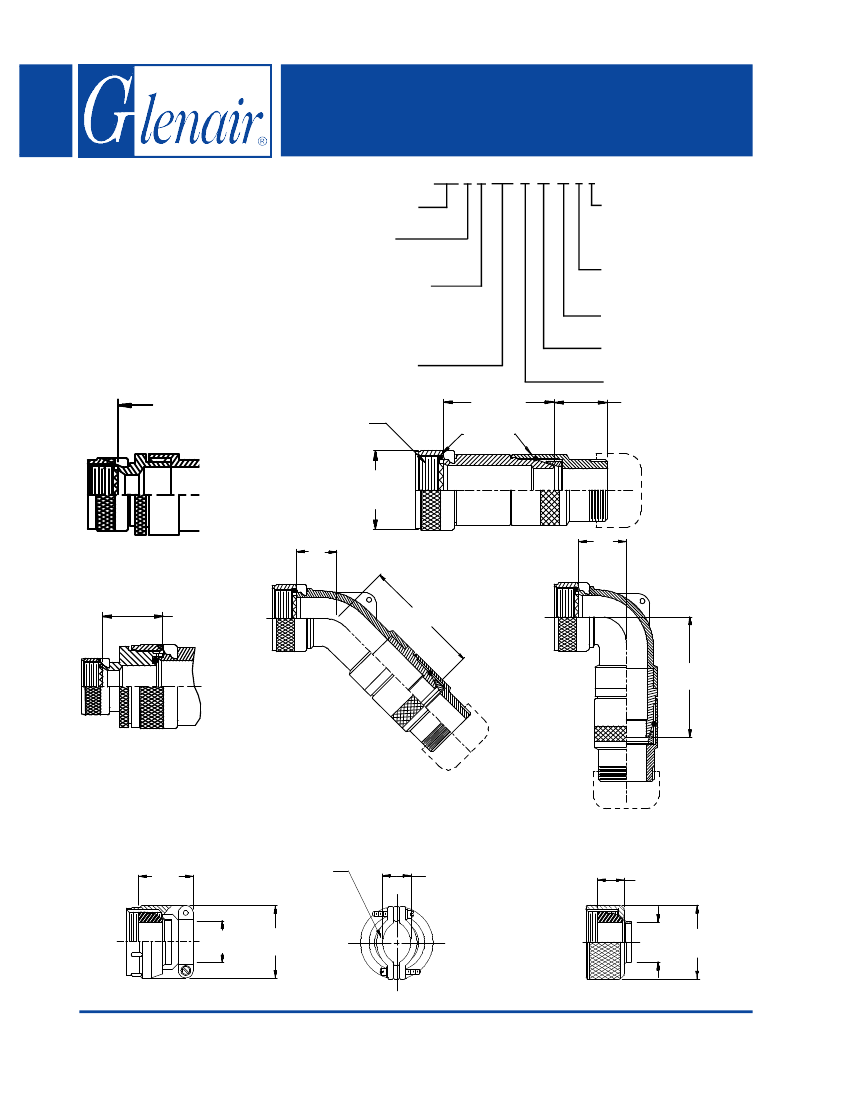

390-009

Submersible EMI/RFI Cable Sealing Backshell

with Strain Relief

Type C - Rotatable Coupling - Low Profile

CONNECTOR

DESIGNATORS

390 F S 009 M 16 10 E 6

Product Series

Connector

Designator

Angle and Profile

A = 90

B = 45

S = Straight

Basic Part No.

Finish (Table II)

Length *

O-Rings

* Length

± .060 (1.52)

Minimum Order

Length 1.5 Inch

(See Note 4)

(Table III)

A-F-H-L-S

ROTATABLE

COUPLING

TYPE C OVERALL

SHIELD TERMINATION

Length: S only

(1/2 inch increments:

e.g. 6 = 3 inches)

Strain Relief Style

(C, E)

Cable Entry (Tables X, XI)

Shell Size (Table I)

Length ± .060 (1.52)

Minimum Order Length 2.0 Inch A Thread

(See Note 4)

(Table I)

C Typ.

(Table I)

.937 (23.8) Approx.

STYLE 2

(STRAIGHT)

.88 (22.4)

Max

(Table

III)

F (Table III)

H (Table III)

STYLE 2

(45° & 90°)

STYLE C

Medium Duty

(Table X)

Clamping

Bars

STYLE E

Medium Duty

(Table XI)

X (See

Note 6)

Cable

Range

Cable

Range

CAGE Code 06324

Printed in U.S.A.

GLENAIR, INC.

•

1211 AIR WAY

•

GLENDALE, CA 91201-2497

•

818-247-6000

•

FAX 818-500-9912

www.glenair.com

E-Mail: sales@glenair.com

Series 39 - Page 34
