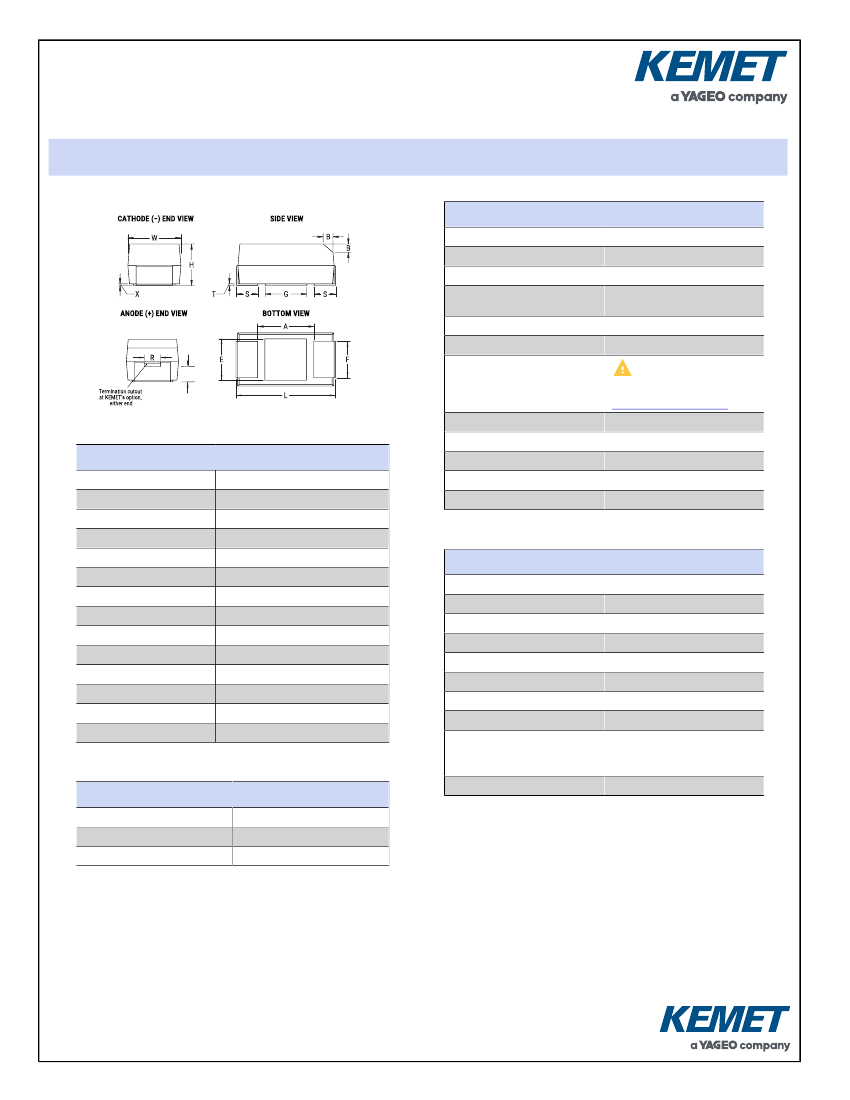

KEMET Part Number: T510X107K020AHA0357280

T510 Auto, Tantalum, MnO2 Tantalum, Multi-Anode, 100 uF, 10%, 20 VDC, SMD, MnO2, Multi-Anode, LowESR, Auto, AEC-Q200,

35 mOhms, 7343, Height Max = 4.3mm

General Information

Series:

Dielectric:

Style:

Description:

Features:

RoHS:

T510 Auto

MnO2 Tantalum

SMD Chip

SMD, MnO2, Multi-Anode,

LowESR, Auto, AEC-Q200

Automotive, Low ESR

WARNING:

Cancer

and reproductive harm -

www.p65warnings.ca.gov.

SVHC (Pb – CAS 7439-92-1)

Solder Coated

AEC-Q200

Yes

Prop 65:

REACH:

Dimensions

Footprint

7343

7.3mm +/-0.3mm

4.3mm +/-0.3mm

4mm +/-0.3mm

0.13mm REF

1.3mm +/-0.3mm

2.4mm +/-0.1mm

3.8mm MIN

0.5mm +/-0.15mm

3.5mm REF

1.7mm REF

1mm REF

0.1mm +/-0.1mm

Termination:

Qualifications:

AEC-Q200:

MSL:

Specifications

Capacitance:

Capacitance Tolerance:

Voltage DC:

Temperature Range:

Rated Temperature:

Dissipation Factor:

Failure Rate:

Resistance:

Ripple Current:

100 uF

10%

20 VDC (85C), 13.4 VDC (125C)

-55/+125°C

85°C

8% 120Hz 25C

N/A

35 mOhms (100kHz 25C)

2777 mA (rms, 100kHz 25C),

2499.3 mA (rms, 85C), 1110.8

mA (rms, 125C)

20 uA (5min 25°C)

Packaging Specifications

Weight:

Packaging:

Packaging Quantity:

430.15 mg

T&R, 330mm

2000

Leakage Current:

Statements of suitability for certain applications are based on our knowledge of typical operating conditions for such applications, but are not intended to constitute - and

we specifically disclaim - any warranty concerning suitability for a specific customer application or use. This Information is intended for use only by customers who have the

requisite experience and capability to determine the correct products for their application. Any technical advice inferred from this Information or otherwise provided by us

with reference to the use of our products is given gratis, and we assume no obligation or liability for the advice given or results obtained.

Generated 3/23/2021 - c8d0d8c4-6623-437c-99a5-b6aad3146927
