380-106
EMI/RFI Non-Environmental Backshell
Light-Duty with Strain Relief
Type C - Self-Locking - Rotatable Coupling - Split Shell
38
CONNECTOR
DESIGNATORS
380 F D 106 M 16 05 L
Product Series
Connector
Designator
Angle and Profile
C = Ultra-Low Split 90°
D = Split 90°
F = Split 45°
Strain Relief Style (L, G)
Cable Entry (Tables IV, V)
Shell Size (Table I)
Finish (Table II)
Basic Part No.
A-F-H-L-S
SELF-LOCKING
ROTATABLE
COUPLING

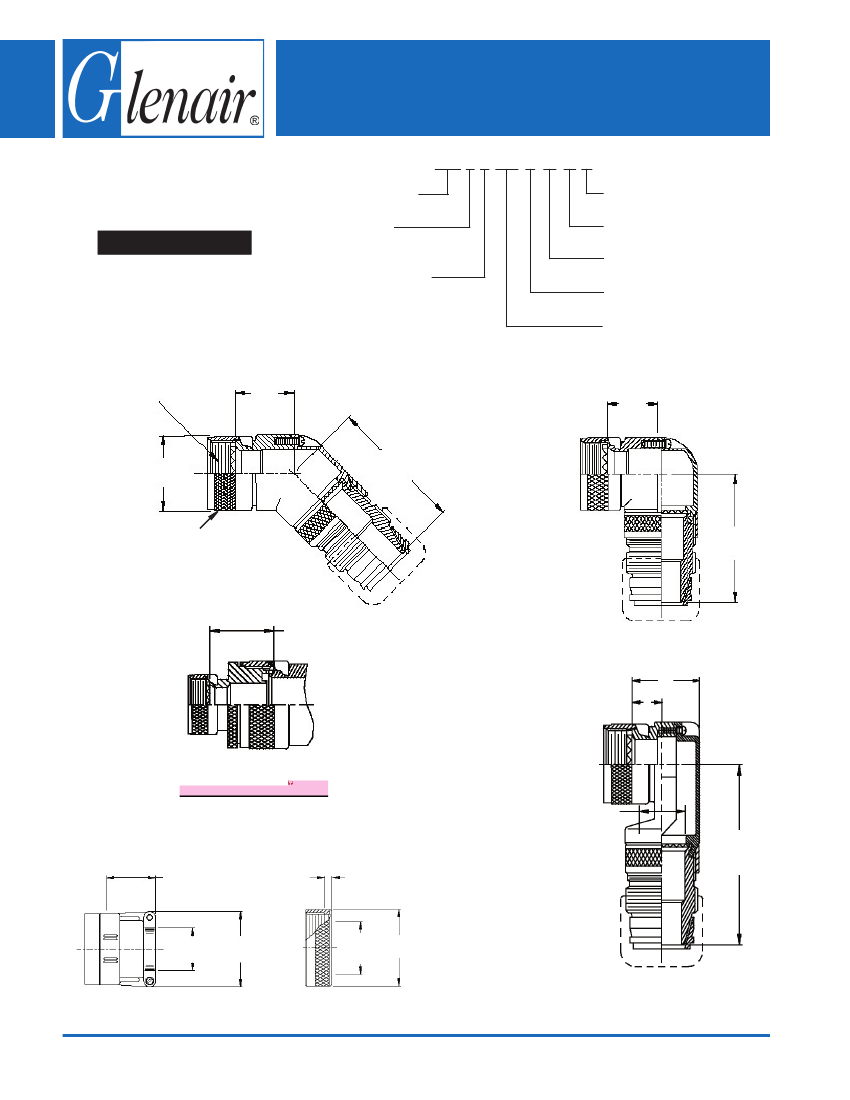

TYPE C OVERALL
SHIELD TERMINATION
A Thread
(Table I)
F
(Table III)
(Table III)
H
E Typ.
(Table I)
G (Table III)
Anti-Rotation
Device (Typ.)
Split 45°
Split 90°
J
(Table III)
1.00 (25.4)
Max
M*
K*
*(Table III)
STYLE 2
(See Note 1)
STYLE L
Light Duty
(Table IV)
.850 (21.6)
Max
Cable
Range
STYLE G
Light Duty
(Table V)
.072 (1.8)
Max
Cable
Entry
Max Wire
Bundle
(Table III,
Note 1)
L
(Table III)
N
P
Ultra Low-
Profile Split
90°
© 2005 Glenair, Inc.
CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
E-Mail: sales@glenair.com
Series 38 - Page 48
See inside back cover fold-out or pages 13 and 14 for unabridged Tables I and II.
TABLE II: STANDARD FINISHES
GLENAIR
SYMBOL FINISH
Cadmium Plate, O37dmium2 Drwim Plate, O37dmium2 Drwi
B
M
NF
See Inside Back Cover
for Additional Finish Options
1. When maximum cable entry (page 21) is exceeded, Style 2 will be supplied
(not available in Function C). Dimensions F, G, H and J will not apply.
Please consult factory.
2. Metric dimensions (mm) are indicated in parentheses.
3. Cable range is defined as the accommodations range for the wire bundle or
cable. Dimensions shown are not intended for inspection criteria.
4. Angular function "C", low-profile split elbow, not available with "S" connector
designator.
© 2005 Glenair, Inc.
CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
E-Mail: sales@glenair.com
Series 38 - Page 49
