RN73H2ATTED1930B10 datasheet, PDF

Datasheet> All Categories > Passive components> The resistor> RN73H2ATTED1930B10

RN73H2ATTED1930B10: DescriptionFixed Resistor, Metal Film, 0.125W, 193ohm, 100V, 0.1% +/-Tol, 10ppm/Cel, Surface Mount, 0805, CHIP, ROHS COMPLIANT; CategoryPassive components The resistor; File Size228KB，2 Pages; ManufacturerKOA Speer; Websitehttp://www.koaspeer.com/; Environmental Compliance

Download Datasheet Parametric View All

RN73H2ATTED1930B10 Overview

Fixed Resistor, Metal Film, 0.125W, 193ohm, 100V, 0.1% +/-Tol, 10ppm/Cel, Surface Mount, 0805, CHIP, ROHS COMPLIANT

RN73H2ATTED1930B10 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	KOA Speer
package instruction	CHIP
Reach Compliance Code	compliant
ECCN code	EAR99
structure	Rectangular
JESD-609 code	e3
Installation features	SURFACE MOUNT
Number of terminals	2
Maximum operating temperature	155 °C
Minimum operating temperature	-55 °C
Package height	0.5 mm
Package length	2 mm
Package form	SMT
Package width	1.25 mm
method of packing	TR, EMBOSSED PLASTIC, 10 INCH
Rated power dissipation(P)	0.125 W
Rated temperature	85 °C
Guideline	AEC-Q200
resistance	193 Ω
Resistor type	FIXED RESISTOR
size code	0805
surface mount	YES
technology	METAL FILM
Temperature Coefficient	10 ppm/°C
Terminal surface	Matte Tin (Sn) - with Nickel (Ni) barrier
Terminal shape	WRAPAROUND
Tolerance	0.1%
Operating Voltage	150 V

Preview

Download Datasheet

View All

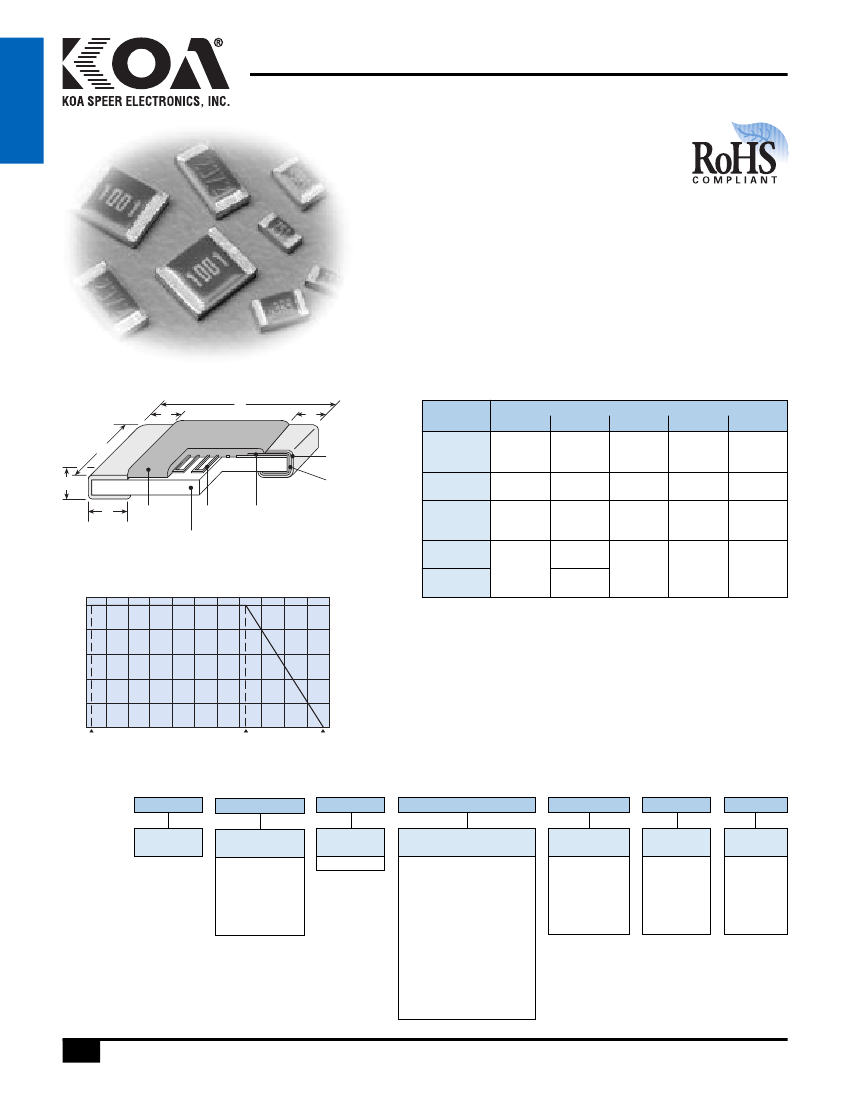

RN73H

precision high heat resistance metal

film chip resistor

% Rated Power

resistors

features

•

High precision type ±0.05% is available

with standard products

•

Improved moisture resistance by special

protective coating

•

Rated up to +155°C

•

Marking: Black coating

•

Products with lead-free terminations meet

EU RoHS requirements

dimensions and construction

Type

(Inch Size Code)

.039

+.004

-.002

+0.1

(1.0

-0.05

)

Dimensions

inches

(mm)

Solder

Plating

(0402)

(0603)

(0805)

(1206)

(1210)

+.002

.020±.002 .010±.004 .010

-.004

.014±.002

(0.5±0.05) (0.25±0.1) (0.25

+0.05

) (0.35±0.05)

-0.1

Protective

Coating

Resistive Inner

Film

Electrode

.063±.008 .031±.004 .012±.004 .012±.004 .018±.004

(1.6±0.2)

(0.8±0.1)

(0.3±0.1) (0.45±0.1)

(0.3±0.1)

.079±.008 .049±.008 .016±.008

(2.0±0.2) (1.25±0.2) (0.4±0.2)

.063±.008

.126±.008

(1.6±0.2)

(3.2±0.2)

.098±.008

(2.5±0.2)

.02±.012

(0.5±0.3)

.012

(0.3

.016

(0.4

+.008

-.004

+0.2

)

-0.1

+.008

-.004

+0.2

)

-0.1

.02±.004

(0.5±0.1)

.024±.004

(0.6±0.1)

Ceramic

Substrate

Derating Curve

100

-60 -40

-55

-20

80 100 120

Ambient Temperature

(°C)

140

160

155

ordering information

New Part #

RN73H

Type

Size

1E: 0.063W

1J: 0.1W

2A: 0.125W

2B: 0.25W

2E: 0.25W

Termination

Material

T: Sn

Packaging

TP: 0402 only: 7" 2mm pitch

punched paper

TD: 0603, 0805, 1206,

1210: 7" 4mm pitch

punched paper

TDD: 0603, 0805, 1206,

1210: 10" paper tape

TE: 0805, 1206, 1210:

7" embossed plastic

TED: 0805, 1206, 1210:

10" embossed plastic

For further information on packaging,

please refer to Appendix A

1002

Nominal

Resistance

3 significant

figures +

1 multiplier

“R” indicates

decimal on

value <100Ω

Resistance

Tolerance

A: ±0.05%

B: ±0.1%

C: ±0.25%

D: ±0.5%

F: ±1.0%

T.C.R.

(ppm/°C)

100

Specifications given herein may be changed at any time without prior notice. Please confirm technical specifications before you order and/or use.

12/22/10

KOA Speer Electronics, Inc.

• 199 Bolivar Drive • Bradford, PA 16701 • USA • 814-362-5536 • Fax: 814-362-8883 • www.koaspeer.com
