MT9D49NL-6 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > storage> storage> MT9D49NL-6

MT9D49NL-6: DescriptionFast Page DRAM Module, 4MX9, 60ns, CMOS, SIMM-30; Categorystorage storage; File Size315KB，10 Pages; ManufacturerMicron Technology; Websitehttp://www.mdtic.com.tw/

Download Datasheet Parametric Compare View All

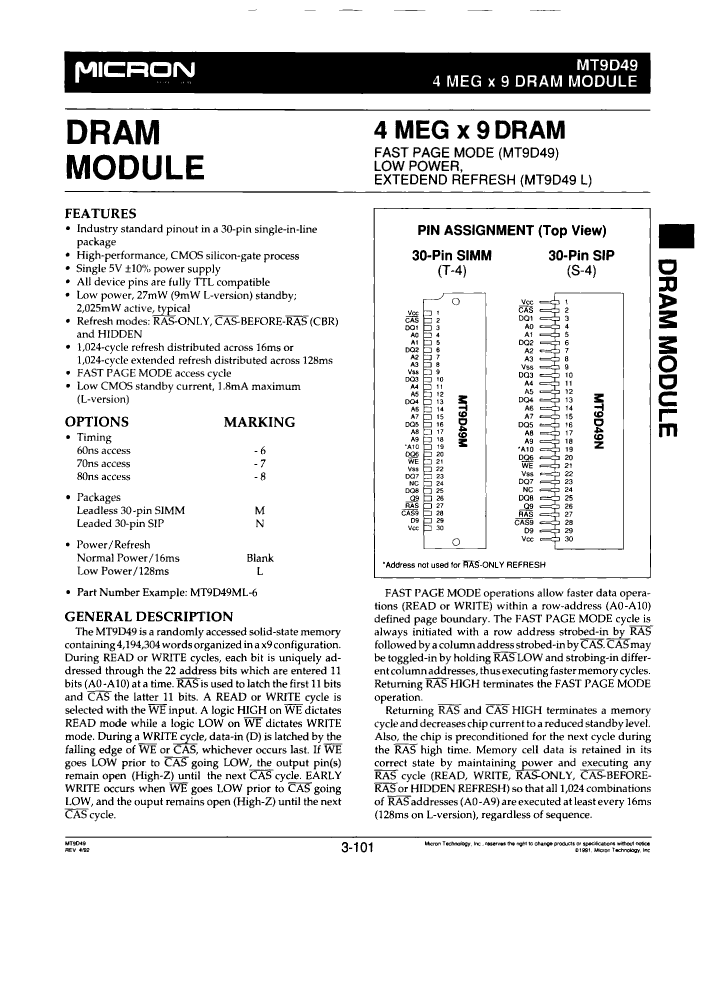

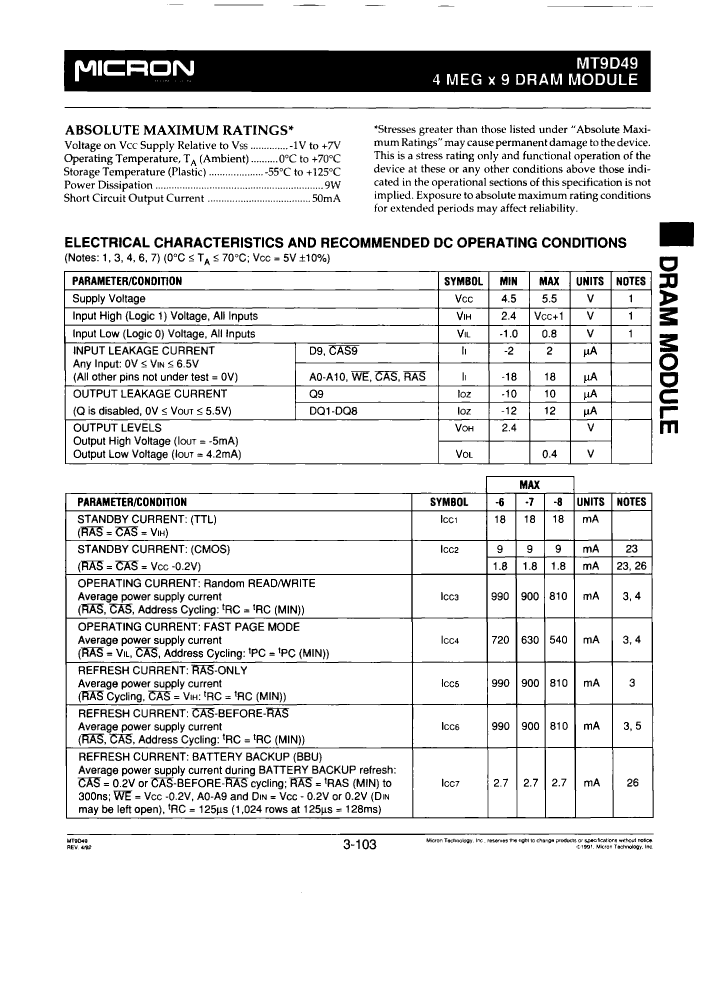

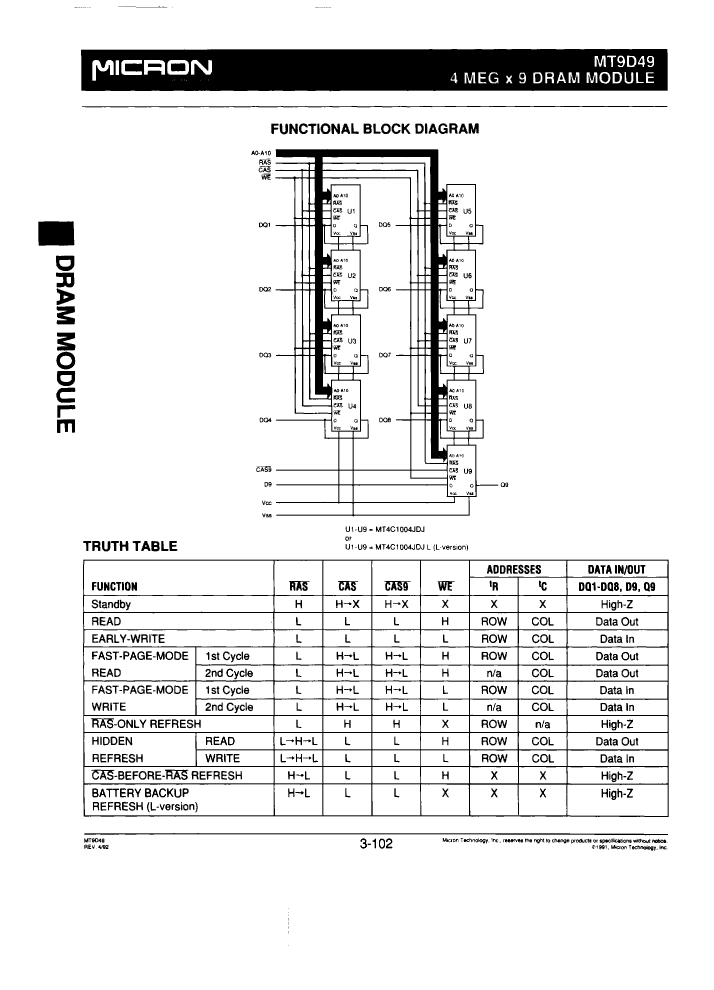

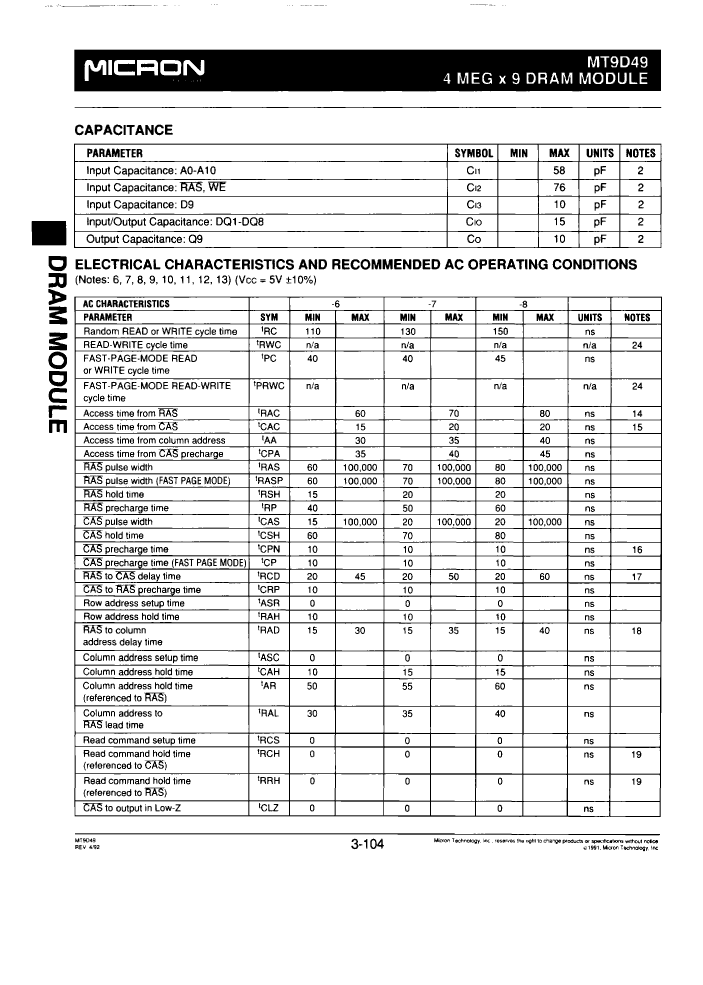

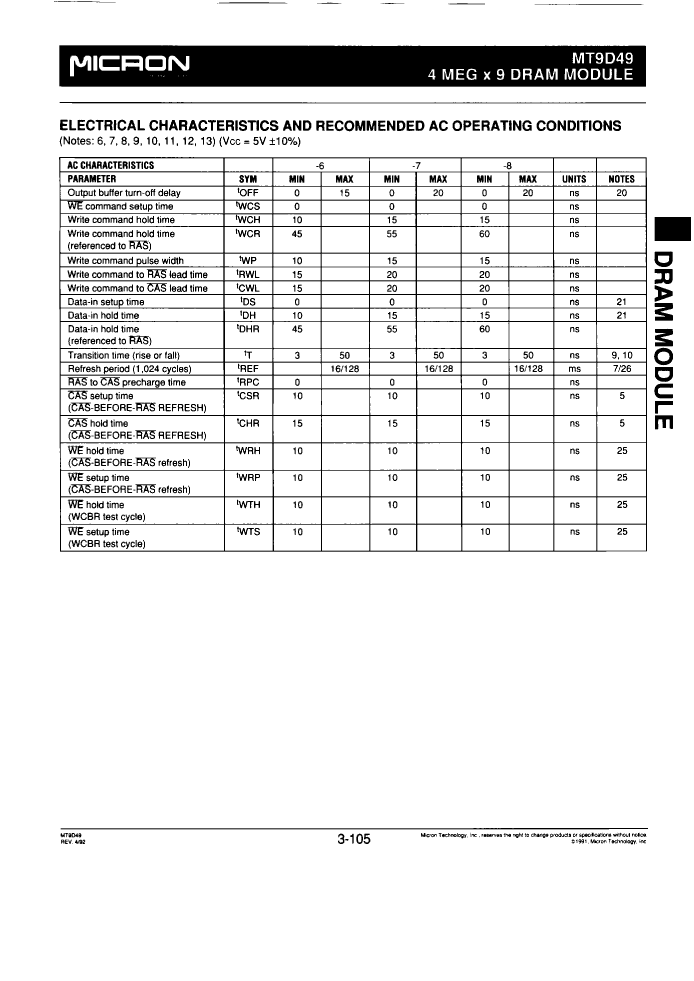

MT9D49NL-6 Overview

Fast Page DRAM Module, 4MX9, 60ns, CMOS, SIMM-30

MT9D49NL-6 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Micron Technology
Parts packaging code	SIMM
package instruction	SIMM-30
Contacts	30
Reach Compliance Code	unknown
ECCN code	EAR99
access mode	FAST PAGE
Maximum access time	60 ns
Other features	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH
I/O type	COMMON
JESD-30 code	R-XSMA-T30
JESD-609 code	e0
memory density	37748736 bit
Memory IC Type	FAST PAGE DRAM MODULE
memory width	9
Number of functions	1
Number of ports	1
Number of terminals	30
word count	4194304 words
character code	4000000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	4MX9
Output characteristics	3-STATE
Package body material	UNSPECIFIED
Encapsulate equivalent code	SIP30
Package shape	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5 V
Certification status	Not Qualified
refresh cycle	1024
Maximum seat height	21.463 mm
Maximum standby current	0.0018 A
Maximum slew rate	0.99 mA
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal location	SINGLE
Maximum time at peak reflow temperature	NOT SPECIFIED

Preview

Download Datasheet

View All

MT9D49NL-6 Related Products

	MT9D49NL-6	MT9D49N-6	MT9D49N-8	MT9D49NL-7	MT9D49NL-8	MT9D49N-7
Description	Fast Page DRAM Module, 4MX9, 60ns, CMOS, SIMM-30	Fast Page DRAM Module, 4MX9, 60ns, CMOS, SIMM-30	Fast Page DRAM Module, 4MX9, 80ns, CMOS, SIMM-30	Fast Page DRAM Module, 4MX9, 70ns, CMOS, SIMM-30	Fast Page DRAM Module, 4MX9, 80ns, CMOS, SIMM-30	Fast Page DRAM Module, 4MX9, 70ns, CMOS, SIMM-30
Is it lead-free?	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	Micron Technology	Micron Technology	Micron Technology	Micron Technology	Micron Technology	Micron Technology
Parts packaging code	SIMM	SIMM	SIMM	SIMM	SIMM	SIMM
package instruction	SIMM-30	SIMM-30	SIMM-30	SIMM-30	SIMM-30	SIMM-30
Contacts	30	30	30	30	30	30
Reach Compliance Code	unknown	unknown	not_compliant	not_compliant	not_compliant	not_compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
access mode	FAST PAGE	FAST PAGE	FAST PAGE	FAST PAGE	FAST PAGE	FAST PAGE
Maximum access time	60 ns	60 ns	80 ns	70 ns	80 ns	70 ns
Other features	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH
I/O type	COMMON	COMMON	COMMON	COMMON	COMMON	COMMON
JESD-30 code	R-XSMA-T30	R-XSMA-T30	R-XSMA-T30	R-XSMA-T30	R-XSMA-T30	R-XSMA-T30
JESD-609 code	e0	e0	e0	e0	e0	e0
memory density	37748736 bit	37748736 bit	37748736 bit	37748736 bit	37748736 bit	37748736 bit
Memory IC Type	FAST PAGE DRAM MODULE	FAST PAGE DRAM MODULE	FAST PAGE DRAM MODULE	FAST PAGE DRAM MODULE	FAST PAGE DRAM MODULE	FAST PAGE DRAM MODULE
memory width	9	9	9	9	9	9
Number of functions	1	1	1	1	1	1
Number of ports	1	1	1	1	1	1
Number of terminals	30	30	30	30	30	30
word count	4194304 words	4194304 words	4194304 words	4194304 words	4194304 words	4194304 words
character code	4000000	4000000	4000000	4000000	4000000	4000000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C
organize	4MX9	4MX9	4MX9	4MX9	4MX9	4MX9
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE
Package body material	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED
Encapsulate equivalent code	SIP30	SIP30	SIP30	SIP30	SIP30	SIP30
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
power supply	5 V	5 V	5 V	5 V	5 V	5 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
refresh cycle	1024	1024	1024	1024	1024	1024
Maximum seat height	21.463 mm	21.463 mm	21.463 mm	21.463 mm	21.463 mm	21.463 mm
Maximum standby current	0.0018 A	0.009 A	0.009 A	0.0018 A	0.0018 A	0.009 A
Maximum slew rate	0.99 mA	0.99 mA	0.81 mA	0.9 mA	0.81 mA	0.9 mA
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	NO	NO	NO	NO	NO	NO
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal location	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
