8609-396-11-28-745-000-E1

Description

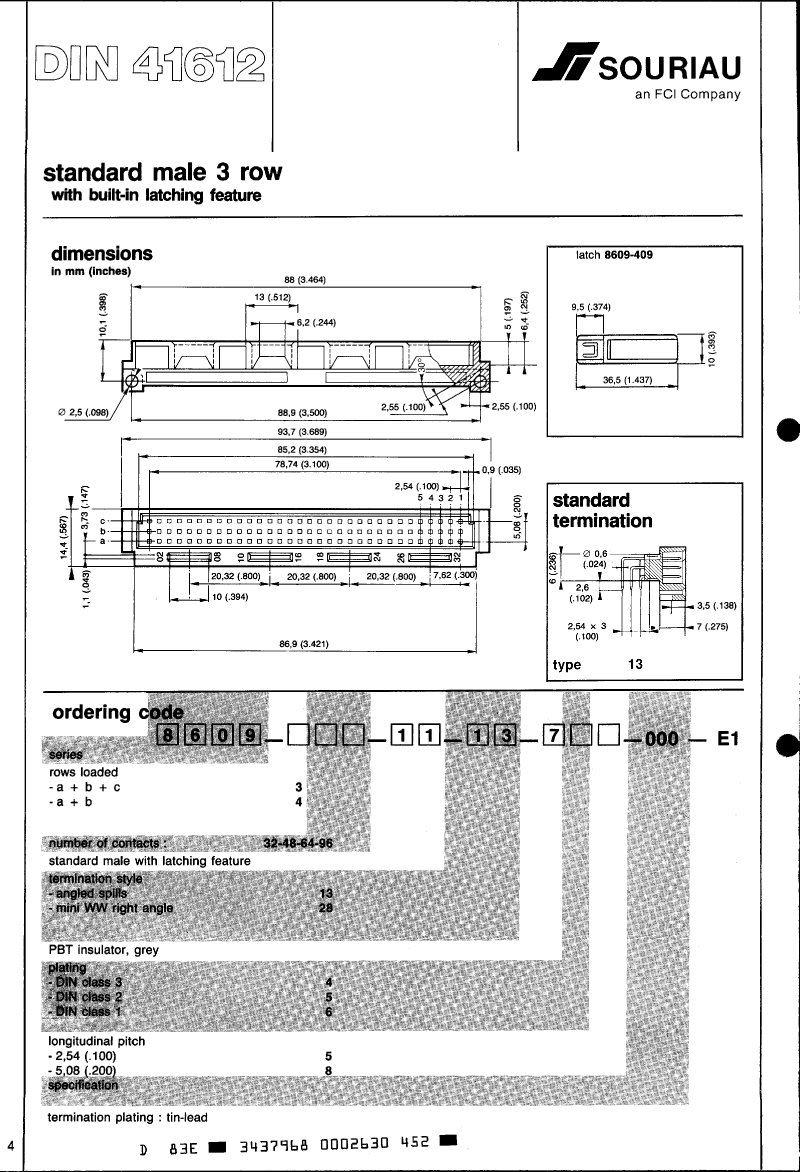

Board Euro Connector, 96 Contact(s), 3 Row(s), Male, Right Angle, 0.1 inch Pitch, Wire Wrap Terminal, Hole .099-.111, Gray Insulator, Receptacle
CategoryThe connector    The connector
File Size182KB,1 Pages
ManufacturerAmphenol
Websitehttp://www.amphenol.com/
Download Datasheet Parametric View All

8609-396-11-28-745-000-E1 Overview

Board Euro Connector, 96 Contact(s), 3 Row(s), Male, Right Angle, 0.1 inch Pitch, Wire Wrap Terminal, Hole .099-.111, Gray Insulator, Receptacle

8609-396-11-28-745-000-E1 Parametric

Parameter NameAttribute value
MakerAmphenol
Reach Compliance Codecompliant
Other featuresLATCH
body width0.567 inch
body length3.689 inch
Body/casing typeRECEPTACLE
Connector typeBOARD EURO CONNECTOR
Contact to complete cooperationAU
Contact completed and terminatedGOLD
Contact point genderMALE
Contact styleSQ PIN-SKT
DIN complianceYES
Insulator colorGRAY
insulator materialGLASS FILLED POLYESTER
Manufacturer's serial number8609
Plug contact pitch0.1 inch
Match contact row spacing0.1 inch
Installation option 1HOLE .099-.111
Installation methodRIGHT ANGLE
Installation typeBOARD
Loaded row nameA,B,C
PCB row number3
Number of rows loaded3
PCB contact patternRECTANGULAR
PCB contact row spacing2.54 mm
Plating thickness10u inch
reliabilityCOMMERCIAL
Terminal pitch2.54 mm
Termination typeWIRE WRAP
Total number of contacts96
