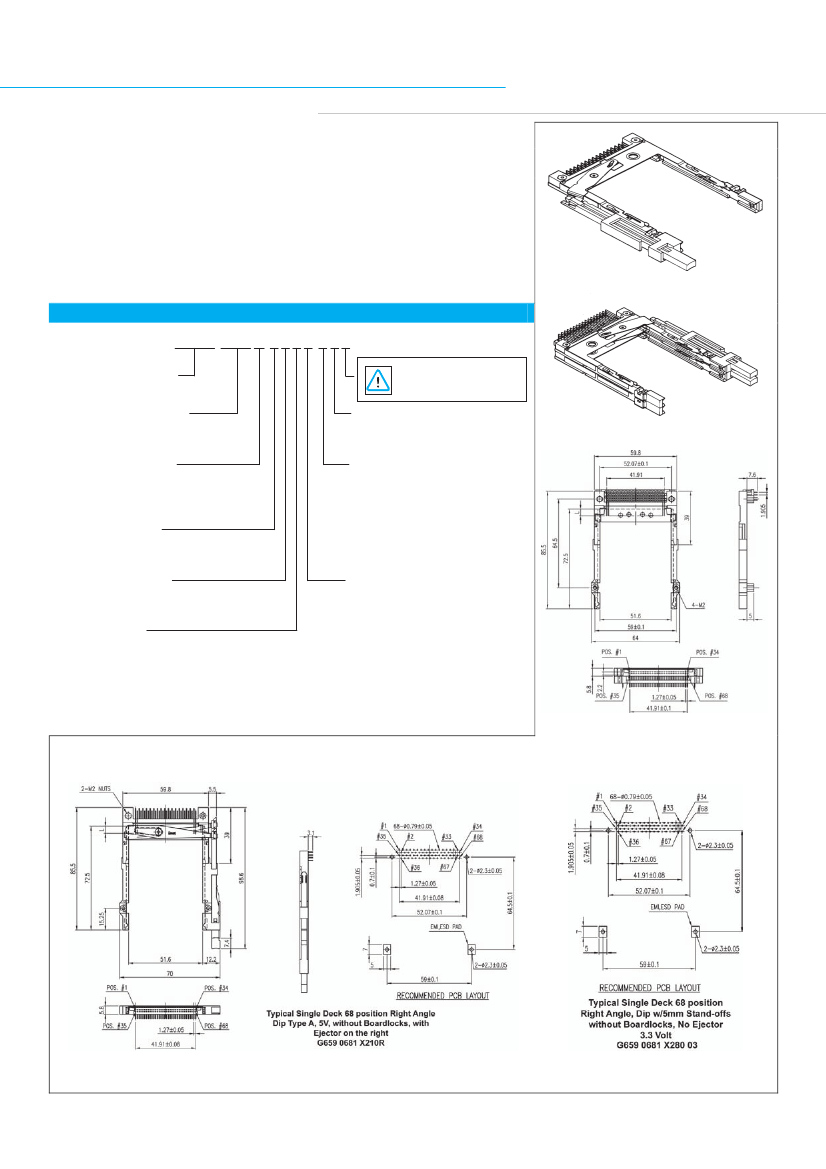

Amphenol
Card Readers
G659
Materials
Housing
Contacts
– 94V-0 LCP
– P/B with 50µ” Ni
PCMCIA PCB Connectors
Durability
10, 000 cycles
Memory card connectors compatible with PCMCIA and JEIDA standards for Type I, II and III.
Related Information
Accepts PCMCIA Type I, II & III
Polarized
Surface mount compatible
Mating Receptacle, consult Representative
Electrical
Current
– 0.5A
Voltage
– 100V
Contact Resistance – 40mΩ max.
Dielectric Withstand – 500VAC
Insulation
– 1000MΩ min.
Part Number System:
G659 XXXX XXXX XXX
PCMCIA CONNECTOR
Male 1.27mm PCB Mount
NUMBER OF POSITIONS
068: 68 Position
Suffix may be added to Part Number.
This Suffix is for Internal use mainly.
Additional Suffix ‘EU’ or ‘LF’ may be
added for RoHS compliant product.
VOLTAGE KEY OPTION
3: 3.3 Volt
5: 5 Volt (can be blank)
EJECTOR OPTION
0: Without Ejector
L: Left Ejector
R: Right Ejector
A: Upper Deck Left
Lower Deck Right
B: Upper Deck Right
Lower Deck Left
BOARD MOUNT OPTION
0: None
2: With Boardlocks Tin Plated
NUMBER OF DECKS
1: Single Deck
2: Dual Deck (Top Mount)
3: Dual Deck (Bottom Mount)
CONTACT FINISH
0: Gold Flash over 40µ” Pd-Ni
1: 30µ” Gold
CONNECTOR STYLE
1: Straight Type
2: Right Angle Type
PC TAIL STYLE
1: DIP, A Type
3: Straddle
5: DIP (Dual Deck only)
6: DIP w/2mm Stand-off
7: DIP w/7mm Stand-off
8: DIP w/5mm Stand-off
PNS-659 Rev.C1
Dimensions in mm
AMTA
J-10
