MQF45.0-1500/66 datasheet, PDF

Datasheet> All Categories > Analog mixed-signal IC> filter> MQF45.0-1500/66

MQF45.0-1500/66: DescriptionCrystal Filter, 1 Function(s), 45MHz, 7.5kHz BW(delta f), Monolithic,; CategoryAnalog mixed-signal IC filter; File Size171KB，3 Pages; ManufacturerMicrosemi; Websitehttps://www.microsemi.com; Environmental Compliance

Download Datasheet Parametric View All

MQF45.0-1500/66 Overview

Crystal Filter, 1 Function(s), 45MHz, 7.5kHz BW(delta f), Monolithic,

MQF45.0-1500/66 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Microsemi
Reach Compliance Code	compliant

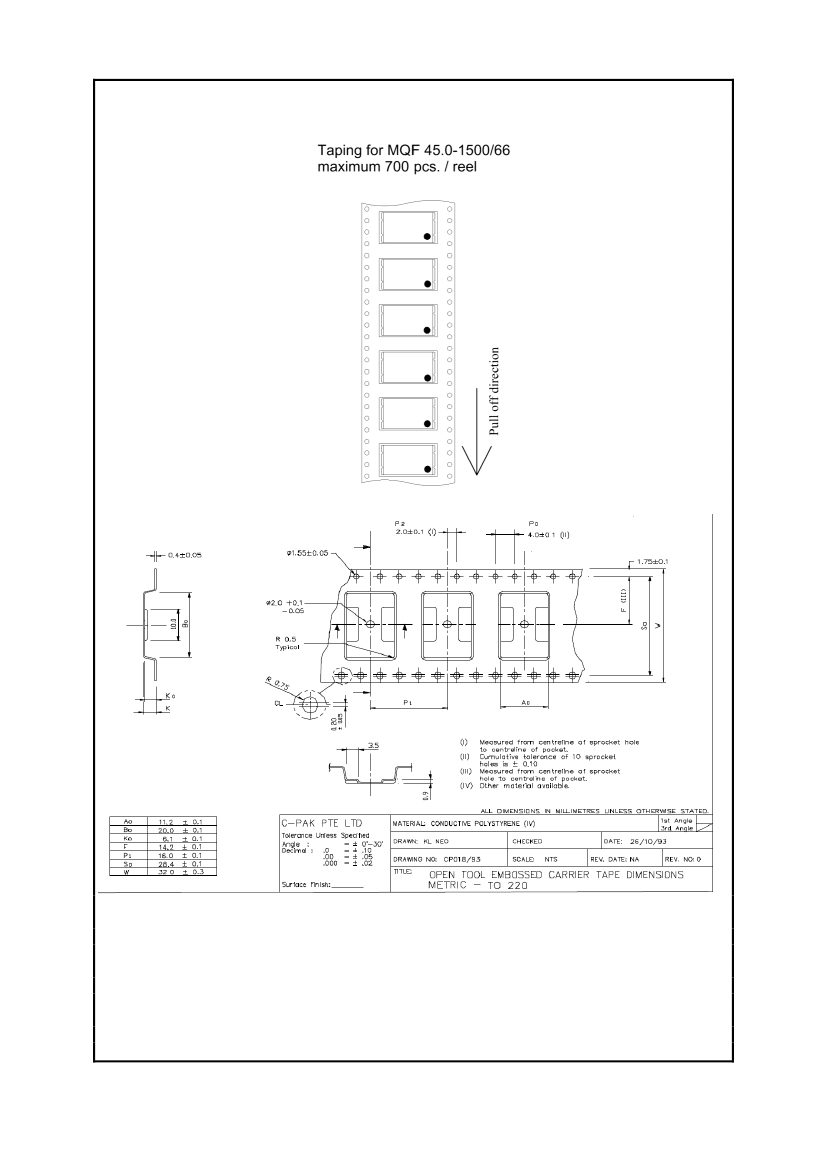

Other features	8 POLE; TAPE AND REEL
Bandwidth (+/- delta f)	7.5 kHz
Center frequency or cutoff frequency (fo/fc)	45 MHz
structure	MONOLITHIC
filter type	CRYSTAL FILTER
high	4.3 mm
Input/output impedance	1000 OHM//0.5
Maximum insertion loss	6 dB
JESD-609 code	e4
length	18.7 mm
Installation type	SURFACE MOUNT
Number of functions	1
Maximum operating temperature	70 °C
Minimum operating temperature	-20 °C
physical size	L18.7XB10.7XH4.3 (mm)/L0.736XB0.421XH0.169 (inch)
Terminal surface	Gold (Au) - with Nickel (Ni) barrier
width	10.7 mm

Preview

Download Datasheet

View All

26 January 2017

Specification for monolithic crystal filter:

1. General

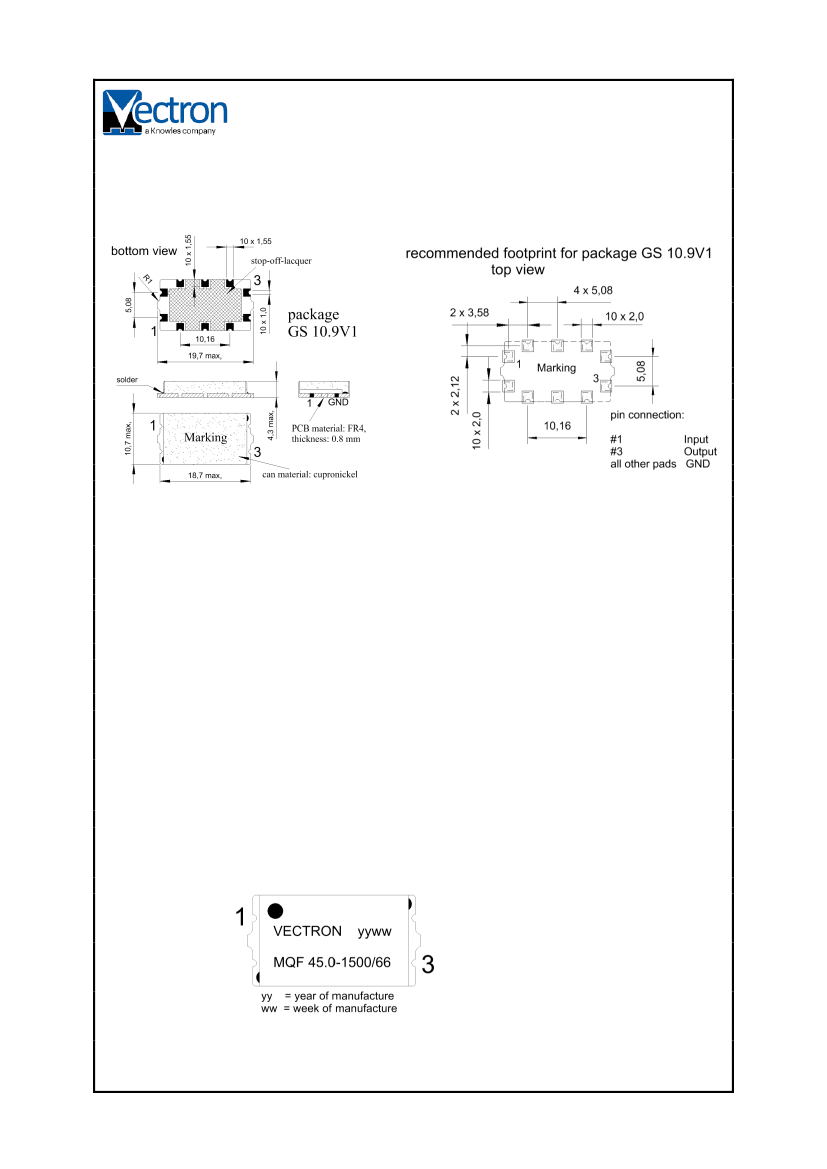

1.1. Package:

MQF 45.0-1500/66

1.2.

1.3.

1.4.

1.5.

2.1.

2.2.

2.2.1.

2.2.2.

2.2.3.

Type name:

Number of poles:

Operating temperature range:

Storage temperature range:

Electric values

Nominal centre frequency fo:

Pass band

Bandwidth between 3 dB - frequencies:

Ripple at fo



5.0 kHz

Insertion loss:

( measured on smallest attenuation in pass band )

Stop band



18 kHz



22 kHz



910 kHz

Terminating impedance R//C (input and output):

Maximum input power level:

Marking:

MQF 45.0-1500/66

-30°C to +70°C

-45°C to +85°C

45.0 MHz

> fo



8.0 kHz

< 2.0 dB

< 6.0 dB

2.3.

2.3.1.

2.2.2.

2.3.3.

2.4.

2.5.

> 40 dB

> 60 dB

> 90 dB except spurious

1000



// 0.5 pF

+5 dBm / +15 dBm ( working / non-damaged )

Environment conditions:

Corresponding to Vectron standard CF001
