380-019
EMI/RFI Non-Environmental Backshell
with Strain Relief
Type E - Direct Coupling - Split Shell
38
A-B -C-D-E-F
G-H-J-K-L-S
* Conn. Desig. B See Note 6
CONNECTOR
DESIGNATORS
*
380 F D 019 M 24 12 D A
Product Series
Connector Designator
Angle and Profile
C = Ultra-Low Split 90°
(See Note 3)
D = Split 90°
F = Split 45° (Note 4)
Basic Part No.
Finish (Table II)
J
G
J
(Table III)
Strain Relief Style
(H, A, M, D)
Termination (Note 5)
D = 2 Rings
T = 3 Rings
Cable Entry (Tables X, XI)
Shell Size (Table I)

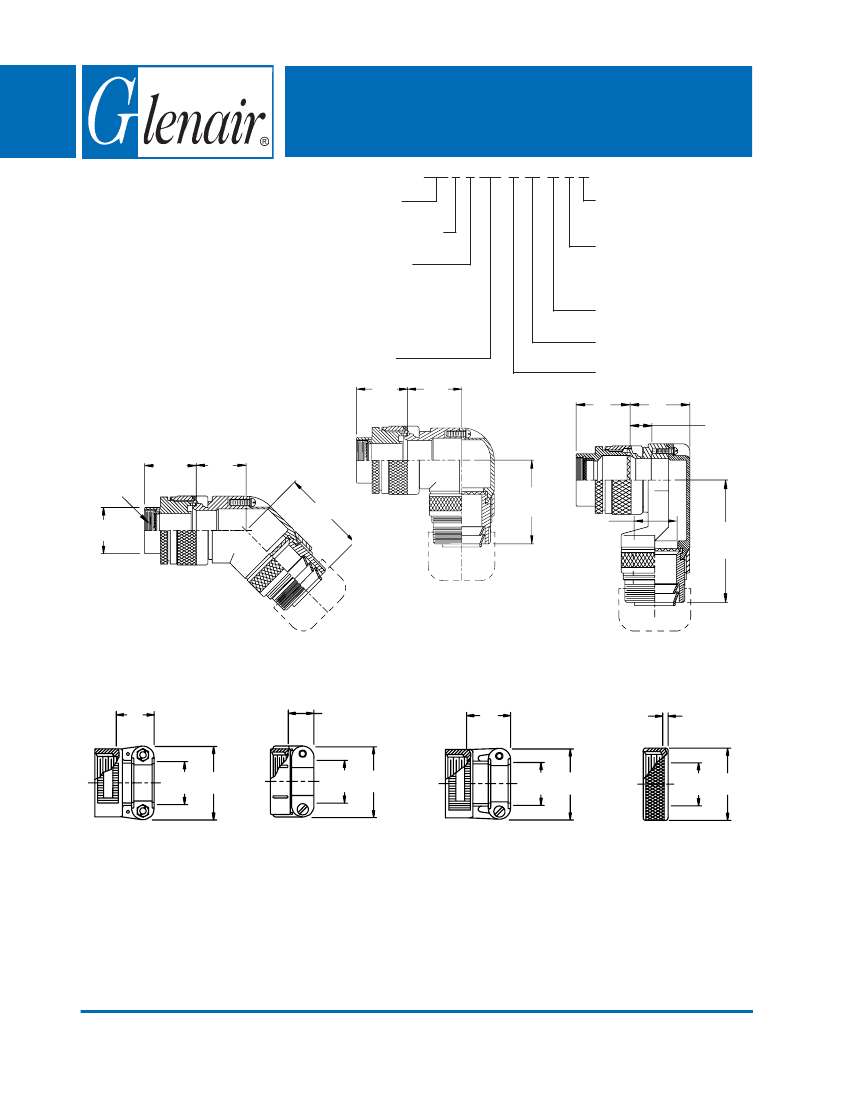

DIRECT COUPLING
TYPE E INDIVIDUAL
AND/OR OVERALL
SHIELD TERMINATION
(Table III) (Table IV)
L
(Table V)
A Thread
(Table I)
B Typ.
(Table I)
J
E
H
(Table IV)
K
(Table
V)
(Table III) (Table IV)
F (Table IV)
Split
90°
Split
45°
STYLE H
Heavy Duty
(Table X)
T
STYLE A
Medium Duty
(Table XI)
W
Max
Wire
Bundle
(Table V,
Note 1)
M
(Table V)
STYLE M
Medium Duty
(Table XI)
X
Ultra Low-
Profile Split
90°
STYLE D
Medium Duty
(Table XI)
.135 (3.4)
Max
Cable
Range
V
Cable
Range
Y
Cable
Range
Y
Cable
Entry
Z
1. Metric dimensions (mm) are indicated in parentheses.
2. Cable range is defined as the accommodations range for the wire bundle
or cable. Dimensions shown are not intended for inspection criteria.
3. Function C Low Profile Elbow is available in Dash Numbers 03 thru 12 only.
4. Consult factory for available sizes of 45° (Symbol F).
5. Designate Symbol T for 3 ring termination of individual and overall braid.
Designate D for standard 2 ring termination of individual or overall braid.
6. When using Connector Designator B refer to pages 18 and 19 for part
number development.
© 2005 Glenair, Inc.
CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
E-Mail: sales@glenair.com
Series 38 - Page 96
with Strain Relief
Type E - Direct Coupling - Split Shell
TABLE III: FRONT ADAPTER
J Max - Conn. Designator
Shell
A-E-F
Size
J-H-L-S
D-B-G-K
C
08/09 1.180 (30.0) 1.250 (31.8)
10/11 1.180 (30.0) 1.250 (31.8)
12/13 1.180 (30.0) 1.250 (31.8) 1.735(44.1)
14/15 1.180 (30.0) 1.250 (31.8) 1.915(48.6)
16/17 1.380 (35.0) 1.560 (39.6) 1.915(48.6)
18/19 1.380 (35.0) 1.560 (39.6) 1.915(48.6)
20/21 1.380 (35.0) 1.560 (39.6) 1.915(48.6)
22/23 1.380 (35.0) 1.560 (39.6) 1.915(48.6)
24/25 1.380 (35.0) 1.560 (39.6) 1.915(48.6)
28/29
1
1.560 (39.6) 1.915(48.6)
32/33
.610 (40.9)
1.750 (44.5) 1.915(48.6)
36 1.610 (40.9) 1.750 (44.5) 1.915(48.6)
40 1.610 (40.9) 2.190 (55.6) 1.915(48.6)
TABLE V: ELBOW DIMENSIONS
Elbow
K
L
Size
Ref
Max
03
.340 (8.6) .681 (17.3)
04
.270 (6.9) .731 (18.6)
06
.270 (6.9) .731 (18.6)
08
.280 (7.1) .831 (21.1)
10
.420 (10.7) .981 (24.9)
12
.540 (13.7) 1.181 (30.0)
Elbow
Size
03
04
06
08
10
12
Function C Max
M
Wire Bundle
Max
.250 (6.4)
1.730 (43.9)
.375 (9.5)
1.730 (43.9)
.375 (9.5)
1.890 (48.0)
.500 (12.7)
1.890 (48.0)
.625 (15.9)
1.960 (49.8)
.750 (19.1)
1.960 (49.8)
TABLE IV: ELBOW DIMENSIONS
Elbow
E
F
G
H
Size Max
Max
Max
Max
03 .500 (12.7) 1.590 (40.4) .680 (17.3) 1.530 (38.9)
04 .500 (12.7) 1.590 (40.4) .680 (17.3) 1.530 (38.9)
06 .500 (12.7) 1.650 (41.9) .750 (19.1) 1.590 (40.4)
08 .560 (14.2) 1.720 (43.7) .810 (20.6) 1.660 (42.2)
10 .620 (15.7) 1.750 (44.5) .870 (22.1) 1.690 (42.9)
12 .680 (17.3) 1.850 (47.0) .930 (23.6) 1.790 (45.5)
16 .750 (19.1) 1.910 (48.5)
1.000 (25.4) 1.850 (47.0)
20 .820 (20.8) 1.970 (50.0)
1.060 (26.9) 1.910 (48.5)
24 .880 (22.4) 2.030 (51.6)
1.120 (28.4) 1.970 (50.0)
28 .940 (23.9) 2.090 (53.1)
1.180 (30.0) 2.030 (51.6)
TABLE X: CABLE ENTRY
Dash
T
V
Cable Range
No.
Max
Max
Min
Max
04 .780 (19.8) .957 (24.3) .125 (3.2) .312 (7.9)
06 .780 (19.8) 1.145 (29.1) .250 (6.4) .437 (11.1)
08 .780 (19.8) 1.332 (33.8) .312 (7.9) .562 (14.3)
10 .780 (19.8) 1.332 (33.8) .350 (8.9) .625 (15.9)
12 .811 (20.6) 1.551 (39.4) .500 (12.7) .750 (19.1)
16 .905 (23.0) 1.770 (45.0) .625 (15.9) .937 (23.8)
20 1.092 (27.7) 2.113 (53.7) .875 (22.2) 1.250 (31.8)
24 1.124 (28.5) 2.363 (60.0) 1.000 (25.4) 1.375 (34.9)
28 1.399 (35.5) 2.770 (70.4) 1.250 (31.8) 1.625 (41.3)
32 1.399 (35.5) 3.020 (76.7) 1.437 (36.5) 1.875 (47.6)
TABLE II: STANDARD FINISHES
GLENAIR
SYMBOL
B
M
NF
FINISH
Cadmium Plate, Olive Drab
Electroless Nickel
Cadmium Plate, Olive Drab
Over Electroless Nickel
See Inside Back Cover
for Additional Finish Options
See inside back
cover fold-out or
pages 13 and 14
for unabridged
Tables I and II.
TABLE XI: CABLE ENTRYS
Dash
W
X
Y
Z
Cable Range
No.
Max
Max
Max
Max
Min **
Max
03* .437 (11.1) .760 (19.3) .843 (21.4)
.630 (16.0) .156 (4.0) .250 (6.4)
04* .437 (11.1) .760 (19.3) .906 (23.0)
.755 (19.2) .188 (4.8) .312 (7.9)
06* .500 (12.7) .760 (19.3) 1.093 (27.8)
.942 (23.9) .281 (7.1) .438 (11.1)
08
.563 (14.3) .760 (19.3) 1.187 (30.1) 1.067 (27.1) .344 (8.7) .562 (14.3)
10
.563 (14.3) .760 (19.3) 1.281 (32.5) 1.192 (30.3) .375 (9.5) .625 (15.9)
12
.563 (14.3) .760 (19.3) 1.500 (38.1) 1.380 (35.1) .438 (11.1) .750 (19.1)
16
.656 (16.7) 1.073 (27.3) 1.719 (43.7) 1.535 (39.0) .562 (14.3) .938 (23.8)
20
.656 (16.7) 1.323 (33.6) 2.062 (52.4) 1.848 (46.9) .750 (19.1) 1.250 (31.8)
24
.656 (16.7) 1.323 (33.6) 2.312 (58.7) 2.255 (57.3) .781 (19.8) 1.375 (34.9)
28 1.188 (30.2) 1.572 (39.9) 2.719 (69.1) 2.505 (63.6) .969 (24.6) 1.625 (41.3)
32* 1.187 (30.1) 1.572 (39.9) 2.969 (75.4) 2.755 (70.0) 1.125 (28.6) 1.875 (47.6)
40* 1.125 (28.6) 1.572 (39.9) 3.531 (89.7) 3.255 (82.7) 1.469 (37.3) 2.375 (60.3)
* Not available in Style M clamp.
** Not Applicable Style D
© 2005 Glenair, Inc.
CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
E-Mail: sales@glenair.com
Series 38 - Page 97
