MCM40L100AS70 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > storage> storage> MCM40L100AS70

MCM40L100AS70: Description1MX40 FAST PAGE DRAM MODULE, 70ns, SMA72, SIMM-72; Categorystorage storage; File Size540KB，16 Pages; ManufacturerMotorola ( NXP ); Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

MCM40L100AS70 Overview

1MX40 FAST PAGE DRAM MODULE, 70ns, SMA72, SIMM-72

MCM40L100AS70 Parametric

Parameter Name	Attribute value
Maker	Motorola ( NXP )
Parts packaging code	SIMM
package instruction	SIMM, SSIM72
Contacts	72
Reach Compliance Code	unknown
ECCN code	EAR99
access mode	FAST PAGE
Maximum access time	70 ns
Other features	RAS ONLY; CAS BEFORE RAS; HIDDEN REFRESH
I/O type	COMMON
JESD-30 code	R-XSMA-N72
memory density	41943040 bit
Memory IC Type	FAST PAGE DRAM MODULE
memory width	40
Number of functions	1
Number of ports	1
Number of terminals	72
word count	1048576 words
character code	1000000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	1MX40
Output characteristics	3-STATE
Package body material	UNSPECIFIED
encapsulated code	SIMM
Encapsulate equivalent code	SSIM72
Package shape	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY
power supply	5 V
Certification status	Not Qualified
refresh cycle	1024
Maximum standby current	0.002 A
Maximum slew rate	1 mA
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	COMMERCIAL
Terminal form	NO LEAD
Terminal pitch	1.27 mm
Terminal location	SINGLE

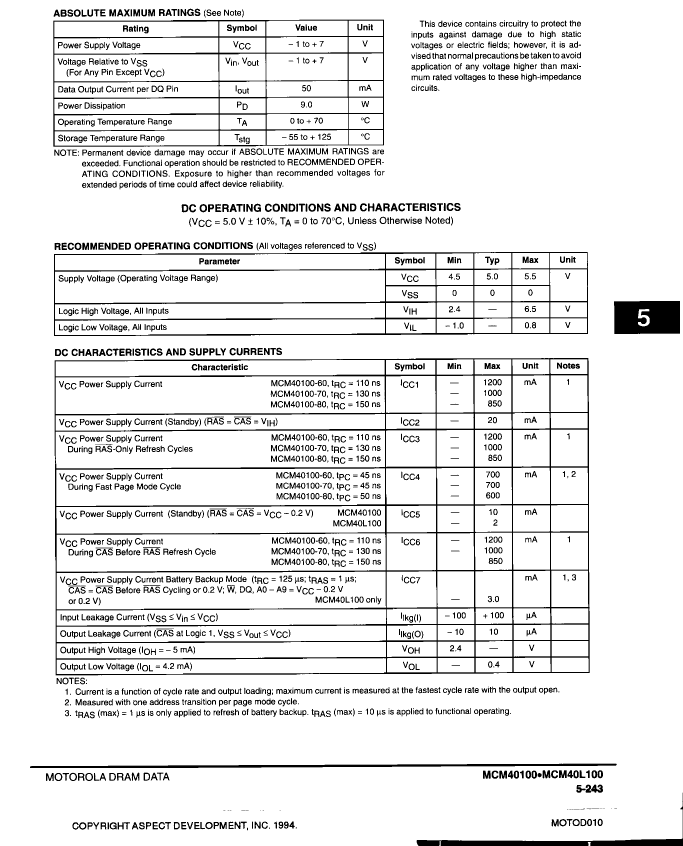

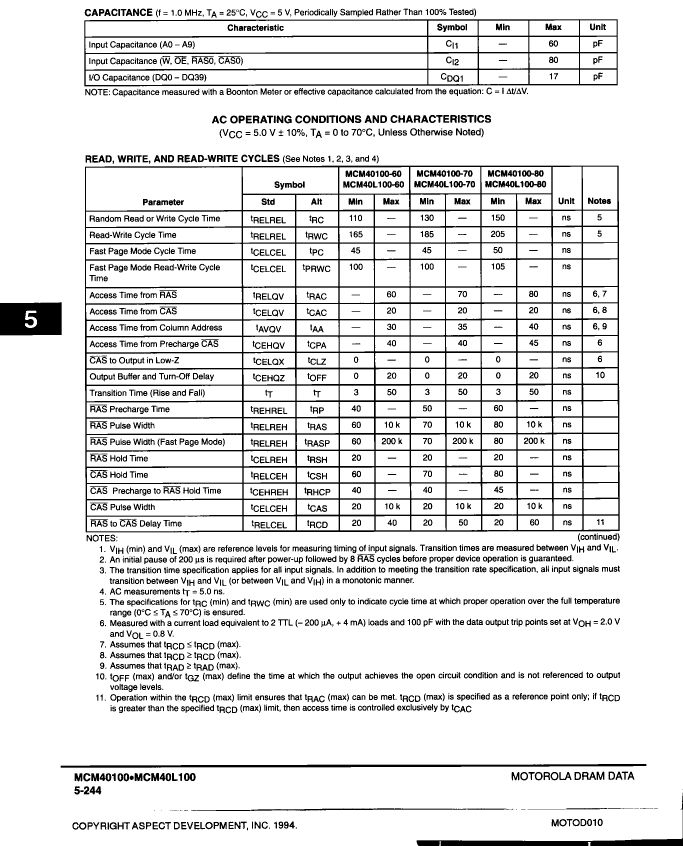

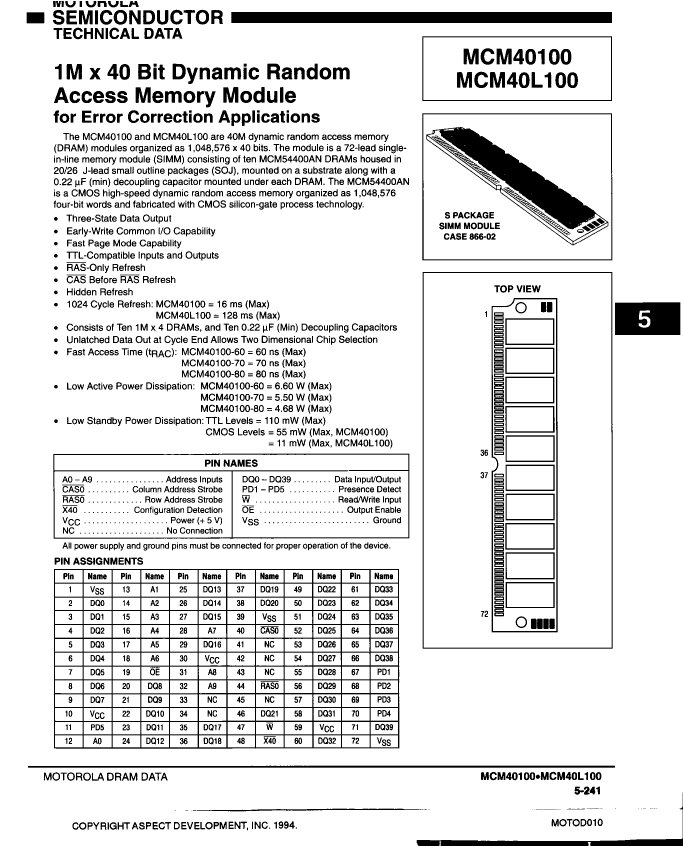

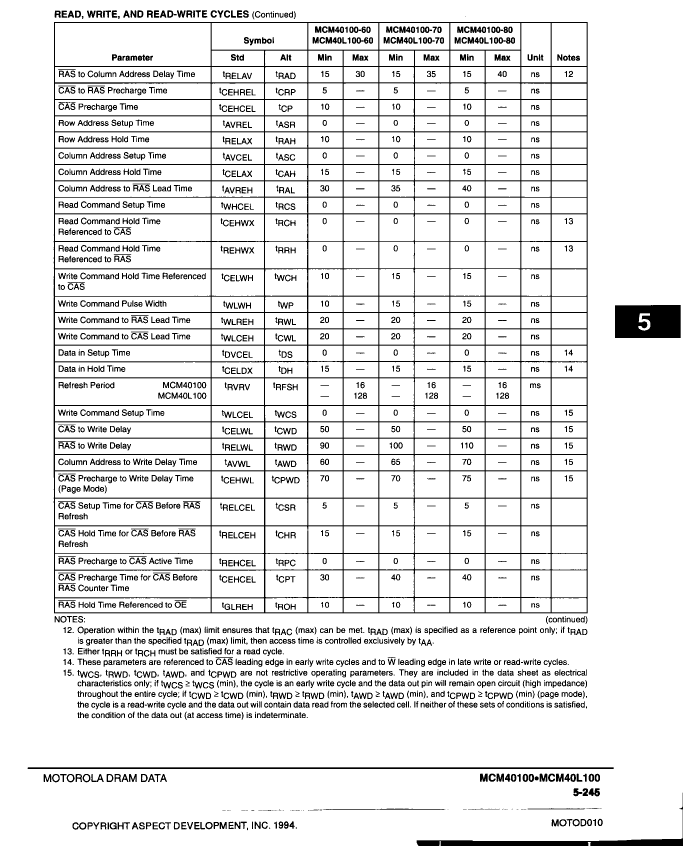

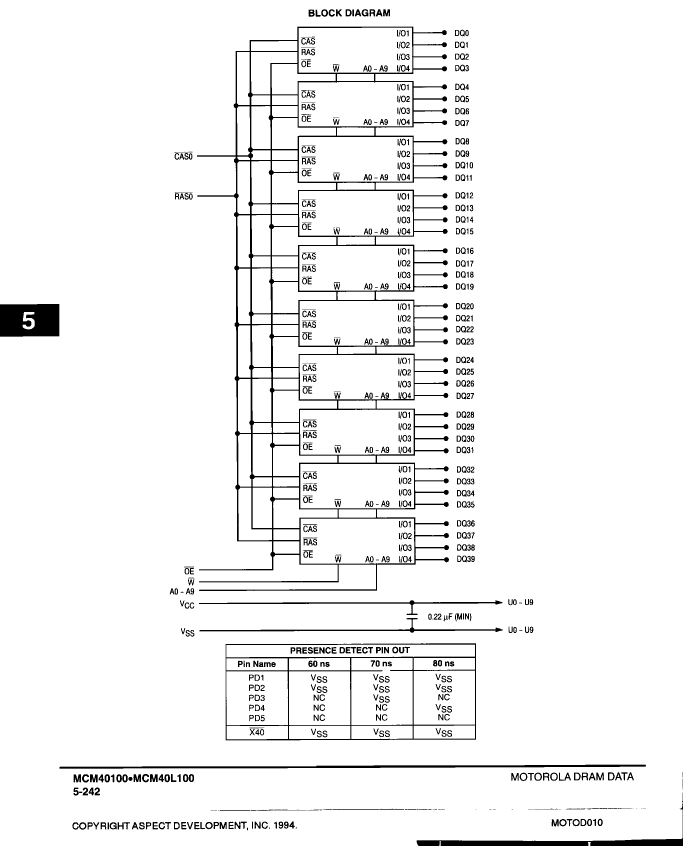

Preview

Download Datasheet

View All

MCM40L100AS70 Related Products

	MCM40L100AS70	MCM40L100ASG60	MCM40L100AS80	74435581000_14	MCM40100AS80	MCM40L100ASG70
Description	1MX40 FAST PAGE DRAM MODULE, 70ns, SMA72, SIMM-72	1MX40 FAST PAGE DRAM MODULE, 60ns, SMA72, SIMM-72	1MX40 FAST PAGE DRAM MODULE, 80ns, SMA72, SIMM-72	WE-HCI SMD Flat Wire High Current Inductor	1M X 40 FAST PAGE DRAM MODULE, 80 ns, SMA72, SIMM-72	1MX40 FAST PAGE DRAM MODULE, 70ns, SMA72, SIMM-72
Maker	Motorola ( NXP )	Motorola ( NXP )	Motorola ( NXP )	-	Motorola ( NXP )	Motorola ( NXP )
Parts packaging code	SIMM	SIMM	SIMM	-	SIMM	SIMM
package instruction	SIMM, SSIM72	SIMM, SSIM72	SIMM, SSIM72	-	SIMM, SSIM72	SIMM, SSIM72
Contacts	72	72	72	-	72	72
Reach Compliance Code	unknown	unknown	unknown	-	unknown	unknow
ECCN code	EAR99	EAR99	EAR99	-	EAR99	EAR99
access mode	FAST PAGE	FAST PAGE	FAST PAGE	-	FAST PAGE	FAST PAGE
Maximum access time	70 ns	60 ns	80 ns	-	80 ns	70 ns
Other features	RAS ONLY; CAS BEFORE RAS; HIDDEN REFRESH	RAS ONLY; CAS BEFORE RAS; HIDDEN REFRESH	RAS ONLY; CAS BEFORE RAS; HIDDEN REFRESH	-	RAS ONLY; CAS BEFORE RAS; HIDDEN REFRESH	RAS ONLY; CAS BEFORE RAS; HIDDEN REFRESH
I/O type	COMMON	COMMON	COMMON	-	COMMON	COMMON
JESD-30 code	R-XSMA-N72	R-XSMA-N72	R-XSMA-N72	-	R-XSMA-N72	R-XSMA-N72
memory density	41943040 bit	41943040 bit	41943040 bit	-	41943040 bit	41943040 bi
Memory IC Type	FAST PAGE DRAM MODULE	FAST PAGE DRAM MODULE	FAST PAGE DRAM MODULE	-	FAST PAGE DRAM MODULE	FAST PAGE DRAM MODULE
memory width	40	40	40	-	40	40
Number of functions	1	1	1	-	1	1
Number of ports	1	1	1	-	1	1
Number of terminals	72	72	72	-	72	72
word count	1048576 words	1048576 words	1048576 words	-	1048576 words	1048576 words
character code	1000000	1000000	1000000	-	1000000	1000000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	-	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	70 °C	70 °C	70 °C	-	70 °C	70 °C
organize	1MX40	1MX40	1MX40	-	1MX40	1MX40
Output characteristics	3-STATE	3-STATE	3-STATE	-	3-STATE	3-STATE
Package body material	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	-	UNSPECIFIED	UNSPECIFIED
encapsulated code	SIMM	SIMM	SIMM	-	SIMM	SIMM
Encapsulate equivalent code	SSIM72	SSIM72	SSIM72	-	SSIM72	SSIM72
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	-	RECTANGULAR	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	-	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY
power supply	5 V	5 V	5 V	-	5 V	5 V
Certification status	Not Qualified	Not Qualified	Not Qualified	-	Not Qualified	Not Qualified
refresh cycle	1024	1024	1024	-	1024	1024
Maximum standby current	0.002 A	0.002 A	0.002 A	-	0.01 A	0.002 A
Maximum slew rate	1 mA	1.2 mA	0.85 mA	-	0.85 mA	1 mA
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	-	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	-	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	-	5 V	5 V
surface mount	NO	NO	NO	-	NO	NO
technology	CMOS	CMOS	CMOS	-	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	-	COMMERCIAL	COMMERCIAL
Terminal form	NO LEAD	NO LEAD	NO LEAD	-	NO LEAD	NO LEAD
Terminal pitch	1.27 mm	1.27 mm	1.27 mm	-	1.27 mm	1.27 mm
Terminal location	SINGLE	SINGLE	SINGLE	-	SINGLE	SINGLE
