N74200B datasheet, PDF - EEWORLD Datasheet

N74200B: DescriptionIC 256 X 1 STANDARD SRAM, 50 ns, PDIP16, Static RAM; Categorystorage storage; File Size80KB，3 Pages; ManufacturerNXP; Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

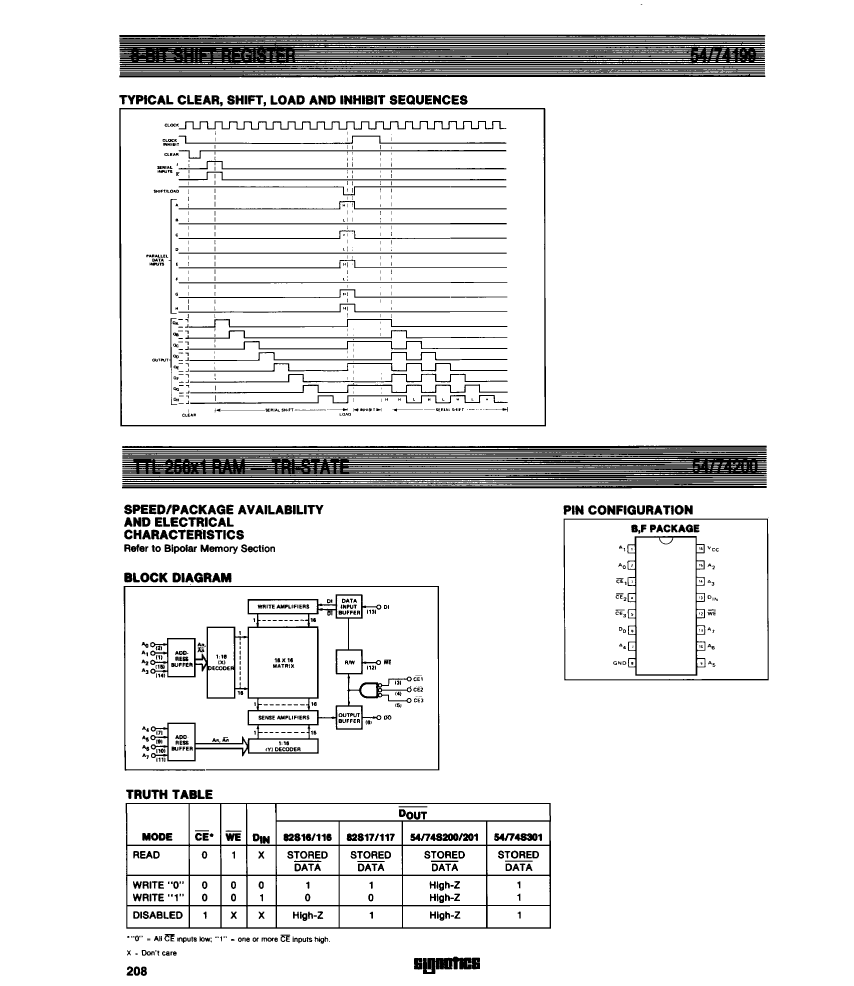

N74200B Overview

IC 256 X 1 STANDARD SRAM, 50 ns, PDIP16, Static RAM

Parameter Name	Attribute value
Maker	NXP
package instruction	,
Reach Compliance Code	unknown
ECCN code	EAR99
Maximum access time	50 ns
JESD-30 code	R-PDIP-T16
memory density	256 bit
Memory IC Type	STANDARD SRAM
memory width	1
Number of functions	1
Number of ports	1
Number of terminals	16
word count	256 words
character code	256
Operating mode	ASYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	256X1
Output characteristics	3-STATE
Exportable	NO
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	IN-LINE
Parallel/Serial	PARALLEL
Certification status	Not Qualified
Maximum supply voltage (Vsup)	5.25 V
Minimum supply voltage (Vsup)	4.75 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	TTL
Temperature level	COMMERCIAL
Terminal form	THROUGH-HOLE
Terminal location	DUAL

	N74200B	N74200F	S54200F
Description	IC 256 X 1 STANDARD SRAM, 50 ns, PDIP16, Static RAM	IC 256 X 1 STANDARD SRAM, 50 ns, CDIP16, Static RAM	IC 256 X 1 STANDARD SRAM, 70 ns, CDIP16, Static RAM
Maker	NXP	NXP	NXP
Reach Compliance Code	unknown	unknow	unknow
ECCN code	EAR99	EAR99	3A001.A.2.C
Maximum access time	50 ns	50 ns	70 ns
JESD-30 code	R-PDIP-T16	R-GDIP-T16	R-GDIP-T16
memory density	256 bit	256 bi	256 bi
Memory IC Type	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM
memory width	1	1	1
Number of functions	1	1	1
Number of ports	1	1	1
Number of terminals	16	16	16
word count	256 words	256 words	256 words
character code	256	256	256
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	70 °C	70 °C	125 °C
organize	256X1	256X1	256X1
Output characteristics	3-STATE	3-STATE	3-STATE
Exportable	NO	NO	NO
Package body material	PLASTIC/EPOXY	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE
Parallel/Serial	PARALLEL	PARALLEL	PARALLEL
Certification status	Not Qualified	Not Qualified	Not Qualified
Maximum supply voltage (Vsup)	5.25 V	5.25 V	5.25 V
Minimum supply voltage (Vsup)	4.75 V	4.75 V	4.75 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V
surface mount	NO	NO	NO
technology	TTL	TTL	TTL
Temperature level	COMMERCIAL	COMMERCIAL	MILITARY
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal location	DUAL	DUAL	DUAL
