340-001

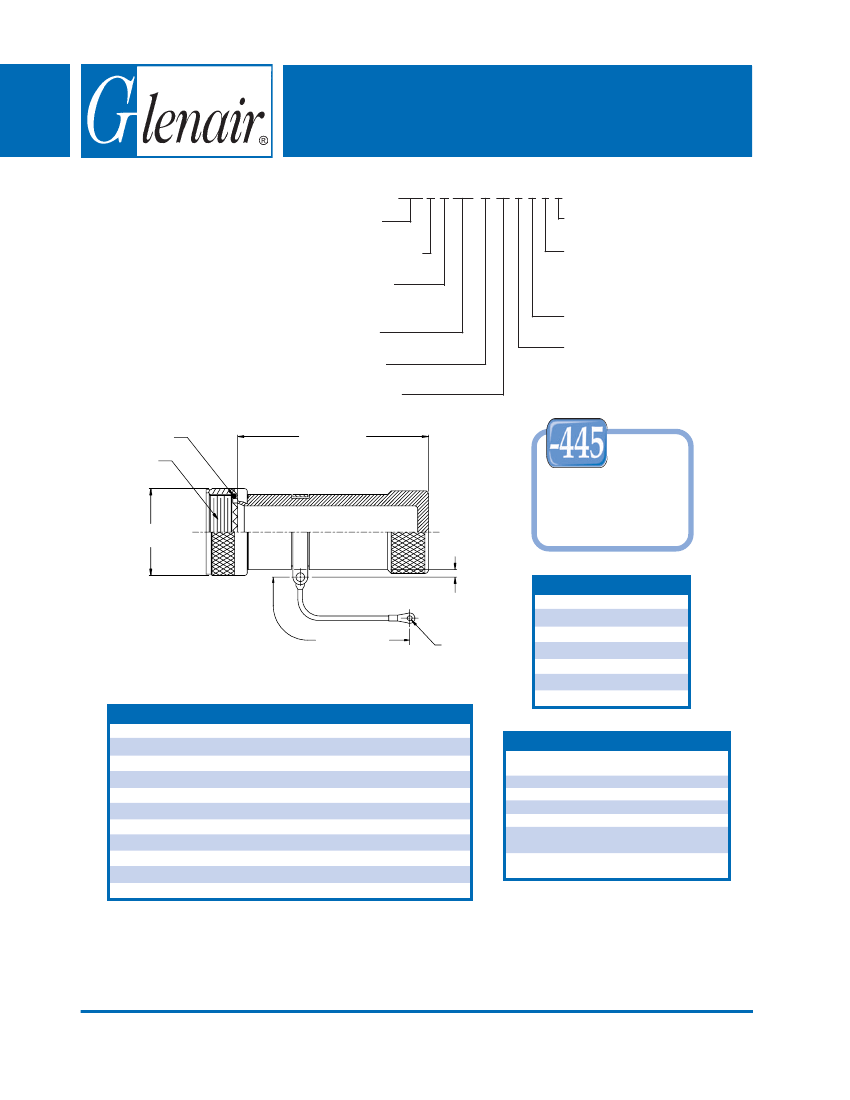

O-Ring Sealed Shorting Cap Backshell
Rotatable Coupling
34
CONNECTOR
DESIGNATORS
340 F S 001 M 16-5 H 6 A
Product Series
Connector Designator
Angle and Profile
S = Straight
Basic Part No.
Finish (Table II)
Shell Size (Table I)
O-Ring
A Thread
(Table I)
Length
± .060 (1.52)
Length (1/2 inch increments:
e.g. 5 = 2.5 inches, 1.0 inch
Minimum Order Length
End Fitting Symbol (Table IV)
Attachment Length
(1/2 inch increments:
e.g. 6 = 3 inches)
Attachment Symbol (Table III)
A-F-G
H-J-L-S
ROTATABLE
COUPLING
Now Available
with the “NESTOR”
C (Table I)
Add “-445” to Specify
Glenair’s Non-Detent,
Spring-Loaded, Self-
Locking Coupling. See
Page 41 for Details.
.50 (12.7)
Max
Attachment
Length
± .25 (6.4)
E Dia
(Table IV)
TABLE IV: END FITTING
Symbol
E Dia.
A
.140 (3.6)
B
.167 (4.2)
C
.182 (4.6)
D
.191 (4.9)
E
.125 (3.2)
F
.218 (5.5)
TABLE II: STANDARD FINISHES
GLENAIR
SYMBOL
B
C
G
M
NF
FINISH
Cadmium Plate, Olive Drab
Anodize, Black
Hard Coat, Anodic
Electroless Nickel
Cadmium Plate, Olive Drab Over
Electroless Nickel
TABLE III: ATTACHMENT OPTIONS
Symbol
Attachment
C
No attachment, body strap only
Bead chain, cres, passivate, with terminal
D
E
Link chain, cres, passivate, with reverse link
F
Wire rope, nylon jacket, with terminal
Nylon rope, with terminal
G
H
Wire rope, teflon jacket, with terminal
N
Attachment omitted
R
Wire rope, PVC jacket, with terminal
S
#8 Sash chain, cres, passivate
U
Wire rope, polyurethane jacket, with terminal
1. Metric dimensions (mm) are indicated in parentheses.
2. O-Ring not supplied with Connector Designators A and G.
3. Custom engraving available, consult factory.
© 2005 Glenair, Inc.
CAGE Code 06324
See Back Cover for Complete Finish Information
and Additional Finish Options
See inside back cover
fold-out or pages 13 and
14 for unabridged
Tables I and II.
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
E-Mail: sales@glenair.com
Series 34 - Page 2
