189-001NH11S: DescriptionFiber Optic Backshell With Split Clamp; File Size197KB，2 Pages; ManufacturerGlenair; Websitehttp://www.glenair.com/

Download Datasheet View All

189-001NH11S Overview

Fiber Optic Backshell With Split Clamp

Preview

Download Datasheet

View All

Backshells and

Accessories

189-001 NF 13 S

Product Series

Basic Number

Finish Symbol

(Table II)

Shell Size

(Table I)

A Thread

O-Ring

(See Note 4)

Spacer

(See

Note 4)

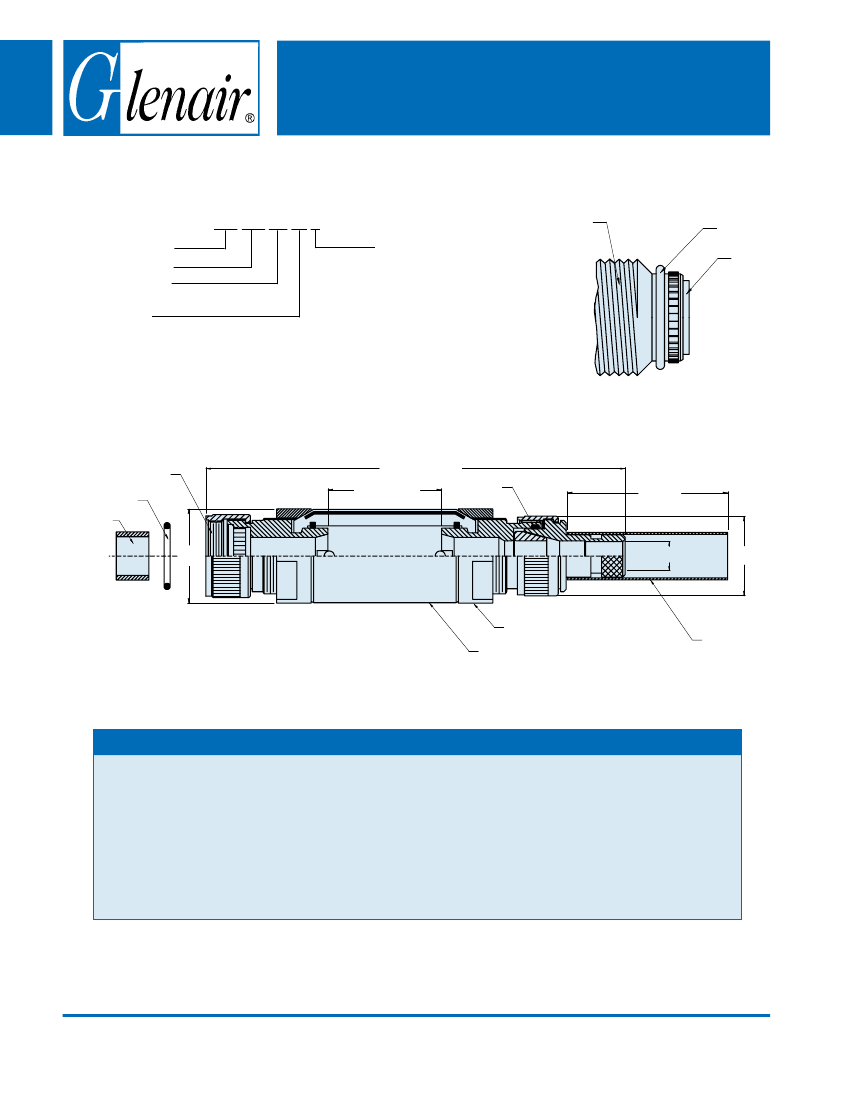

189-001

Fiber Optic Backshell With Split Clamp

MIL-PRF-28876 Environmental

Angular Function

S = Straight

R = 90°

P = 45°

M28876

Connector

End

O-Ring

Spacer

(See Note 5)

5.19 (131.8)

1.41 (35.8)

O-Ring

3.0

(76.2)

C Cable Entry

Jam Nut

Split Clamp

(See Note 4)

APPLICATION NOTES

1. Assembly identified with manufacturer’s name and P/N,

space permitting.

2. Glenair 600 series Backshell assembly tools are recommended

for assembly and installation; assembly procedure see GAP014.

3. Material/ Finish:

Adapters, Jam Nut, Ferrule, Coupling Nut,

Split Elbows & Spacer- Al Alloy/ See Table I.

O-Rings- Floursilicone/ N.A.

Shrink Sleeving- Polyolefin/ N.A.

Spacer- Al Alloy/ See Table I.

4. MIL-I-23053/4 Shrink Sleeving, O-Ring and Spacer

to be packaged loose in a plastic bag.

5. Assemble O-Rings and Spacer onto connector

as shown.

6. Metric dimensions (mm) are indicated in parentheses.

CAGE Code 06324

Printed in U.S.A.

GLENAIR, INC.

•

1211 AIR WAY

•

GLENDALE, CA 91201-2497

•

818-247-6000

•

FAX 818-500-9912

E-Mail: sales@glenair.com

www.glenair.com
