MS27477

Description
6 CONTACT(S), MALE, MIL SERIES CONNECTOR, SOLDER, RECEPTACLE
Categorysemiconductor    Other integrated circuit (IC)
File Size188KB,1 Pages
ManufacturerGlenair
Websitehttp://www.glenair.com/
Download Datasheet View All

MS27477 Overview

6 CONTACT(S), MALE, MIL SERIES CONNECTOR, SOLDER, RECEPTACLE

MIL-DTL-38999
Hermetic Connectors
MS27477
Jam Nut Mount Hermetic Receptacle
MIL-DTL-38999 Series II

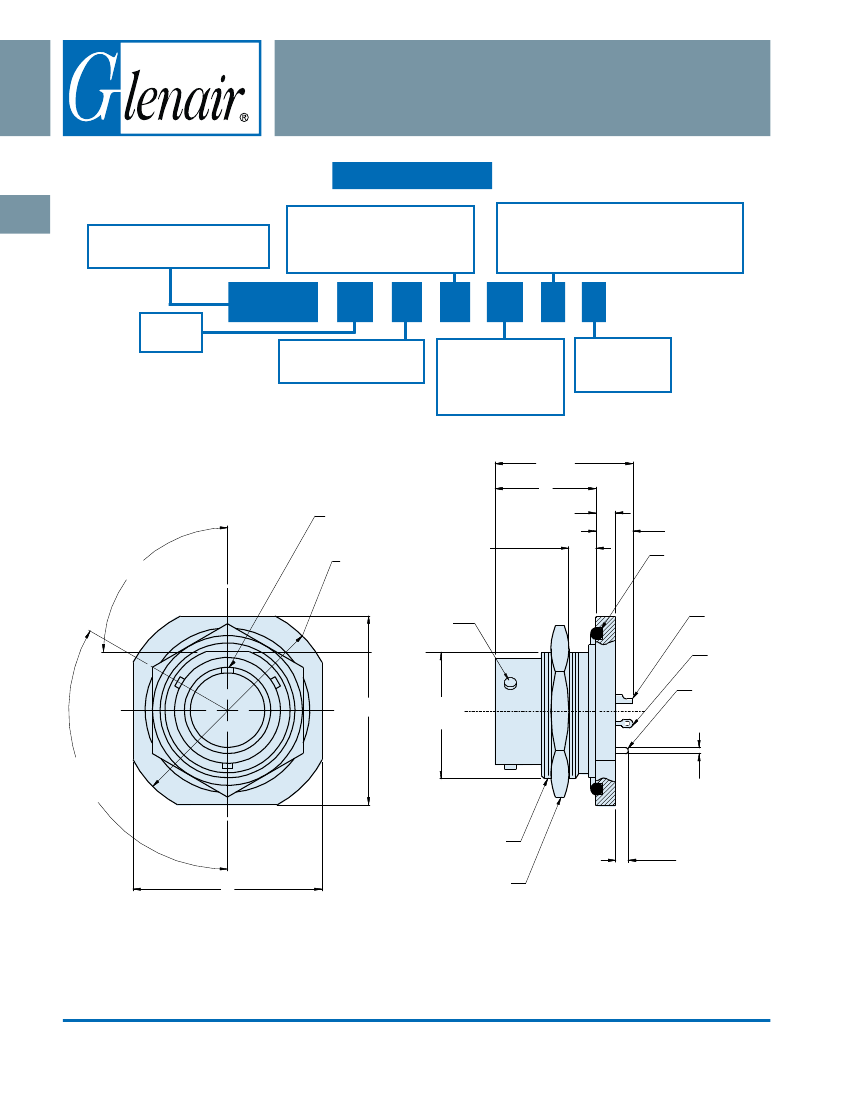

How To Order:
MS
B
Shell Style
MS27477
-
Jam Nut Mount, Series II
Connector Material / Finish
D
- Carbon Steel - Fused Tin Finish
E
- Stainless Steel - Passivate Finish
N
- Stainless Steel - Nickel Finish
Contact Termination
P
- Pin, Solder Cup
S
- Socket, Solder Cup
X
- Pin, Eyelet
Z
- Socket, Eyelet
C
- Pin, PCB
D
- Socket, PCB
Flex Feedthrough
Flex Feedthrough
MS27477
Class
Y-
Hermetic
Y
10
N
35
P
A
Alternate Key
Position
A, B, C, D
(Omit for Normal)
Shell Size
8,10,12,14,16,18,20,22,24
Insert Arrangement
MIL-DTL-38999 Series II
Hermetic Inserts Per
MIL-STD-1560;
See Pages B-2 - B-4
L Max
F
Master
Key
B DIA
.105/.084
.109/.062
Panel
Thickness
Contrasting
Color Pin Ends
(3 Places)
EP Max (Pin)
ES Max (Socket)
O-Ring
90° 85°
Solder Cup
Contact (P)
Eyelet
Contact (X)
Feedthrough
Contact (C)
D
C
Flat
120°
BSC
TYP
P
(See Table II)
A Thread
.175/.125
D
Nut
Per MS27512
Dimensions in Inches (millimeters) are subject to change without notice.
© 2013 Glenair, Inc.
U.S. CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
1211 AIR WAY
GLENDALE, CA 91201-2497
818-247-6000
FAX 818-500-9912
www.glenair.com
B-34
