35MH722MCA6.3X7 datasheet, PDF

Datasheet> All Categories > Passive components> capacitor> 35MH722MCA6.3X7

35MH722MCA6.3X7: DescriptionAluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 35V, 20% +Tol, 20% -Tol, 22uF, Through Hole Mount; CategoryPassive components capacitor; File Size40KB，2 Pages; Manufacturerrubycon; Websitehttp://www.rubycon.co.jp/cn/; Environmental Compliance

Download Datasheet Parametric View All

35MH722MCA6.3X7 Overview

Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 35V, 20% +Tol, 20% -Tol, 22uF, Through Hole Mount

35MH722MCA6.3X7 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	rubycon
package instruction	,
Reach Compliance Code	compliant
ECCN code	EAR99
capacitance	22 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR
diameter	6.3 mm
dielectric materials	ALUMINUM (WET)
JESD-609 code	e3
leakage current	0.0077 mA
length	7 mm
Manufacturer's serial number	MH7
Installation features	THROUGH HOLE MOUNT
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Package shape	CYLINDRICAL PACKAGE
Package form	Radial
method of packing	Bulk
polarity	POLARIZED
positive tolerance	20%
Rated (DC) voltage (URdc)	35 V
ripple current	60 mA
series	MH7
surface mount	NO
Delta tangent	0.12
Terminal surface	Tin (Sn)
Terminal pitch	2.5 mm
Terminal shape	WIRE

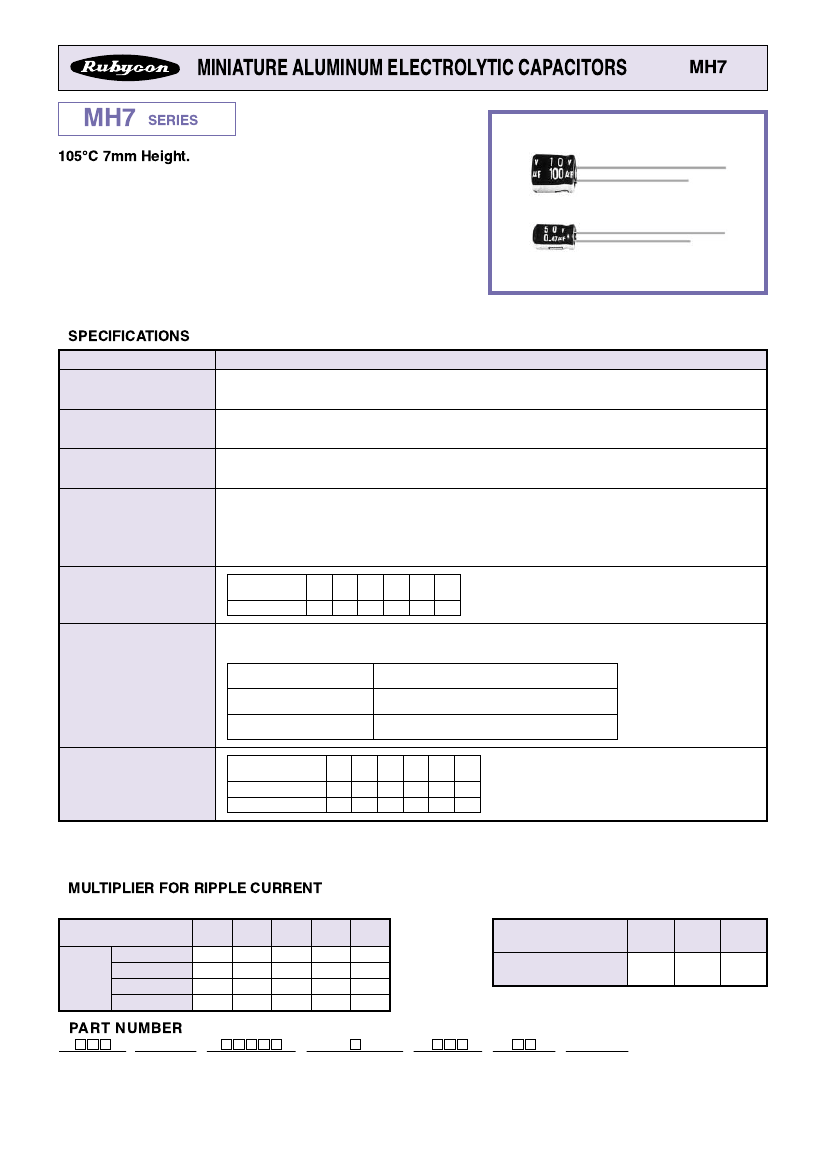

35MH722MCA6.3X7 Preview

MINIATURE ALUMINUM ELECTROLYTIC CAPACITORS

MH7

SERIES

105¡C 7mm Height.

♦

SPECIFICATIONS

Items

Category Temperature Range

Characteristics

-40~+105°C

6.3~50V.DC

±20%(20°C,

120Hz)

Ι=0.01CV

or 3µA whichever is greater.

(After 2 minutes application of rated voltage)

Rated Voltage Range

Capacitance Tolerance

Leakage Current(MAX)

Ι=

Leakage Current

(µA)

Rated Capacitance

(µF)

(20°C, 120Hz)

Rated Voltage

(V)

Dissipation Factor(MAX)

Rated Voltage

6.3 10 16 25 35 50

(V)

tan

0.24 0.20 0.16 0.14 0.12 0.10

After applying rated voltage with rated ripple current for 1000 hrs at 105°C, the capacitors shall meet the following requirements.

Within

±25%

of the initial value.

Not more than 200% of the specified value.

Not more than the specified value.

Capacitance Change

Endurance

Dissipation Factor

Leakage Current

Rated Voltage

(V)

Z(-25°C)/Z(20°C)

Z(-40°C)/Z(20°C)

Low Temperature Stability

Impedance Ratio(MAX)

6.3

(120Hz)

♦

MULTIPLIER FOR RIPPLE CURRENT

(1)Frequency coefficient

(Hz)

0.1~1µF

Coefficient

2.2~4.7µF

10~47µF

100µF

Frequency

(2)Temperature coefficient

500

1.20

1.10

1.30

1.15

10k<

1.50

1.20

Ambient Temperature

60(50) 120

0.50

0.65

0.8

1.0

(°C)

105

1.0

1.7

65>

2.1

Coefficient

♦

PART

NUMBER

MH7

Rated Voltage

Series

Rated Capacitance

Capacitance Tolerance

Option

Lead Forming

D×L

Case Size

MINIATURE ALUMINUM ELECTROLYTIC CAPACITORS

MH7

♦

DIMENSIONS

SLEEVE

(mm)

ød

øD

F±0.5

0.45

6.3

ød

1.5

2.0

2.5

L+1MAX

15MIN

4MIN

øD+0.5MAX

♦

STANDARD SIZE, RATED RIPPLE CURRENT

Size øD×L(mm), Ripple Current (mA r.m.s./105°C, 120Hz)

(V.DC)

Cap(µF)

0.1

0.22

0.33

0.47

2.2

3.3

4.7

100

4×7

5×7

6.3×7

5×7

6.3×7

4×7

5×7

6.3×7

5×7

6.3×7

4×7

5×7

6.3×7

6.3

(0J)

Size

Ripple

(1A)

Size

Ripple

(1C)

Size

Ripple

(1E)

Size

Ripple

(1V)

Size

Ripple

(1H)

Size

4×7

5×7

6.3×7

Ripple

1.0

2.3

3.5

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >
