PS6028-101M

Description
SMD Power Inductors Shielded
File Size125KB,7 Pages
ManufacturerPREMO
Websitehttp://www.grupopremo.com
Download Datasheet View All

PS6028-101M Overview

SMD Power Inductors Shielded

PS6028 , PS7032
&
PS7045
SMD Power Inductors Shielded
C/Severo Ochoa 33 – Parque Tecnológico de Andalucía. 29590 Campanillas .Málaga (Spain)
Phone
+34 951 231 320 Fax +34 951 231 321
E-mail:
mar.villarrubia@grupopremo.com
Web http://www.grupopremo.com

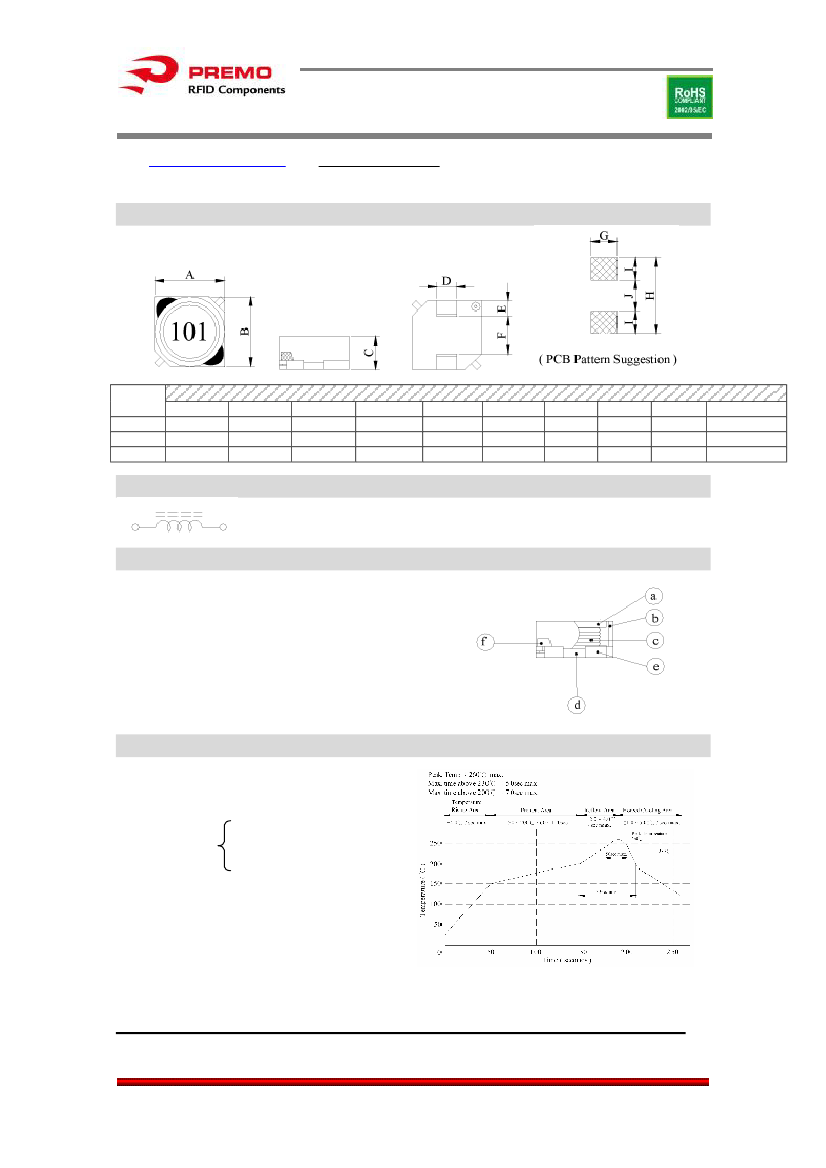

1. Configuration & Dimensions
Series
PS6028
PS7032
PS7045
Dimensions [mm]
A
6.00±0.3
7.00±0.3
7.00±0.3
B
6.00±0.3
7.00±0.3
7.00±0.3
C
2.8±0.3
3.20±0.2
4.50±0.3
D
2.0±0.3
2.00 typ.
2.00 typ.
E(typ.)
1.9
1.50
1.50
F
2.2 ref.
4.00 typ.
4.00 typ.
G(ref.)
2.4
2.40
2.40
H(ref.)
6.7
7.80
7.80
I(ref.)
2.3
1.80
1.80
J(ref.)
2.1
4.20
4.20
2. Schematic Diagram
3. Materials
a.- Core : Ferrite DR core
b.- Core : Ferrite RI core
c.- Wire : Enamelled copper wire (class F)
d.- Base : LCP Base
e.- Terminal : Cu / Ni / Sn
f.- Adhesive : Epoxy resin
g.- Remark : Lead content 200ppm max. include ferrite
4. General Specification
a.- Temp. rise : 30ºC max. (PS7032, PS7045)
b.- Storage temp. : -40ºC ~ +125ºC
c.- Operating temp.
-40ºC ~ +125ºC (PS6028)
(Temp. rise included)
-25ºC ~ +105ºC (PS7032, PS7045)
d.- Resistance to solder heat : 260ºC. 10 secs

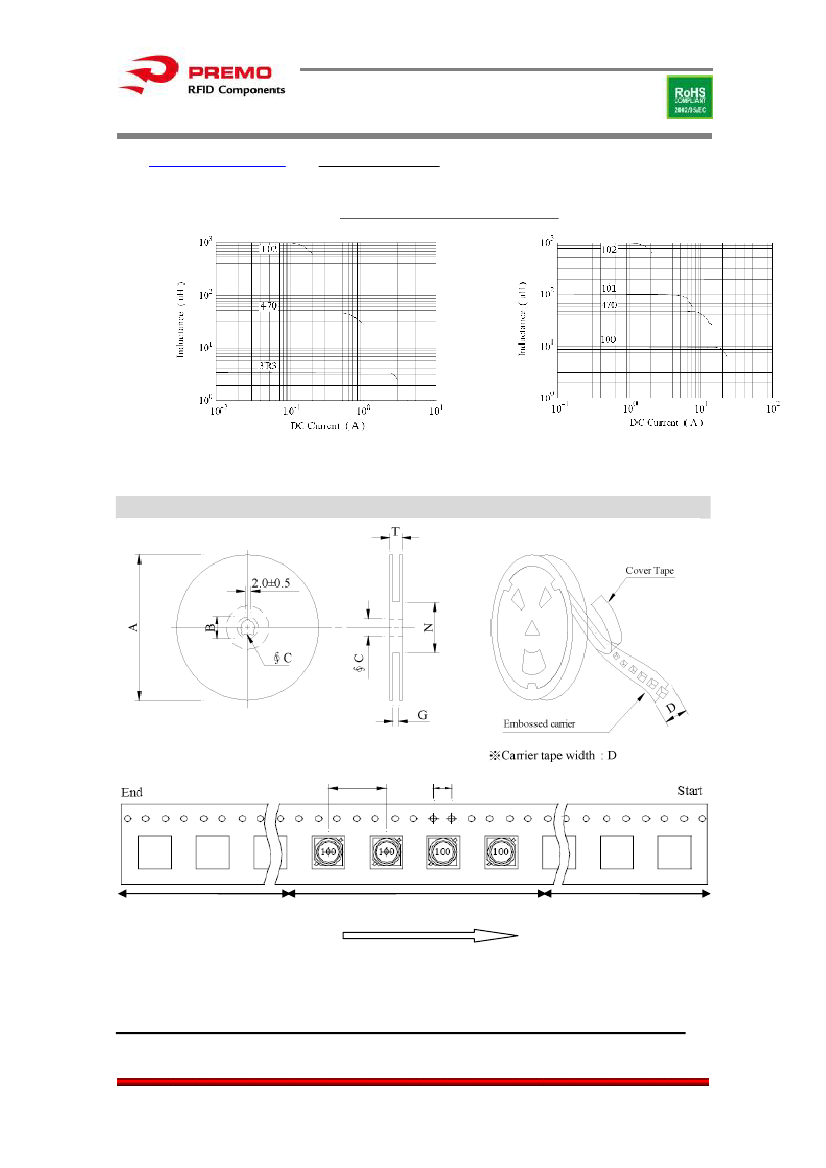

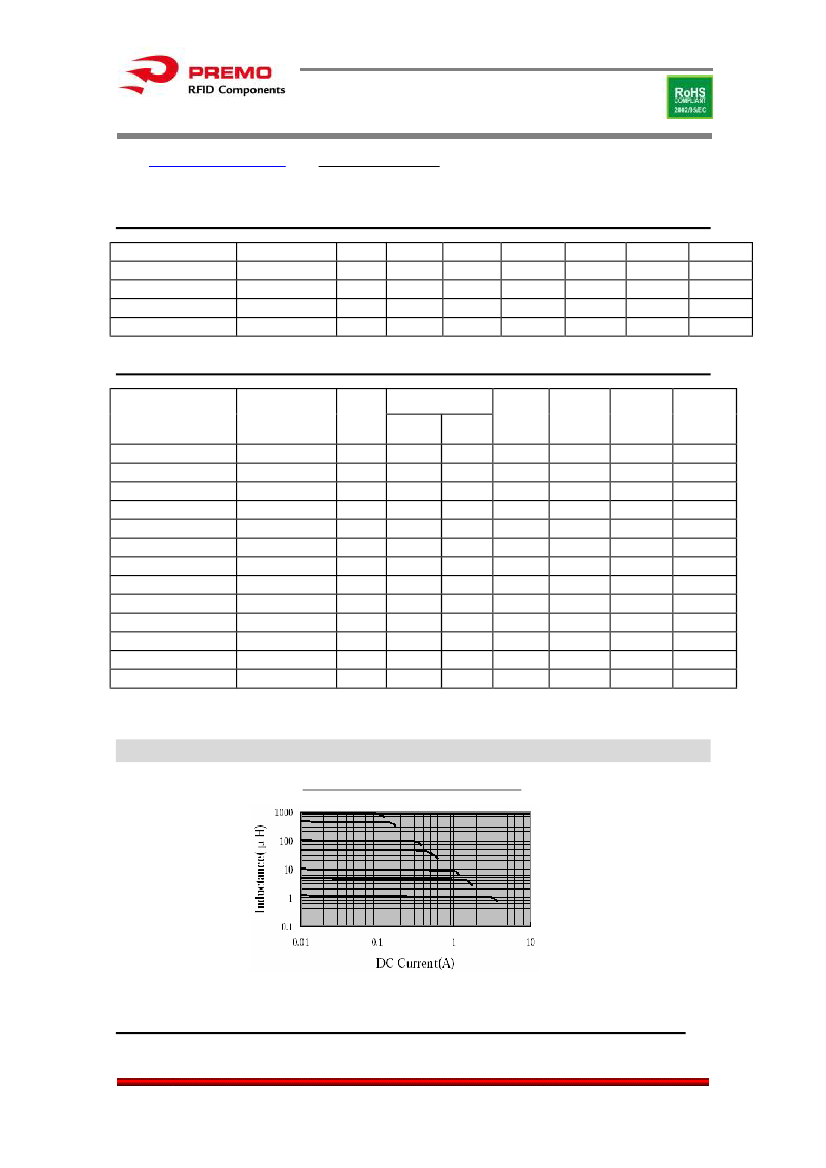

1
SMD Power Inductors
PREMO
All rights reserved. Passing on of this document, use and communication of contents not permitted without written authorisation.
