KM616513J-25 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > storage> storage> KM616513J-25

KM616513J-25: DescriptionStandard SRAM, 32KX16, 25ns, CMOS, PDSO40, 0.400 INCH, PLASTIC, SOJ-40; Categorystorage storage; File Size176KB，7 Pages; ManufacturerSAMSUNG; Websitehttp://www.samsung.com/Products/Semiconductor/

Download Datasheet Parametric Compare View All

KM616513J-25 Overview

Standard SRAM, 32KX16, 25ns, CMOS, PDSO40, 0.400 INCH, PLASTIC, SOJ-40

KM616513J-25 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	SAMSUNG
Parts packaging code	SOJ
package instruction	SOJ, SOJ40,.44
Contacts	40
Reach Compliance Code	unknown
ECCN code	EAR99
Maximum access time	25 ns
I/O type	COMMON
JESD-30 code	R-PDSO-J40
JESD-609 code	e0
length	26.04 mm
memory density	524288 bit
Memory IC Type	STANDARD SRAM
memory width	16
Number of functions	1
Number of ports	1
Number of terminals	40
word count	32768 words
character code	32000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	32KX16
Output characteristics	3-STATE
Exportable	YES
Package body material	PLASTIC/EPOXY
encapsulated code	SOJ
Encapsulate equivalent code	SOJ40,.44
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Parallel/Serial	PARALLEL
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5 V
Certification status	Not Qualified
Maximum seat height	3.76 mm
Maximum standby current	0.001 A
Minimum standby current	4.5 V
Maximum slew rate	0.18 mA
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	J BEND
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	10.16 mm

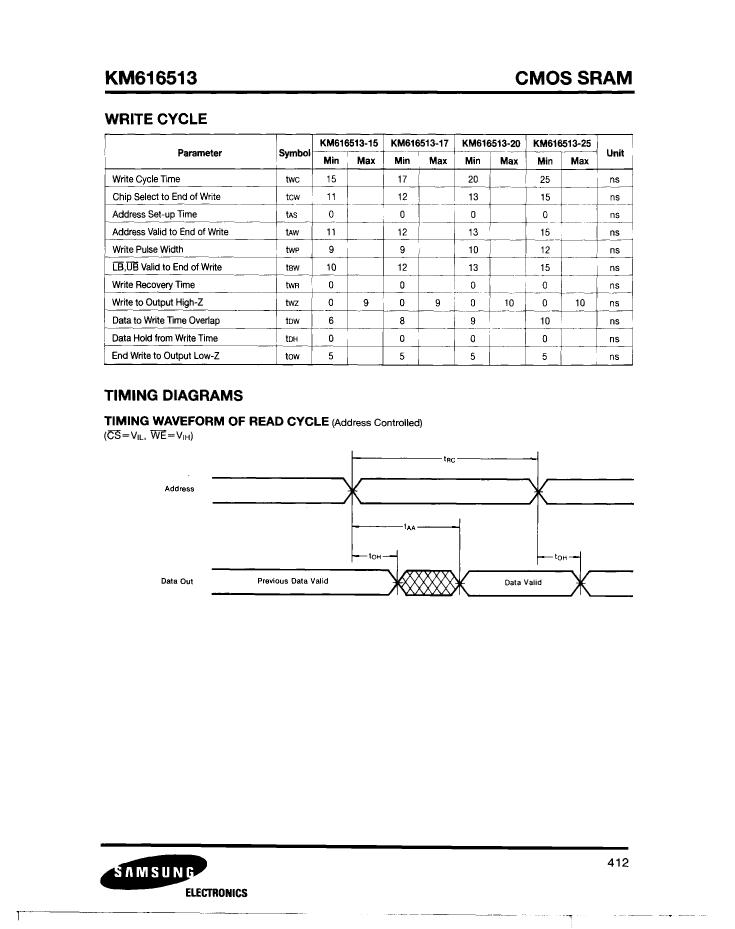

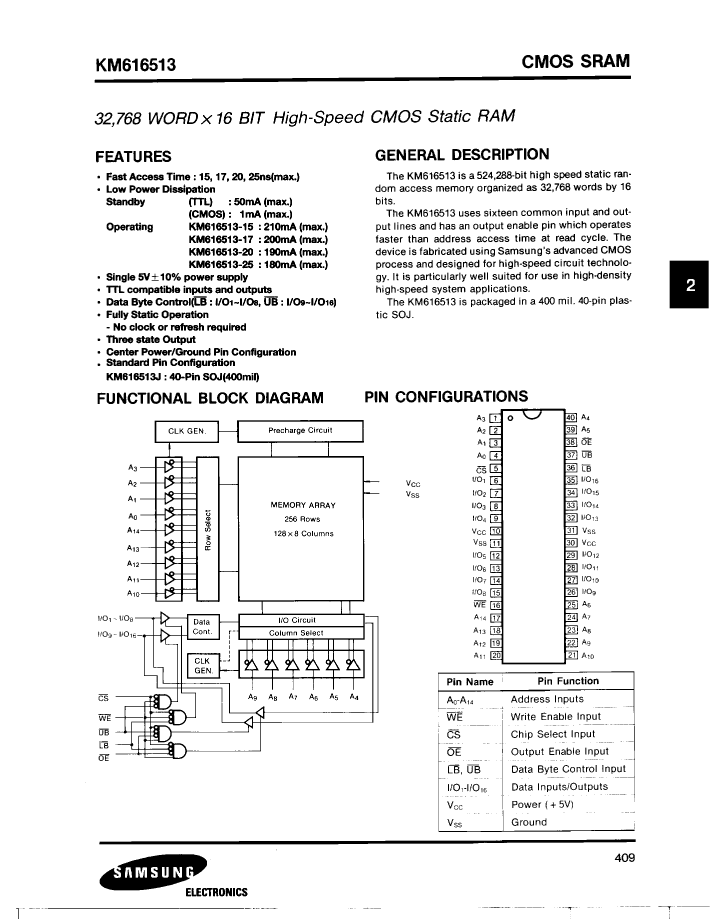

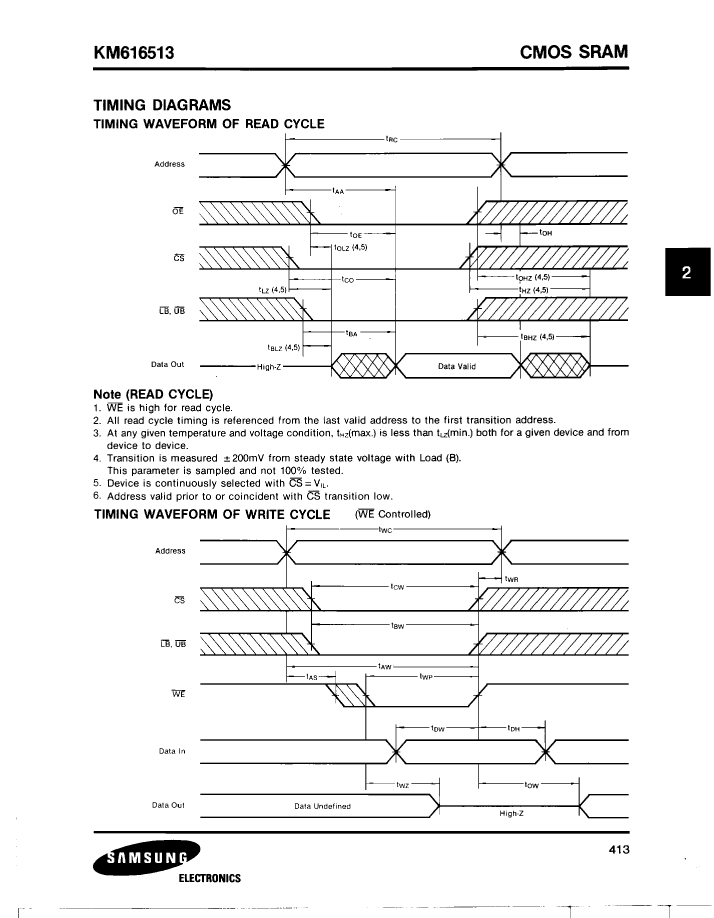

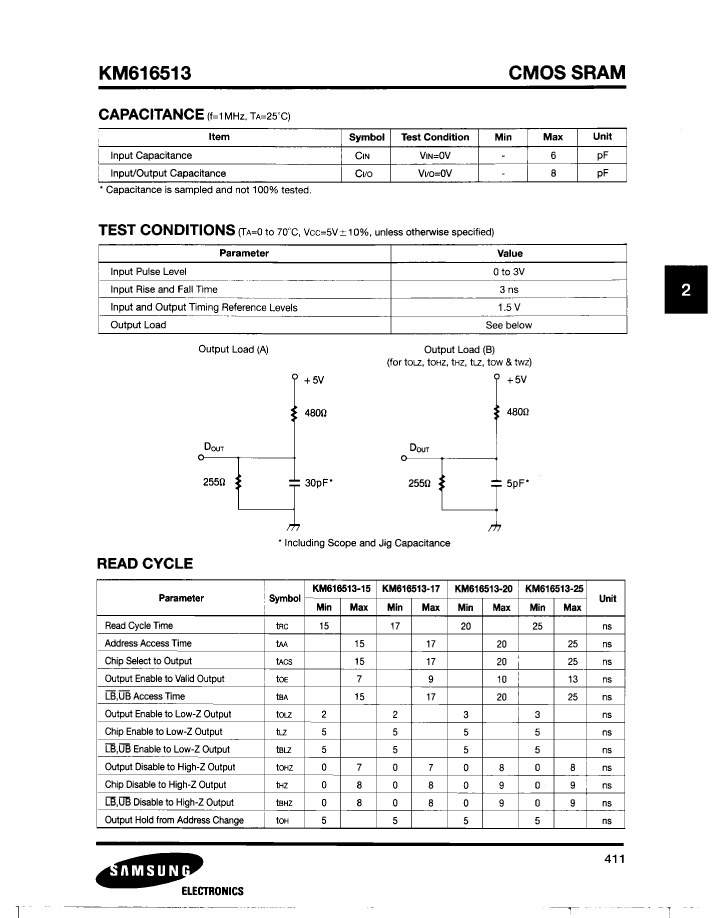

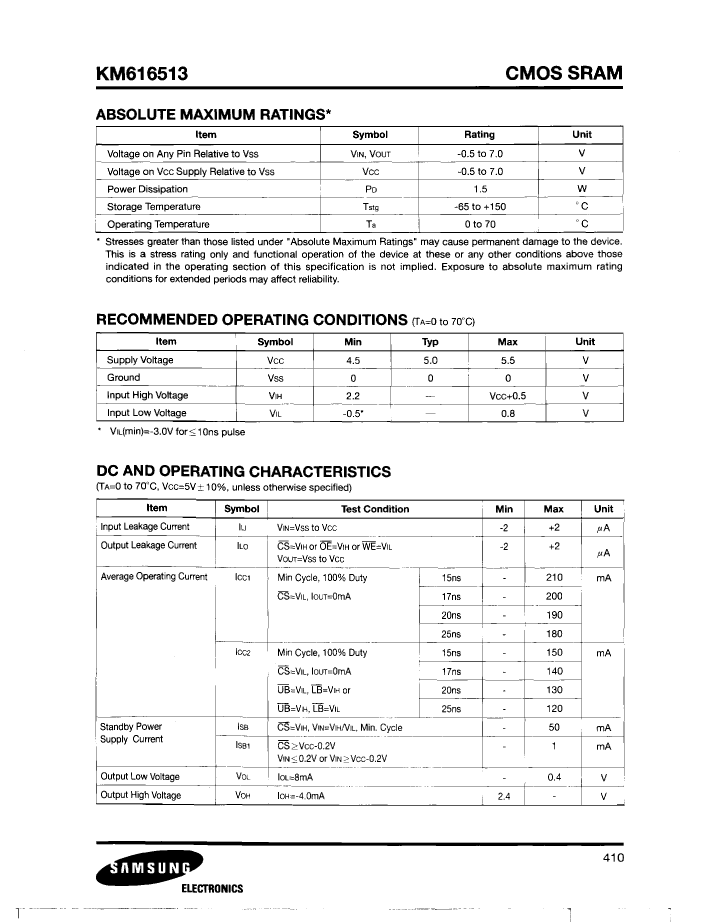

KM616513J-25 Preview

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

KM616513J-25 Related Products

	KM616513J-25	KM616513J-17	KM616513J-15	KM616513J-20
Description	Standard SRAM, 32KX16, 25ns, CMOS, PDSO40, 0.400 INCH, PLASTIC, SOJ-40	Standard SRAM, 32KX16, 17ns, CMOS, PDSO40, 0.400 INCH, PLASTIC, SOJ-40	Standard SRAM, 32KX16, 15ns, CMOS, PDSO40, 0.400 INCH, PLASTIC, SOJ-40	Standard SRAM, 32KX16, 20ns, CMOS, PDSO40, 0.400 INCH, PLASTIC, SOJ-40
Is it lead-free?	Contains lead	Contains lead	Contains lead	Contains lead
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible
Maker	SAMSUNG	SAMSUNG	SAMSUNG	SAMSUNG
Parts packaging code	SOJ	SOJ	SOJ	SOJ
package instruction	SOJ, SOJ40,.44	SOJ, SOJ40,.44	SOJ, SOJ40,.44	SOJ, SOJ40,.44
Contacts	40	40	40	40
Reach Compliance Code	unknown	unknown	unknown	unknown
ECCN code	EAR99	3A991.B.2.B	3A991.B.2.B	3A991.B.2.B
Maximum access time	25 ns	17 ns	15 ns	20 ns
I/O type	COMMON	COMMON	COMMON	COMMON
JESD-30 code	R-PDSO-J40	R-PDSO-J40	R-PDSO-J40	R-PDSO-J40
JESD-609 code	e0	e0	e0	e0
length	26.04 mm	26.04 mm	26.04 mm	26.04 mm
memory density	524288 bit	524288 bit	524288 bit	524288 bit
Memory IC Type	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM
memory width	16	16	16	16
Number of functions	1	1	1	1
Number of ports	1	1	1	1
Number of terminals	40	40	40	40
word count	32768 words	32768 words	32768 words	32768 words
character code	32000	32000	32000	32000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C
organize	32KX16	32KX16	32KX16	32KX16
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE
Exportable	YES	YES	YES	YES
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOJ	SOJ	SOJ	SOJ
Encapsulate equivalent code	SOJ40,.44	SOJ40,.44	SOJ40,.44	SOJ40,.44
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
Parallel/Serial	PARALLEL	PARALLEL	PARALLEL	PARALLEL
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
power supply	5 V	5 V	5 V	5 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	3.76 mm	3.76 mm	3.76 mm	3.76 mm
Maximum standby current	0.001 A	0.001 A	0.001 A	0.001 A
Minimum standby current	4.5 V	4.5 V	4.5 V	4.5 V
Maximum slew rate	0.18 mA	0.2 mA	0.21 mA	0.19 mA
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V
surface mount	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	J BEND	J BEND	J BEND	J BEND
Terminal pitch	1.27 mm	1.27 mm	1.27 mm	1.27 mm
Terminal location	DUAL	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
width	10.16 mm	10.16 mm	10.16 mm	10.16 mm
